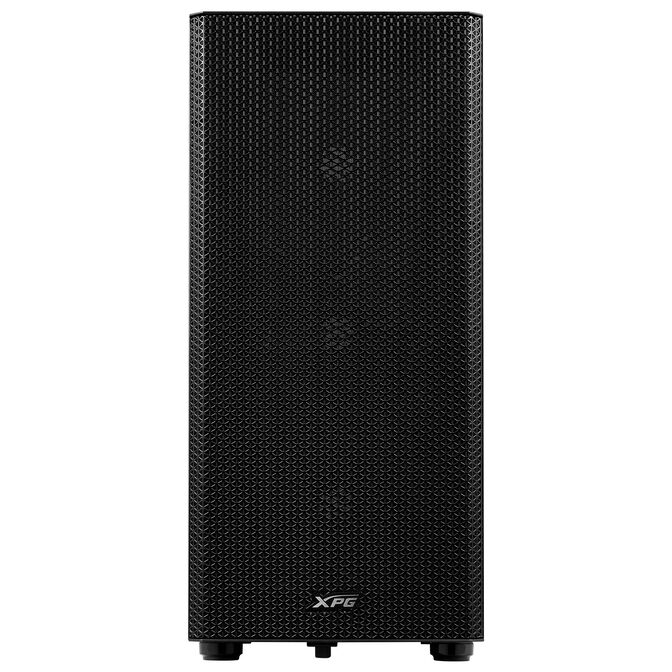

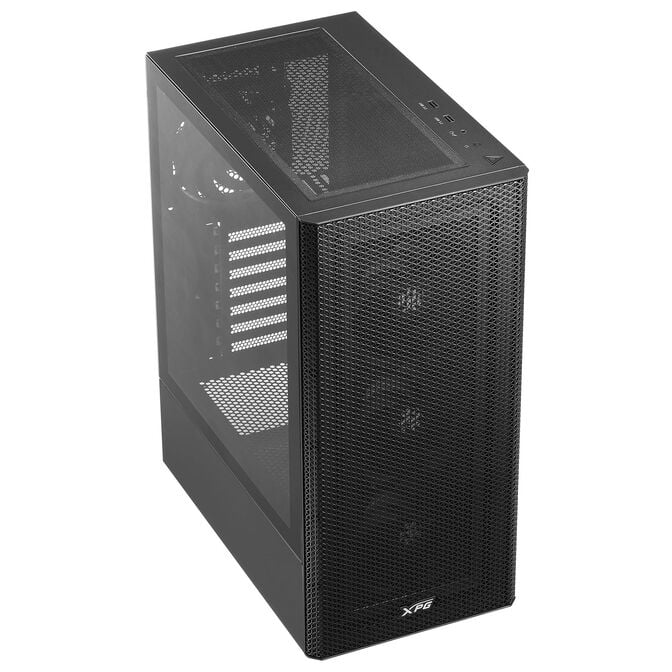

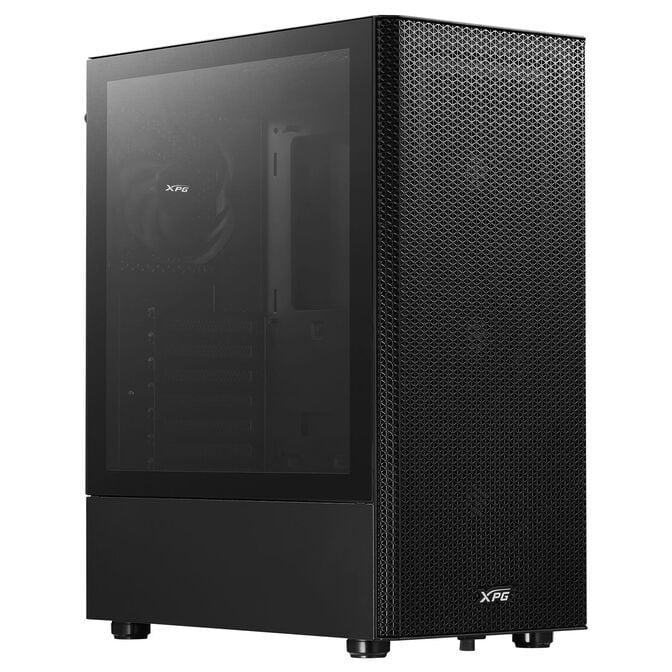

The XPG VALOR MESH is a compact mid-tower for gaming PCs and versatile desktop systems. The breathable mesh front and four pre-installed fans provide a solid foundation for cooling your hardware.
- Mesh front – supplies your hardware with fresh cooling air
- Four 120mm fans – deliver airflow straight out of the box
- 360mm radiator – enables powerful cooling at the front
- 305mm GPU clearance – applies with front fans installed
- Tempered glass – showcases your installed components
Compact mid-tower for ATX systems
Benefit from high compatibility with a compact design with ADATA’s mid-tower. It offers space for large GPUs, powerful cooling systems, and modern cable management – without feeling bulky.
The case supports Mini-ITX, Micro-ATX, and ATX motherboards. With a depth of 371 mm, it remains comparatively compact. Graphics cards can be up to 335 mm long without front fans installed. With the pre-installed front fans, up to 305 mm is available.
High airflow straight out of the box
Keep your components at optimal temperatures with the XPG Valor Mesh, the perfect choice for those who value powerful cooling. Its breathable design and optimised airflow architecture ensure ideal cooling, even during long gaming sessions or heavy system loads – a case that perfectly combines performance and cooling.

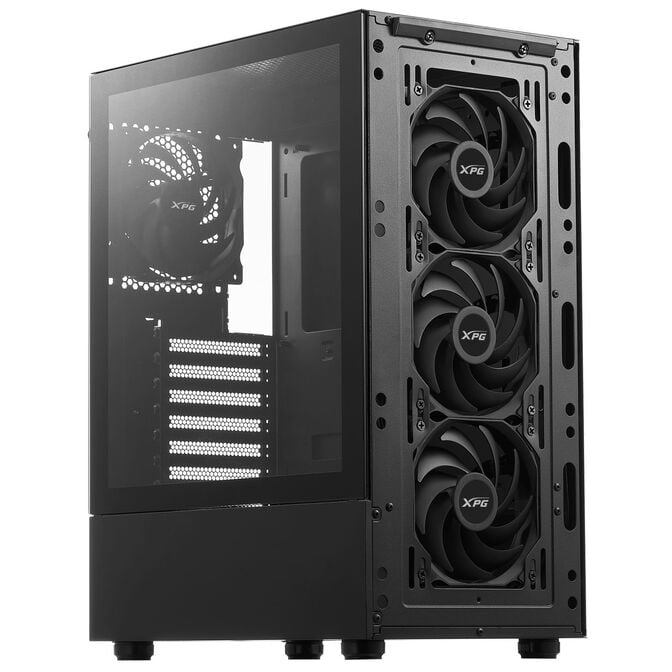

Three 120mm fans at the front draw cool air into the case. Another 120mm fan at the rear expels warm air. The mesh front supports as free an airflow as possible. CPU coolers can be up to 166 mm in height.
Flexible cooling and storage options
You can install radiators up to 360 mm at the front. The top supports radiators up to 240 mm or two 140mm fans. Several 2.5- and 3.5-inch drive bays provide space for SSDs and HDDs. Two USB 3.2 Gen 1 ports and an audio jack are available on the I/O panel.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
371 mm
|
|
Width
|
210 mm
|
|
Height
|
460 mm
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
166 mm
|
|
Max. GPU Length
|
335 mm
|
|
Max. PSU Length / Depth
|
180 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Front)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (2x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
6
|
|
120 mm fans
|
6
|
|
140 mm fans
|
4
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Dual (240 mm), 1x Single (120 mm), 1x Triple (360 mm)
|
|
Radiator/AIO Support (Front)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Radiator/AIO Support (Top)
|
240mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
3
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Top
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Front
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
SPCC (steel), Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
4x 120 mm
|
