Akasa Compact Power 200 Adapter, 24-Pin ATX, 4-Pin Power DIN - 200 Watt

Akasa Compact Power 200 Adapter, 24-Pin ATX, 4-Pin Power DIN - 200 Watt

Compact power supply for SFF builds, with integrated overvoltage and overload protection, up to 200W power via 4-pin Power DIN.
37,50 €
incl. VAT , add. delivery costs starting from 4.99€
SKU ZUUS-723 |
EAN 4710679552798 |
MPN AK-PE200-01 |
Manufacturer Akasa

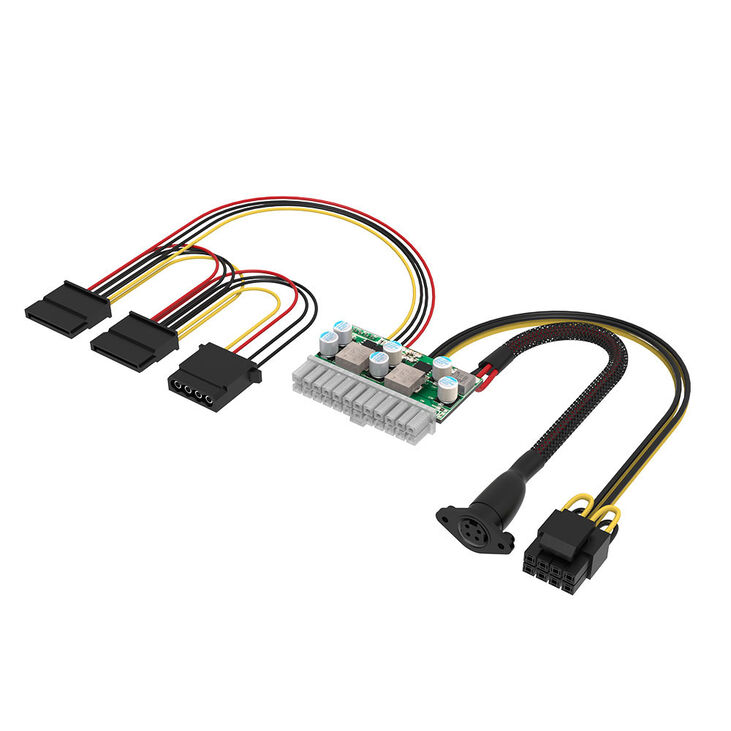

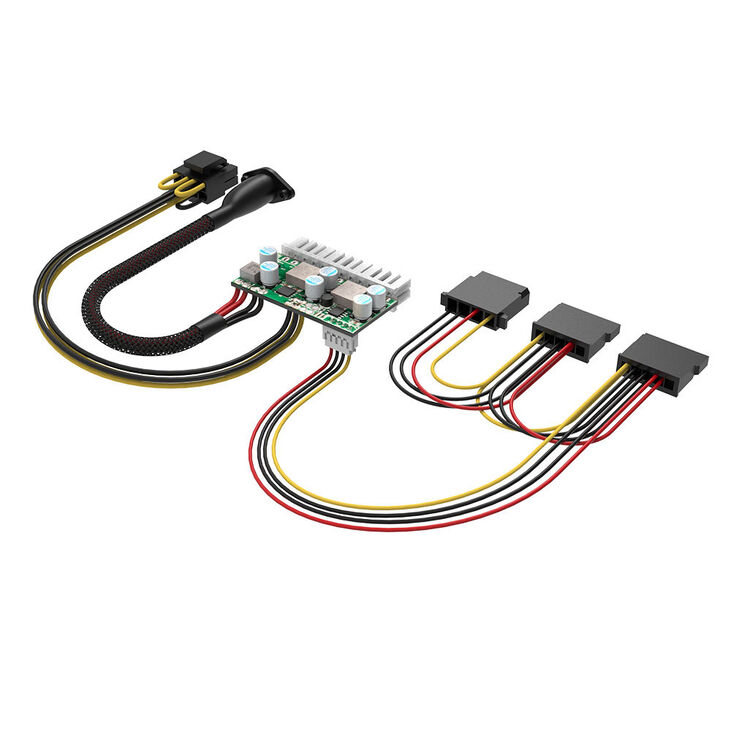

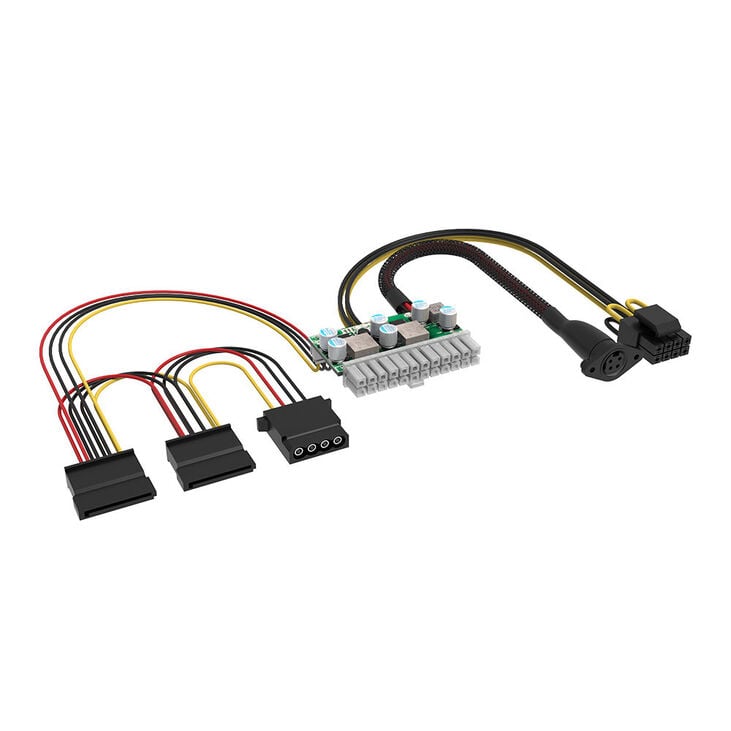

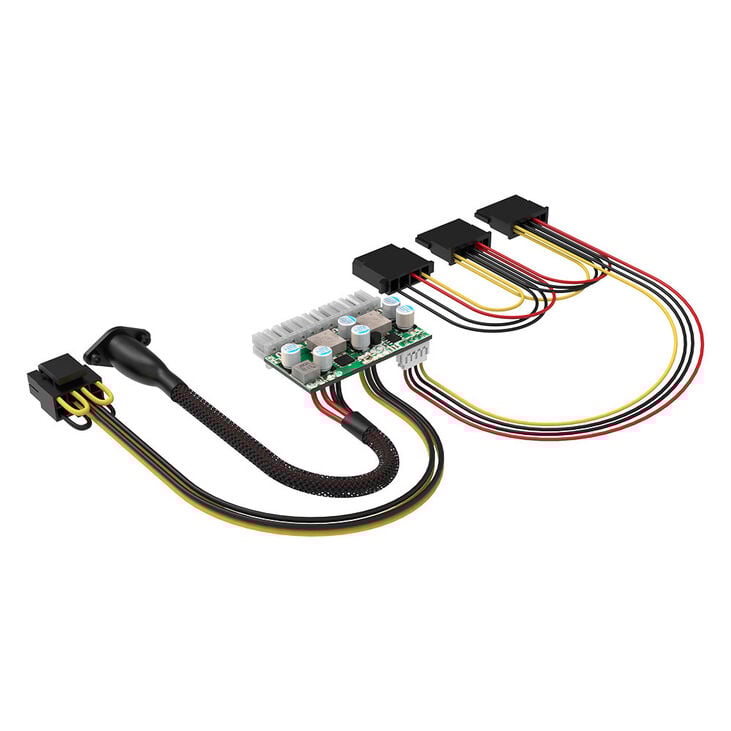

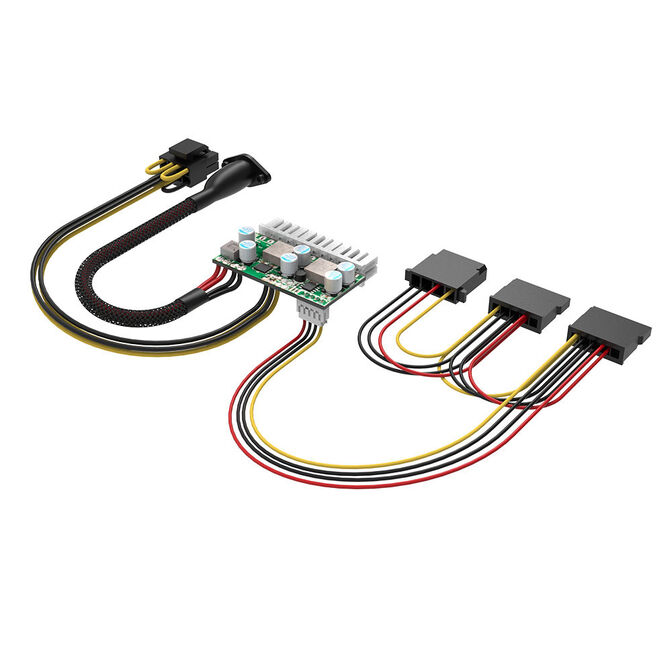

With Compact Power 200, Akasa offers a particularly compact power supply in the form of an adapter, ensuring even the smallest builds are properly and safely powered. With up to 200 W of power delivered through a 4-pin Power DIN connector, your SFF builds are definitely covered, whether it's an HTPC for the living room or a mini workstation.

Installation is quick and easy by plugging the 24-pin ATX connector directly into the motherboard. You connect the other cables to your components as usual. Power is supplied via the 4-pin DIN power connector. Despite its small form factor, this unit also includes two protection circuits to ensure your build is safely powered.

  • Dimensions: 39 x 12.5 x 56 mm (W x H x D)
  • Weight: 100 g
  • Input voltage: 12V DC (direct current)
  • Power: 200 W
    +3.3V: 5 A / 16.5 W
    +5V: 5 A / 25 W
    +12V: 15 A / 180 W (combined)
    -12V: 0.1 A / 1.2 W
    +5Vsb: 1 A / 5 W
  • Connections:
    1x 4-pin DIN power connector (300 mm, female, input)
    1x 8-pin CPU (300 mm)
    2x SATA + 1x Molex (265 - 170 - 150 mm)
    1x 24-pin ATX
  • Protection circuits:
    OVP (overvoltage and undervoltage protection)
    OPP (overload protection)
  • Scope of delivery:
    1x Akasa Compact Power 200
Colour
Primary Colour
Black
Main Colour Cable
Black
Secondary Colour Cable
Red, Yellow
Main colour connector / plug
Black
Secondary colour connector / plug
White
Dimensions
Length / Depth
56 mm
Width
39 mm
Height
12.5 mm
Weight
100 g
Cable Specifications
Cable Type
Adaptor cable
Shielded Cable
No
Sleeved Cable
No
Angle
Connector angled
No
Materials
Materials
Plastic
Lighting
Lighting / RGB
No
