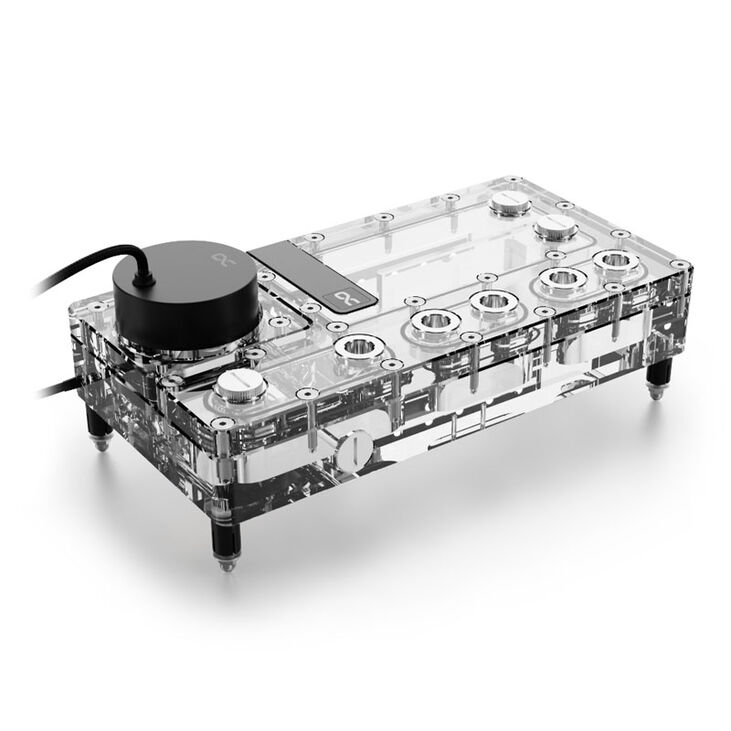

Alphacool Core Distro Plate 240 mm Right with VPP, ARGB - Acrylic

Alphacool Core Distro Plate 240 mm Right with VPP, ARGB - Acrylic

Distroplate for water cooling, with VPP pump, integrated reservoir, easy to install, integrated RGB lighting
199,90 €
incl. VAT , add. delivery costs starting from 4.99€
SKU WACH-855 |
EAN 4250197154789 |
MPN 15478 |
Manufacturer Alphacool
  • Extremely compact and versatile in use
  • With pre-installed VPP pump on the left side of the reservoir
  • Integrated reservoir with a capacity of 164 ml
  • A total of 8x G1/4 inch ports for easy integration into the loop
  • Click system for easy installation in your case

Distro Plate with Pump for Custom Water Cooling

With the Alphacool Core Distro Plate 240 mm Right with VPP, you won't have to compromise on cooling your high-end hardware. The numerous ports allow you to simplify the complex tube routing in your system, reducing the need for bends. With the integrated pump, you can easily ensure sufficient flow in your loop.

Versatile and Easy Placement in Your Case

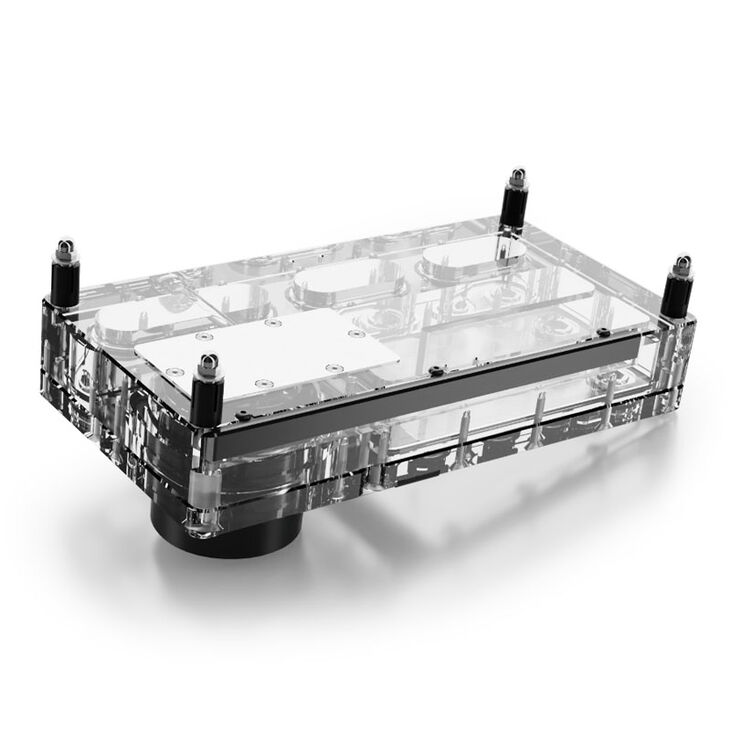

Thanks to the total of 8 G1/4 inch threads, you can integrate the reservoir into your water cooling loop without much effort. To save space, you can easily mount the combination of reservoir, distro plate, and pump to a radiator or use the included click mechanism. With this mechanism, the distro plate can be mounted to the back panel of your case using sleeves and simply clicked into place.

Integrated Pump

The integrated VPP pump provides a flow rate of 340 liters per hour, ensuring adequate flow for your loop. Additionally, you don't have to worry about fitting the pump, as it is already embedded in the distro plate.

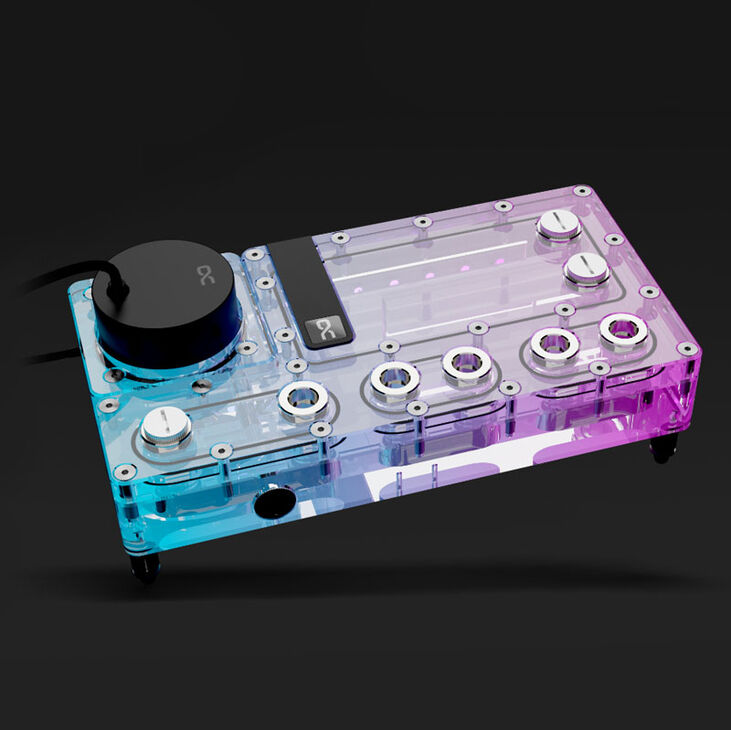

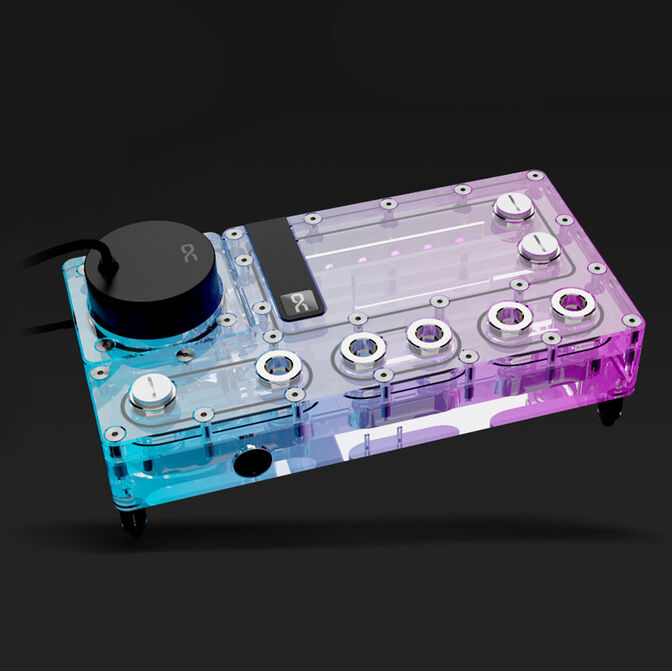

RGB Lighting for Eye-Catching Builds

The acrylic distro plate offers an integrated RGB lighting highlight for your gaming PC. The LEDs make your build shine in all imaginable colors. You have the choice and can select the lighting effects and colors that suit you best through software.

  • Distroplate:
    Dimensions: 240 x 125 x 68.80 mm (L x W x H)
    Material: Acrylic
    Weight: 1260 g
    Colour: Transparent
    Fill volume: approx. 164 ml
    Threads:
    8x G1/4 inch
    Operating temperature: max. 60 °C
    Pump compatibility:
    D5
  • Pump: Dimensions: 360 x 125 x 93.31 mm (L x W x H)
    Material: Plastic, Aluminium, Ceramic
    Colour: Black
    Weight: 276 g
    Maximum head: 4.25 m
    Maximum flow rate: 340 L/h
    Control range: 2500 - 4500 RPM
    Starting voltage: 12 V DC
  • Lighting:
    Number of LEDs: 12 digitally addressable RGB LEDs
    Connectors: 3-Pin JST + 3-Pin 5V

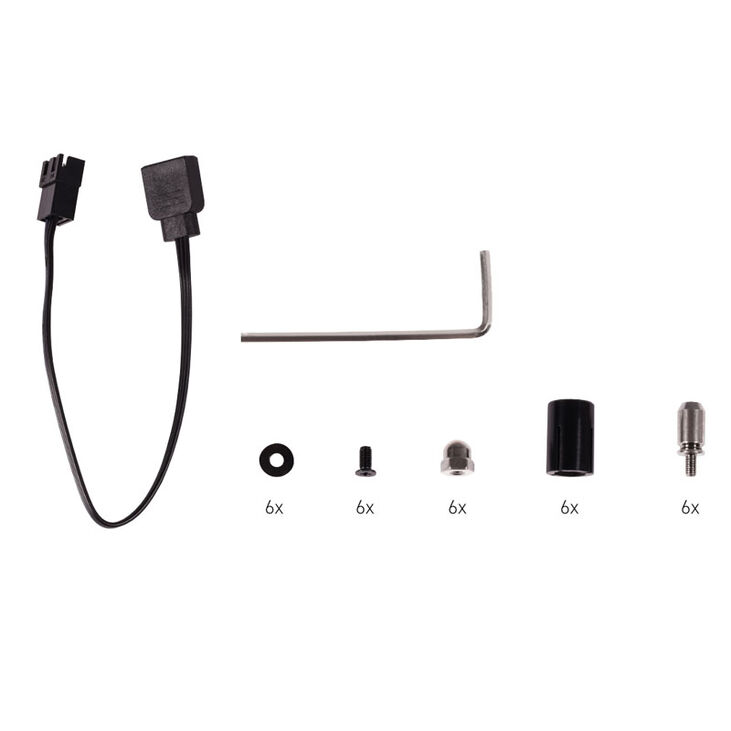

  • Package contents:
    1x 240 Distroplate
    1x VPP Pump
    1x Mounting kit

Note: Please only use with clear, transparent water cooling fluids. Particles and additives in pastel fluids can clog and permanently damage water cooling products such as radiators, pumps, coolers, and hoses. This may result in the manufacturer's warranty being void.
Dimensions
Width
125 mm
Height
68.8 mm
Internal Ports
RGB / LED connectors
1x Digital RGB (3-Pin 5VDG), 1x Digital RGB PHANTEKS (3-Pin 5VDG)
Lighting
Lighting Colour
RGB
