- Custom-fit for INNO3D 5080 graphics cards
- Effective cooling performance through chrome-plated copper heatsink
- Impressive aesthetics with transparent design
- Four G1/4-inch connections at the back for integration into the circuit
- Backplate included in the delivery
- Addressable RGB lighting
Alphacool Core Geforce RTX 5080 Reference: Powerful GPU Block

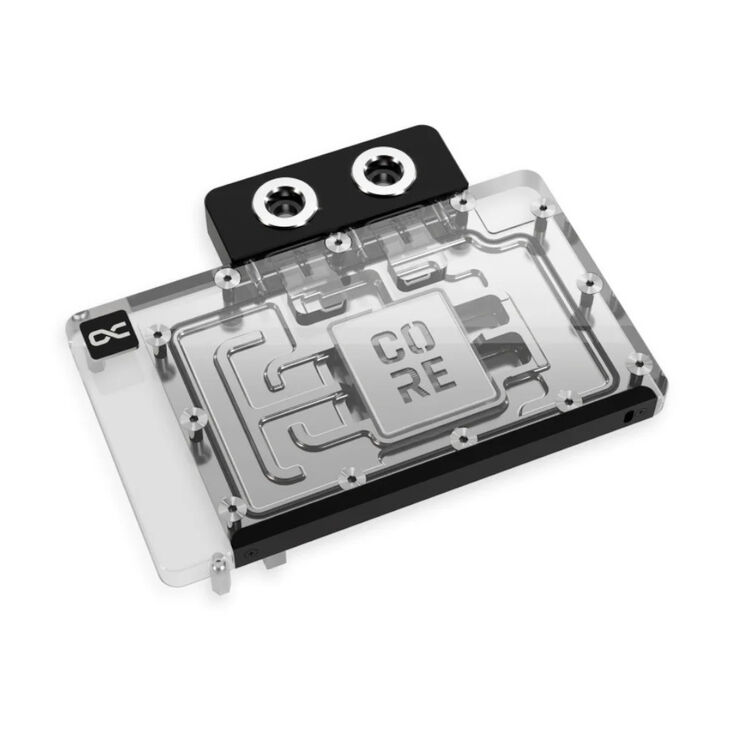

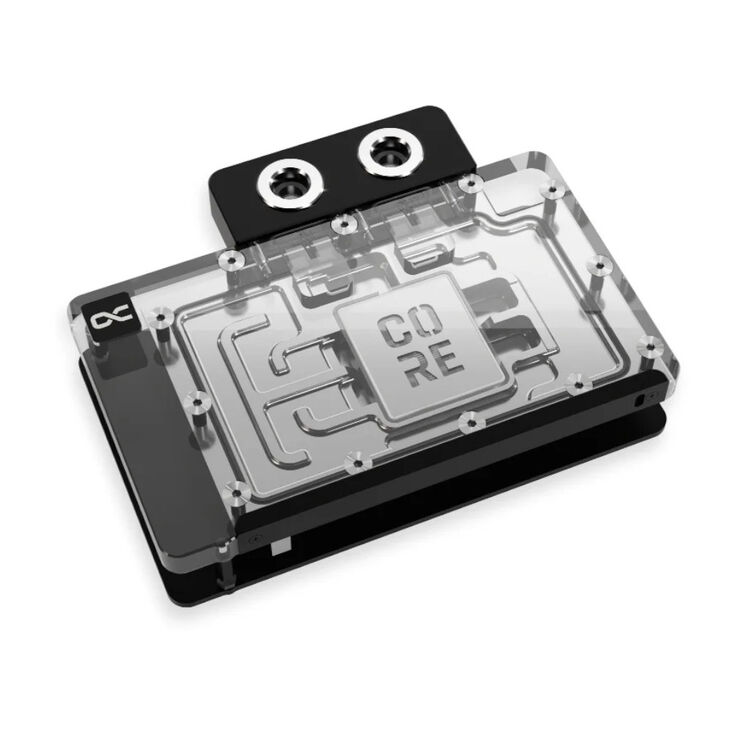

The Alphacool Core Geforce RTX 5080 Reference, full-block water cooler is a high-quality heatsink for custom water cooling, designed to fit the PCBs of INNO3D 5080 graphics cards. Thanks to the chrome-plated copper block, efficient cooling of the GPU, memory, and voltage regulators is guaranteed. The heatsink provides an elegant look with its transparent design combined with RGB lighting.
Cooling Performance Meets Design

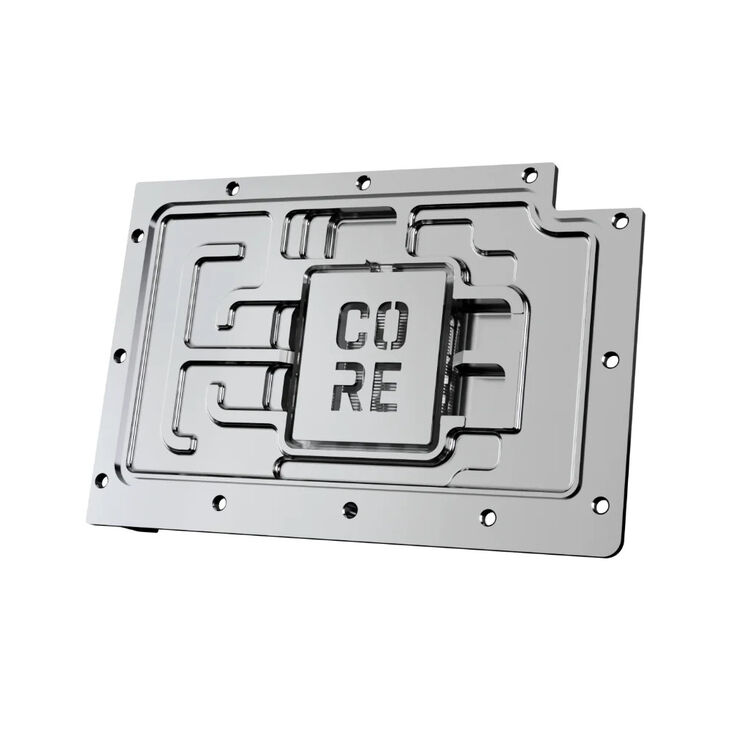

The block features a full-block design, covering all relevant heat sources of the graphics card and thus cooling effectively. Chrome-plated copper is used to optimally transfer heat, providing you with good performance even under heavy workloads.

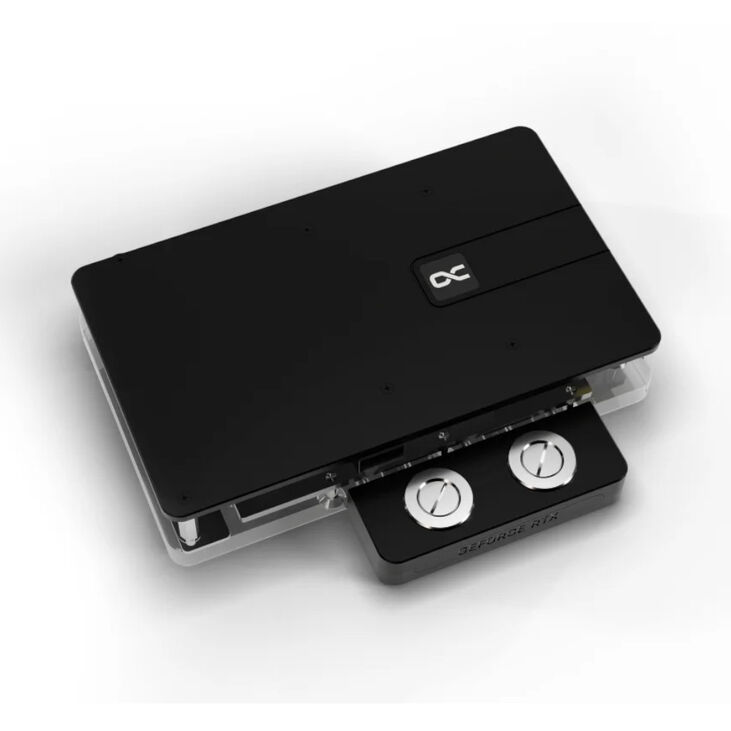

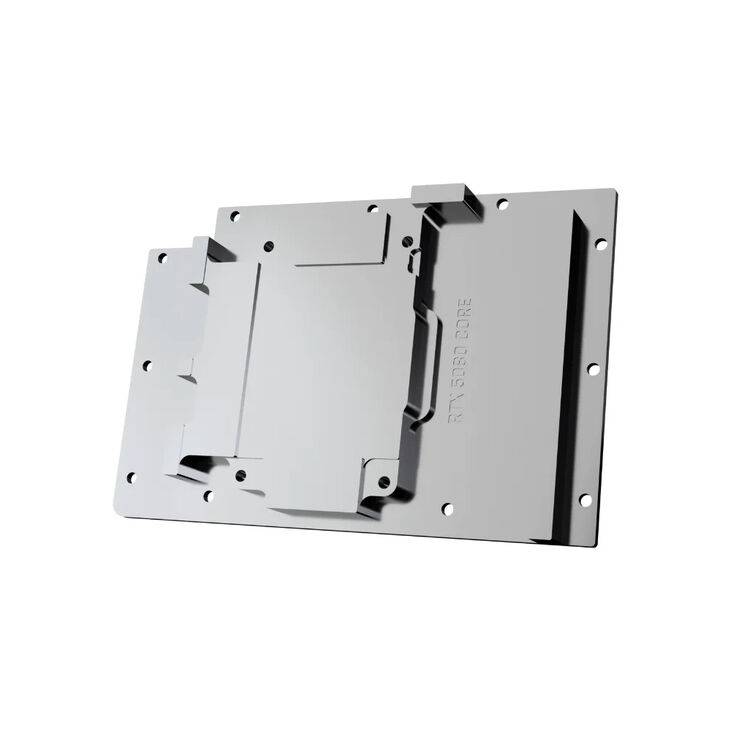

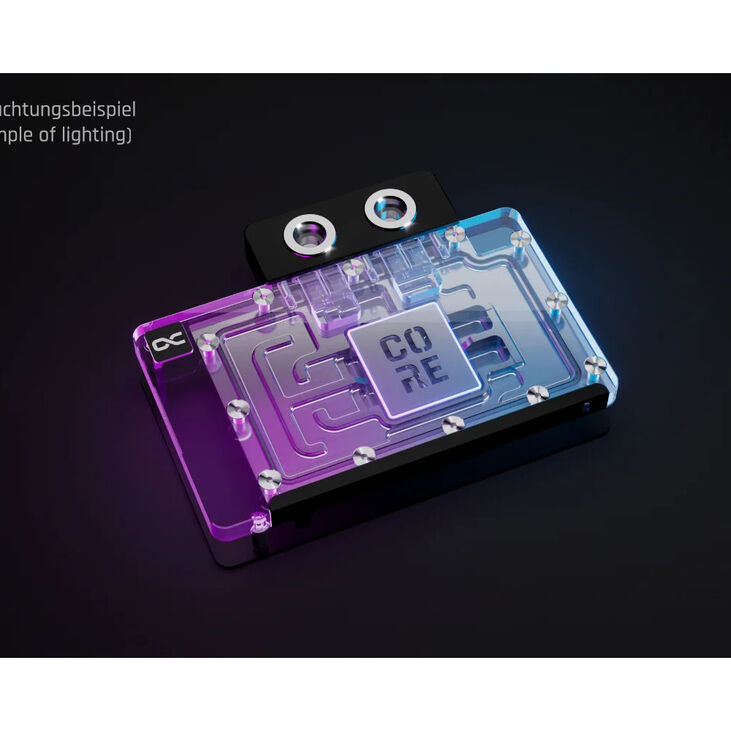

The cover is made of transparent acrylic with integrated RGB lighting. The black backplate is made of aluminium, which also aids in heat dissipation. The connection terminal located at the front has four G1/4-inch threads. Inlet and outlet are clearly marked.
Note: Please note that this GPU block is only compatible with the following graphics cards:
- -Inno3D GeForce RTXâ„¢ 5080 iChill Frostbite
- Inno3D GeForce RTXâ„¢ 5080 iChill X3
- Inno3D GeForce RTXâ„¢ 5080 X3
- Inno3D GeForce RTXâ„¢ 5080 X3 OC
Colour
|
|
Primary Colour
|
Black Transparent (Matt/Frosted)
|
Dimensions
|
|
Length / Depth
|
124.07 mm
|
Width
|
160 mm
|
Height
|
34.19 mm
|
Graphics Card
|
|
GPU Series
|
RTX 50 Series
|
Water Cooling
|
|
Water cooling connectors
|
4x G1/4"
|
Internal Ports
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
Compatibility
|
|
GPU Compatibility
|
NVIDIA GeForce RTX 5080
|
Materials
|
|
Base Plate Material
|
Chrome-Plated Copper
|
Material Top Piece / Lid
|
Acrylic
|
Lighting
|
|
Lighting / RGB
|
Yes
|
