- Extremely compact and highly versatile
- Mounting options for fan slots or included stand feet
- Integrated reservoir with a 180 ml capacity

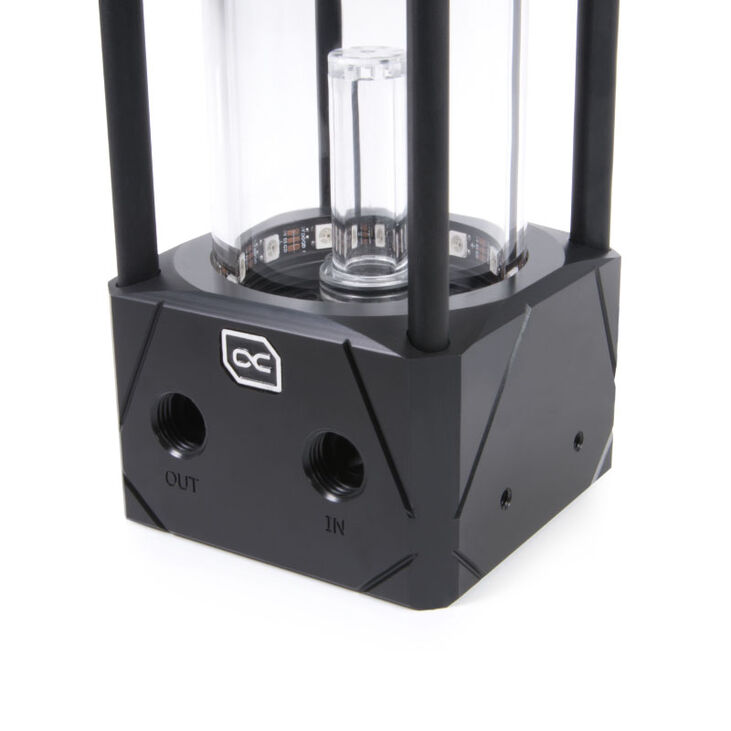

- 2x G1/4-inch ports for easy integration into the loop
- Lighttower water effect adds a visual highlight to your cooling loop
Reservoir for Custom Water Cooling

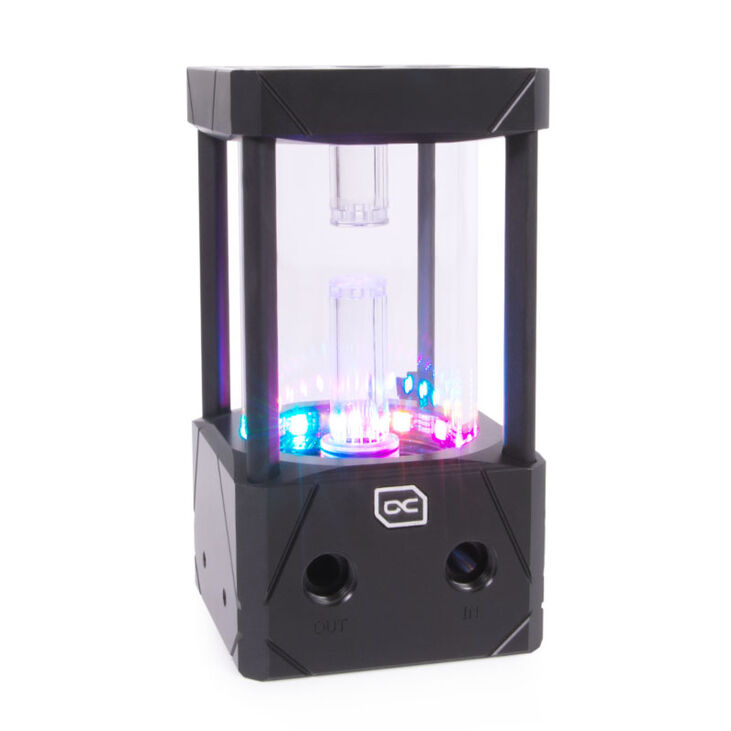

With the Alphacool Eisbecher Aurora D5 150 mm incl. Alphacool VPP Apex D5, you won’t have to compromise on cooling performance for your high-end hardware. Expanding the total coolant volume in your loop increases thermal capacity and improves overall cooling performance.
Integrated Pump and Easy Installation in Your Case

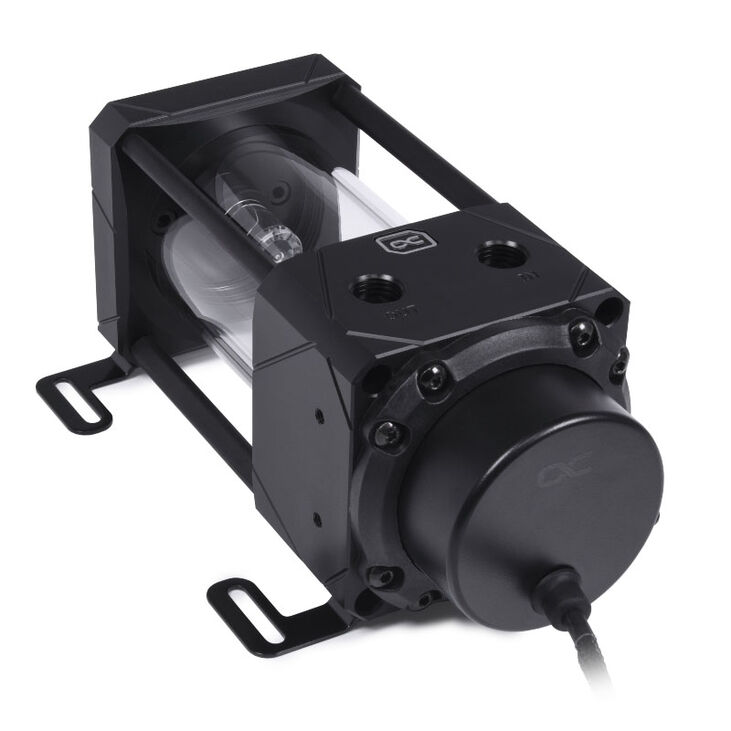

Using the included mounting frame, the Eisbecher Aurora D5 150 mm incl. Alphacool VPP Apex D5 can be easily mounted to a 120 mm or 140 mm fan slot inside the case or directly onto a radiator. Alternatively, the included stand feet can be used for freestanding installation. The pump top is equipped with a D5 VPP pump from Alphacool, ensuring sufficient flow throughout your loop.

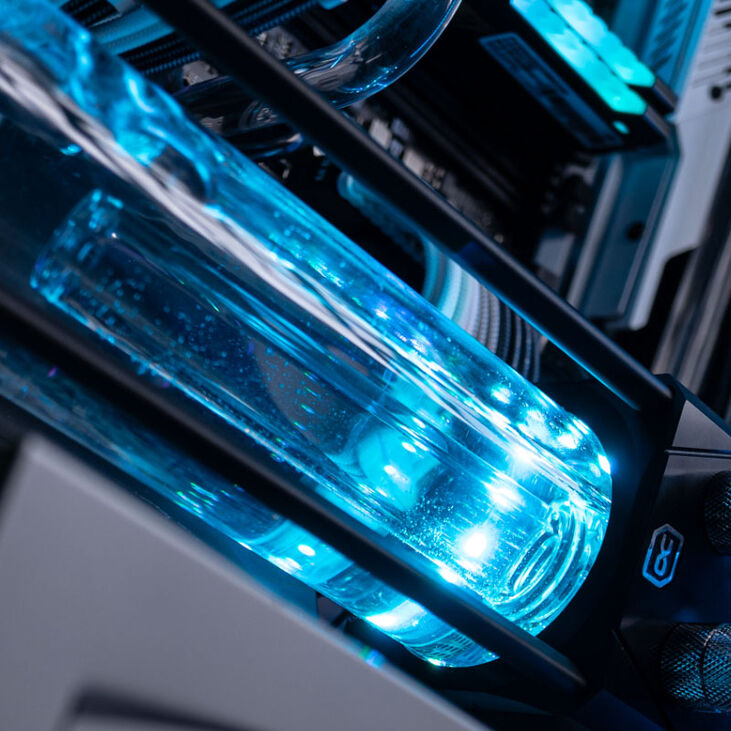

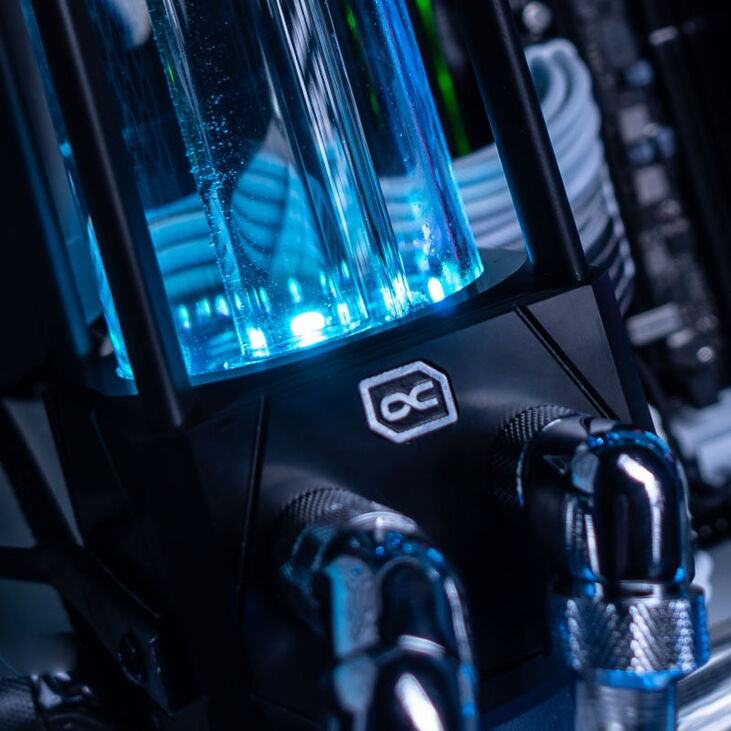

RGB Lighting with Lighttower Water Effect
Coolant is pumped into the reservoir through central riser tubes. Depending on pressure and flow rate, the coolant is sprayed against the outer acrylic wall, creating a unique visual effect.
The integrated LEDs illuminate your build in any colour you can imagine. You’re in control — choose the lighting effects and colours that suit your preferences using software.
Note: Please use only with clear, transparent water cooling fluids. Particles and additives in pastel liquids can clog and permanently damage components such as radiators, pumps, blocks, and tubing. This may also void the manufacturer's warranty.
1x Ice cup Aurora D5 Acetal/Glass - 150 mm, black
1x VPP Apex pump, black
4x M3 x 5 screws
12x M4 x 8 screws
4x M4 x 12 screws
4x M4 nuts
2x 120 mm fan brackets
2x 120 - 140 mm fan brackets
2x Stand bracket
3x closure screws
1x Allen key
1x Plug tool
1x Digital-RGB adapter
1x O-ring 53 x 3.5 pump
1x Pump bracket
Colour
|
|
Primary Colour
|
Black
|
Secondary Colour
|
Transparent
|
Dimensions
|
|
Length / Depth
|
142 mm
|
Width
|
77 mm
|
Height
|
77 mm
|
Pump Specifications
|
|
Max. Pressure Head
|
4.25 m
|
Max. Water Flow
|
340 l/h
|
Type
|
|
Pump type
|
D5
|
Power Specifications
|
|
Power consumption
|
14 W
|
Rated voltage
|
12 V
|
Water Cooling
|
|
Water cooling component
|
Pump + Reservoir
|
Water cooling connectors
|
5x G1/4"
|
Internal Ports
|
|
Pump connectors
|
4 Pin (PWM control), SATA (power)
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG), 1x Digital RGB PHANTEKS (3-Pin 5VDG)
|
Thermal Specifications
|
|
Max. System Temperature
|
60 °C
|
Materials
|
|
Materials
|
Acetal / POM, Aluminium, Ceramic, Glass, Plastic
|
Lighting
|
|
Lighting / RGB
|
Yes
|
Lighting Colour
|
RGB
|
