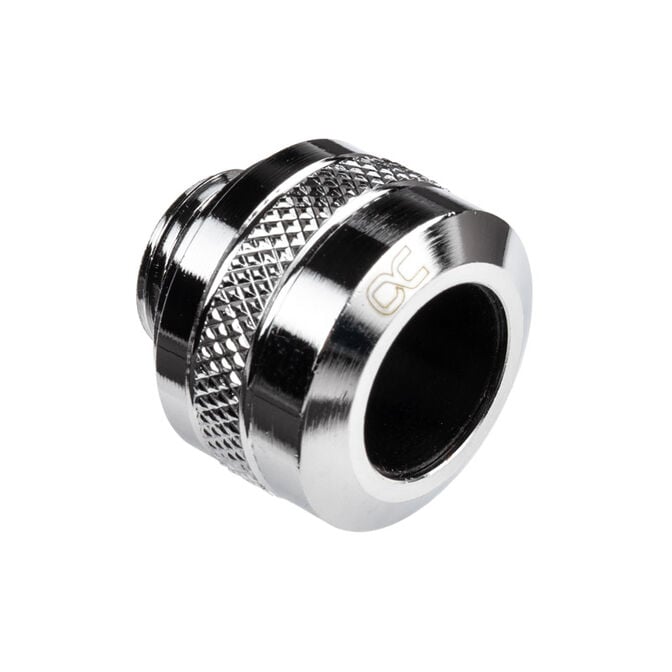

Alphacool Eiszapfen PRO fitting 13mm hard tube G1/4 - chrome
Hardtube Fitting, 13mm outer diameter, G 1/4 thread, for PETG/ acrylic/ brass/ glass tubes
6,90 €
Incl. VAT, add. delivery costs starting from 4.99€
After years of market observation, Alphacool solves a well-known problem with the Eiszapfen PRO Hardtube Fittings: temperatures just above 60°C can cause PETG hard tubes to deform. This particularly affects the connections at the outputs of the CPU or the graphics card water cooler. The Eiszapfen PRO Hardtube Fitting fits all hard tubes with an outer diameter of 13 mm. They are compatible with PETG, acrylic, brass, and even glass tubes. Additionally, the tensile strength is very high. Tests showed that 8 kg posed no problem.

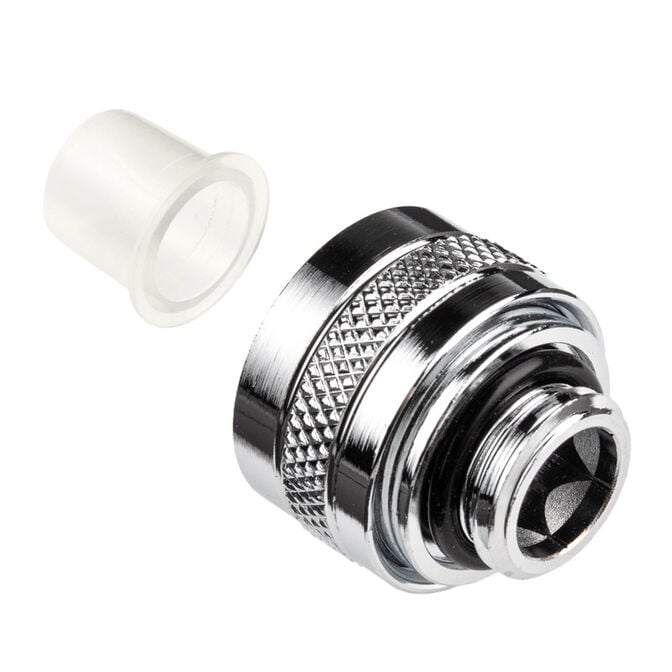

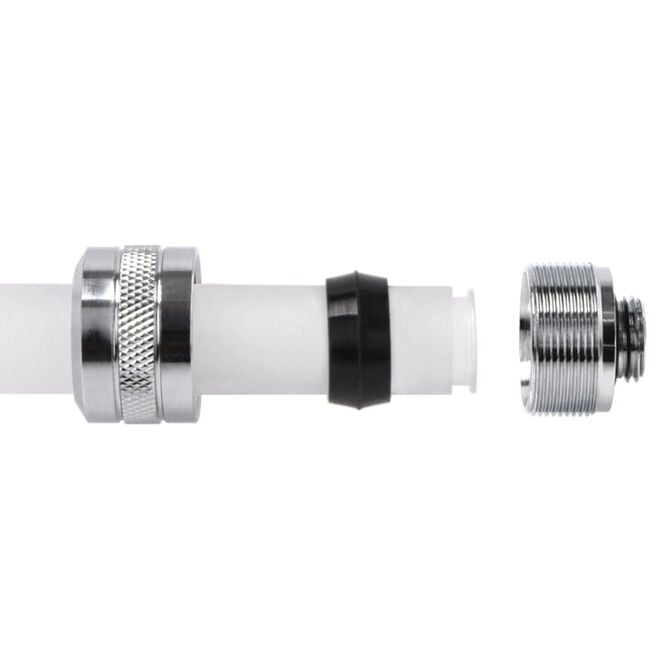

For a secure fit, the fitting has an O-ring and a compression seal. The inlay and compression seal are arranged as follows: In combination, they exert high pressure on the hard tubes from the inside and outside. With this inlay, the installation changes. First, the union nut is pushed onto the hard tube, then the compression seal is inserted. After that, the inlay is attached. Finally, the fitting is tightened normally.
Technical Details:
- Material: Brass
- Connections:
Outer Thread: G 1/4 inch
Tube: 13 mm diameter - Colour: Chrome
- Compatibility: PETG, acrylic, brass, and glass tubes
|
Colour
|
|
|
Primary Colour
|
Chrome
|
|
Dimensions
|
|
|
Height
|
20 mm
|
|
Inner diameter
|
13 mm
|
|
Outer diameter
|
22 mm
|
|
Water Cooling
|
|
|
Water cooling purpose
|
Tube connection
|
|
Water cooling connection type
|
screw connection
|
|
Water cooling connectors
|
G1/4" outer thread, Hard tube connector 13 mm
|
|
Suitable for hardtubes
|
Yes
|
|
Angle
|
|
|
Is angled
|
No
|
|
Rotatable
|
Yes
|
|
Materials
|
|
|
Materials
|
Brass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Set
|
|
|
Set
|
No
|
