- Black case with tempered glass side and front panel
- Efficient cooling options with up to ten fans and radiators up to 360mm
- Supports motherboards up to ATX
- Space for graphics cards up to 410mm and CPUs with a height of up to 160mm
- Up to three drives possible
- Supports motherboards with back-connect

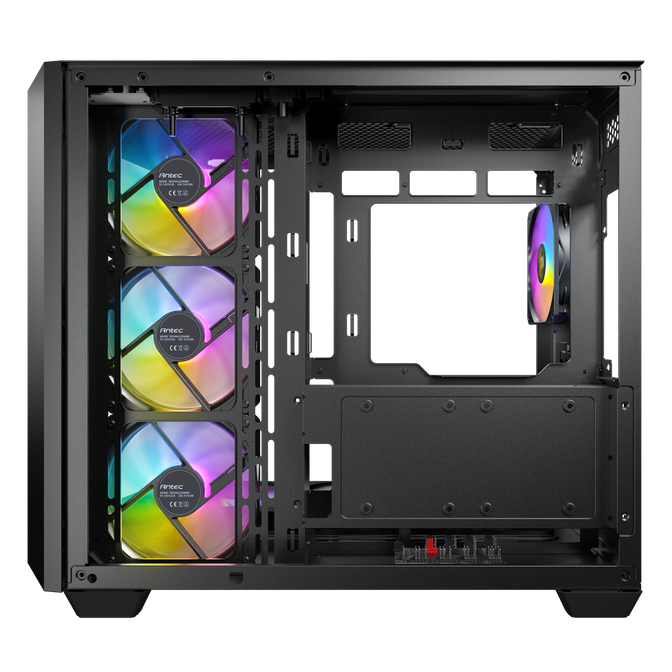

- Two-chamber design ensures independent cooling
- Seven ARGB fans included

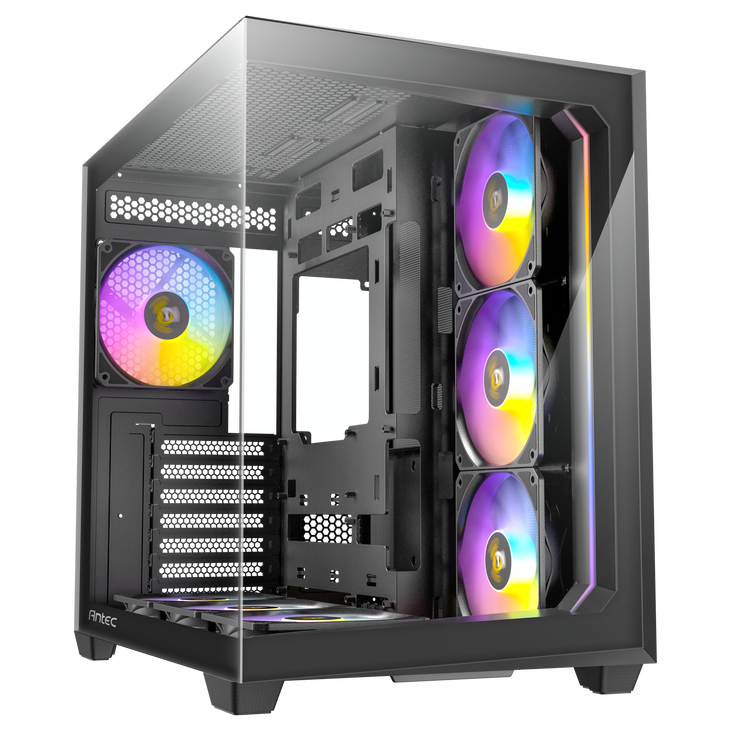

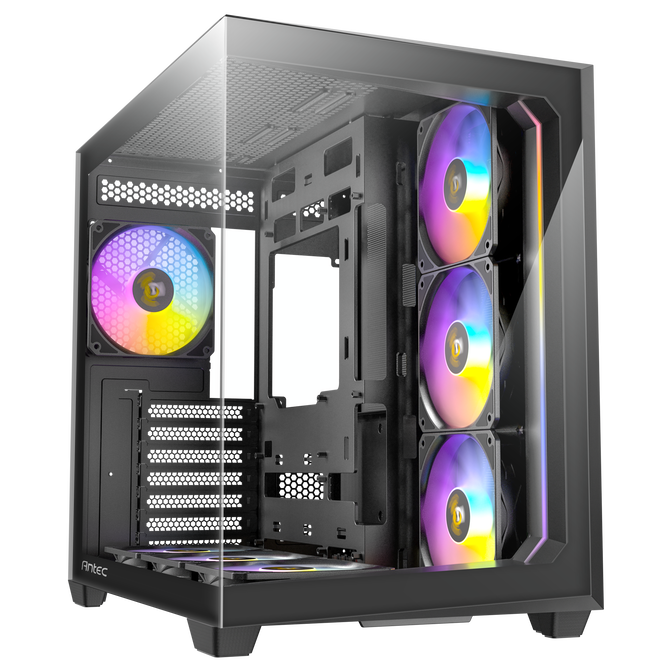

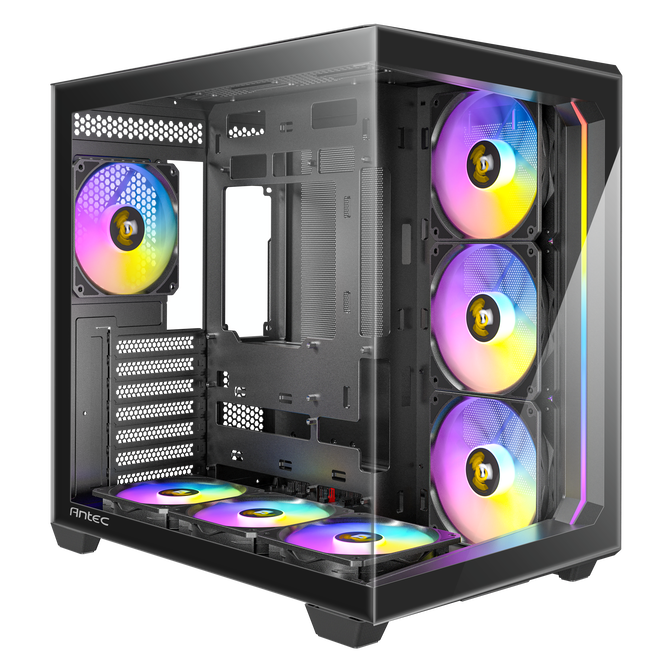

The Antec C5: Midi Tower with Extensive Cooling Options

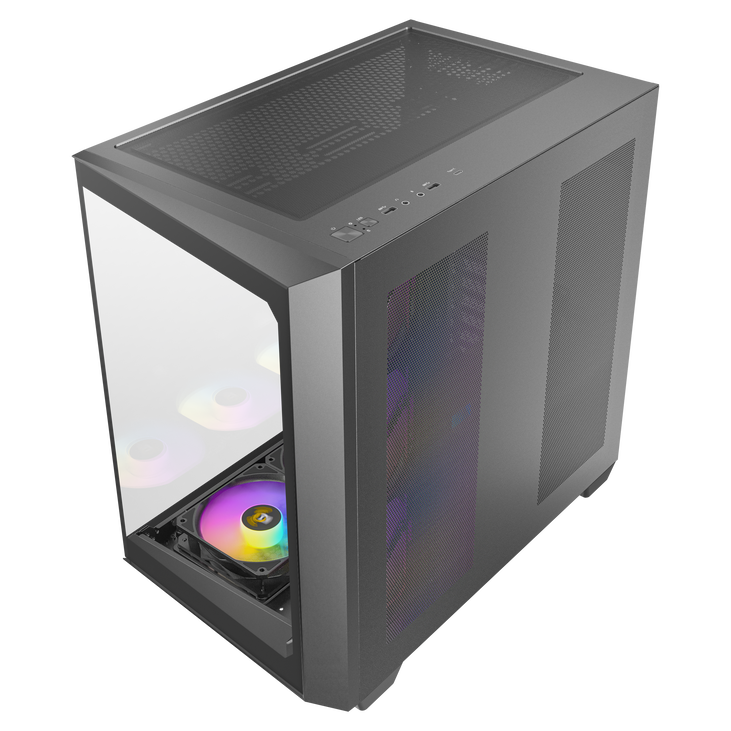

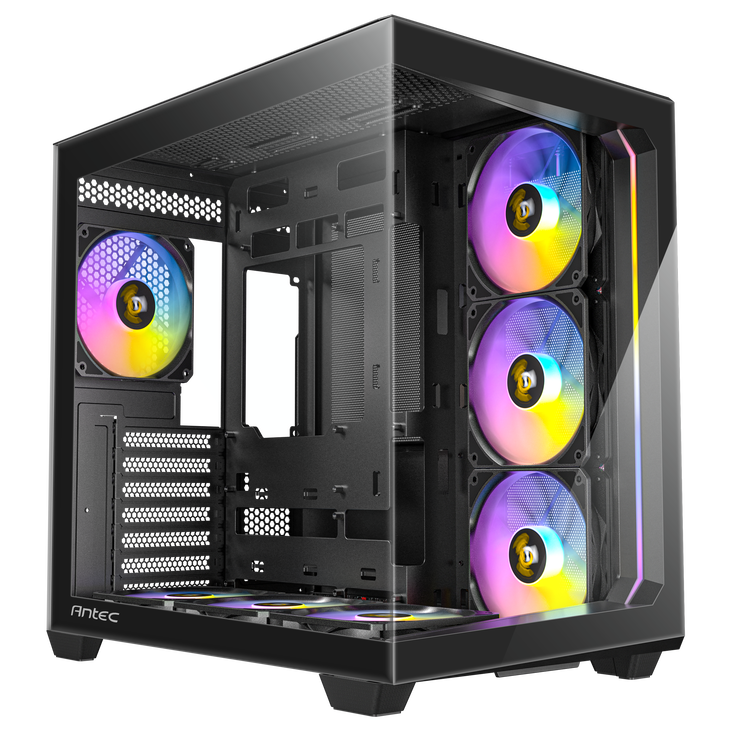

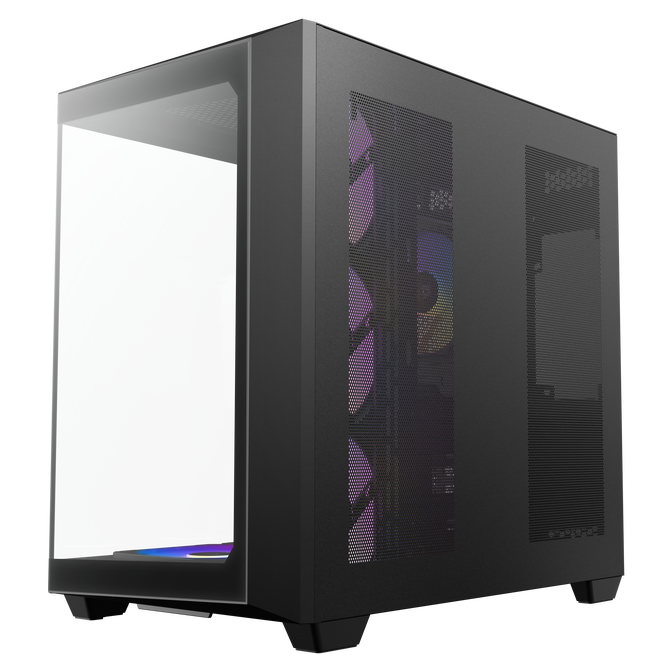

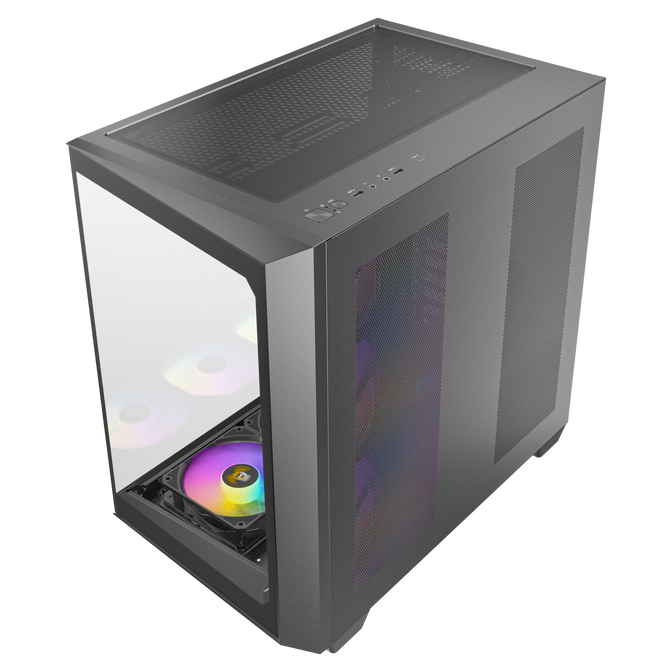

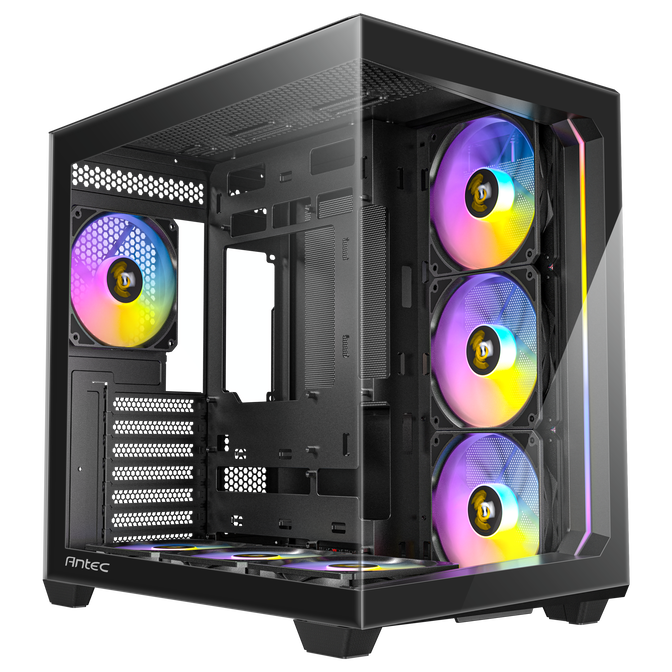

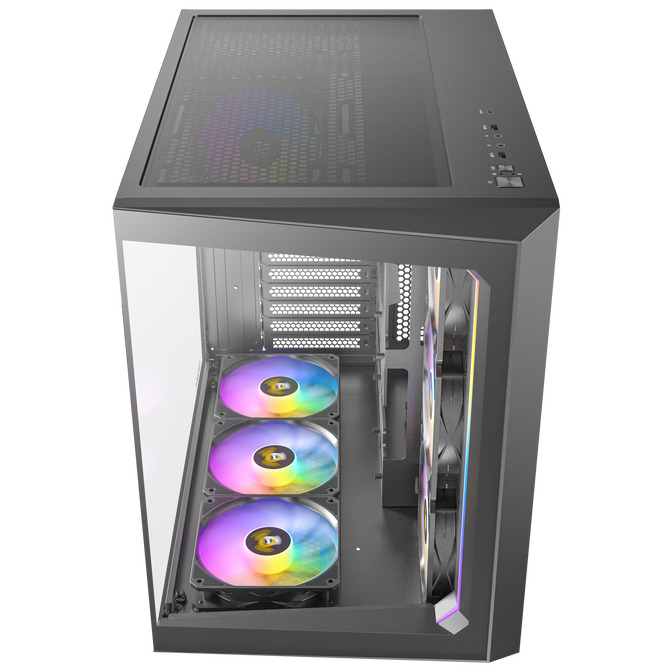

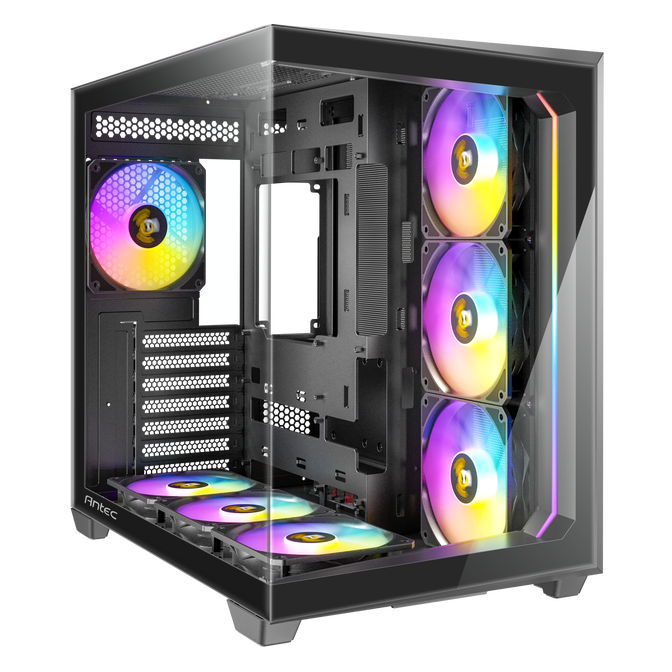

The Antec C5 offers you more than enough space to assemble and install your hardware according to your wishes. Your gaming hardware is effectively cooled by the many cooling options available. The two-chamber design allows for independent cooling of the CPU, GPU, and power supply, leading to even more efficient airflow. Additionally, the tempered glass on the side and front provides a generous view of the interior of your case, allowing the stylish RGB lighting to shine through perfectly.
Fans and Radiators

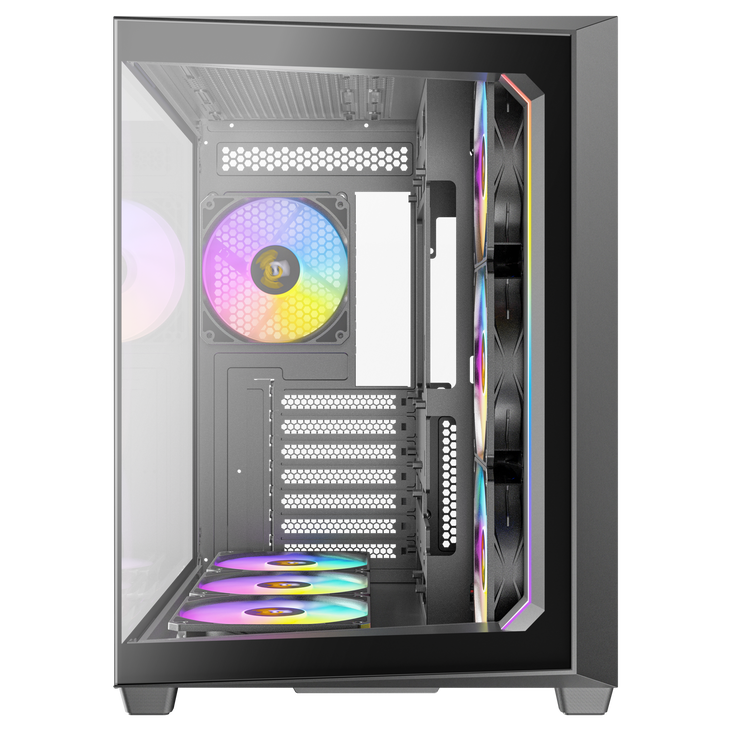

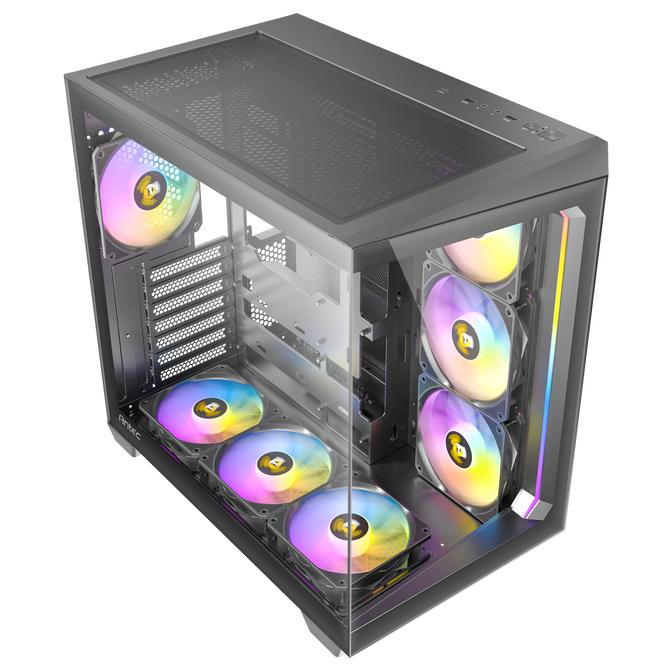

Powerful hardware requires equally powerful cooling to prevent overheating. The Antec C5 can accommodate up to ten fans. You can install either three 120mm fans or two 140mm fans on the top and side. Additionally, three more 120mm fans can be mounted at the bottom, along with one at the rear.

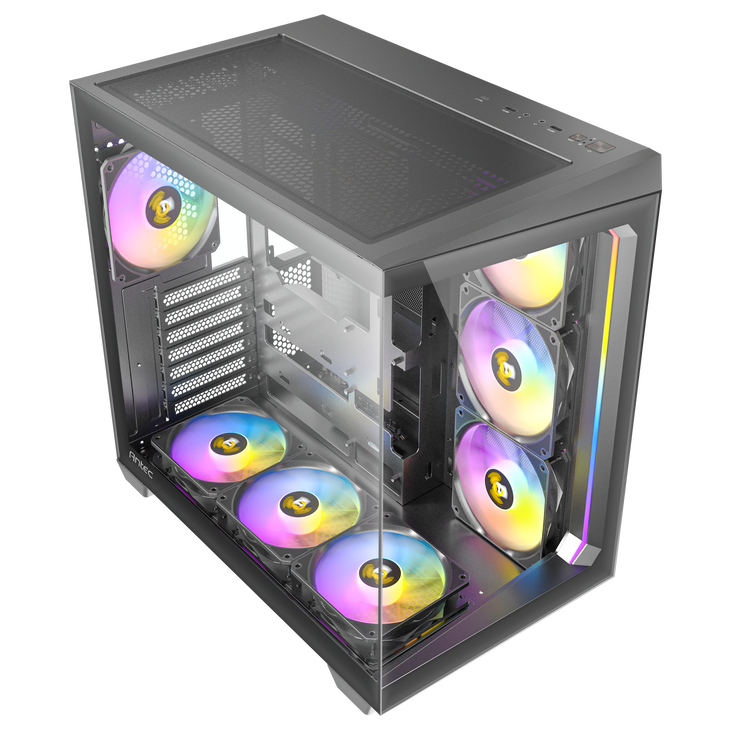

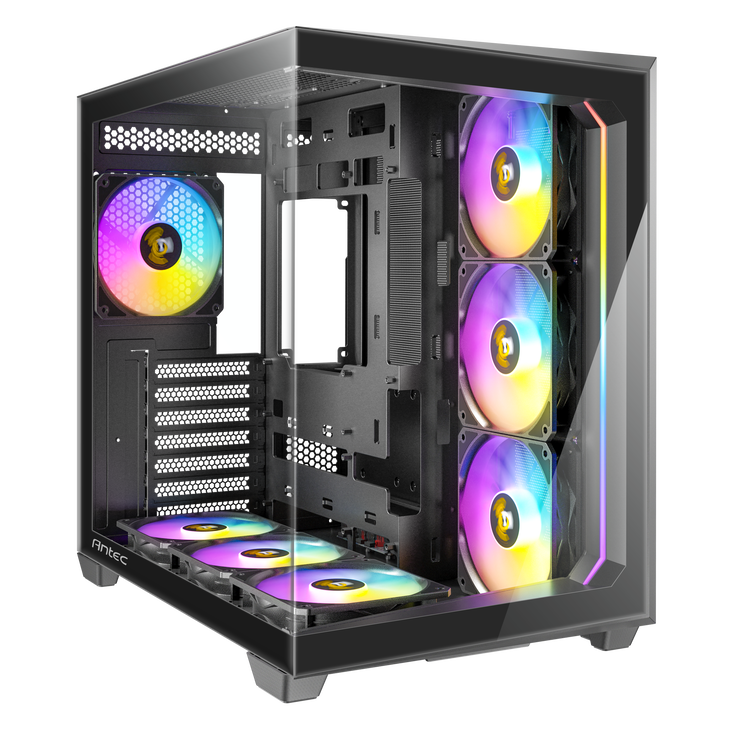

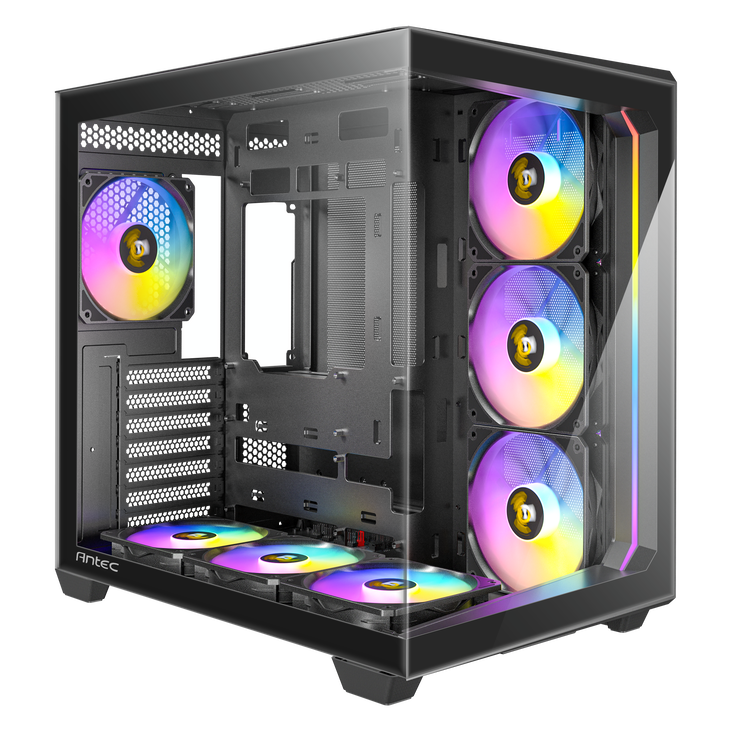

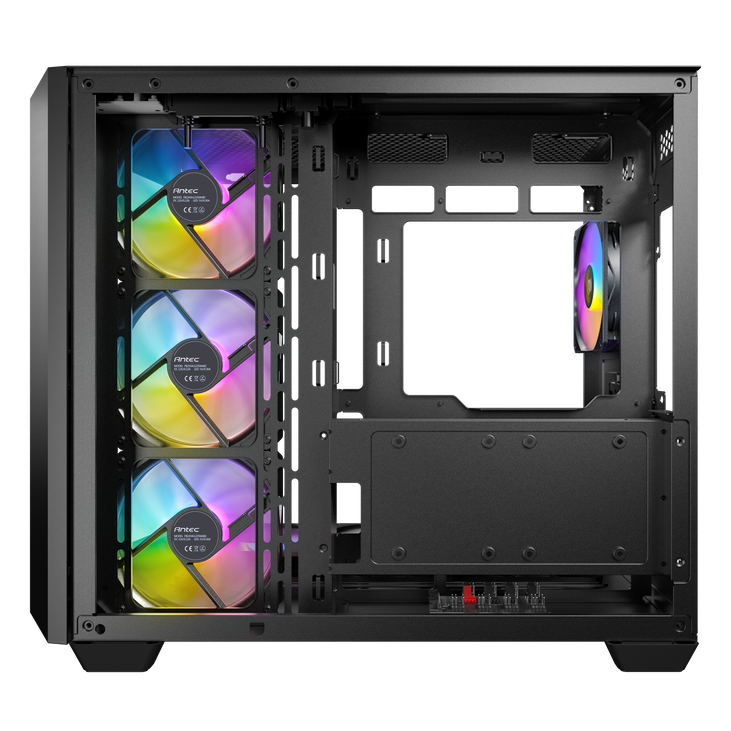

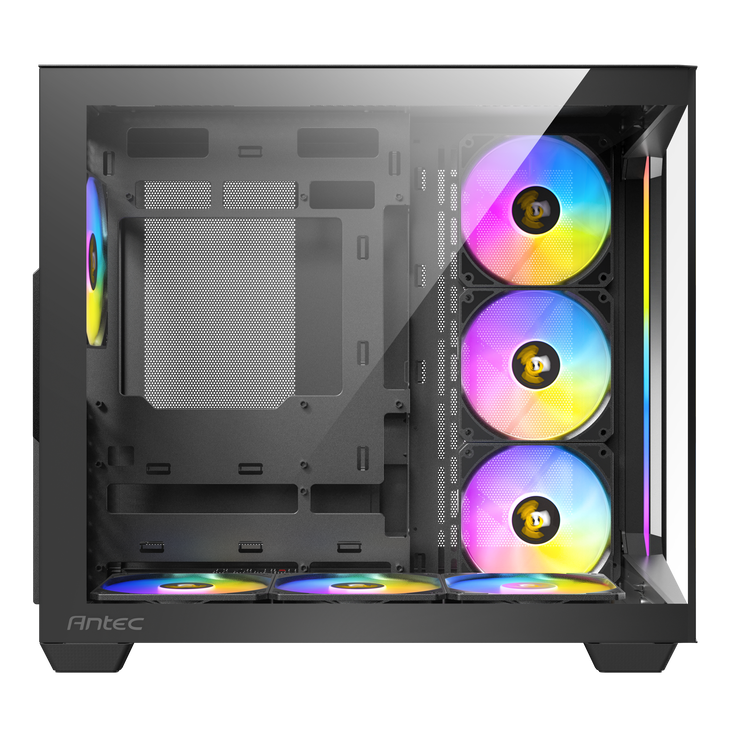

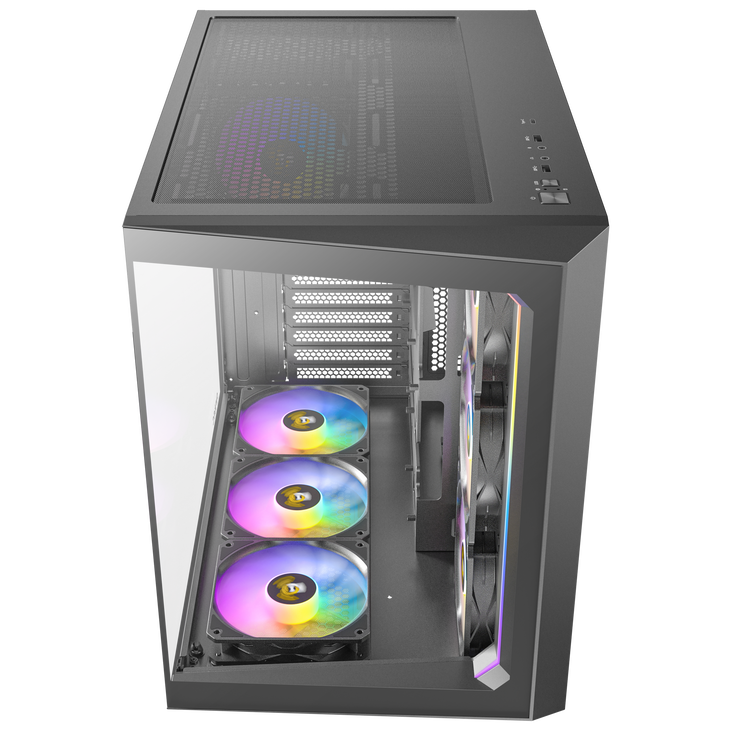

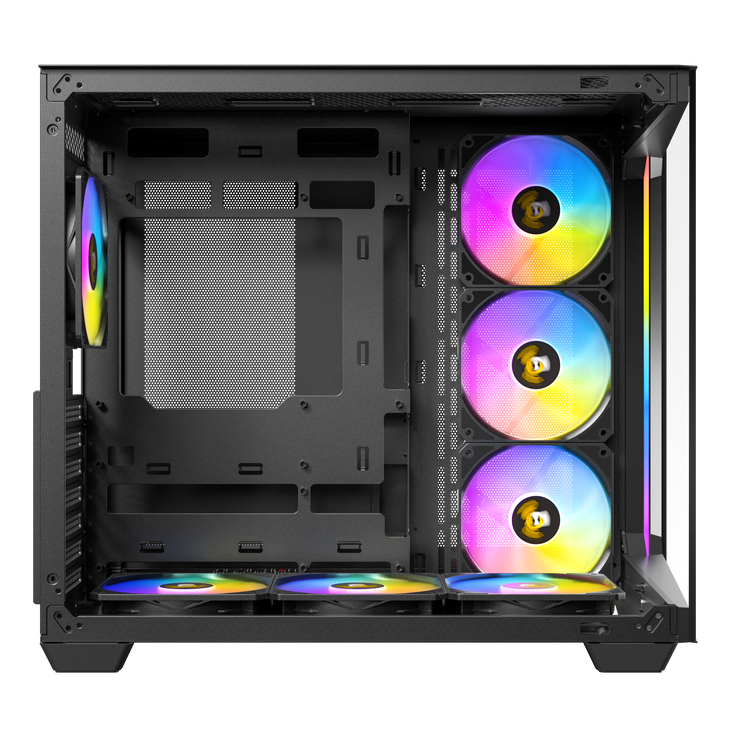

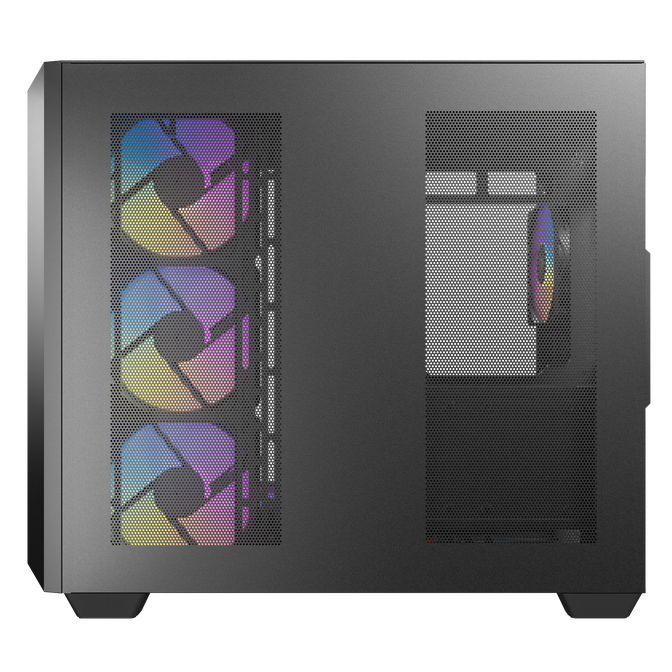

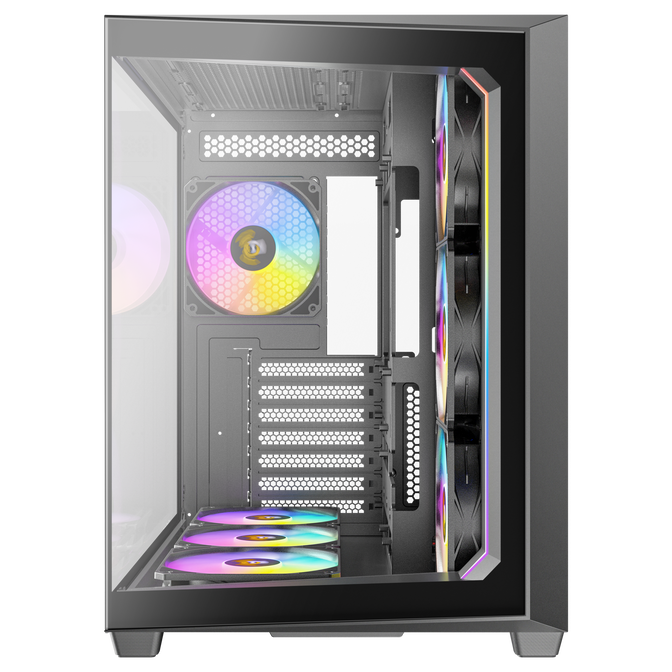

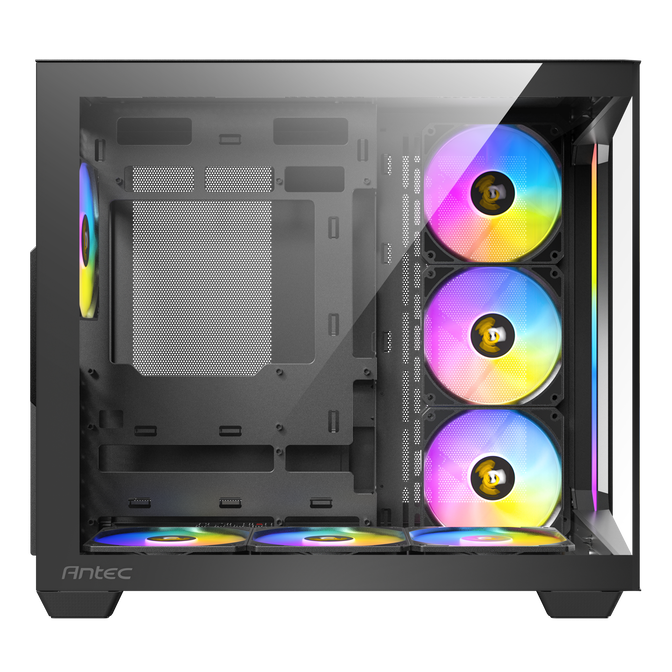

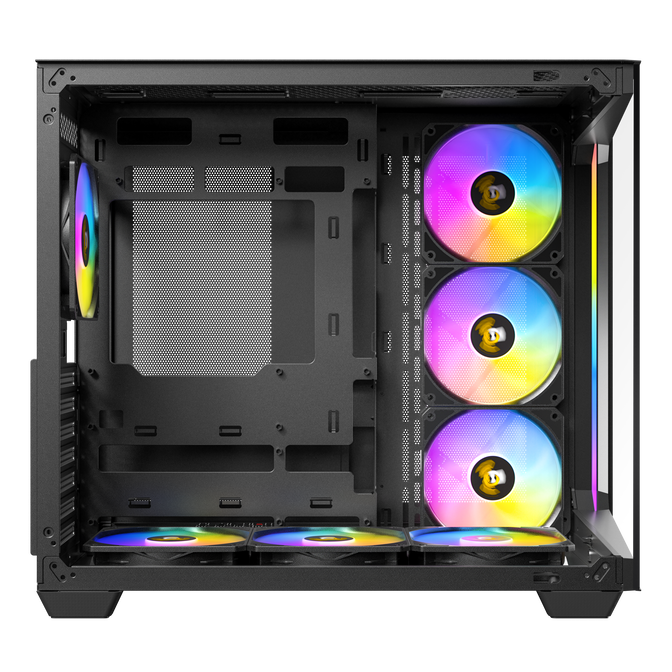

The special feature is that, in addition to the tower, you also receive a total of seven 120mm PWM fans. Three are attached at the bottom and on the side. The orientation of these ARGB fans is reversed, while the seventh fan with normal orientation is at the rear.
If you prefer to install a liquid cooling system, there are also plenty of options available. Radiators up to 360mm in size can be installed in several locations: at the top and bottom. Additionally, there is space for a 280mm radiator at the side, as well as a 120mm one on the rear.

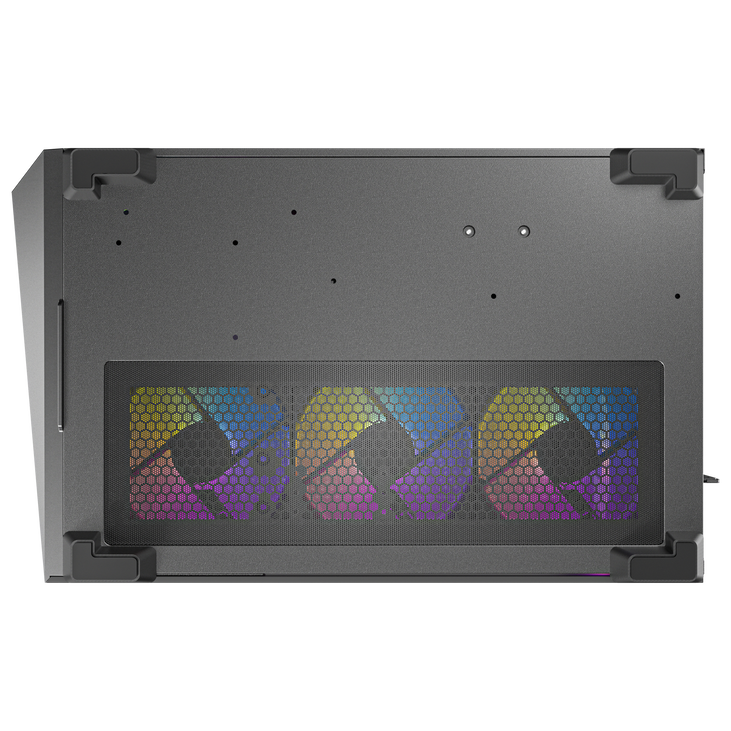

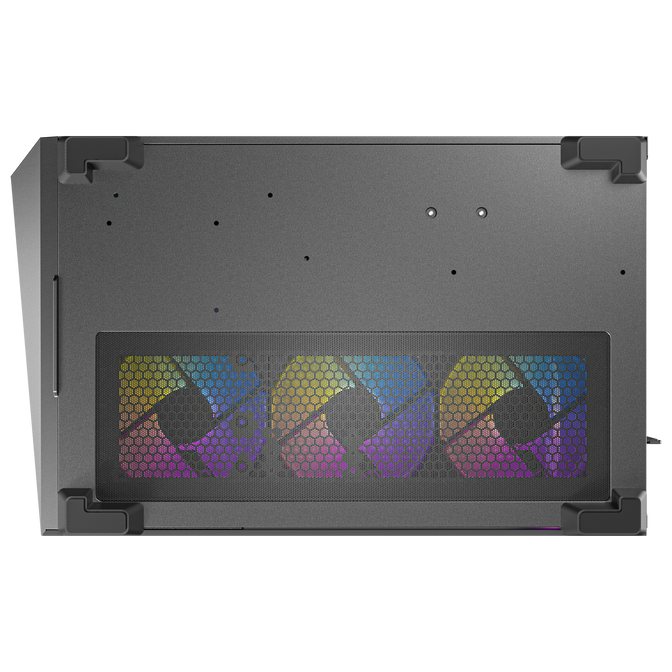

With the many options for cooling your hardware, your gaming PC will always perform at its best. Dust filters at the bottom and top help to ensure that as little dust as possible accumulates inside, which significantly extends the lifespan of your components.
Hardware Options
The midi tower supports the installation of graphics cards up to 410mm in size. This means that the current NVIDIA GPUs from the 40 series are also possible. Motherboards can be installed up to the ATX format. Additionally, motherboards with the innovative back-connect design are supported, eliminating unsightly cable clutter.

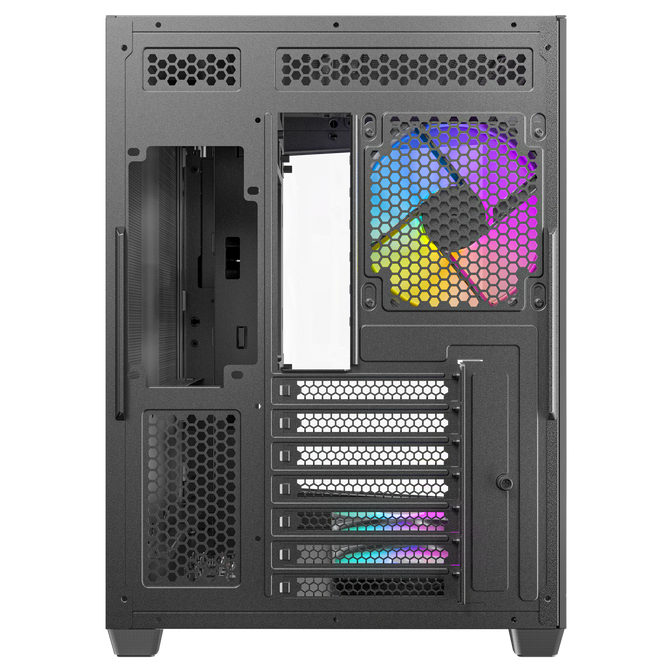

The CPU cooler should not exceed a height of 160mm. In contrast, there are hardly any limits for the power supply, as it can be up to 220mm long and is mounted on the side of the tower. To ensure you have enough storage for your programs and games, the Antec C5 allows for the installation of up to three 2.5-inch drives on the side or bottom.
- Dimensions: 285 x 400 x 469 mm (W x H x D)
- Colour: Black
- Material: Steel, Tempered Glass, Plastic
- Weight: 9.2 kg
- Form Factor: ATX, Micro-ATX, Mini-ITX
- Total Fans Possible:
Top: 3x 120 / 2x 140 mm
Side: 3x 120 / 2x 140 mm
Bottom: 3x 120 mm
Rear: 1x 120 mm - Fans Pre-installed: 7
- Radiator Mountings:
Top: 1x 360 / 280 / 240 / 140 / 120 mm
Side: 1x 280 / 240 / 140 / 120 mm
Bottom: 1x 360 / 240 / 120 mm
Rear: 1x 120 mm - Dust Filters: Top, Bottom
- Drive Bays:
1x 3.5 / 2x 2.5 inches (removable hard drive cage on the side)
1x 3.5 / 2.5 inches (Bottom, 3.5 inches only without the front fan / 2.5 inches only without the bottom fan on the side) - Power Supply: 1x ATX (optional, max. 240 mm)

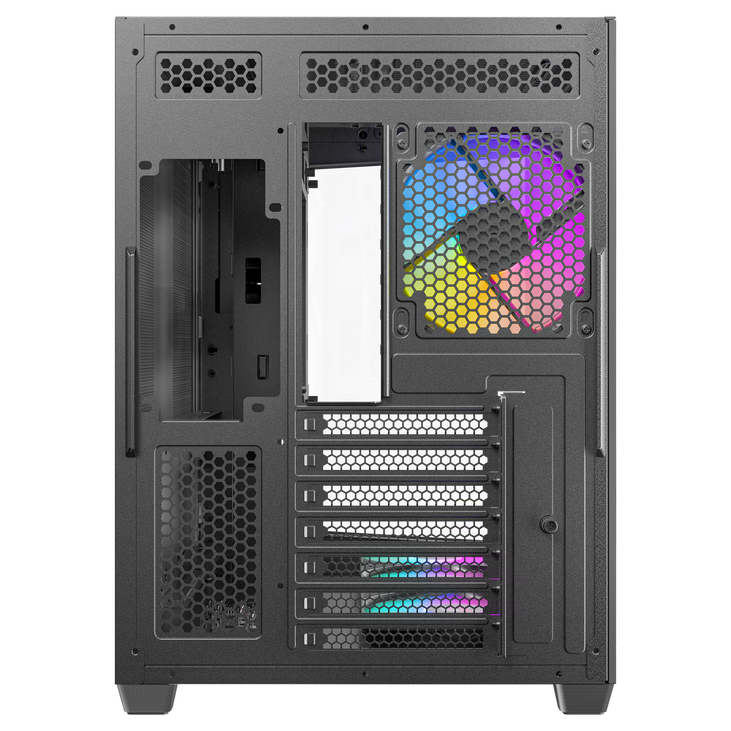

- Expansion Slots: 7

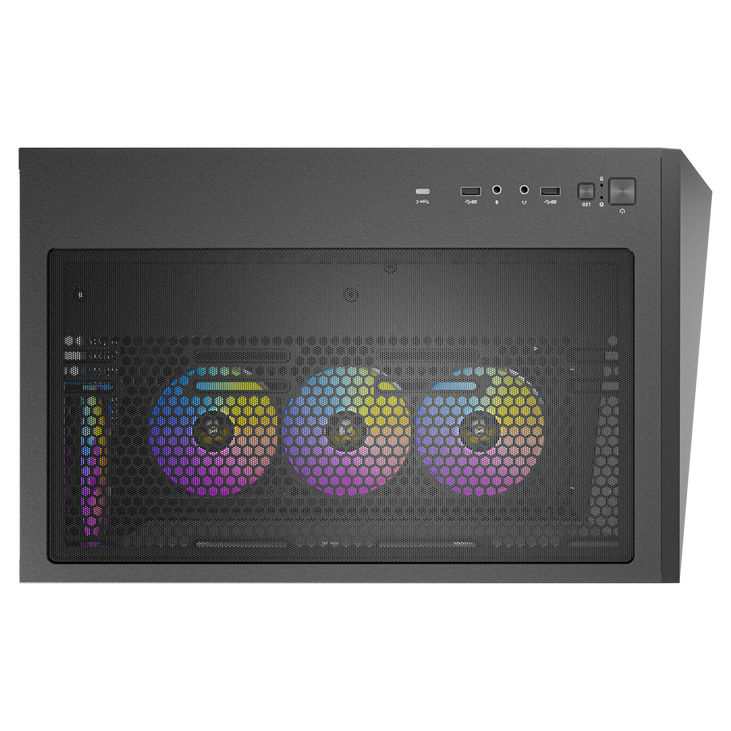

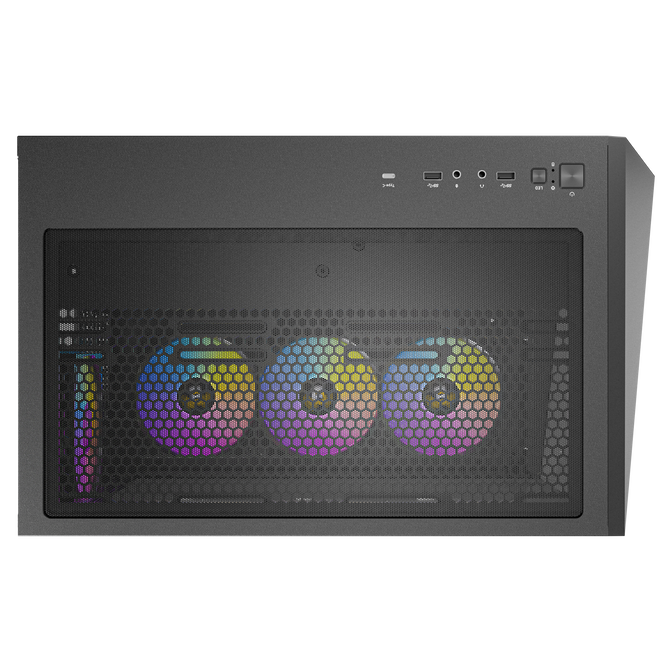

- I/O Panel:
1x Power Button
1x LED Control Button
2x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x USB 3.2 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
1x 3.5 mm Combo Jack - Maximum Graphics Card Length: 410 mm
- Maximum CPU Cooler Height: 160 mm
- Package Contents:
1x Antec C5 ARGB Midi Tower
3x 120 mm PWM Fans Reverse ARGB (Bottom)
3x 120 mm PWM Fans Reverse ARGB (Side)
1x 120 mm PWM Fan ARGB (Rear)
Colour
|
|
Primary Colour
|
Black
|
Dimensions
|
|
Length / Depth
|
469 mm
|
Width
|
285 mm
|
Height
|
40 mm
|
Weight
|
9.2 kg
|
Case
|
|
Case Type
|
Mid Tower
|
Motherboard Support
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
Max. Motherboard Format
|
ATX
|
Internal Dimensions
|
|
Max. CPU Cooler Height
|
160 mm
|
Max. GPU Length
|
410 mm
|
Max. PSU Length / Depth
|
220 mm
|
Display
|
|
Display Included
|
No
|
Power Supply
|
|
PSU included
|
No
|
PSU Format
|
ATX
|
Power Supply Position
|
side
|
Fan Support
|
|
120 mm fans
|
10
|
140 mm fans
|
4
|
Radiator Support
|
|
Max. Radiator Compatibility
|
1x Dual (280 mm), 1x Single (120 mm), 2x Triple (360 mm)
|
Drive Bays
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
3
|
External Ports
|
|
USB 3.1 (external) Type C
|
1
|
USB 3.0 (external) Type A
|
2
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
Card reader
|
No
|
Case Features
|
|
I/O position
|
Cover
|
Side panel
|
with window
|
Filters Included
|
Yes
|
Back Connect
|
|
Back Connect
|
Yes
|
Expansion Slots
|
|
Expansion slots / PCI slots
|
7
|
Fan Header
|
|
Fan Controller / Fan Hub
|
Yes
|
Materials
|
|
Materials
|
Plastic, Steel, Tempered Glass
|
Lighting
|
|
Lighting / RGB
|
Yes
|
Fan / RGB control
|
Yes
|
RGB Type
|
ARGB / DRGB
|
Lighting Colour
|
RGB
|
Additional Contents
|
|
Included fans
|
7x 120 mm
|
