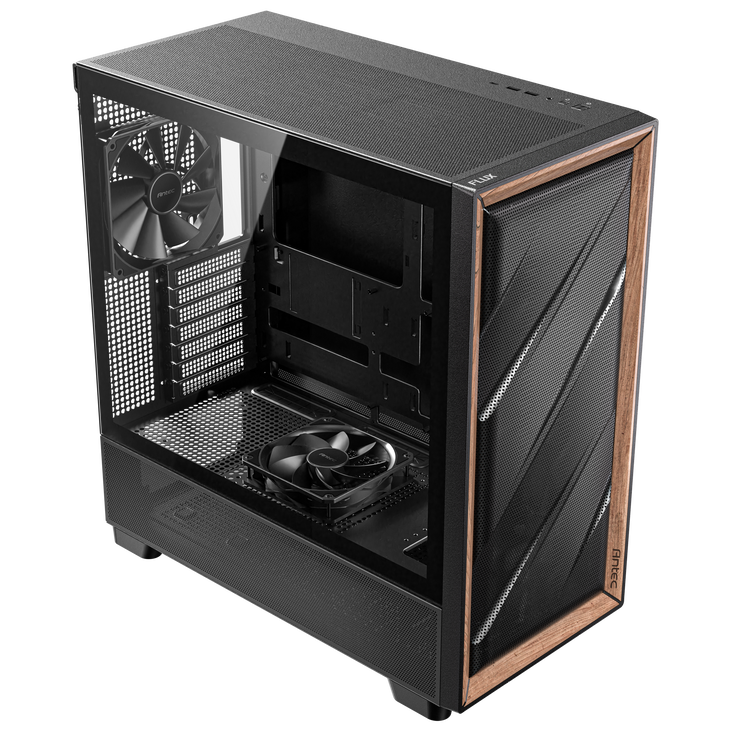

Antec Flux PC Case, Mid Tower, E-ATX, Tempered Glass – Black
Antec Flux Midi Tower: Advanced Cooling and Stylish Design
The Antec Flux is designed for efficient cooling and aesthetics. The fan arrangement ensures optimised airflow, thereby supporting the reliable cooling of all components.

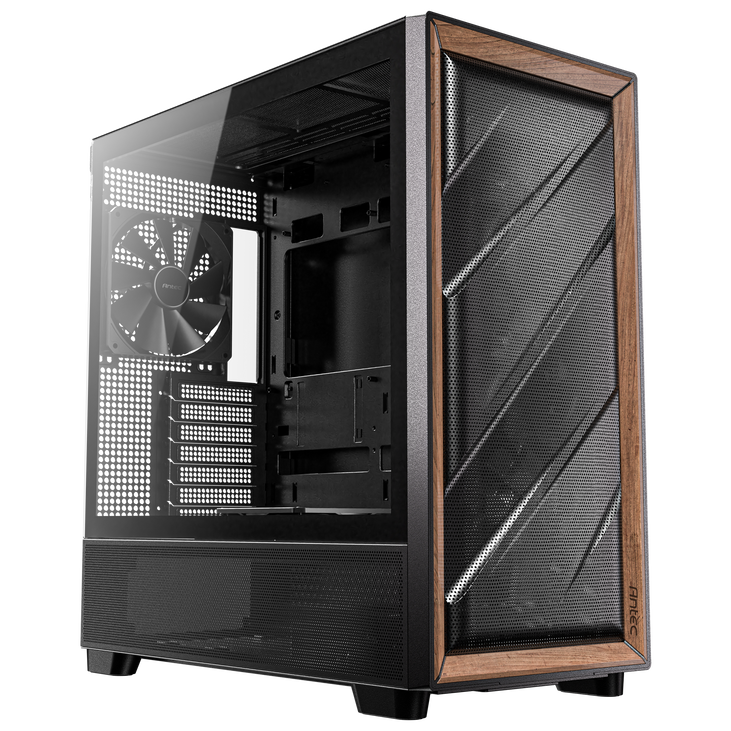

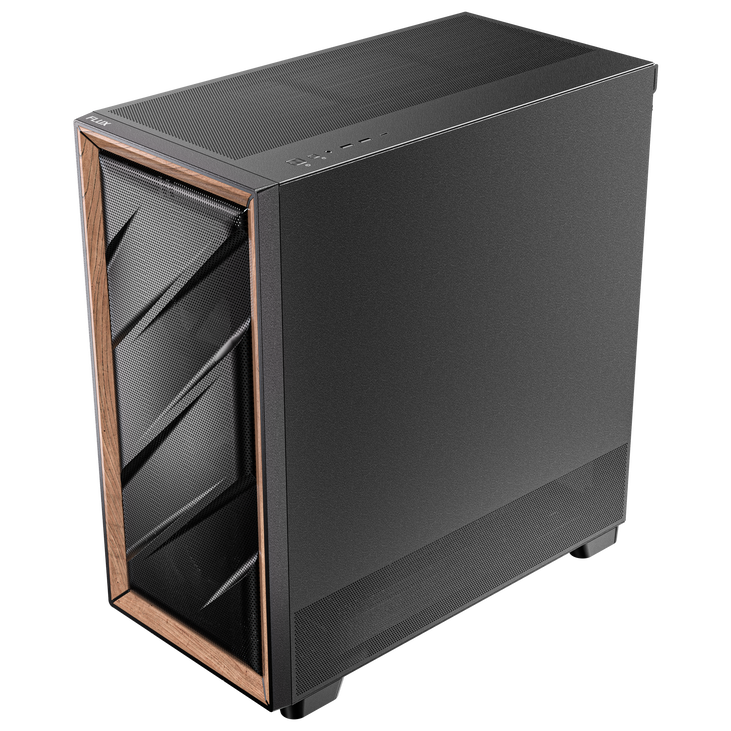

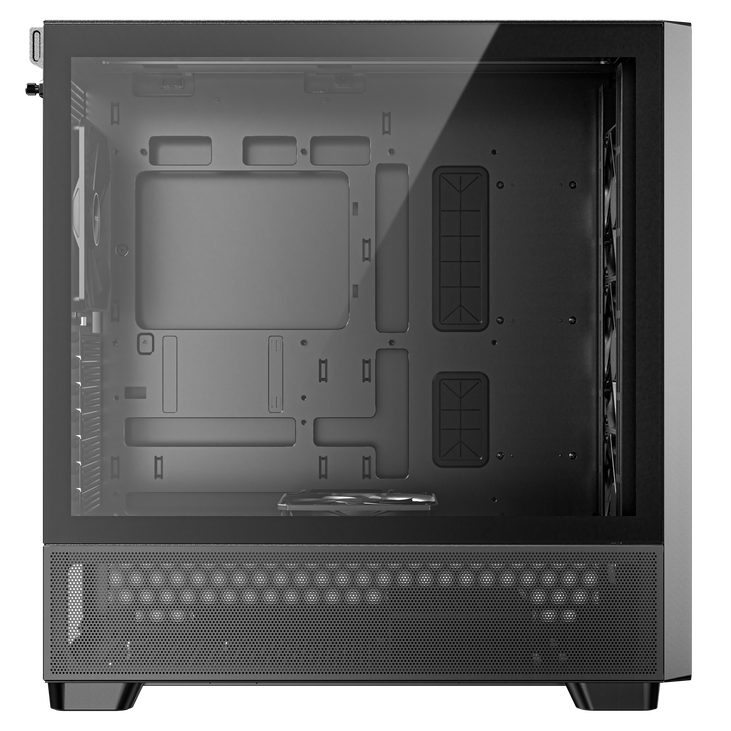

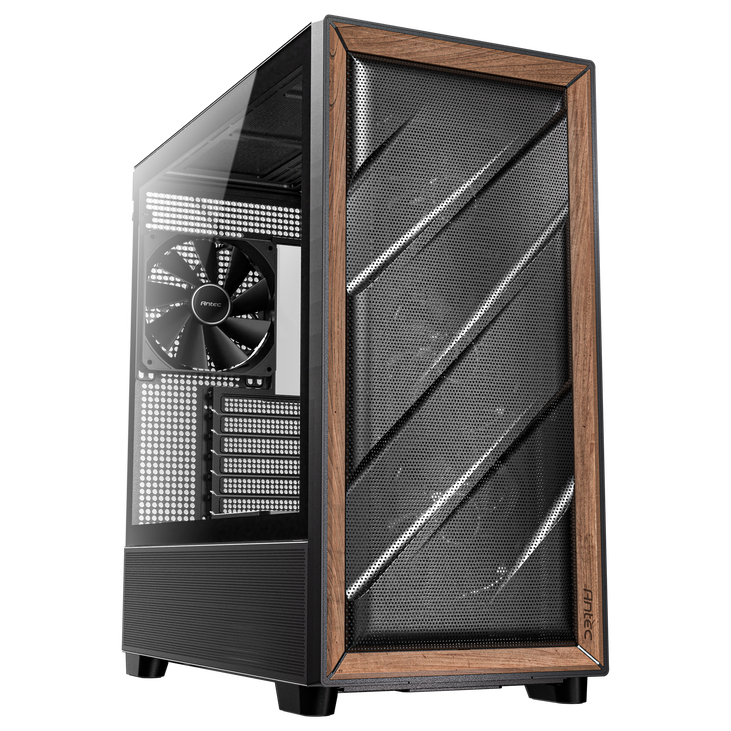

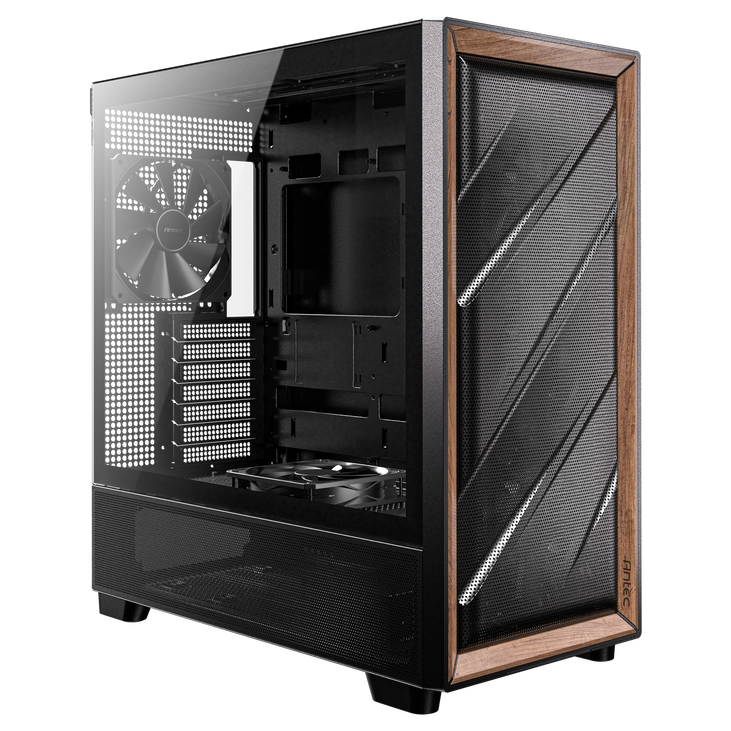

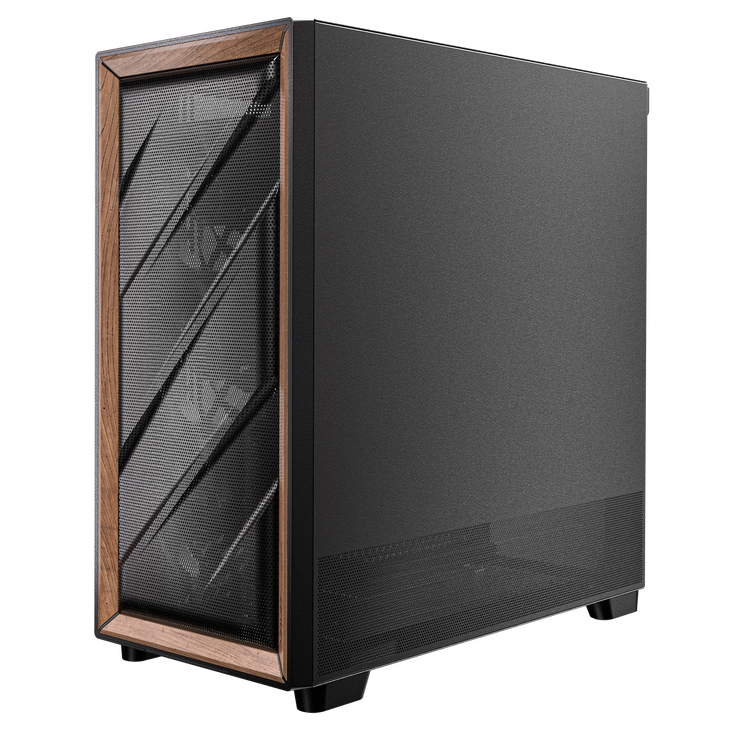

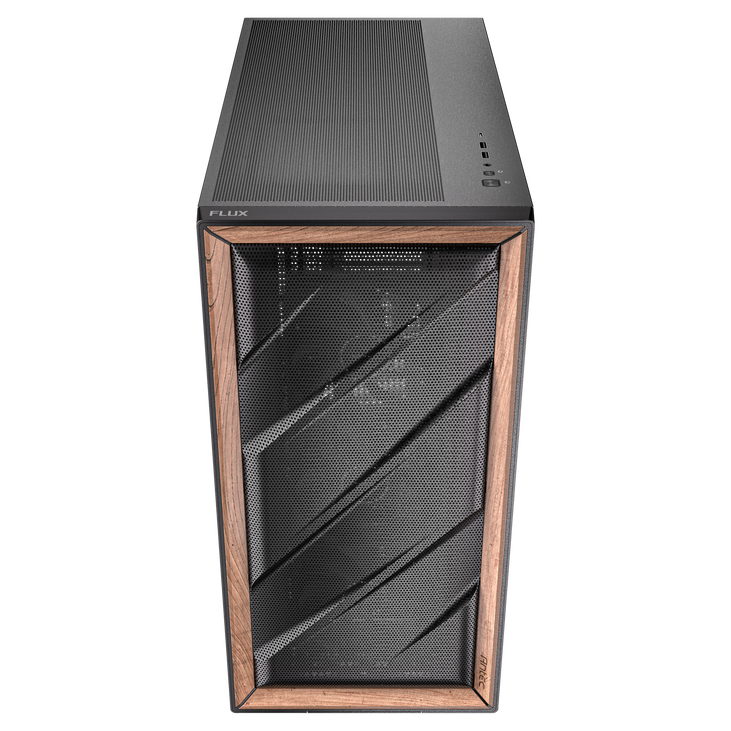

With elegant walnut wood elements, the case harmoniously integrates into any setup and conveys a natural, sophisticated look. The timeless design and the tempered glass side panel on the left side provide a chic presentation of your hardware.
Thoughtful Cable Management and Easy Installation

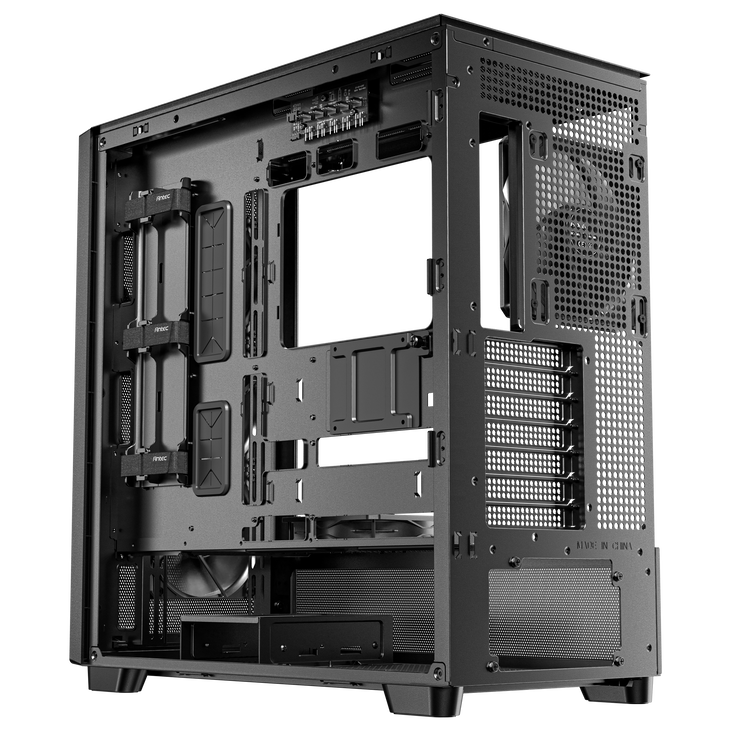

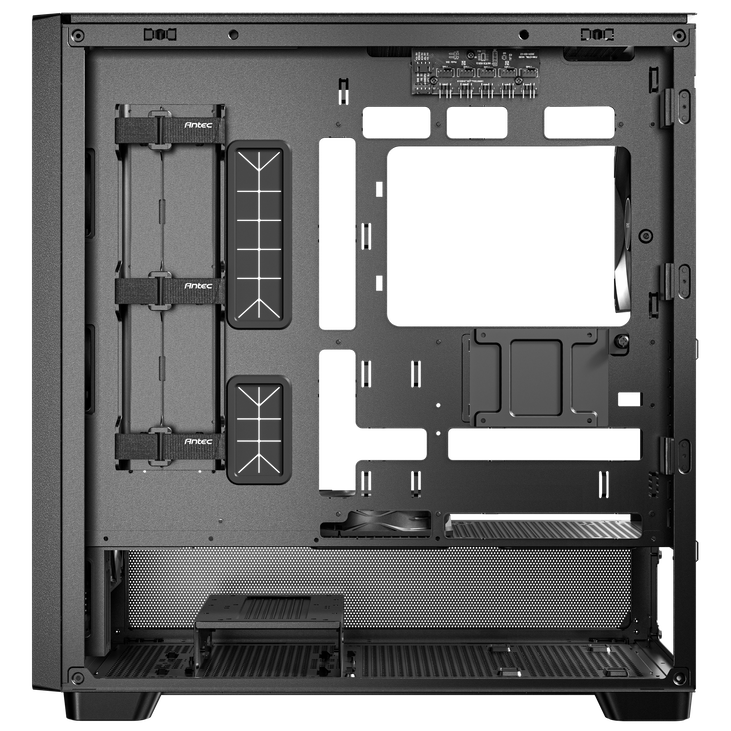

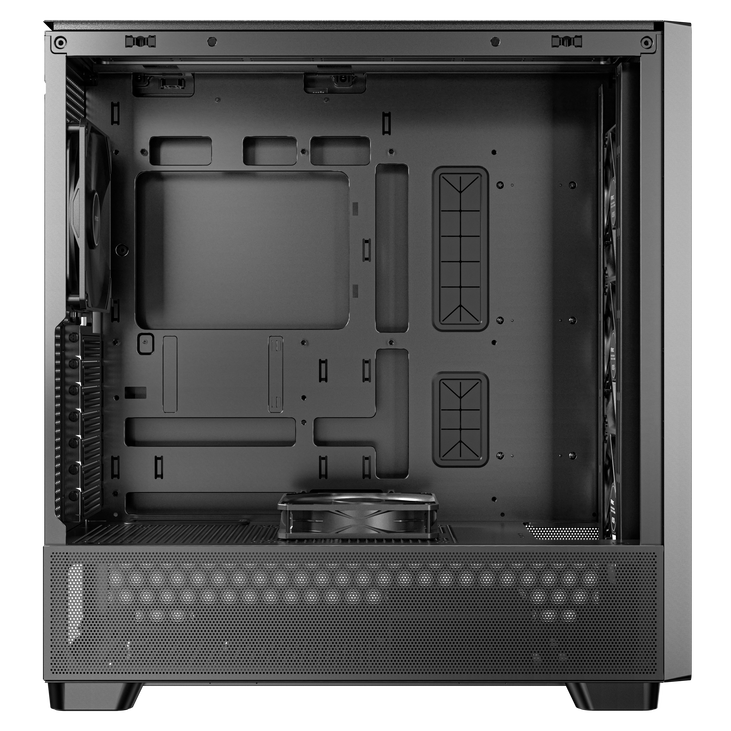

With Back-Connect, the cables from your power supply are routed to the back of the motherboard, allowing for particularly tidy cable management and improved airflow within the case. Integrated Velcro straps and cable ties keep the cables secure and easily accessible, facilitating straightforward installation and later adjustments.
Strong Cooling: Whether Air or Water

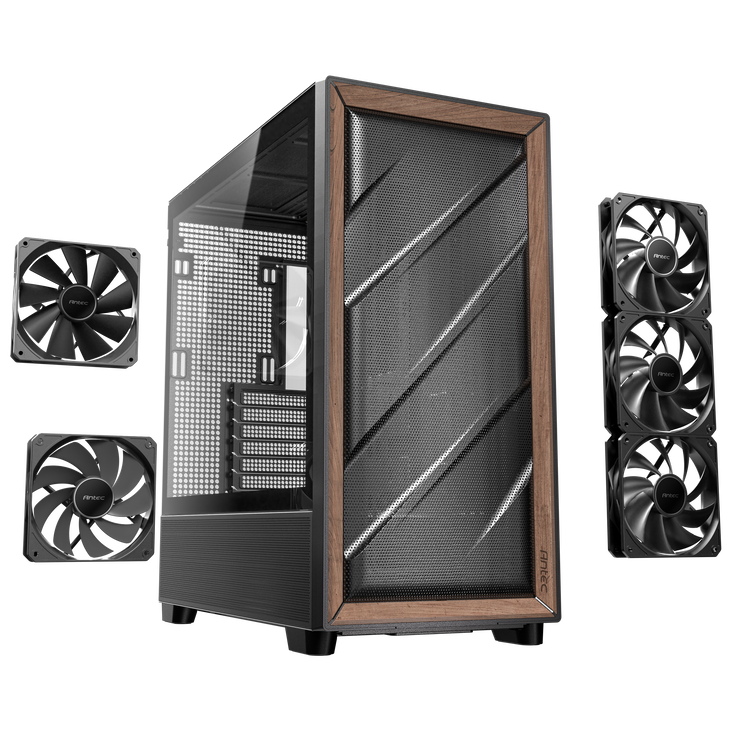

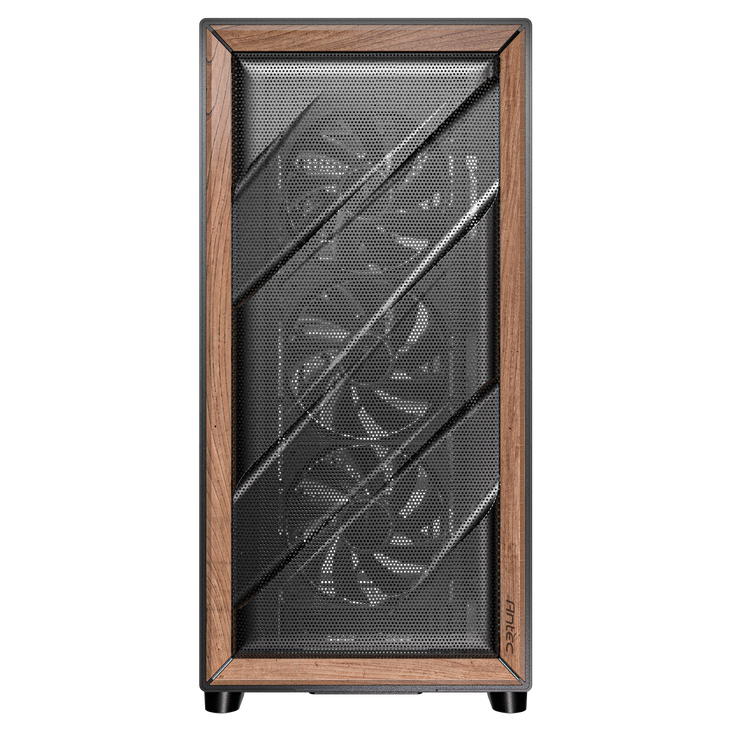

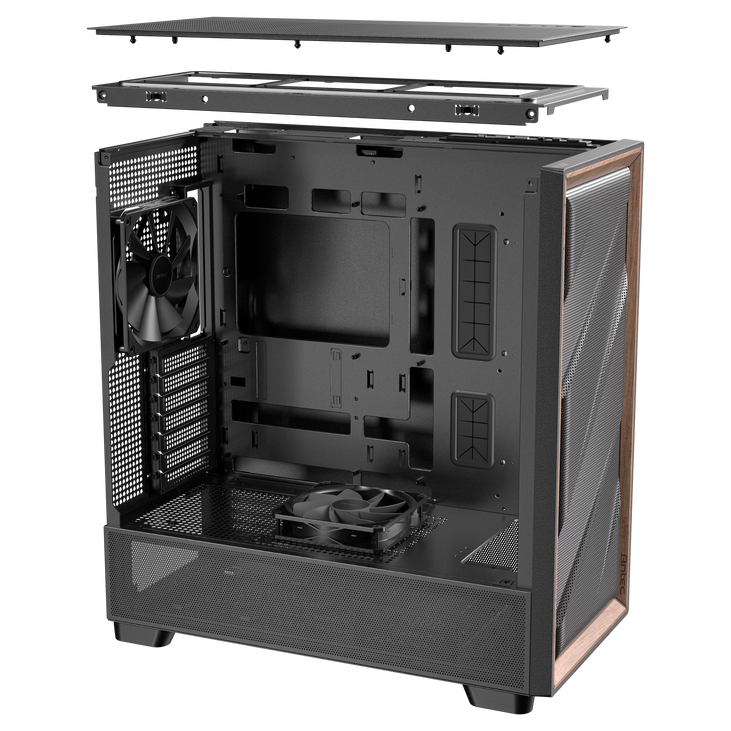

The case comes pre-equipped with three 120 mm fans in the front, one 120 mm reverse fan on the power supply cover, and one 140 mm fan at the back. This pre-installed fan configuration offers good value for money, as it provides solid basic cooling without additional investment.
Additionally, up to nine 120 mm or eight 140 mm fans can be installed, while a dust filter at the bottom protects the system from dirt.

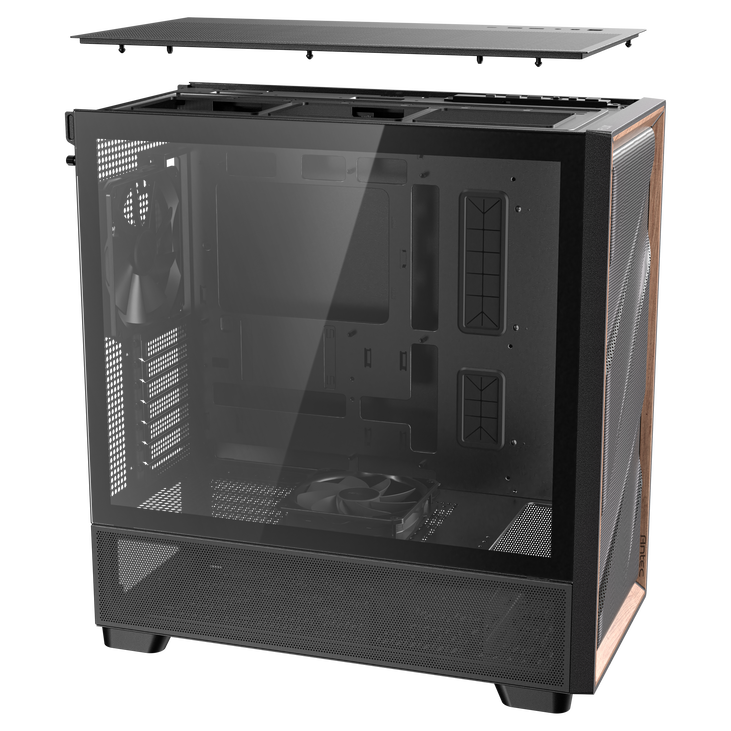

For flexible cooling options, the case supports radiators up to 420 mm in the front, 360 mm in the top, and 120 mm at the back. This allows you to easily choose between air and water cooling, depending on your needs and system requirements.
Ample Space for Components

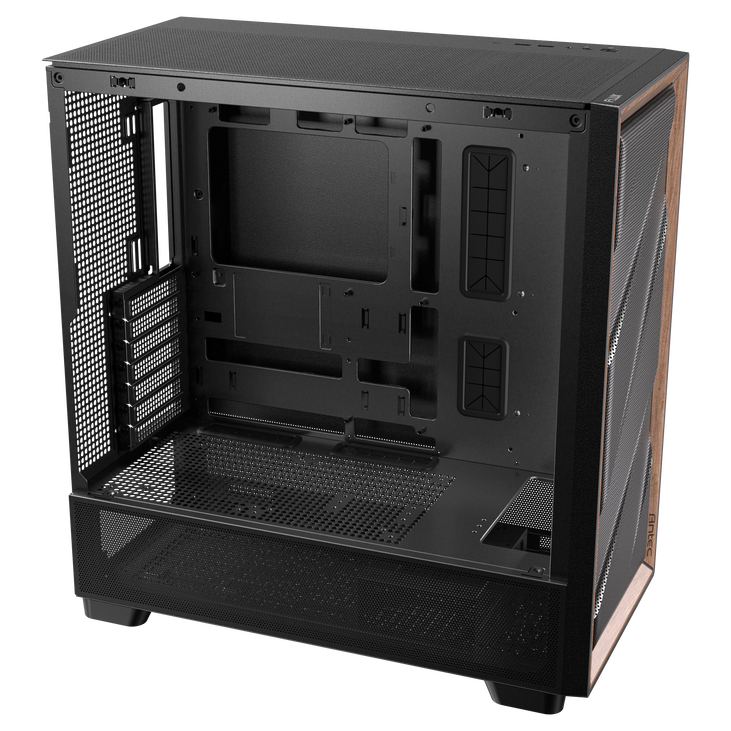

The Antec Flux offers room for motherboards up to E-ATX size (max. 330 mm) and supports CPU coolers with a height of up to 180 mm.
Depending on the radiator and fan configuration, graphics cards with a length of up to 408 mm can be installed. Power supplies up to a length of 235 mm also fit easily into the case – common components will surely find their place here.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
484 mm
|
|
Width
|
239 mm
|
|
Height
|
502 mm
|
|
Weight
|
9.27 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
180 mm
|
|
Max. GPU Length
|
408 mm
|
|
Max. PSU Length / Depth
|
235 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (2x), 140mm Fan (2x)
|
|
Case Fan Support (Front)
|
120mm Fan (3x), 140mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x), 140mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
9
|
|
120 mm fans
|
9
|
|
140 mm fans
|
8
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Single (140 mm), 1x Triple (360 mm), 1x Triple (420 mm)
|
|
Radiator/AIO Support (Front)
|
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator, 420mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator, 140mm Radiator
|
|
Radiator/AIO Support (Top)
|
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
3
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
1
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
2
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|

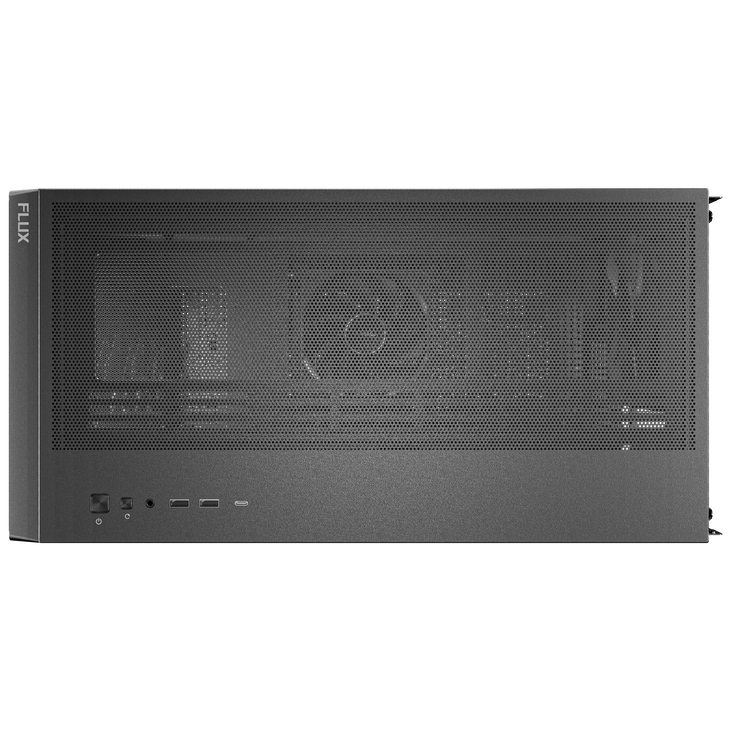

I/O position
|
Top
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|

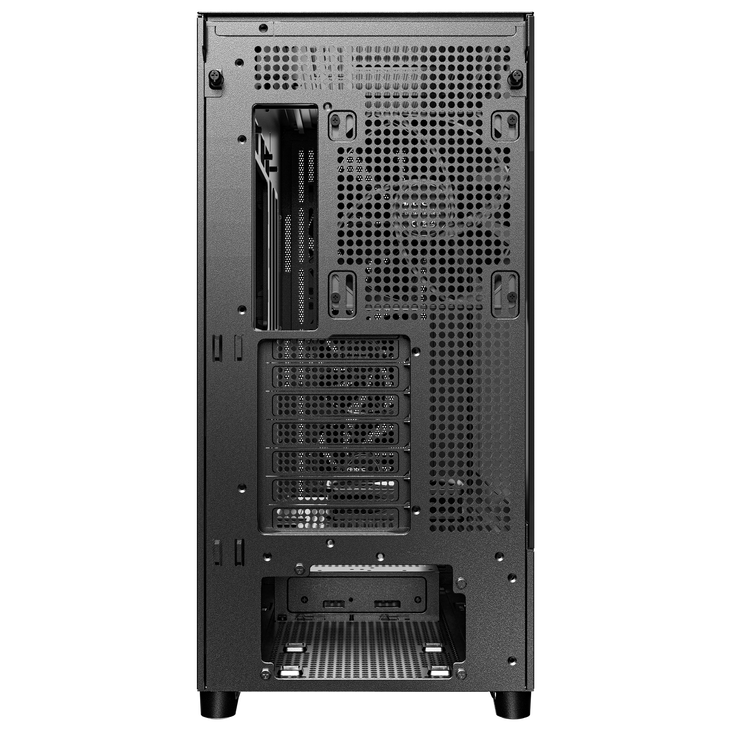

Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
Yes
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Plastic, Steel, Tempered Glass, Wood
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
RGB Controller
|
Yes
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
1x 140 mm, 4x 120 mm
|
