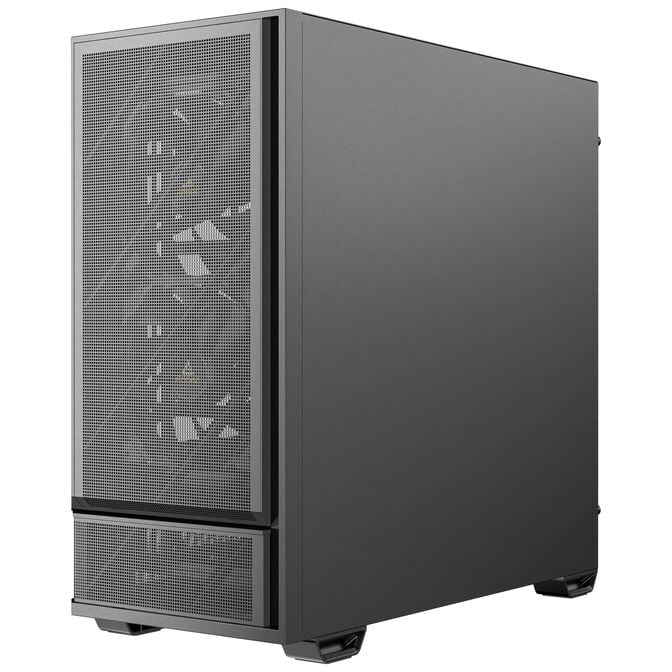

The Antec P30 AIR PC case has been specifically designed for premium airflow, ensuring efficient cooling of your components. Thanks to the well-thought-out mesh panels and optimized airflow design, your PC system stays cool and powerful even under heavy load.
- Black mid-tower with built-in fans
- Effective cooling performance thanks to eight fan slots and radiators up to 360 mm
- Supports motherboards up to ATX size
- Space for graphics cards up to 405 mm and CPU coolers up to 175 mm in height

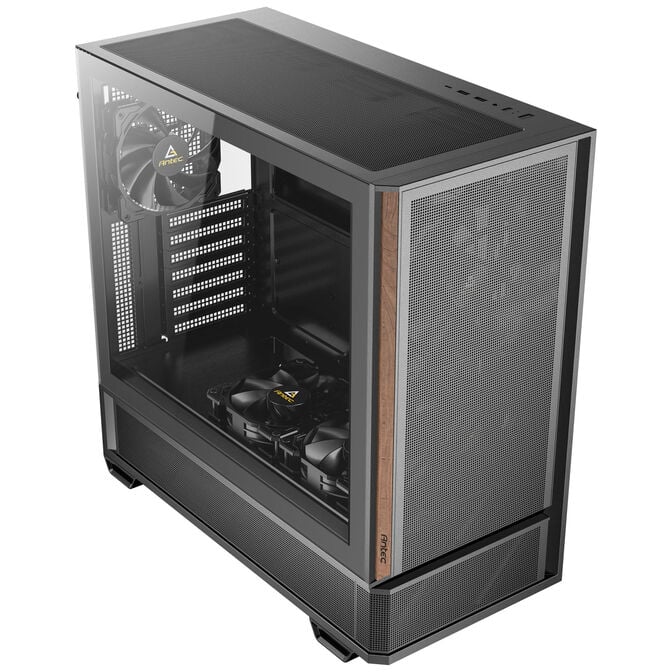

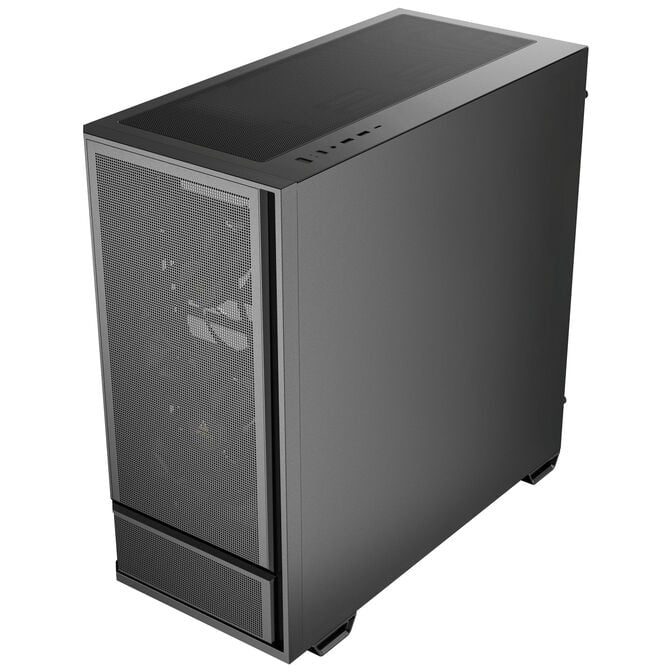

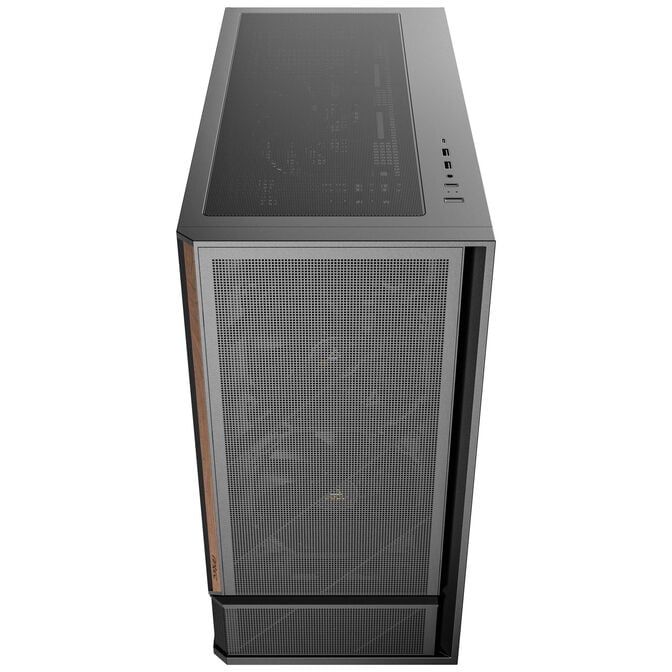

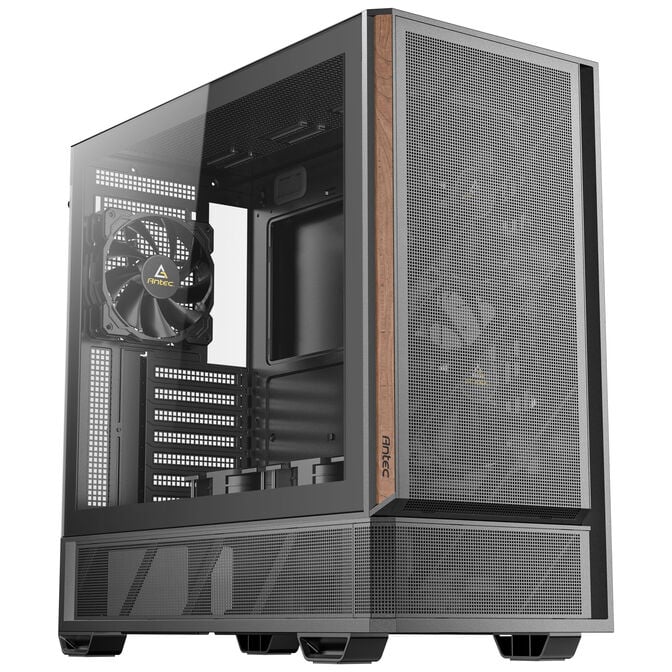

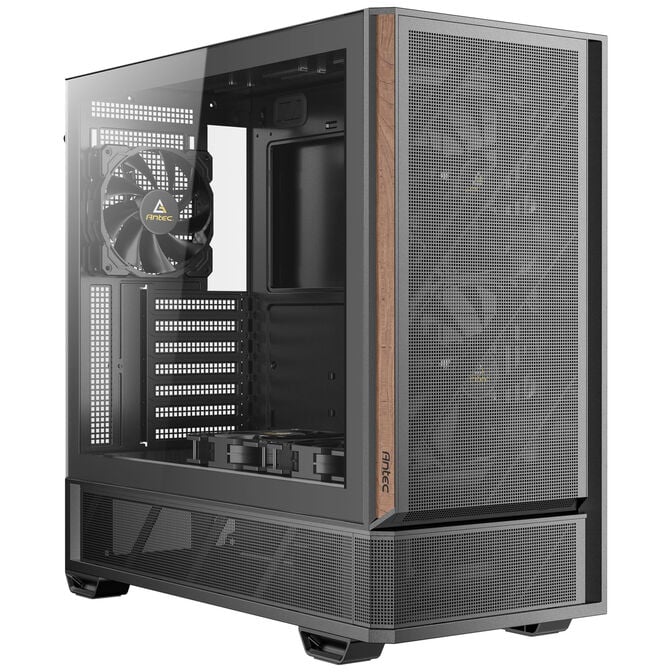

Antec P30 AIR: PC case with built-in fans
The Antec P30 AIR mid-tower offers the perfect balance between size and functionality. With ample space for high-performance hardware and efficient cooling, it is the ideal choice for gaming and workstation builds.
Extensive cooling options with fans and radiators

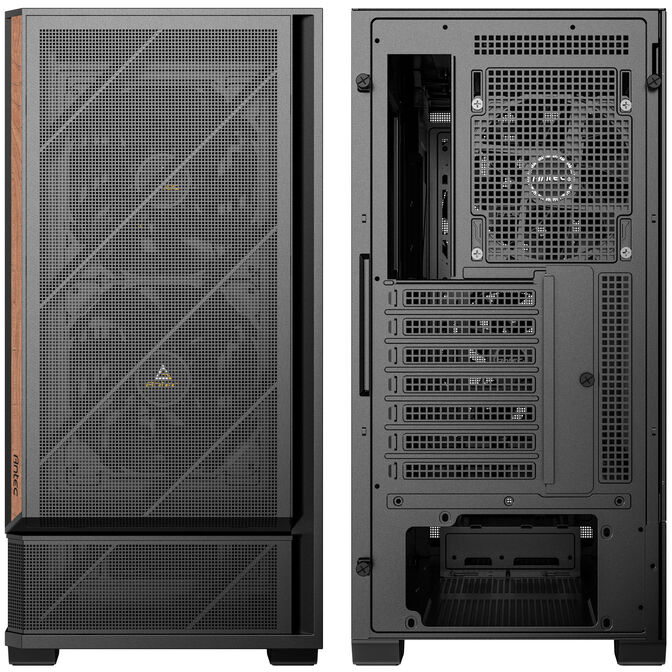

To keep your hardware cool under any load, the Antec P30 AIR can accommodate up to eight fans simultaneously. The top supports three 120mm or two 140mm fans. The front can fit two 120mm or 140mm fans, while two additional 120mm fans can be installed above the power supply cover. A 120mm fan can also be mounted at the rear.
An AiO water cooling system can also be easily installed if you prefer to cool your high-performance hardware with liquid cooling. There is space for this on the top (up to 360mm), at the front (240mm), and at the rear (up to 120mm).

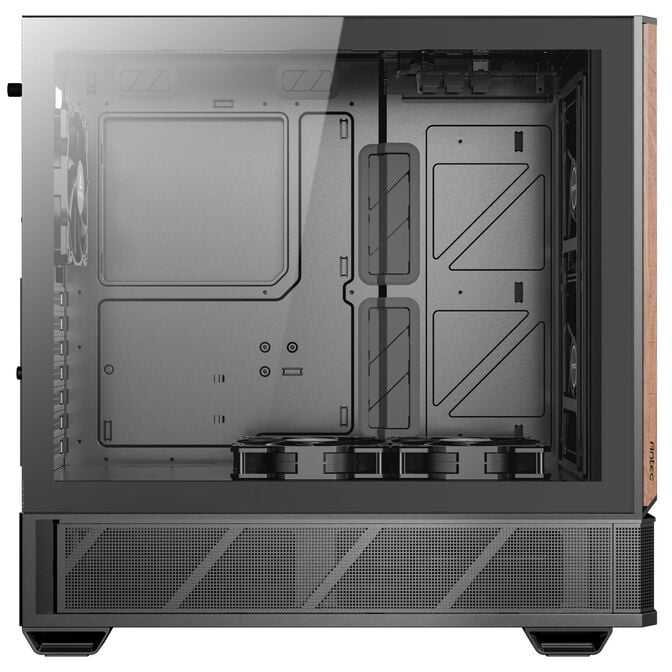

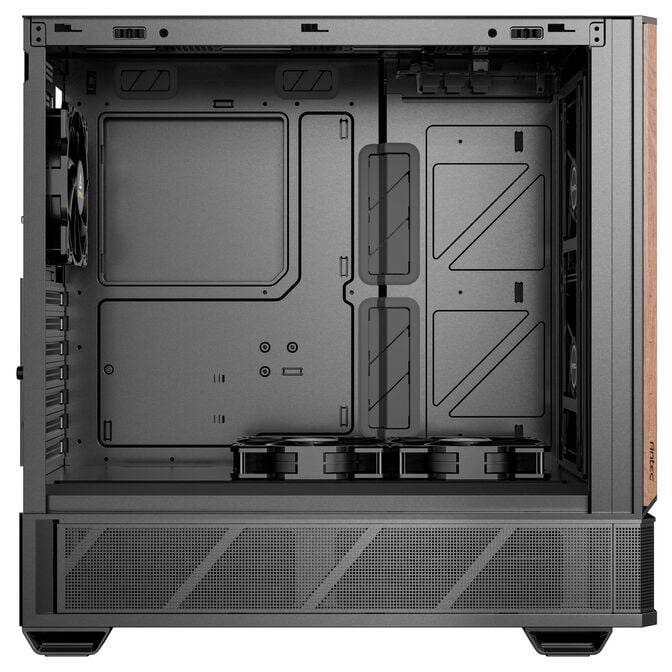

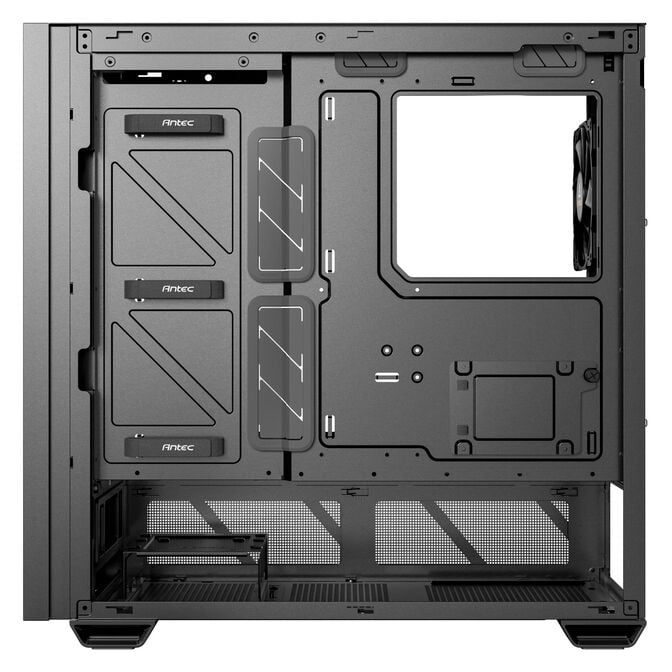

Installing your hardware
The case offers plenty of room for powerful gaming hardware. It supports graphics cards up to 405mm in length. Motherboards up to the ATX form factor are supported. The CPU cooler should not exceed a height of 175mm. For storing programs and games, a total of three drives can be installed.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
478 mm
|
|
Width
|
222 mm
|
|
Height
|
465 mm
|
|
Weight
|
6.85 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
175 mm
|
|
Max. GPU Length
|
405 mm
|
|
Max. PSU Length / Depth
|
270 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (2x)
|
|
Case Fan Support (Front)
|
120mm Fan (2x), 140mm Fan (2x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
8
|
|
120 mm fans
|
8
|
|
140 mm fans
|
4
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Dual (240 mm), 1x Single (120 mm), 1x Triple (360 mm)
|
|
Radiator/AIO Support (Front)
|
120mm Radiator, 140mm Radiator, 240mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Radiator/AIO Support (Top)
|
120mm Radiator, 240mm Radiator, 360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
2
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Top
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom, Top
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Plastic, Steel, Tempered Glass, Wood
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
2x 140 mm, 3x 120 mm
|
