aqua computer aqualis XT Reservoir - 150ml

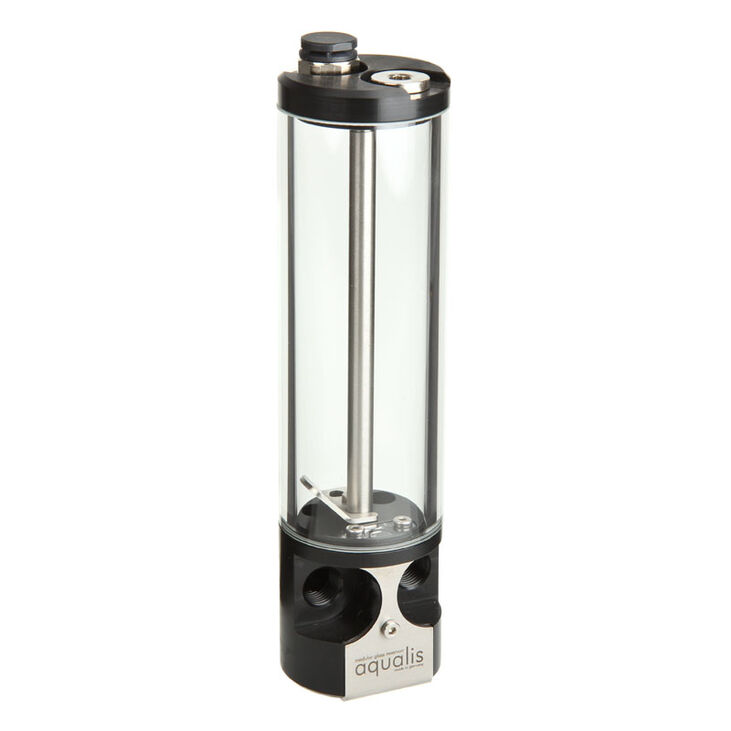

The reservoirs in the aqualis series are equipped with a borosilicate glass tube, which, unlike the acrylic glass commonly used for tubular reservoirs, features very high hardness and scratch resistance, extremely low thermal expansion, and excellent chemical and thermal resistance.

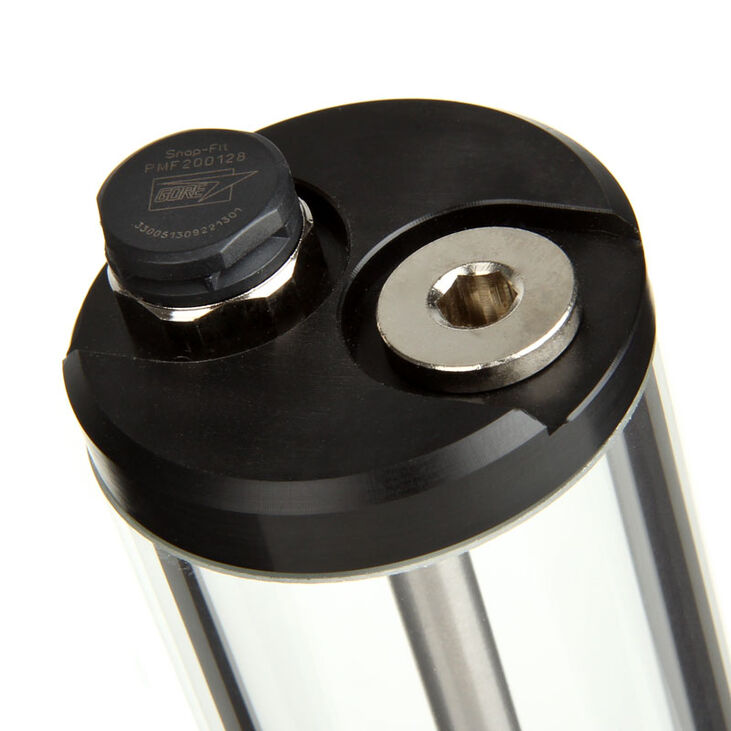

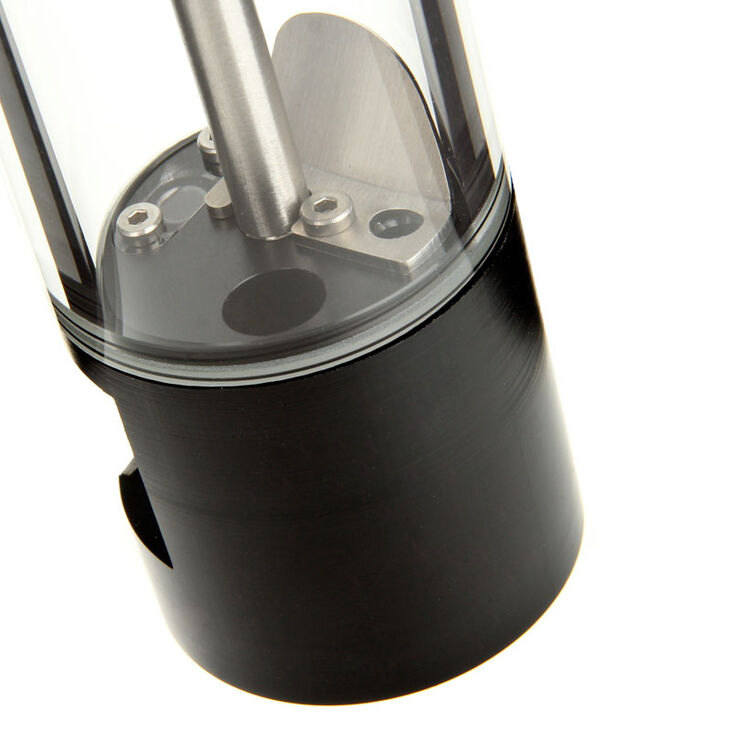

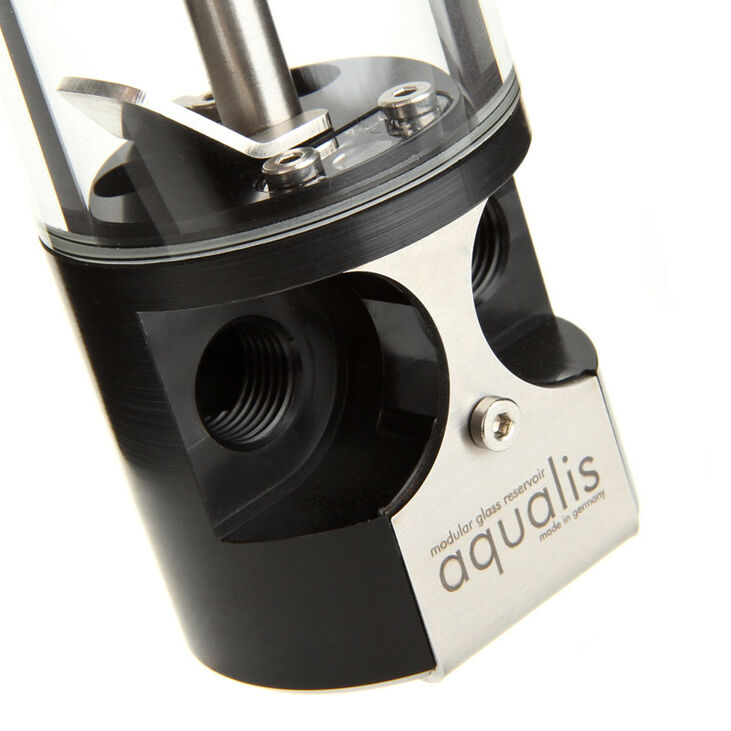

The glass tube of the 150 ml variant has an outer diameter of 50 mm and a wall thickness of 5 mm. The base and top of the aqualis series are made from Delrin, with the top and bottom connected by a stainless steel rod. A stainless steel baffle plate above the inlet in the reservoir ensures effective air removal from the loop.

The aqualis XT 150 ml includes an acrylic glass window integrated into the base and space for installing an LED (type 5 mm, not included). It also features electronic fill level monitoring with USB and aquabus interfaces, a configurable alarm output, and an external temperature sensor input. The aquasuite software is available for download for monitoring and configuration purposes.

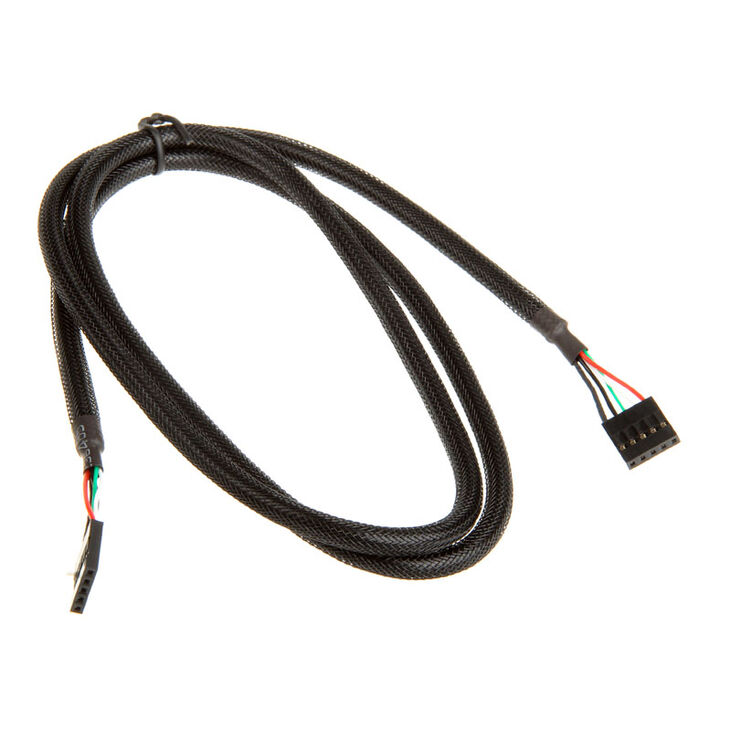

The four-pin aquabus interface also allows direct connection to an aquaero 5 controller (not included). The alarm output can be configured as an artificial tachometer signal for connection to a fan header with tachometer signal evaluation (e.g., on the motherboard) or as a switch output, for example, to control an LED in case of an alarm.

For alarm monitoring, both the measured fill level and the external temperature sensor input are available. The external temperature sensor input is compatible with all temperature sensors offered by Aqua Computer.
