aqua computer ULTITUBE D5 150 PRO LEAKSHIELD Reservoir

aqua computer ULTITUBE D5 150 PRO LEAKSHIELD Reservoir

reservoir with D5-NEXT pump, made of resistant borosilicate glass, 350 ml capacity, LEAKSHIELD protects against leaks, with RGBpx lighting
314,90 €
incl. VAT , add. delivery costs starting from 4.99€
SKU WAAU-673 |
EAN 4260473314097 |
MPN 34141 |
Manufacturer aqua computer
  • Reservoir from aqua computer with 350 ml capacity
  • Made from durable borosilicate glass and acetal
  • Removable stainless steel filter in the base
  • LEAKSHIELD protects your system from leaks
  • A powerful D5-NEXT pump with OLED display powers your water cooling
  • RGB-LED lighting through the RGBpx ring
  • Mounting hardware for wall and floor installation included

The ULTITUBE D5 150 PRO LEAKSHIELD Reservoir in Detail

A reservoir that protects your system. The ULTITUBE D5 150 PRO with LEAKSHIELD ensures that no liquid from your water cooling system leaks onto your hardware thanks to its negative pressure. It also continuously monitors the water loop for minor leaks, even before you start using the water cooling system.



The ULTITUBE D5 150 PRO Reservoir also supports you with filling your system with water once you connect a suction line or monitor the reservoir’s water level thanks to LEAKSHIELD.

A powerful pump for sophisticated custom water cooling systems

The aqua computer ULTITUBE D5 150 PRO LEAKSHIELD stands out by using borosilicate glass instead of acrylic, which is harder and more scratch-resistant. Additionally, it offers excellent chemical and thermal resistance and expands very little when exposed to heat.



The glass tube has a wall thickness of 5 mm and an outer diameter of 65 mm. A filter made of stainless steel mesh is integrated into the base of the reservoir. The filter retains particles and eliminates air bubbles. The filter element is easy to remove and can be cleaned under running water.

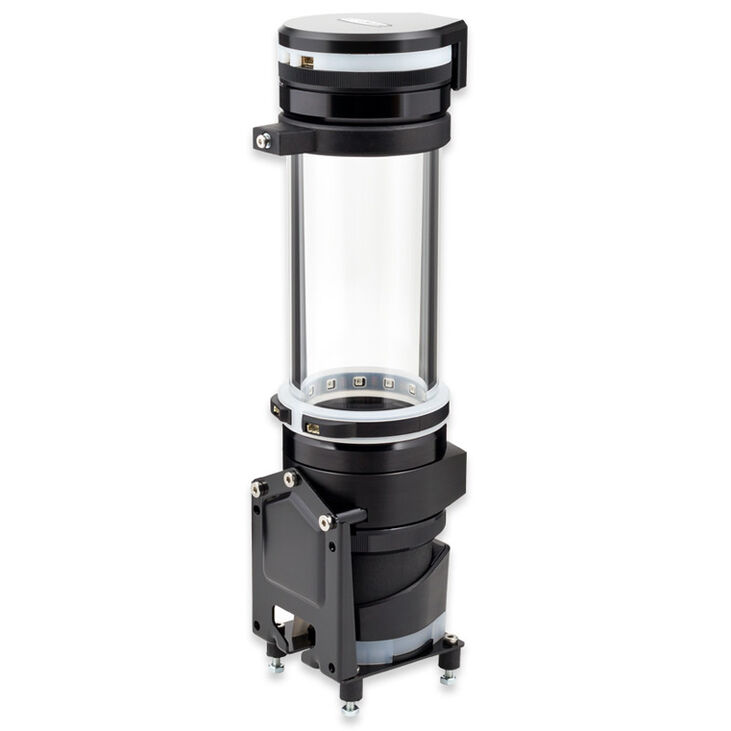

Both the top and base of the ULTITUBE D5 150 PRO are made from durable acetal and are screwed together with aluminium rings and the tube. Both ends of the glass tube are securely connected with metal rings made of black anodised aluminium. They do not come into contact with the coolant! This design eliminates the need for internal struts or additional tubes.

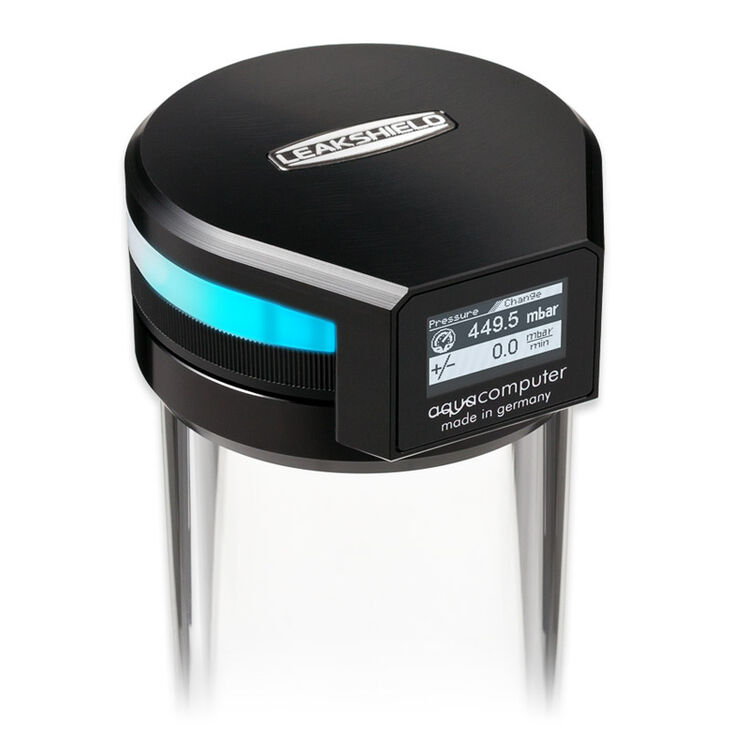

The Function of LEAKSHIELD

What does LEAKSHIELD do? It creates negative pressure in the entire cooling system. This means that when a leak occurs, no coolant escapes. Instead, air is sucked into the system. To ensure that negative pressure is maintained at every point in the loop, you must adjust the negative pressure based on your coolant pump.



If air enters the system, it is pumped out again by the integrated vacuum pump of the LEAKSHIELD, maintaining the negative pressure. Only in the event of large leaks, such as a completely detached hose, might coolant escape.

Powerful performance with the D5-NEXT Pump

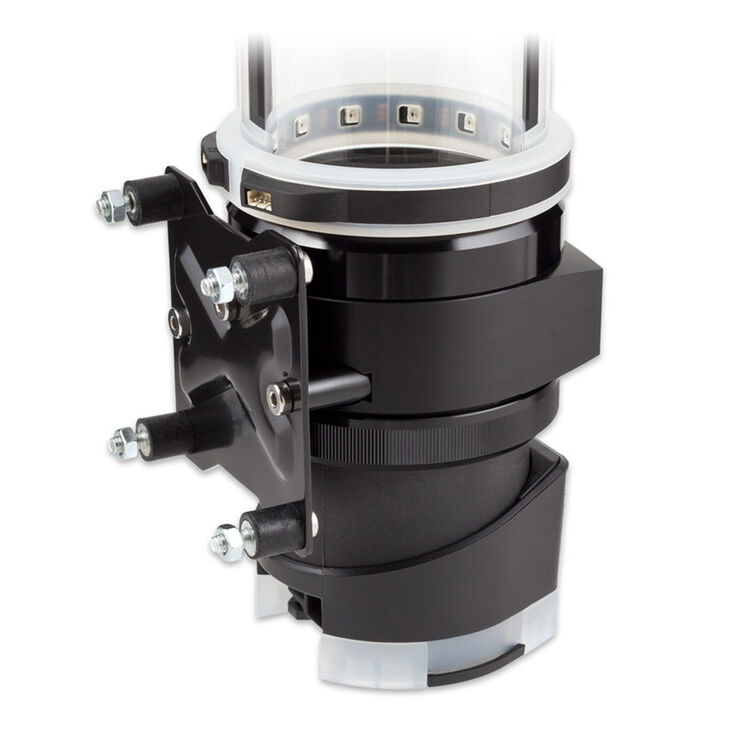

A aqua computer D5 NEXT Pump is mounted directly at the bottom of the reservoir. The pump features an OLED display and numerous control and adjustment functions. The pump is mounted via an aluminium ring at the bottom of the reservoir.



The Key Features of the D5 NEXT Pump at a Glance:

  • Ceramic ball motor for optimal smoothness and durability
  • Integrated RGBpx lighting for lighting effects and error signalling
  • Integrated water temperature sensor
  • The OLED display can be operated without PC software
  • PWM fan output with up to 25 watts power and RPM monitoring
  • RGBpx LED output for up to 90 addressable LEDs
  • Alarm buzzer for acoustic alarm signalling
  • aquasuite software for easy configuration, evaluation, and visualisation of all sensor data

Customise Your Pump with Colours

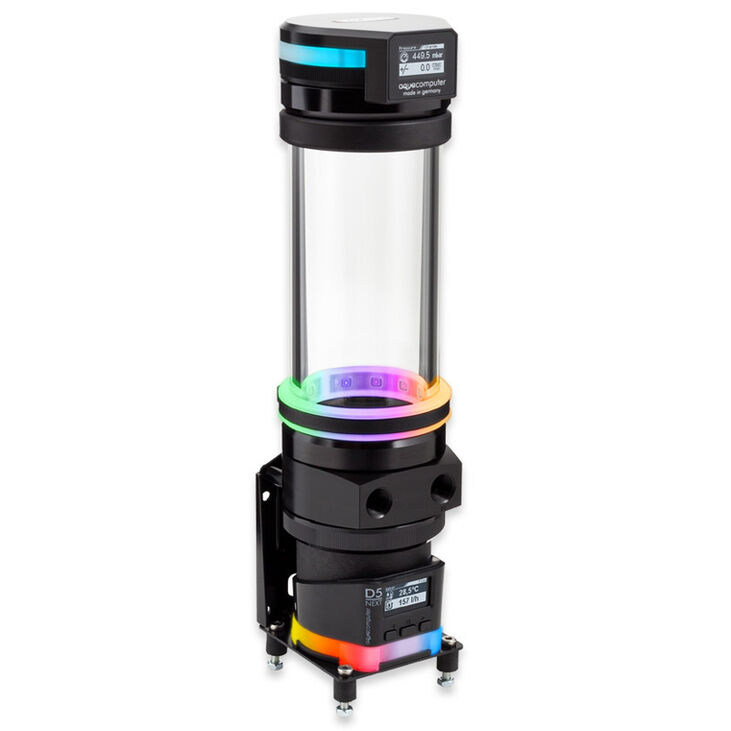

The package includes digitally addressable RGB-LED lighting in the form of an LED ring with 13 RGB-LEDs. The RGBpx ring can easily be slipped over the reservoir, illuminating the reservoir and the coolant. The silicone construction diffuses the LED light, minimising unsightly LED spots. The RGBpx ring has both an input and output, allowing multiple LED rings to be connected in a chain.



Note: The reservoir does not include fittings! They must be purchased separately.
  • Dimensions: 72 x 277 x 77 mm (W x H x D)
  • Diameter of glass tube: 65 mm
    (Dimensions without mounting materials)
  • Material: Borosilicate glass (tube), Acetal (lid, base), Aluminium (rings), Stainless steel (filter), Silicone (RGBpx ring)
  • Filling volume: 350 ml
  • Connections: 2x G1/4 inch
  • Lighting:
    1x RGBpx ring with 13 RGB LEDs
    Type: digitally addressable RGB
    Connection: 2x proprietary (aqua computer RGBpx, 1x input, 1x output)
    Cable length: 50 cm
    Compatibility RGBpx ring: Aqua Computer controller with RGBpx output
  • D5-NEXT pump:
    Operating voltage: 12 V DC
    Power consumption: 65 W (including fan and RGBpx lighting)
    Fan output power: max. 25 W
    Delivery head: 3.7 m (at 12 V)

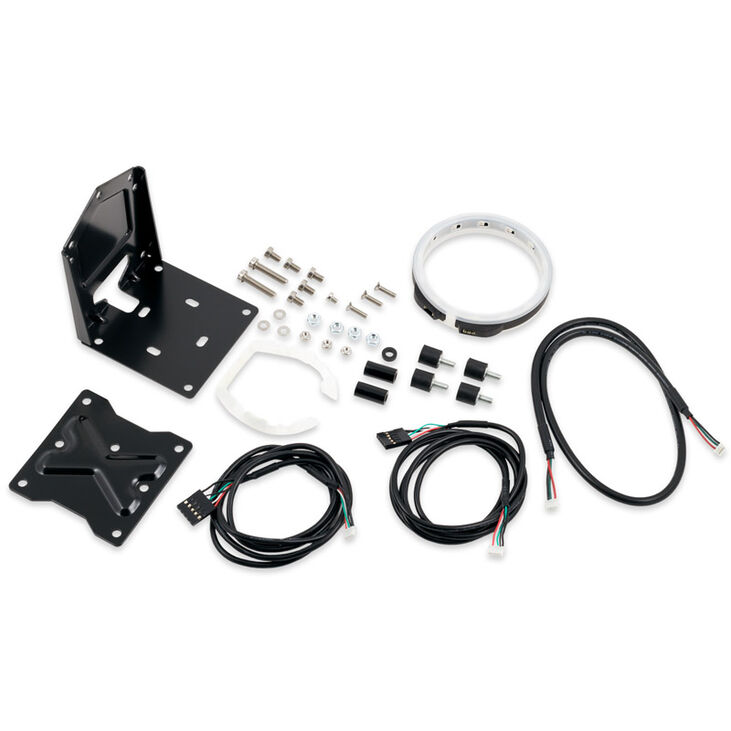

  • Scope of delivery:
    1x a compensating tank with integrated pump
    1x RGBpx-compatible LED ring
    1x RGBpx connection cable, length 500 mm
    1x rubber mounting ring with stainless steel insert
    2x internal USB connection cables (approx. 150 cm length)
    1x complete mounting material for either side/back wall or standing installation
    4x rubber decouplers
Colour
Primary Colour
Black
Secondary Colour
Transparent
Dimensions
Length / Depth
77 mm
Width
72 mm
Height
277 mm
Volume
350 ml
Pump Specifications
Max. Pressure Head
3.7 m
Type
Pump type
D5
Power Specifications
Power consumption
65 W
Rated voltage
12 V
Water Cooling
Water cooling component
Pump + Reservoir
Water cooling connectors
1x G1/4"
Internal Ports
RGB / LED connectors
1x aqua computer RGBpx
Lighting
Lighting / RGB
Yes
Lighting Colour
RGB
Lighting Compatibility
aqua computer RGBpx
