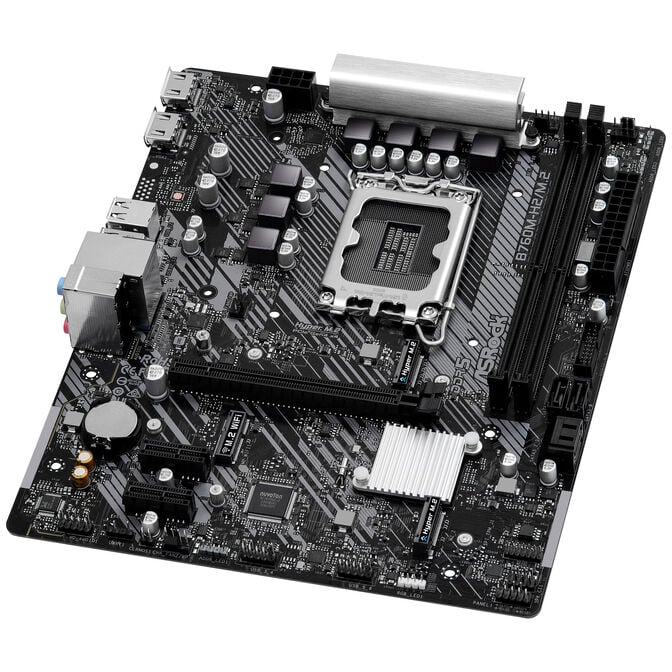

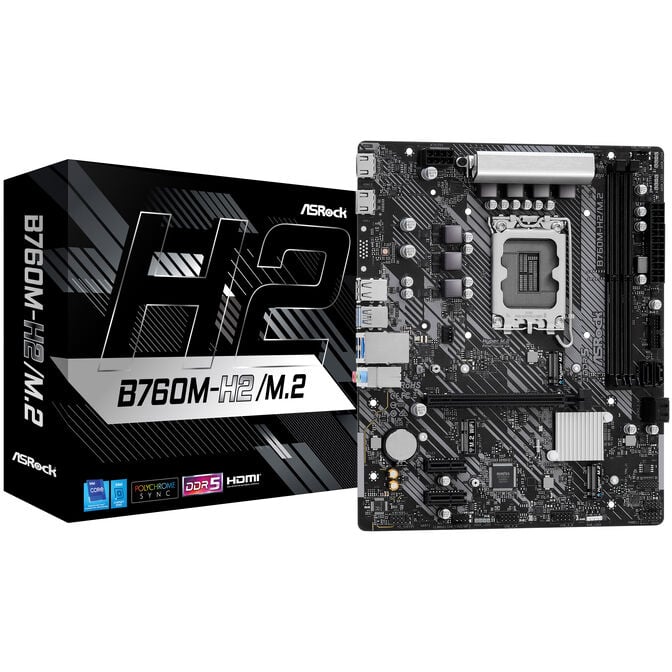

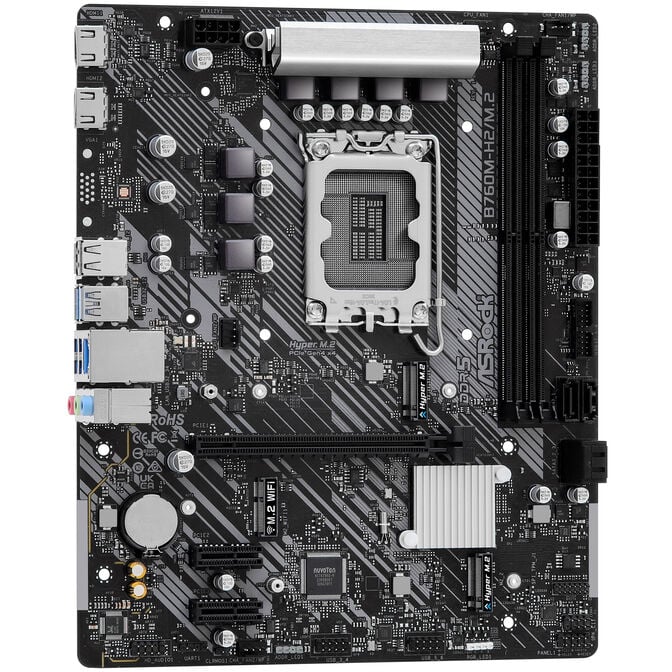

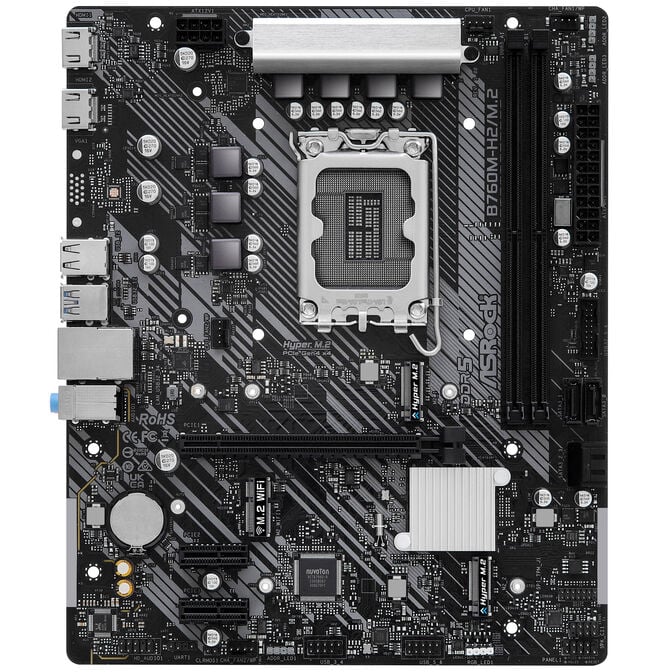

ASRock B760M-H2/M.2 motherboard, socket 1700, Intel B760, mATX, DDR5
ATX motherboard with B760 chipset, featuring Intel socket 1700, PCIe 4.0 for graphics card & SSDs, suitable for DDR5 RAM, 2x M.2 slots, 2.5 Gbit LAN
79,66 €
Incl. VAT, add. delivery costs starting from 4.99€
- 1x PCIe 4.0 x16 (x16) and 2x PCIe 3.0 x1
- DDR5 memory via RAM-OC up to 7,200 MHz
- 2x M.2 slots, including 1x PCIe 4.0 and 1x PCIe 4.0 & SATA

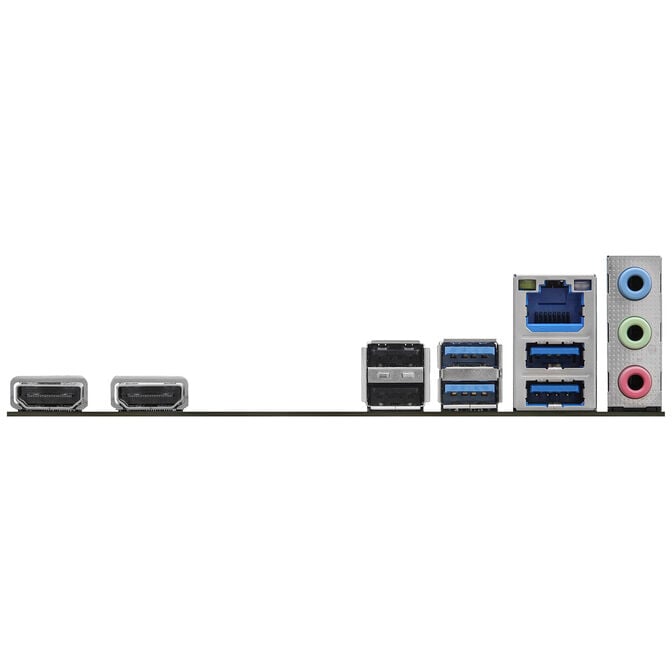

- USB on the I/O panel: 4x USB-A 3.0 and 4x USB 2.0
- A total of 4 connections for fans and pumps
The Micro-ATX motherboard ASRock B760M-H2/M.2 with Intel B670 chipset
The ASRock B760M-H2/M.2 is a Micro-ATX motherboard featuring the Intel B760 chipset and LGA 1700 socket. The motherboard is suitable for desktop processors of the 12th, 13th, and 14th generation Intel Core CPUs, Codename: Alder Lake and Raptor Lake. It supports DDR5 memory up to 7,200 MHz and is particularly well-suited for RAM overclocking due to its outstanding power supply.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Silver
|
|
Dimensions
|
|
|
Length / Depth
|
244 mm
|
|
Width
|
201 mm
|
|
Form Factor
|
|
|
Motherboard Form Factor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1700
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel B760
|
|
Memory
|
|
|
Max. Memory
|
128 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
7200 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
2x
|
|
Performance Profile
|
Intel XMP 3.0
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
LAN Chip
|
Dragon RTL8125BG
|
|
Wi-Fi / Bluetooth
|
No
|
|
Cooling
|
|
|

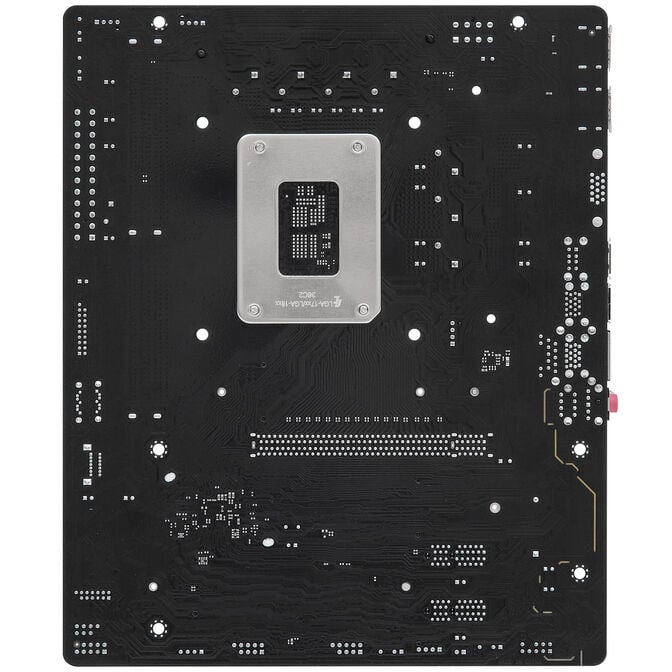

Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB 3.0 (external) Type C
|
4
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
HDMI (2x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
2
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x1 mechanical slot
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
4
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
