ASROCK B850M-X motherboard, Socket AM5, AMD B850, Micro-ATX, DDR5
Micro-ATX motherboard with AMD B850 chipset, supports PCI-Express 5.0, suitable for DDR5 RAM
149,81 €
Incl. VAT, add. delivery costs starting from 4.99€
- Slots: 1x PCIe 4.0 x16 (x16), 1x PCIe 4.0 x16 (x4) and 1x PCIe 4.0 x1
- RAM: 2x DIMM slots for a maximum of 128 GB DDR5 RAM up to 8,200 MT/s
- Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA
- USB: 1x USB-C 3.0, 3x USB 3.0 and 2x USB 2.0
- Cooling: 6x 4-pin PWM connectors for fans and radiators

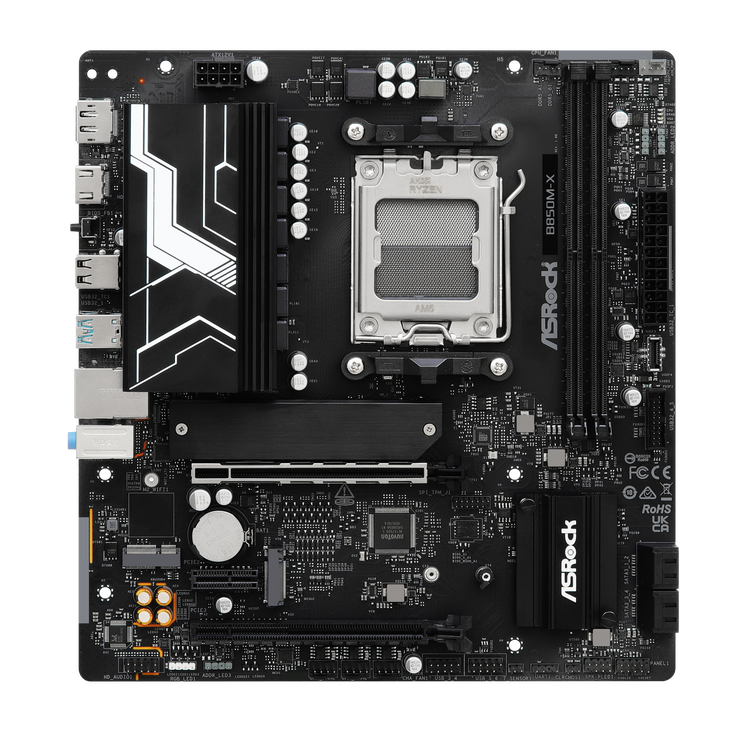

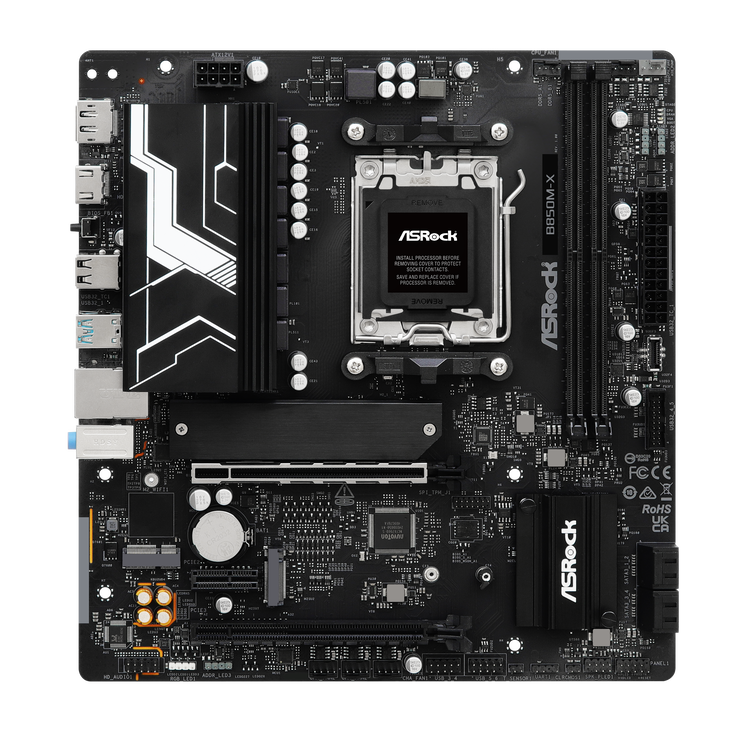

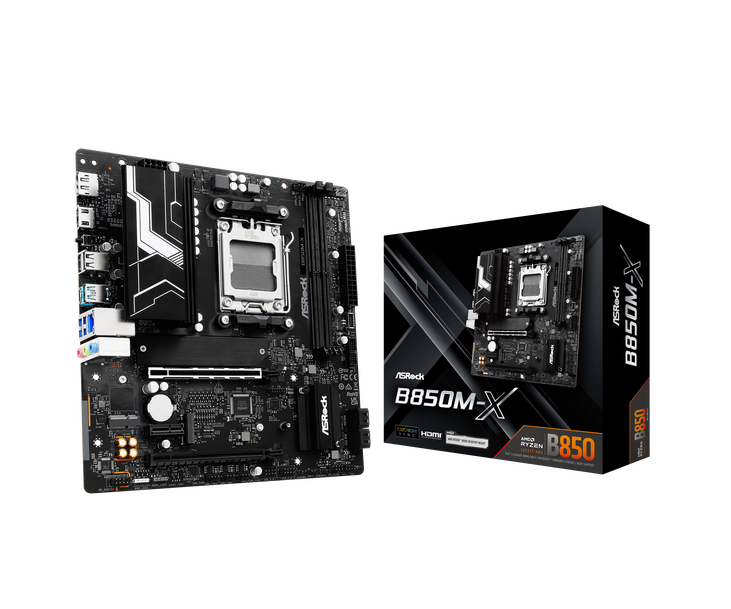

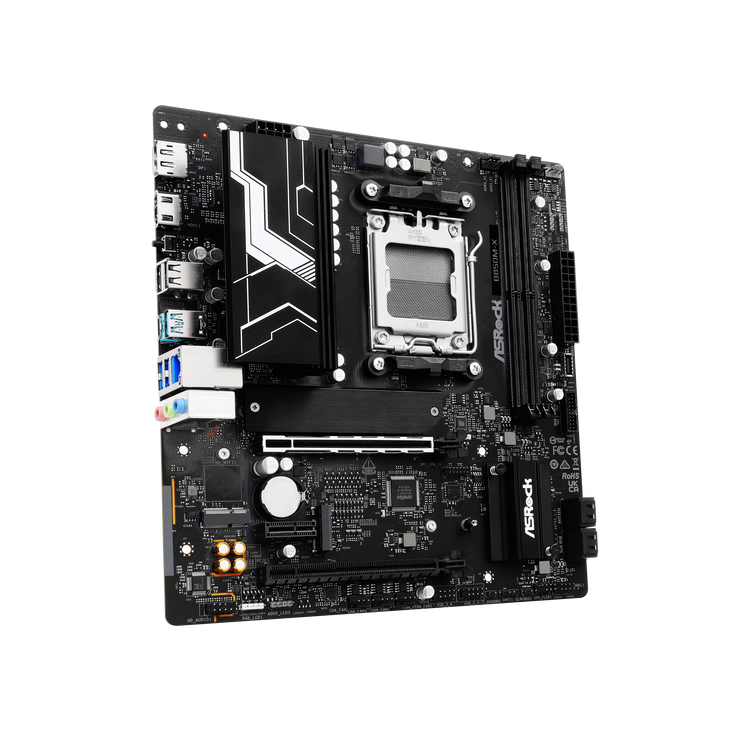

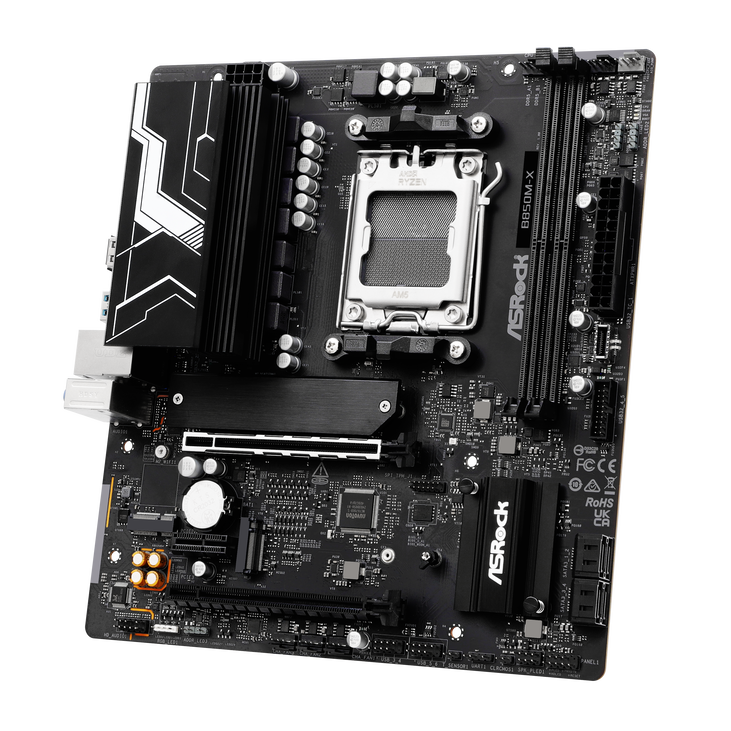

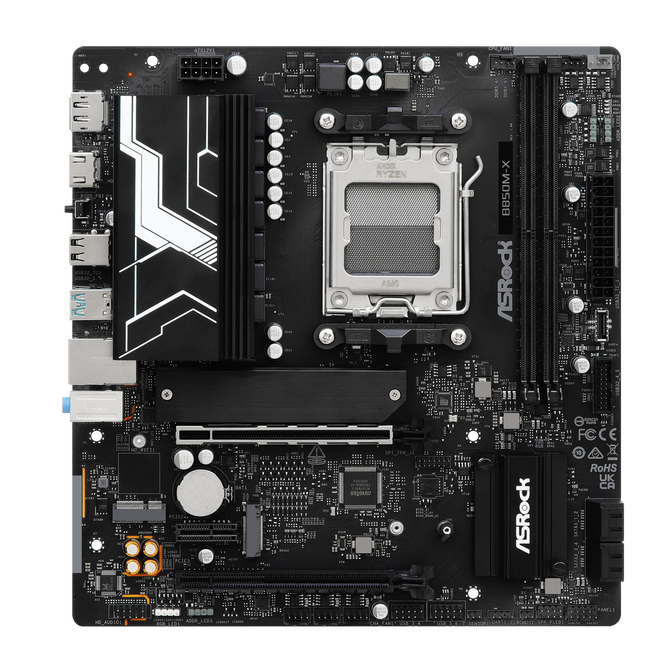

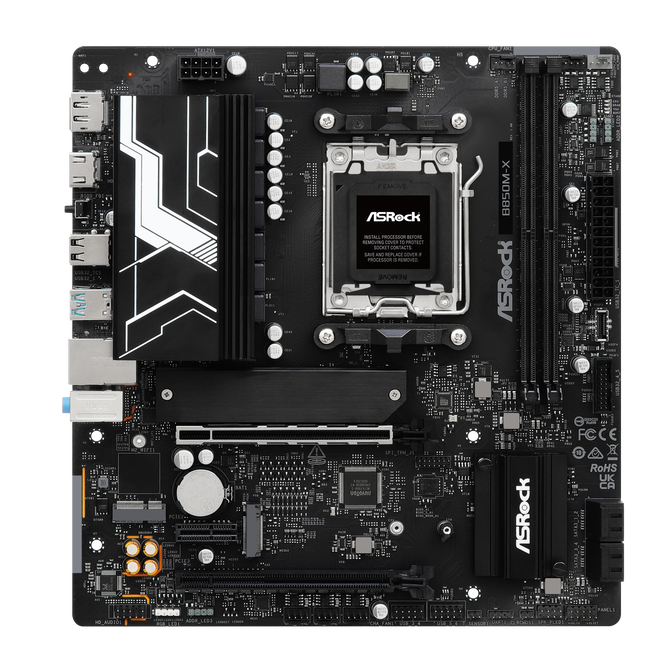

ASROCK B850M-X: Micro-ATX motherboard with AMD AM5 socket and B850 chipset
The ASROCK B850M-X is a Micro-ATX motherboard featuring the mid-range AMD B850 chipset and the AMD AM5 socket. It supports Ryzen 9000, 8000, and 7000 CPUs. Graphics cards and NVMe SSDs connect via PCIe 5.0.
Overclocking for Gamers
To get the most out of your gaming PC, the CPU can be overclocked through the motherboard to achieve higher clock speeds. A stable power supply for the processor is ensured, allowing even high-end CPUs to operate at full performance for extended periods. You can also fully utilise the DDR5 memory with overclocking. In case of emergencies, the ASROCK B850M-X offers BIOS flashback.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD B850
|
|
Memory
|
|
|
Max. Memory
|
128 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
8200 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
2x
|
|
Performance Profile
|
AMD EXPO, Intel XMP
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
LAN Chip
|
Dragon RTL8125BG
|
|
Wi-Fi / Bluetooth
|
No
|
|
Cooling
|
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|

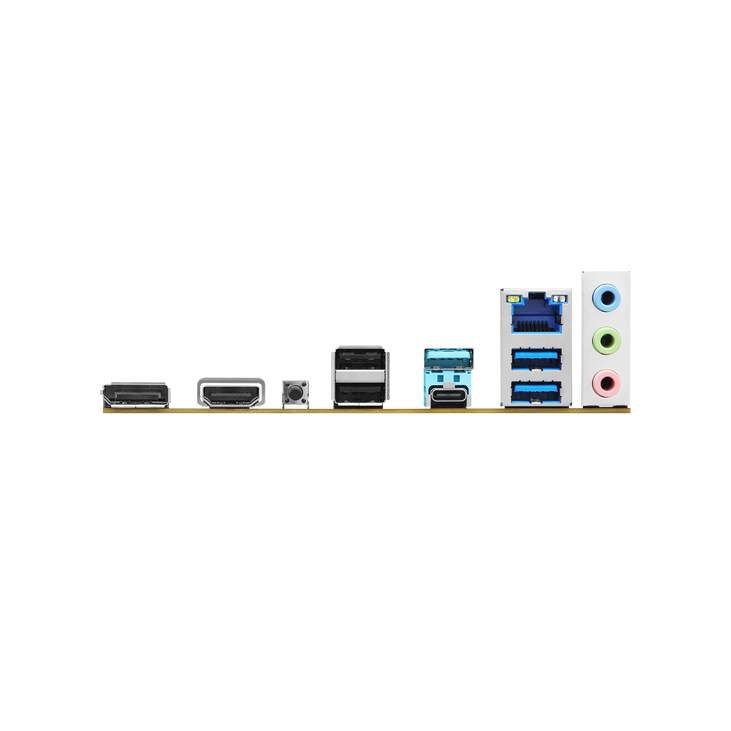

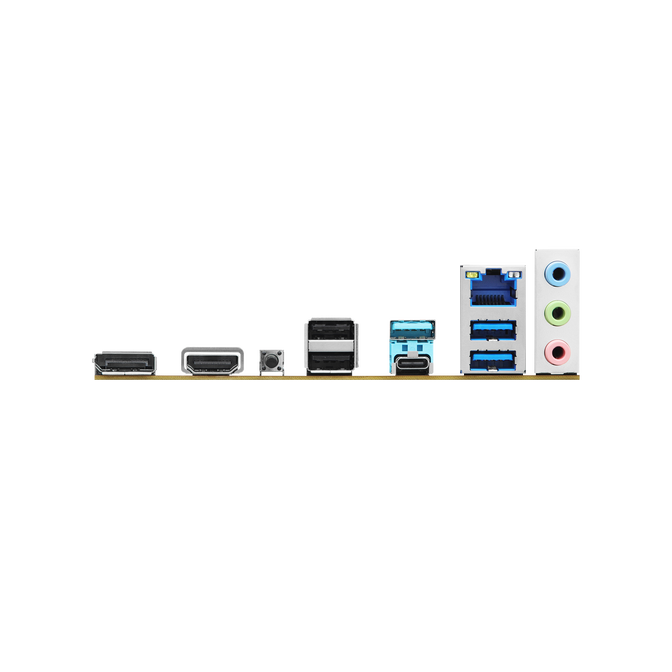

External Ports
|
|
|
USB 3.0 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
3
|
|
USB 2.0 (external) Type A
|
2
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x4 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
2
|
|
PCIe 4.0 x1 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
6
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC897
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
