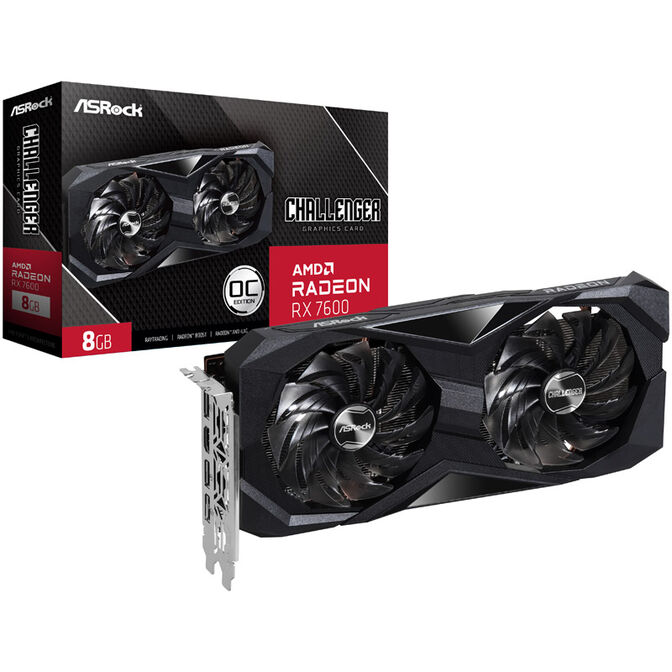

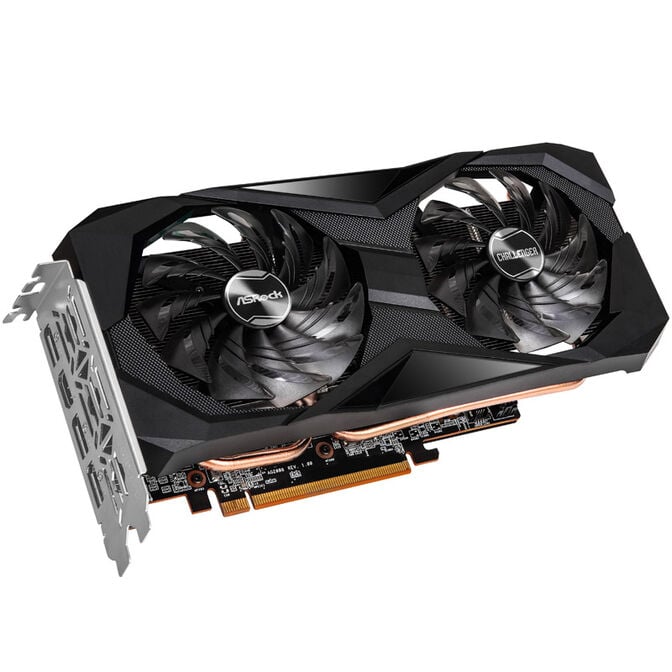

ASRock Radeon RX 7600 Challenger 8GB, 8192 MB GDDR6

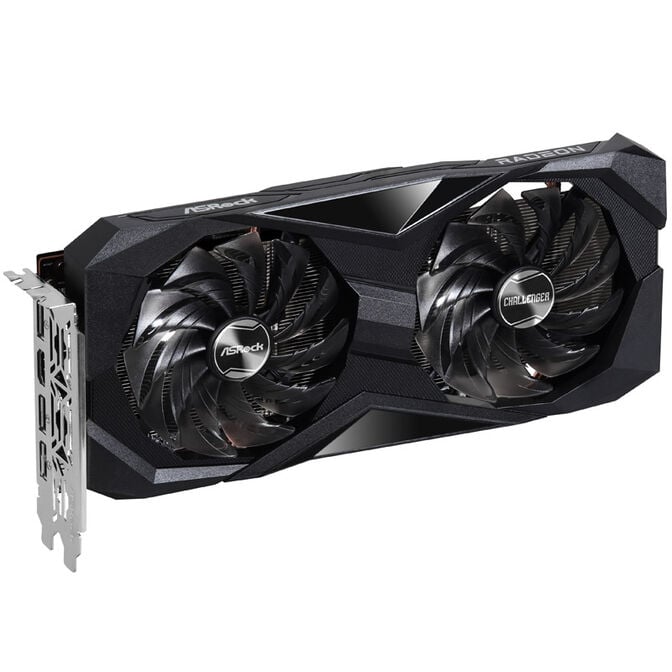

- Efficient dual-fan cooler design with semi-passive cooling
- Extensive RGB LED lighting
- Enormous GPU boost clock: 2,695 MHz
- 8 GB GDDR6 graphics memory with 32 MB AMD Infinity Cache
- High memory clock: 2,250 MHz (effective 18,000 MHz)
- Wide memory interface of 128 bit
- Very large memory bandwidth of 288 GB/s

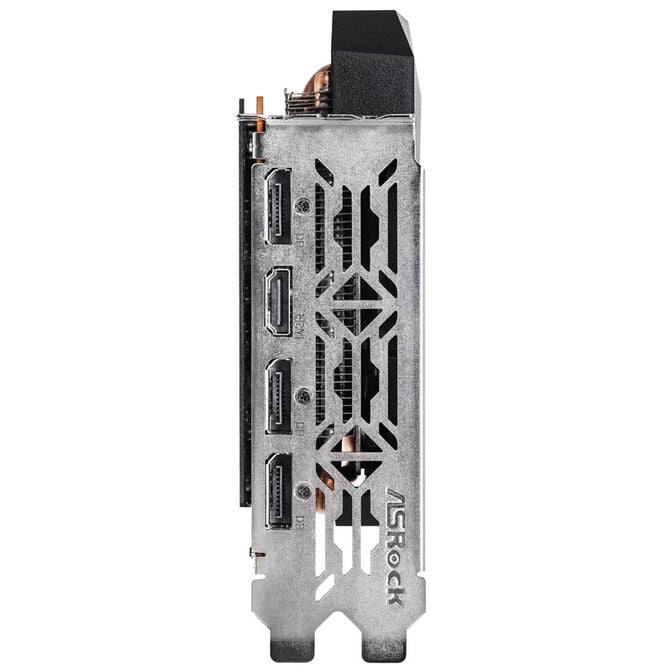

- Video outputs: 3x DP 2.1, 1x HDMI 2.1a
The ASRock Radeon RX 7600 Challenger 8GO in Detail
The ASRock Radeon RX 7600 Challenger 8GO is equipped with a powerful graphics processor and particularly fast GDDR6 graphics memory. This gaming graphics card is the ideal choice for gamers seeking an uncompromising Full HD gaming experience. With the ASRock Radeon RX 7600 Challenger 8GO, you get powerful rasterisation performance and the ability to enjoy real-time ray tracing. With a Radeon RX 7600, you can enjoy maximum graphics presets and high frame rates in Full HD resolution.
AMD's RDNA-3 Graphics Card with Efficient Cooling

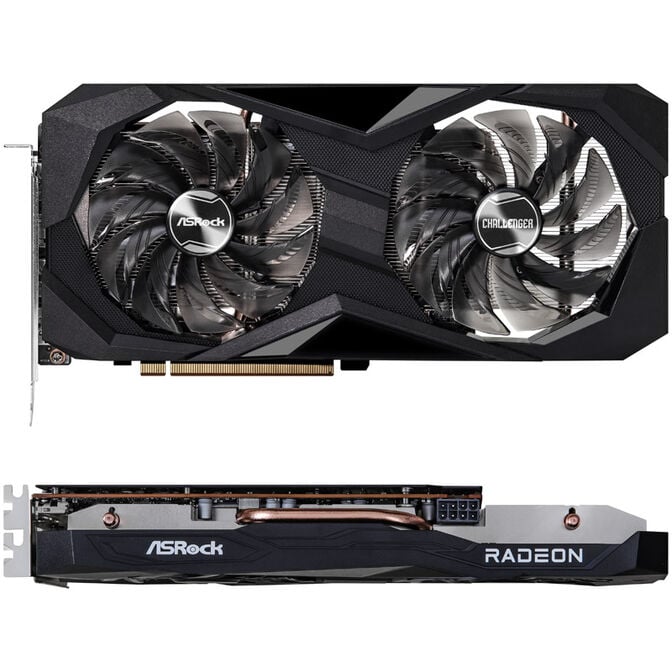

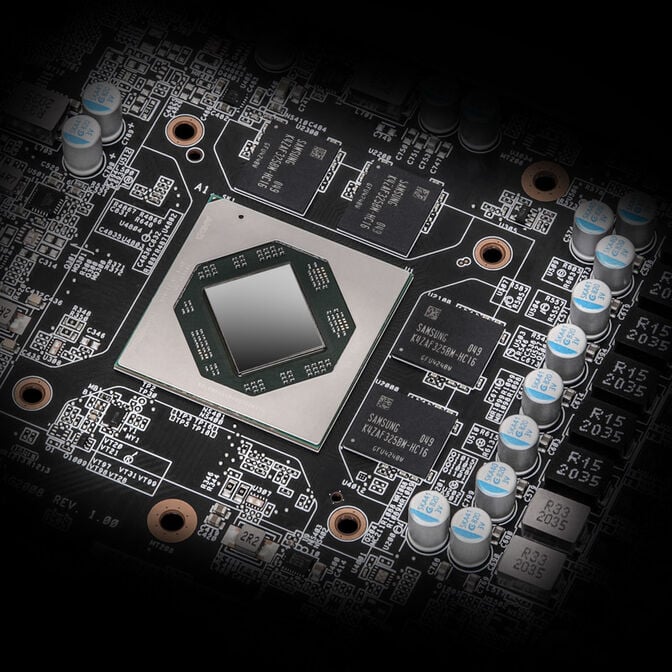

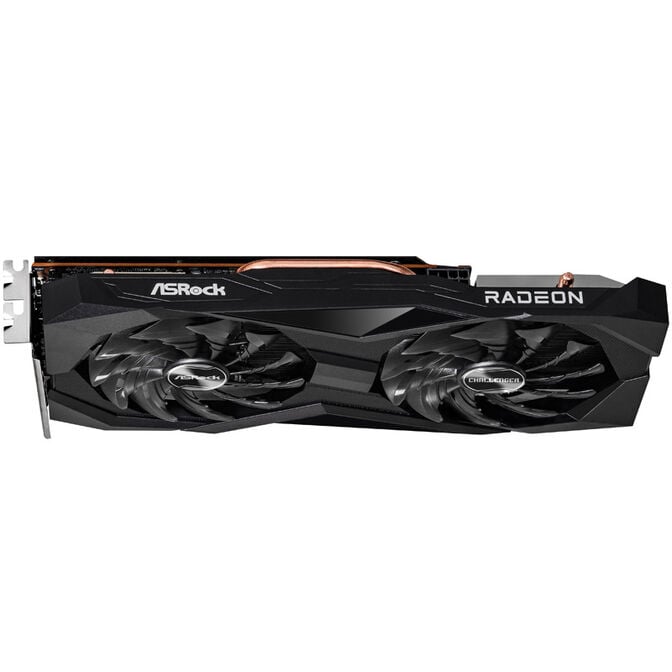

This high graphics performance is provided by the Navi 33 XL GPU with a maximum boost clock of 2,695 MHz and the 8 GB GDDR6 memory with an effective clock frequency of 18,000 MHz. The ASRock Radeon RX 7600 Challenger 8GO is kept at low temperatures by the cooling system developed by ASRock in a dual-fan design.
Your case should have at least 270 mm of space and 2 expansion slots for this graphics card. The manufacturer recommends a power supply with at least 550 watts of rated power.
- Dimensions: 269.2 x 131.8 x 40.3 mm (L x W x H)
- Height: 2 slots
- GPU: AMD Radeon RX 7600
- Chip: Navi 33 XL
- Clock speeds:
Base clock: 1,770 MHz
Game clock: 2,280 MHz
Boost clock: 2,695 MHz - Shader units: 2,048
- Compute units: 32
- Ray accelerators: 32
- Graphics memory:
Memory size: 8,192 MB + 32 MB AMD Infinity Cache
Memory clock: 2,250 (effective 18,000) MHz
Type: GDDR6
Memory interface: 128 bit
Memory bandwidth: 288 GB/s - Slot: PCIe 4.0 x16 (electrical x8)
- Connections:
3x DisplayPort 2.1
1x HDMI 2.1a - Power supply:
Connections: 1x 8-pin PCIe
Recommended power supply: min. 550 watts - TDP: 165 watts
- Dual BIOS: no
- Features:
RDNA-3 GPU architecture, H265/HEVC video encoding, AV1 video encoding, FidelityFX, DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 2.1, Eyefinity 2.0, TrueAudio Next, FreeSync Premium Pro, AMD Smart Access Memory, HDCP 2.3
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Grey
|
|
Dimensions
|
|
|
Length / Depth
|
269.2 mm
|
|
Width
|
131.8 mm
|
|
Height
|
40.3 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RX 7000 Series, AMD Radeon RX Gaming
|
|
GPU Model
|
|
|
AMD Radeon RX 7600
|
|
|
GPU Series Name
|
AMD Radeon RX 7600
|
|
Graphics Chip
|
Navi 33 XL
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
2048
|
|
Raytracing Cores / Ray Acceleratorss
|
32
|
|
GPU Memory Type
|
GDDR6
|
|
Slot Type Standard
|
PCIe 4.0
|
|
Compute Units
|
32
|
|
GPU Memory Size (GB)
|
8
|
|
GPU Memory Interface (bit)
|
128
|
|
GPU Memory Bandwidth (GB/s)
|
288
|
|
GPU Effective Memory Clock (MHz)
|
18000
|
|
Clock Speeds
|
|
|
Max. Memory Clock
|
18000 MHz
|
|
Internal Ports
|
|
|
Required Power Connectors
|
8-pin PCIe (1x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (1x), Display Port (2x), Display Port (3x), HDMI (1x)
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
2 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
AMD Freesync, AMD FreeSync Premium, AMD FreeSync Premium Pro
|
|
Lighting
|
|
|
Lighting
|
Yes
|
|
Lighting Colour
|
RGB
|
