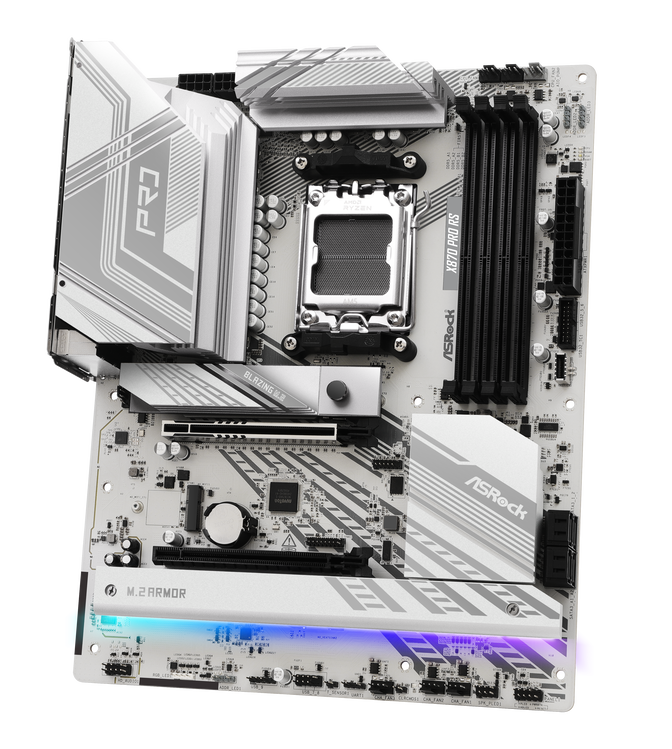

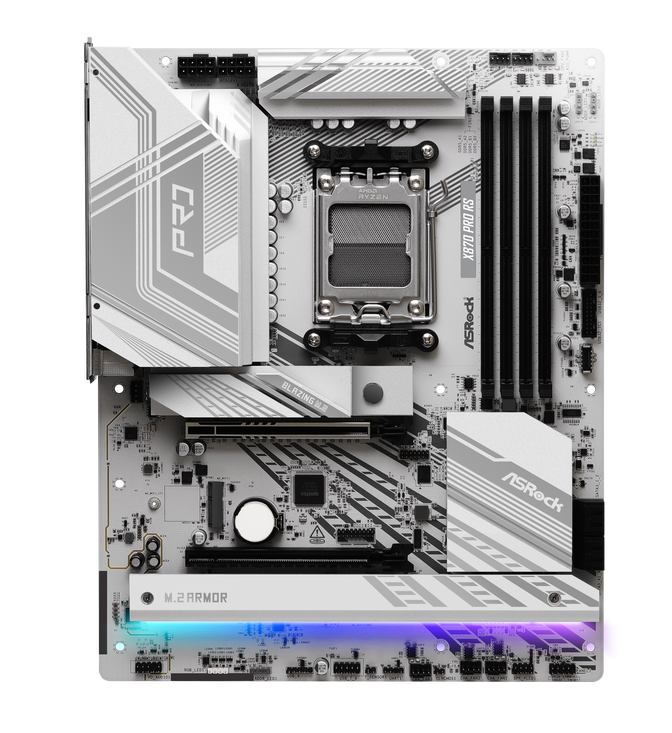

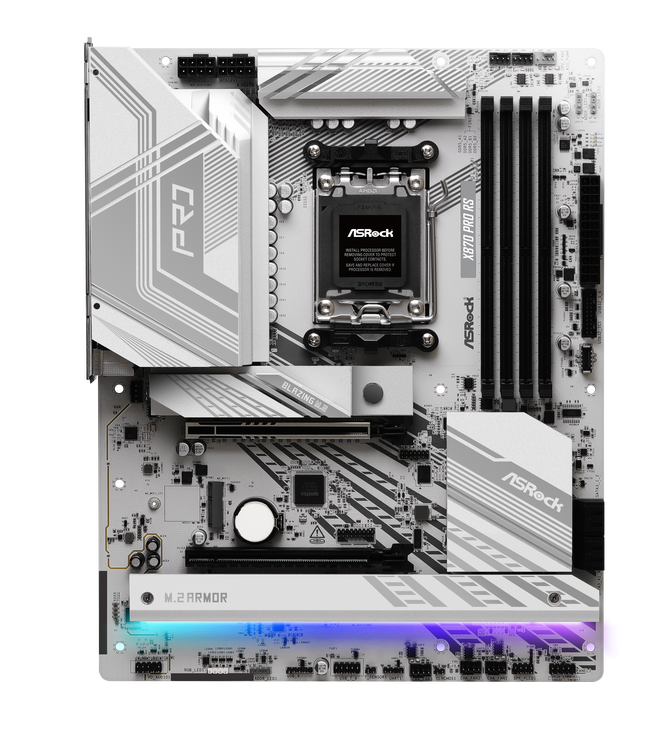

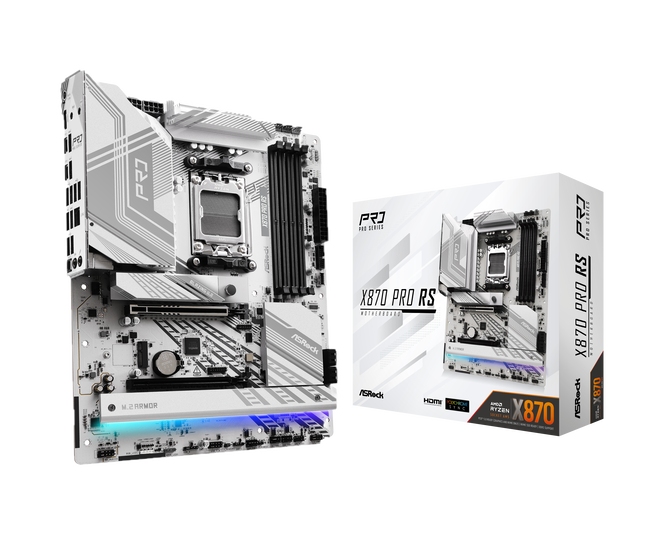

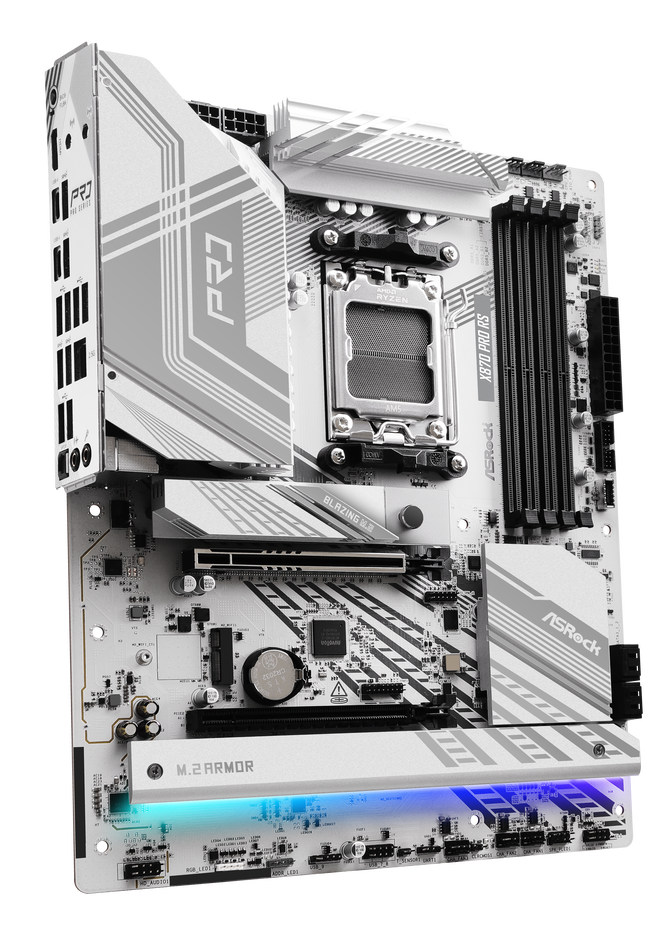

ASRock X870 Pro RS motherboard, Socket AM5, AMD X870, ATX, DDR5
- 2x PCIe 5.0 x16 (x16 & x4)
- 4x DIMM slots for a maximum of 256 GB DDR5 RAM up to 8000 MHz (OC)
- 3x M.2 (including 1x PCIe 5.0, 1x PCIe 4.0 and 1x PCIe 3.0) / 4x SATA 6G
- 2x USB4, 4x USB 3.0 and 6x USB 2.0 on the I/O panel
- OC features: 17-phase VRMs, BIOS Flashback
- A total of 7x 4-pin PWM fan connections possible
ASROCK X870 PRO RS: ATX motherboard with AMD AM5 socket and X870 chipset
The ASROCK X870 PRO RS is equipped with the mid-tier X870 chipset for AMD's Ryzen 9000 series processors and comes with numerous features for gamers. The Ryzen 9000 series processors also utilise the tried and tested AM5 socket (LGA 1718).
Additionally, the AMD X870 motherboard offers USB 4.0, which is now available as standard and achieves data transfer rates of up to 40 Gbit/s. Furthermore, the ASROCK X870 PRO RS supports PCIe 5.0, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
Made for gaming
The ASROCK X870 PRO RS is designed for high-end gaming, allowing you to enjoy demanding games without interruptions. The high-quality voltage regulators provide stable power to the CPU, ensuring high clock speeds can be maintained over extended periods. Additional features such as BIOS Flashback allow you to use the PC again if something goes wrong. As usual, DDR5 RAM can also be pushed to higher clock speeds.
- Format:
ATX (305 x 244 mm) - Chipset:
AMD X870 (Single Promontory 21) - Socket:
AM5 (LGA 1718) - RAM:
4x DDR5 DIMM up to 8000 MHz via OC)
Dual-Channel
Max. 256 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16, CPU)
1x PCIe 5.0 x16 (electrical x4, chipset) - Internal connections:
Total maximum usable PCIe lanes: 36 (24 CPU and 12 PCIe)
4x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4; 2280, CPU)
1x M.2 (PCIe 4.0 x4; 2230 / 2242 / 2260 / 2280, chipset)
1x M.2 (PCIe 3.0 x4 & SATA; 2280, chipset)
1x M.2 (E-Key; 2230 Wi-Fi / BT module, chipset)
1x USB-C (1 Header, USB 3.2 Gen 2x2, max. 20 Gbit/s)
2x USB 3.0 (1 Header, USB 3.2 Gen 1, max. 5 Gbit/s)
3x USB 2.0 (2 Headers, max. 480 Mbit/s)
1x Thermistor cable header 1x System panel header
1x Front panel audio connector
1x Start button
1x Reset button - Fan connections:
2x CPU fan headers (4-Pin)
4x fan headers (4-Pin)
1x AiO pump header - RGB header:
3x 3-Pin ARGB header (5 V)
1x 4-Pin RGB header (12 V) - External connections:

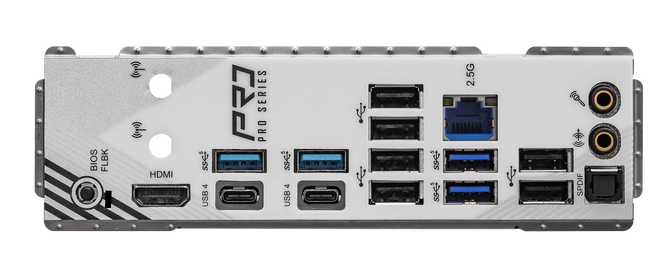

2x USB4 (Type C, USB4 Gen 3x2, max. 40 Gbit/s with DisplayPort)
4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
6x USB 2.0 (Type A, max. 480 Mbit/s)
1x HDMI 2.1
1x 2.5 Gigabit LAN (Dragon RTL8125BG)
2x 3.5 mm jack and 1x S/PDIF audio (Realtek ALC 1220)
2x Antenna mounting ports
1x BIOS Flashback - Power supply:
1x 24-Pin ATX
2x 8-Pin 12V - Accessories:
2 x SATA data cables
1 x screw for M.2 socket
|
Colour
|
|
|
Primary Colour
|
White
|
|
Form Factor
|
|
|
Motherboard Form Factor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD X870
|
|
Dual BIOS
|
No
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
8000 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
No
|
|
Cooling
|
|
|
M.2 Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
3
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG), 1x RGB (4-Pin 5050 12VGRB)
|
|
Front Panel Audio Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 3x2 (external) Type C
|
2
|
|
USB 3.0 (external) Type A
|
4
|
|
USB 2.0 (external) Type A
|
6
|
|
Display Connectors
|
HDMI (1x), USB Type C (Display Port shared) (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 3.0 x4 & SATA 6G
|
1
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
M.2 E-Key
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
2
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 5.0 x4 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
7
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC1220
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
