ASRock Z890 Nova WiFi motherboard, socket LGA 1851, Intel Z890, ATX, DDR5
Intel® Motherboard Bundle
More detailsUnlock one game with purchase of a qualifying Intel® Z890 or B860 chipset motherboard – choose one of three titles.
This motherboard is excellent for gaming enthusiasts and overclockers who want to push their system to the limits.
- 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
- 4x DIMM slots for max. 256GB DDR5-RAM up to 5,600MHz)
- 6x M.2 (including 1x PCIe 5.0 and 5x PCIe 4.0) / 4x SATA 6G
- USB on the I/O panel: 2x Thunderbolt, 4x USB 3.1, 4x USB 3.0 and 2x USB 2.0
- OC features: 20+1+2+1+1 phase VRMs, CMOS
- A total of 8x 4-pin connectors for fans & pumps
- Supports WiFi 7 and Bluetooth 5.4

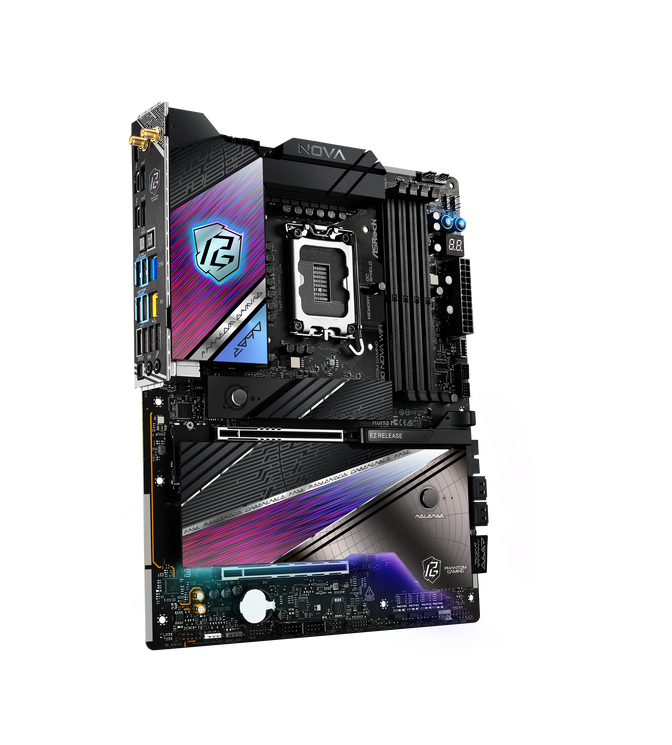

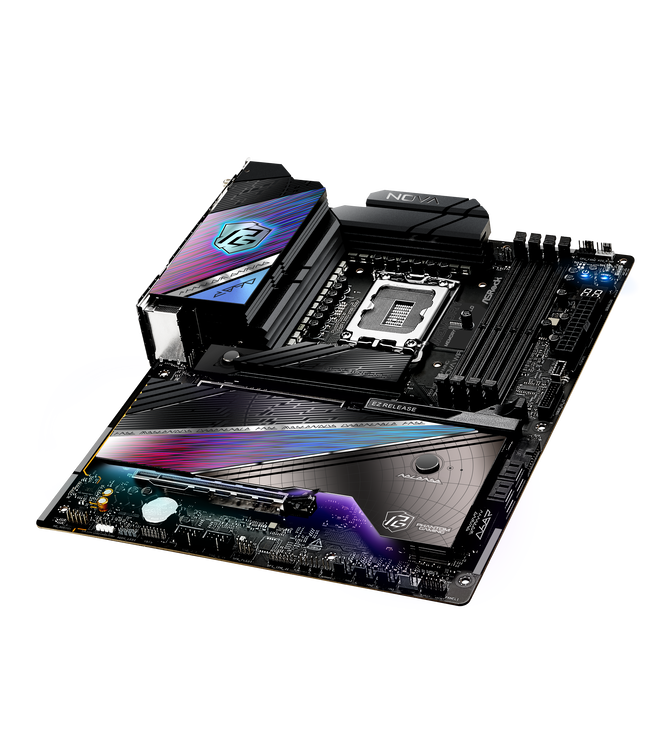

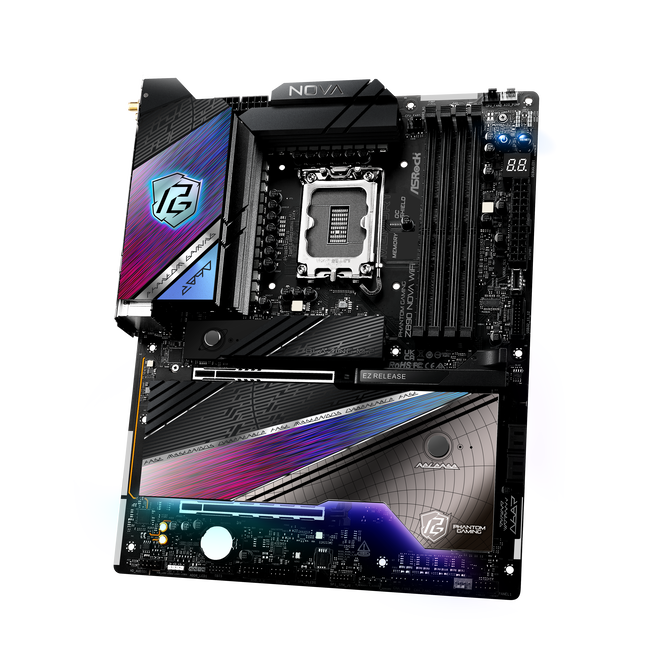

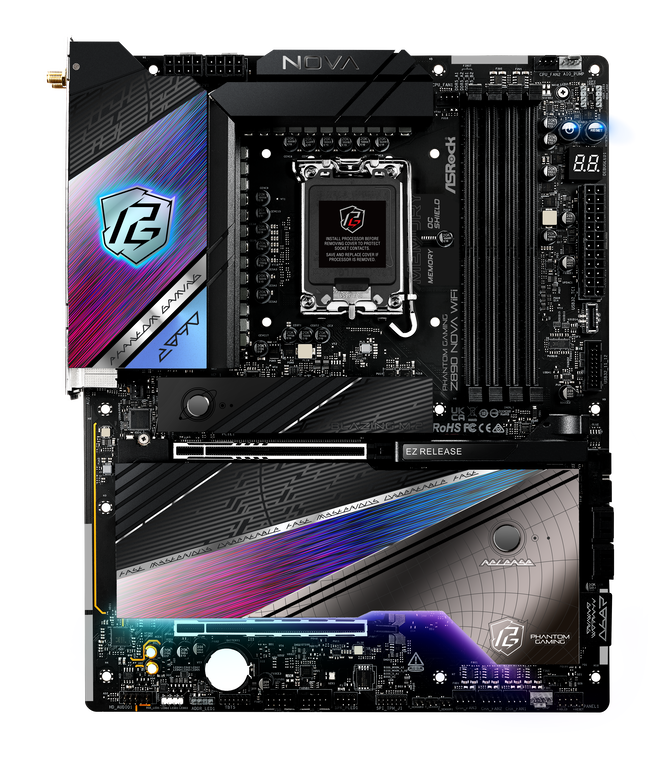

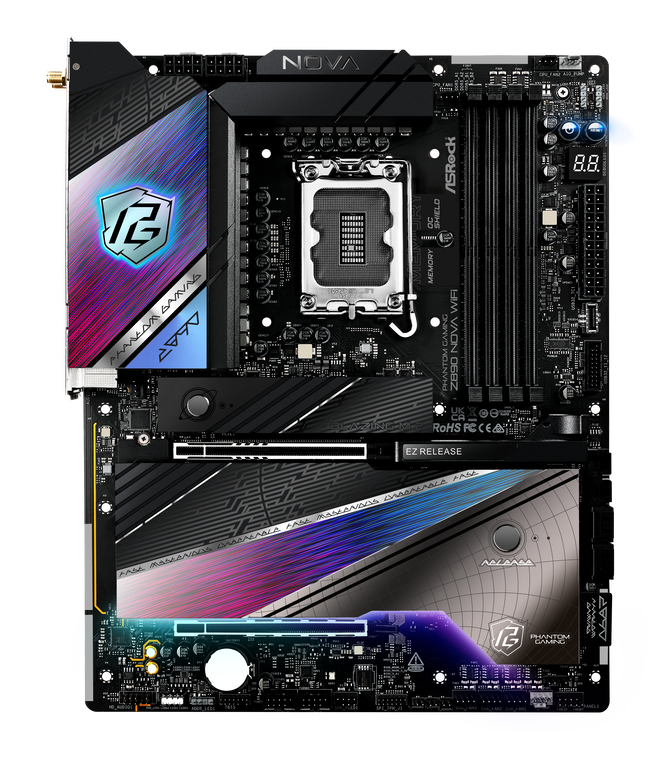

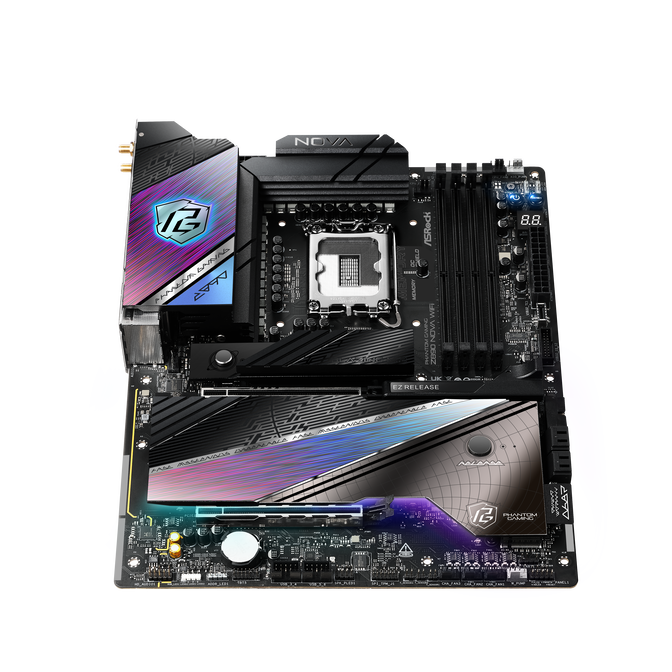

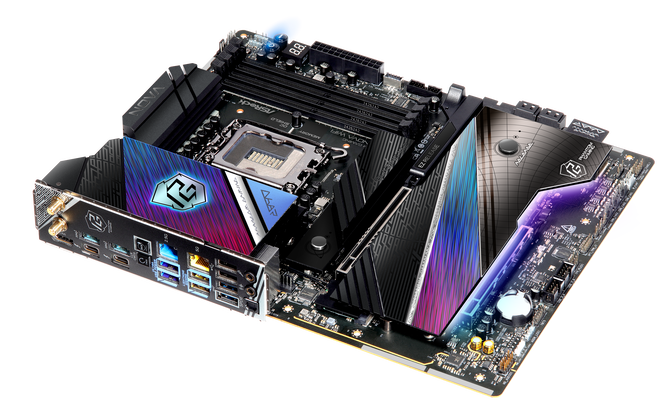

ASRock Z890 Nova WiFi: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASRock Z890 Nova WiFi is an ATX motherboard featuring the high-end Intel Z890 chipset and the LGA 1851 socket. It supports Intel Core Ultra processors of the second generation with the codename Arrow Lake. The Intel Z890 motherboard natively supports USB4, which offers data transfer rates of up to 40Gbit/s. In addition, the ASRock Z890 Nova WiFi impresses with full PCIe 5.0 connectivity, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
Designed for demanding gaming
The ASRock Z890 Nova WiFi has been specifically designed for high-end gaming, allowing you to experience even the most demanding games without interruptions. The premium voltage regulators ensure a stable power supply to the CPU and guarantee that it operates reliably even at high clock rates over extended periods. Additionally, the DDR5 RAM can also be overclocked to higher clock rates.
- Form factor:
ATX (305 x 244 mm) - Chipset:
Intel Z890 - Socket:
LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation) - RAM:
4x DDR5 DIMM (up to 5,600 MHz via OC)
Dual-Channel
Max. 256 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16, CPU)
1x PCIe 4.0 x16 (electrical x4, chipset) - Total maximum usable PCIe lanes: 44
- Internal connections:
4x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4; 2280, CPU)
1x M.2 (PCIe 4.0 x4; 2260 / 2280, CPU)
1x M.2 (PCIe 4.0 x4 & SATA; 2230 / 2242 / 2260 / 2280, chipset)
3x M.2 (PCIe 4.0 x4; 2260 / 2280, chipset)
1x USB-C (1 Header, USB 3.2 Gen 2x2, max. 20 Gbit/s)
4x USB 3.0 (2 Headers, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (2 Headers, max. 480 Mbit/s)
2x Thunderbolt
2x Antenna port
1x BIOS Flashback button
1x SPI TPM header
1x Thermistor cable header
1x Clear CMOS header
1x Power LED / Speaker header - Fan headers:
2x CPU-Fan (4-Pin)
1x AIO Pump (4-Pin)
1x Pump (4-Pin)
4x Case fans (4-Pin) - RGB headers:
3x 3-Pin ARGB (5 V)

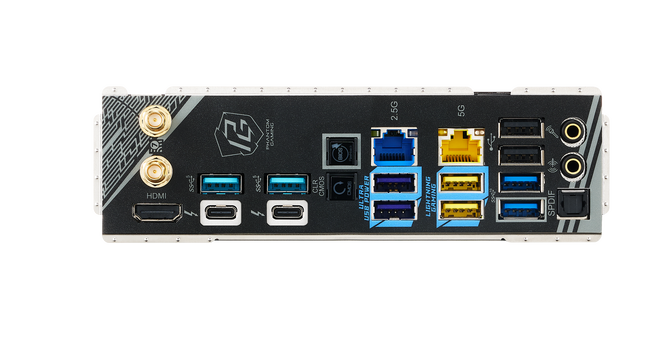

1x RGB header - External connections:
2x Thunderbolt (USB-C, max. 40 Gbit/s)
4x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
2x USB 2.0 (Type A, max. 480 Mbit/s)
1x HDMI
1x 2.5 Gigabit LAN (Killer E3100G)
1x 5 Gigabit LAN (RTL8126)
2x 3.5 mm jack (Realtek ALC 4082)
1x WiFi/Bluetooth module
1x S/PDIF audio - Power supply:
1x 24-Pin ATX

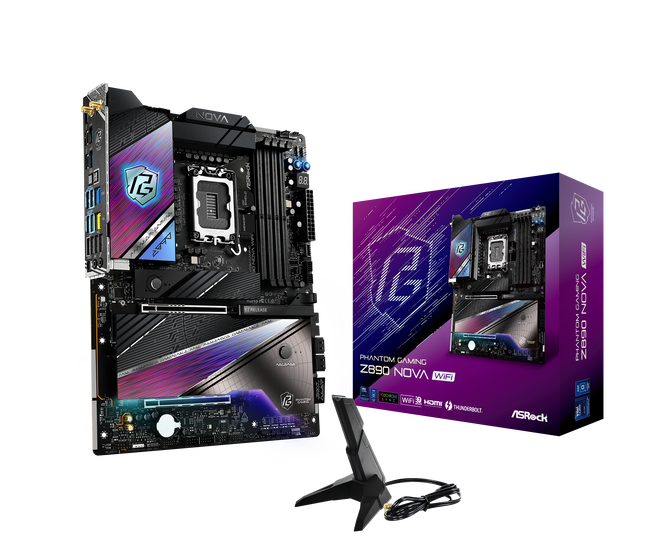

2x 8-Pin +12V CPU - Accessories:
4x SATA cables
1x M.2 expansion card
1x WiFi antenna
1x ARGB splitter cable
3x Thermistor cables
1x Screw for M.2 socket
1x Stand-off for M.2 socket
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard Form Factor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
5600 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s, 1x 5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Cooling
|
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB4 (internal) Header
|
2
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
2
|
|
USB 3.0 (internal) Possible Ports
|
4
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 3x2 (external) Type C
|
2
|
|
USB 3.1 (external) Type A
|
4
|
|
USB 3.0 (external) Type A
|
4
|
|
USB 2.0 (external) Type A
|
2
|
|
Display Connectors
|
HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
4
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC4082
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
