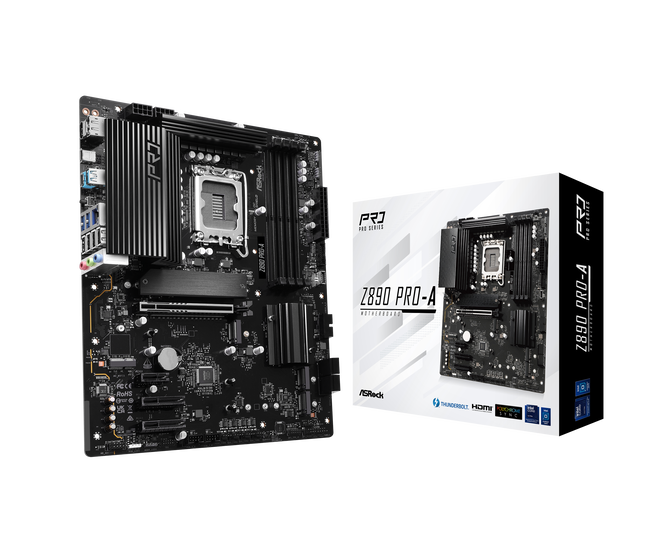

ASRock Z890 PRO-A motherboard, socket LGA 1851, Intel Z890, ATX, DDR5
ATX motherboard with Intel Z890 chipset, 1x PCIe 5.0 x16 / 2x PCIe 4.0 x4 / 1x PCIe 4.0 x1, 1x USB4 / 2x USB-C 3.2 / 1x USB 3. / 6x USB 3.0 / 8x USB 2.0, 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0) / 4x SATA 6G, 8x 4-pin PWM connectors
Intel® Motherboard Bundle
More detailsUnlock one game with purchase of a qualifying Intel® Z890 or B860 chipset motherboard – choose one of three titles.
OFFER ENDS31.12.2026
REDEEM BY31.01.2027
*You will receive your Master Key together with the redemption instructions after purchase. Redeem at softwareoffer.intel.com.
167,83 €
Incl. VAT, add. delivery costs starting from 4.99€
This motherboard is excellent for budget builds and light overclocking
- 1x PCIe 5.0 x16 (x16), 2x PCIe 4.0 x4, and 1x PCIe 4.0 x1
- 4x DIMM slots for up to 256 GB DDR5 RAM at 8666 MHz (XMP 3.0 support)
- 4x M.2 (1x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G
- USB on the I/O panel: 1x Thunderbolt 4 (USB 4, Type-C), 1x USB 3.2 Type-C, 1x USB 3.1 Type-A, 2x USB 3.0, and 4x USB 2.0
- OC features: 20-phase VRMs, BIOS Flashback
- In total, 8x 4-pin headers for fans and pumps
ASRock Z890 PRO-A: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASRock Z890 PRO-A is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports 2nd generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB4, which offers data transfer rates of up to 40 Gbit/s. Additionally, the ASRock Z890 PRO-A impresses with full PCIe 5.0 support, providing double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
- Form factor:
ATX (305 x 244 mm) - Chipset:
Intel Z890 - Socket:
LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation) - RAM:
4x DDR5 DIMM (up to 8666 MHz via XMP / OC)
Quad- / Dual-Channel
Max. 256 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16, x8/x8 or x8/x4/x4)
2x PCIe 4.0 x4
1x PCIe 4.0 x1 - Total maximum usable PCIe lanes: 44
- Internal connections:
4x SATA 6G
1x M.2 (PCIe 5.0 x4; 2280, CPU)
1x M.2 (PCIe 4.0 x4; 2280, CPU)
1x M.2 (PCIe 4.0 x4; 2280, chipset)
1x M.2 (PCIe 4.0 x4 & SATA; 2230 / 2242 / 2260 / 2280, chipset)
1x USB-C (1 Header, USB 3.2 Gen 2x2, max. 20 Gbit/s)
4x USB 3.0 (2 Headers, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (2 Headers, max. 480 Mbit/s)
1x Front Panel Audio Header
1x SPI_TPM Header - Fan headers:
2x CPU Fan (4-Pin)
5x Case fans (4-Pin)
1x AiO Pump (4-Pin) - RGB headers:
3x 3-Pin ARGB (5 V / 3A)
2x 4-Pin RGB (12 V / A) - External connections:

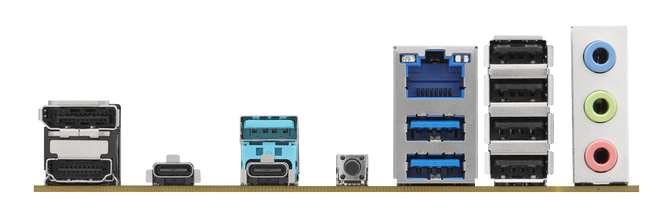

1x Thunderbolt 4 (USB-C)
1x USB 3.2 (Type C, USB 3.2 Gen 2x2, max. 20 Gbit/s)
1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (Type A, max. 480 Mbit/s)
1x DisplayPort 1.4
1x HDMI
1x 2.5 Gigabit LAN (Dragon RTL8125BG)
3x 3.5 mm Jack (Realtek ALC 897) - Power supply:
1x 24-Pin ATX
2x 8-Pin ATX12V - Accessories:
1x I/O Shield
2x SATA Cables
1x Screw for M.2 Socket
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
305 mm
|
|
Width
|
244 mm
|
|
Form Factor
|
|
|
Motherboard Form Factor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Dual BIOS
|
No
|
|
Built-In I/O Shield
|
No
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
8666 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
Intel XMP 3.0
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
No
|
|
Cooling
|
|
|
Backplate
|
No
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
Required Power Connectors
|
8-pin PCIe (2x)
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
2
|
|
USB 3.0 (internal) Possible Ports
|
4
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
2x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 3x2 (external) Type C
|
1
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x4 slots (total)
|
2
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x4 mechanical slot
|
2
|
|
PCIe 4.0 x1 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC897
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Lighting Compatibility
|
ASRock Polychrome Sync
|
