ASRock Z890 Pro RS, Intel Z890 motherboard, socket LGA 1851, Intel Z890, ATX, DDR5
ATX-Mainboard with Intel Z890 chipset, 1x PCIe 5.0 x16 / 1x PCIe 4.0 x4 / 1x PCIe 4.0 x1, 2x USB4 / 1x USB 3.1 / 2x USB 3.0 / 4x USB 2.0, 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0) / 4x SATA 6G, 8x 4-Pin PWM connectors
228,25 €
incl. VAT
, add. delivery costs starting from 4.99€
This motherboard is ideal for gamers and daily users.
- 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x4 (x4), 1x PCIe 4.0 x1
- 4x DIMM slots for up to 256 GB DDR5 RAM at 8,666 MHz (XMP 3.0 support)
- 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G
- USB on I/O panel: 2x USB4, 1x USB 3.1, 2x USB 3.0, 4x USB 2.0
- OC features: 16+1+1+1+1 power phases, Dr. MOS for VCore+GT
- In total, 8x 4-pin connectors for fans & pumps
ASROCK Z890 PRO RS: ATX-Mainboard with Intel LGA 1851 socket and Z890 chipset
The ASROCK Z890 PRO RS is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports Intel Core Ultra processors of the second generation with the codename Arrow Lake. The Intel Z890 motherboard natively supports USB4, offering data transfer rates of up to 40 Gbit/s. Additionally, the ASROCK Z890 PRO RS features full PCIe 5.0 connectivity, providing double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
- Form factor:
ATX (305 x 244 mm) - Chipset:
Intel Z890 - Socket:
LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation) - RAM:
4x DDR5 DIMM (up to 8,666 MHz via XMP)
Dual-Channel
Max. 256 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16 or x8/x8)
1x PCIe 4.0 x4 (electrical x4)
1x PCIe 4.0 x1 - Total usable PCIe lanes: 44
- Internal connectors:
4x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4, CPU)
1x M.2 (PCIe 4.0 x4, CPU)
1x M.2 (PCIe 4.0 x4, chipset)
1x M.2 (PCIe 4.0 x4, chipset)
1x USB-C (1 header, USB 3.2 Gen 2x2, max. 20 Gbit/s)
2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
2x USB 2.0 (1 header, max. 480 Mbit/s)
1x Front Panel Audio header
1x Front System Panel header
1x Thermal Sensor header - Fan headers:
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header

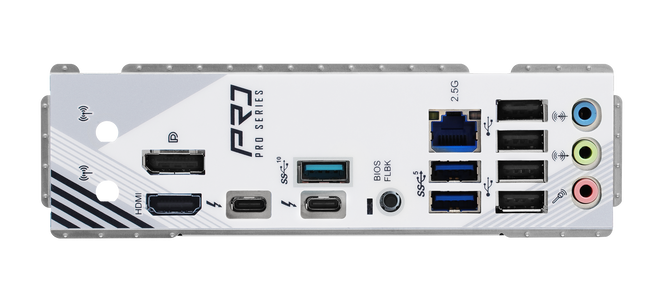

5x case fans (4-pin) - External connectors:
2x Thunderbolt 4 (USB-C 40 Gbit/s)
1x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbit/s)
2x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (Type-A, max. 480 Mbit/s)
1x HDMI
1x 2.5 Gigabit LAN
1x WiFi/Bluetooth module
2x 3.5 mm jacks (Realtek ALC897)
1x S/PDIF Audio - Power supply:
1x 24-pin ATX
2x 8-pin ATX12V
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
305 mm
|
|
Width
|
244 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
8066 MT/s
|
|
Memory slots
|
4x
|
|
Performance Profile
|
Intel XMP 3.0
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
No
|
|
Cooling
|
|
|
Backplate
|
No
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
Front Panel Audio Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 3x2 (external) Type C
|
2
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
4
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
3
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x4 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x4 mechanical slot
|
1
|
|
PCIe 4.0 x1 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC897
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
