ASRock Z890 Pro RS WiFi White motherboard, socket LGA 1851, Intel Z890, ATX, DDR5
ATX motherboard with Intel Z890 chipset, 1x PCIe 5.0 x16 / 1x PCIe 4.0 x4 / 1x PCIe 4.0 x1, 2x Thunderbolt (USB-C) / 1x USB 3.1 / 2x USB 3.0 / 4x USB 2.0, 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0) / 4x SATA 6G, 8x 4-pin PWM connectors
Intel® Motherboard Bundle
More detailsUnlock one game with purchase of a qualifying Intel® Z890 or B860 chipset motherboard – choose one of three titles.
OFFER ENDS31.12.2026
REDEEM BY31.01.2027
*You will receive your Master Key together with the redemption instructions after purchase. Redeem at softwareoffer.intel.com.
214,76 €
Incl. VAT, add. delivery costs starting from 4.99€
This motherboard is excellent for gaming enthusiasts.
- 1x PCIe 5.0 x16 (x16), 2x PCIe 4.0 x4 (x4) and 1x PCIe 4.0 x1
- 4x DIMM slots for max. 256GB DDR5 RAM up to 8,666MHz)
- 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G
- USB on the I/O panel: 2x Thunderbolt, 1x USB 3.1, 4x USB 3.0 and 2x USB 2.0
- OC features: 16+1+1+1+1 phase VRMs
- A total of 8x 4-pin connectors for fans & pumps
- Supports WiFi 6E and Bluetooth 5.3

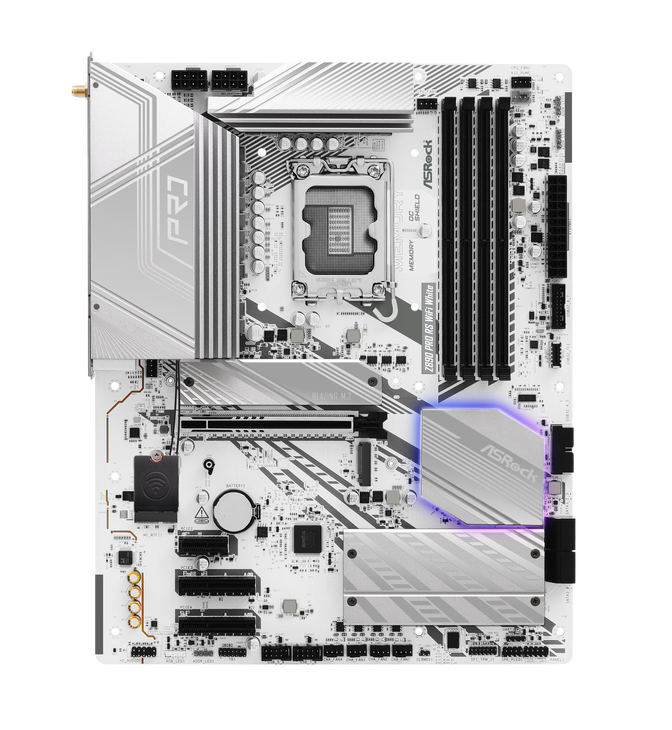

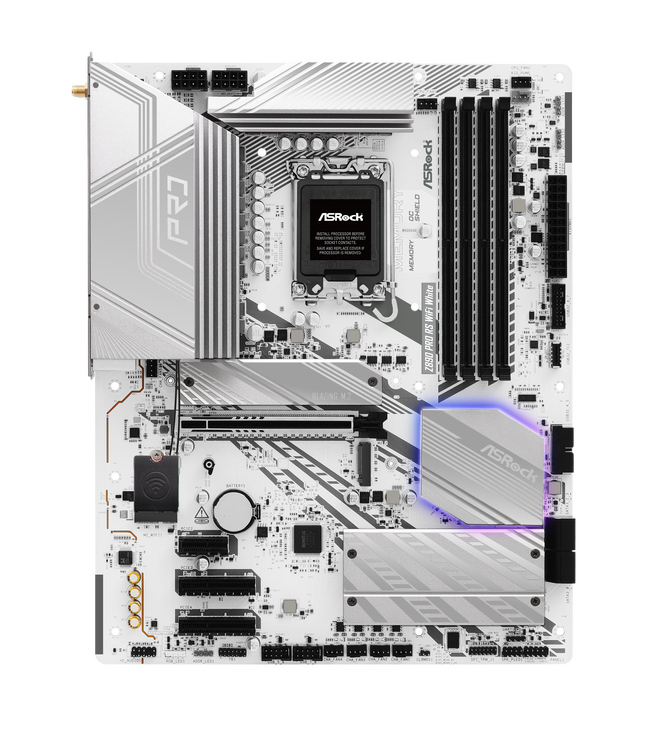

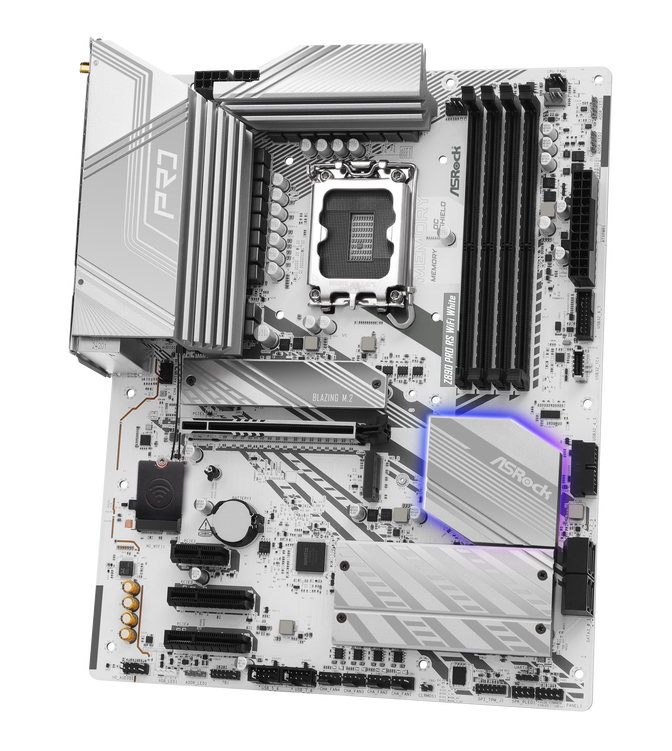

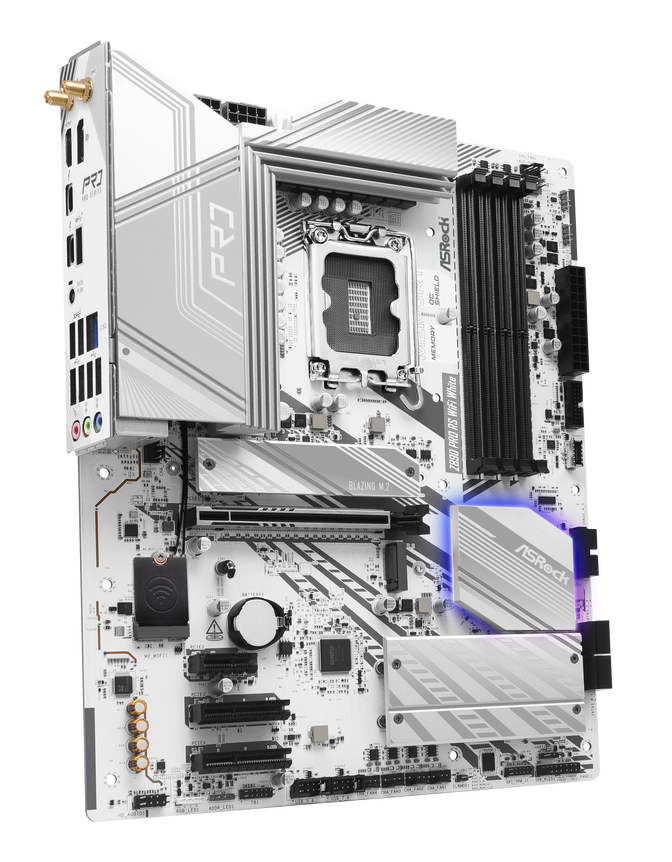

ASRock Z890 Pro RS WiFi White: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASRock Z890 Pro RS WiFi White is an ATX motherboard with the high-end chipset Intel Z890 and the LGA 1851 socket. It supports Intel Core Ultra processors of the second generation with the codename Arrow Lake. The Intel Z890 motherboard natively supports USB4, which offers data transfer rates of up to 40 Gbit/s. Furthermore, the ASRock Z890 Pro RS WiFi White impresses with full PCIe 5.0 connectivity, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
- Form factor:
ATX (305 x 244 mm) - Chipset:
Intel Z890 - Socket:
LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation) - RAM:
4x DDR5 DIMM (up to 5,666 MHz via OC / XMP 3.0)
Dual-Channel
Max. 256 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16, CPU)
2x PCIe 4.0 x4 (electrical x4, chipset)
1x PCIe 4.0 x1 (chipset) - Total maximum usable PCIe lanes: 44
- Internal connections:
4x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4; 2280, CPU)
1x M.2 (PCIe 4.0 x4; 2280, CPU)
1x M.2 (PCIe 4.0 x4 & SATA; 2230 / 2242 / 2260 / 2280, chipset)
1x M.2 (PCIe 4.0 x4; 2280, chipset)
1x USB-C (1 header, USB 3.2 Gen 2x2, max. 20 Gbit/s)
4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (2 headers, max. 480 Mbit/s)
2x Thunderbolt
2x antenna ports
1x BIOS Flashback button
1x SPI TPM header
1x front panel audio
1x power LED / speaker header - Fan headers:
2x CPU fan (4-pin)
1x AIO pump (4-pin)
5x case fans (4-pin) - RGB headers:
3x 3-pin ARGB (5 V)
1x RGB header - External connections:

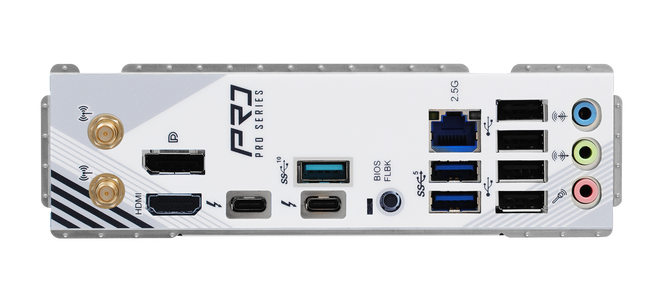

2x Thunderbolt (USB-C, max. 40 Gbit/s)
1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (Type A, max. 480 Mbit/s)
1x HDMI
1x DisplayPort
1x 2.5 Gigabit LAN (Dragon RTL8125BG)
3x 3.5 mm jack (Realtek ALC 897)
1x WiFi/Bluetooth module - Power supply:
1x 24-pin ATX

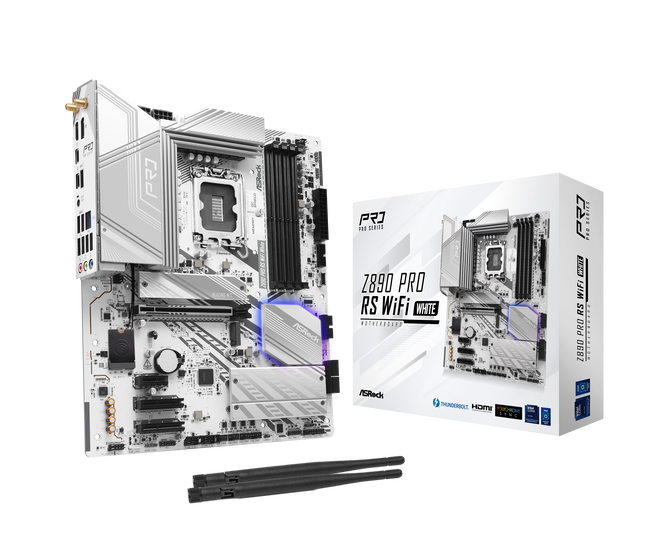

2x 8-pin +12V CPU - Accessories:
2x SATA cables
2x antennas
1x screw for M.2 socket
1x stand-off for M.2 socket
|
Colour
|
|
|
Primary Colour
|
White
|
|
Form Factor
|
|
|
Motherboard Form Factor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
8666 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Performance Profile
|
Intel XMP 3.0
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 6E
|
|
Bluetooth Standard
|
5.3
|
|
Cooling
|
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
2
|
|
USB 3.0 (internal) Possible Ports
|
4
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 3x2 (external) Type C
|
2
|
|
USB 3.1 (external) Type A
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x4 slots (total)
|
2
|
|
PCIe x1 slots (total)
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC897
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
