ASRock Z890 Riptide WiFi motherboard, socket LGA 1851, Intel Z890, ATX, DDR5
ATX motherboard with Intel Z890 chipset, 1x PCIe 5.0 x16 / 1x PCIe 4.0 x4 / 1x PCIe 4.0 x1, 2x Thunderbolt (USB-C) / 2x USB 3.1 / 4x USB 3.0 / 2x USB 2.0, 5x M.2 (1x PCIe 5.0, 4x PCIe 4.0) / 4x SATA 6G, 8x 4-pin PWM connectors
300,65 €
incl. VAT
, add. delivery costs starting from 4.99€
This motherboard is perfect for gaming enthusiasts.
- 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x4 (x4), and 1x PCIe 4.0 x1
- 4x DIMM slots supporting up to 256GB DDR5 RAM (up to 9,066MHz)
- 5x M.2 slots (1x PCIe 5.0, 4x PCIe 4.0) / 4x SATA 6G
- USB on I/O panel: 2x Thunderbolt, 2x USB 3.1, 4x USB 3.0, and 2x USB 2.0
- OC features: 18+1+1+1+1 phase VRMs
- 8x 4-pin headers for fans & pumps
- Supports WiFi 7 and Bluetooth 5.4

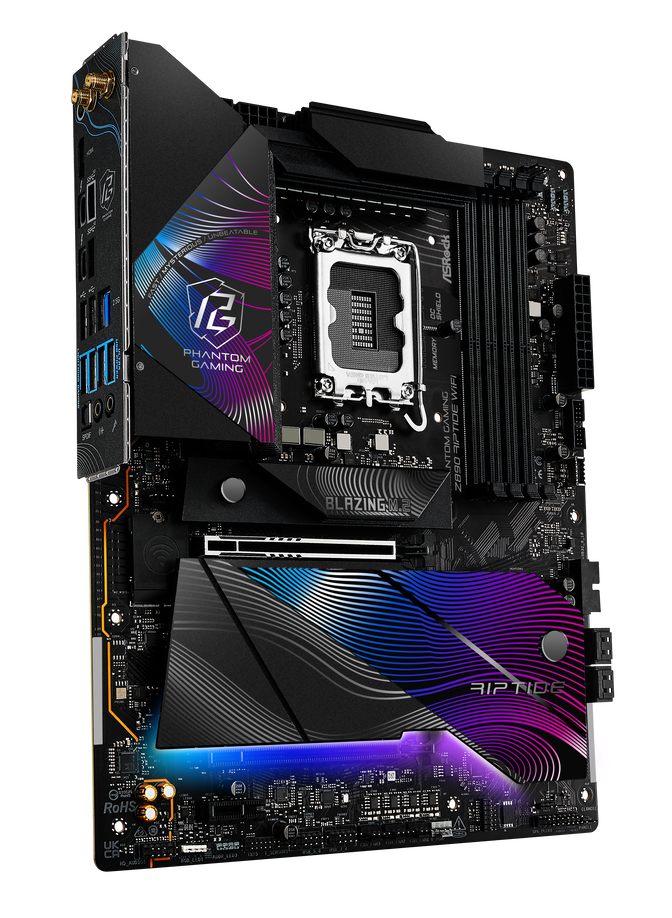

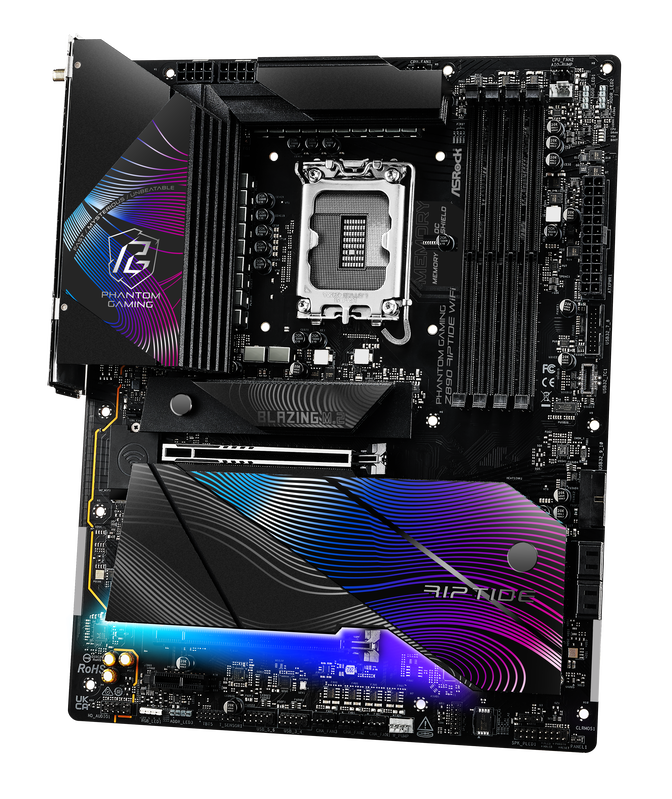

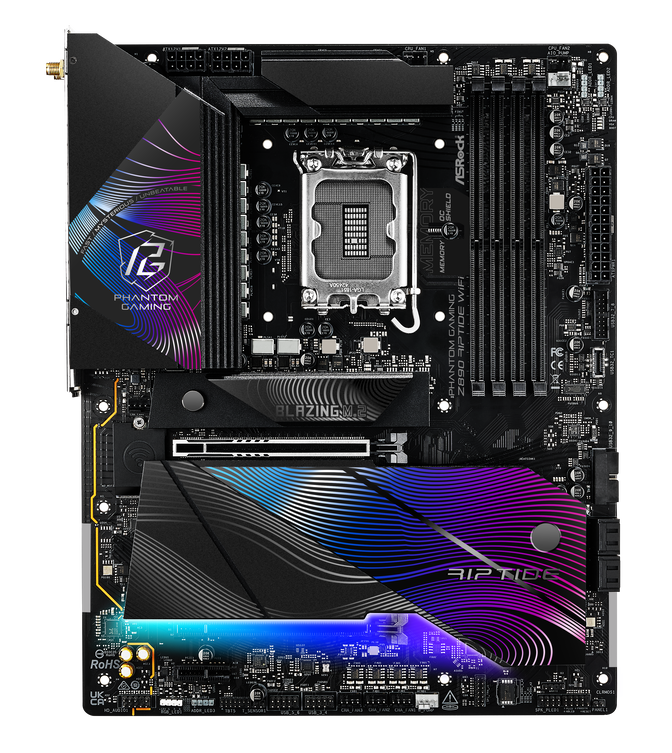

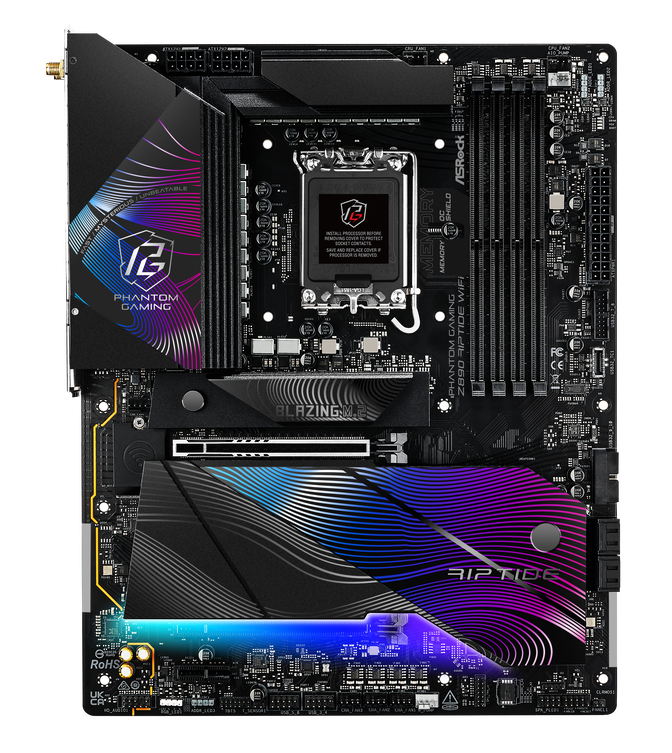

ASRock Z890 Riptide WiFi: ATX Motherboard with Intel LGA 1851 Socket and Z890 Chipset
The ASRock Z890 Riptide WiFi is an ATX motherboard featuring the high-end Intel Z890 chipset and the LGA 1851 socket. It supports Intel Core Ultra processors of the 2nd generation, codenamed Arrow Lake. This Intel Z890 motherboard natively supports USB4, delivering data transfer rates of up to 40Gbit/s. Additionally, the ASRock Z890 Riptide WiFi offers full PCIe 5.0 connectivity, providing double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
Designed for Demanding Gaming
The ASRock Z890 Riptide WiFi is built for high-end gaming, allowing you to experience even the most demanding games without interruption. Premium voltage regulators ensure stable power delivery to the CPU, allowing it to perform reliably even at high clock speeds over extended periods. The motherboard also supports DDR5 RAM overclocking for higher frequencies.
- Form factor:
ATX (305 x 244 mm) - Chipset:
Intel Z890 - Socket:
LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation) - RAM:
4x DDR5 DIMM (up to 9,066 MHz via OC / XMP 3.0)
Dual-Channel
Max. 256 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16, CPU)
1x PCIe 4.0 x4 (electrical x4, chipset)
1x PCIe 4.0 x1 (chipset) - Maximum usable PCIe lanes: 44
- Internal connections:
4x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4; 2280, CPU)
2x M.2 (PCIe 4.0 x4; 2280, CPU)
1x M.2 (PCIe 4.0 x4 & SATA; 2230 / 2242 / 2260 / 2280, chipset)
1x M.2 (PCIe 4.0 x4; 2280, chipset)
1x USB-C (1 Header, USB 3.2 Gen 2x2, max. 20 Gbit/s)
4x USB 3.0 (2 Header, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (2 Header, max. 480 Mbit/s)
2x Thunderbolt
1x SPI TPM Header
1x Thermistor cable
1x Power LED / Speaker Header - Fan headers:
2x CPU-Fan (4-Pin)
1x AIO Pump (4-Pin)
1x Pump (4-Pin)
4x Case fans (4-Pin) - RGB headers:
3x 3-Pin ARGB (5 V)

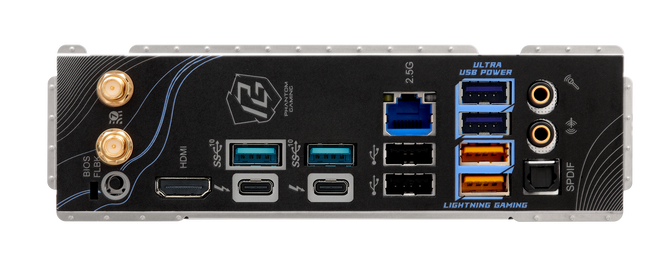

1x RGB Header - External connections:
2x Thunderbolt (USB-C, max. 40 Gbit/s)
2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
2x USB 2.0 (Type A, max. 480 Mbit/s)
1x HDMI
1x 2.5 Gigabit LAN (Killer E3100G)
2x 3.5 mm Jack (Realtek ALC 1220)
2x Antenna port
1x BIOS Flashback button
1x WiFi/Bluetooth module - Power supply:
1x 24-Pin ATX

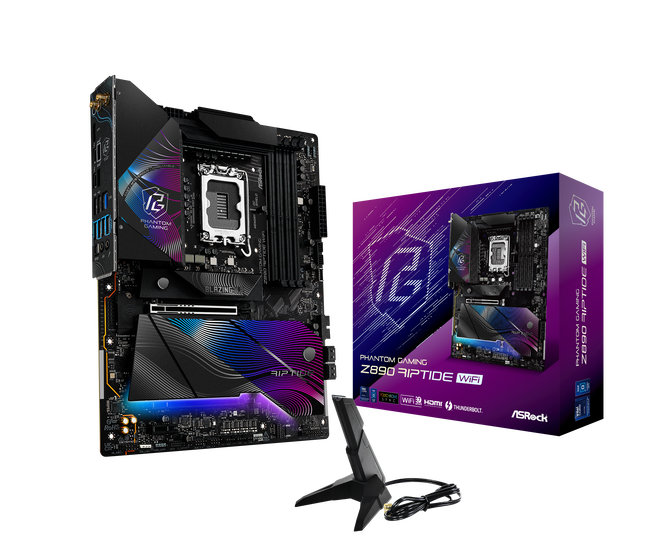

2x 8-Pin +12V CPU - Accessories:
2x SATA cables
2x Antennas
1x ARGB splitter cable
1x Thermistor cable
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
9066 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Performance Profile
|
Intel XMP 3.0
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Cooling
|
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
2
|
|
USB 3.0 (internal) Possible Ports
|
4
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (5-Pin 12VGRBW), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
No
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 3x2 (external) Type C
|
2
|
|
USB 3.1 (external) Type A
|
2
|
|
USB 3.0 (external) Type A
|
4
|
|
USB 2.0 (external) Type A
|
2
|
|
Display Connectors
|
HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
3
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x4 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC1220
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
