ASRock Z890I NOVA WiFi motherboard, LGA 1851 socket, Intel Z890, Mini-ITX, DDR5
Mini-ITX motherboard with Intel Z890 chipset, 1x PCIe 5.0 x16, 2x Thunderbolt (USB-C) / 6x USB 3.1, 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0) / 2x SATA 6G, 3x 4-pin PWM connectors
301,96 €
incl. VAT
, add. delivery costs starting from 4.99€
This motherboard is ideal for budget-conscious gamers.
- 1x PCIe 5.0 x16 (x16)
- 2x DIMM slots for up to 128GB DDR5 RAM (up to 9,466MHz)
- 3x M.2 (1x PCIe 5.0 and 2x PCIe 4.0) / 2x SATA 6G
- USB on the I/O panel: 2x Thunderbolt 4 and 6x USB 3.1
- Total of 3x 4-pin connectors for fans & pumps
- Supports WiFi 7 and Bluetooth 5.4

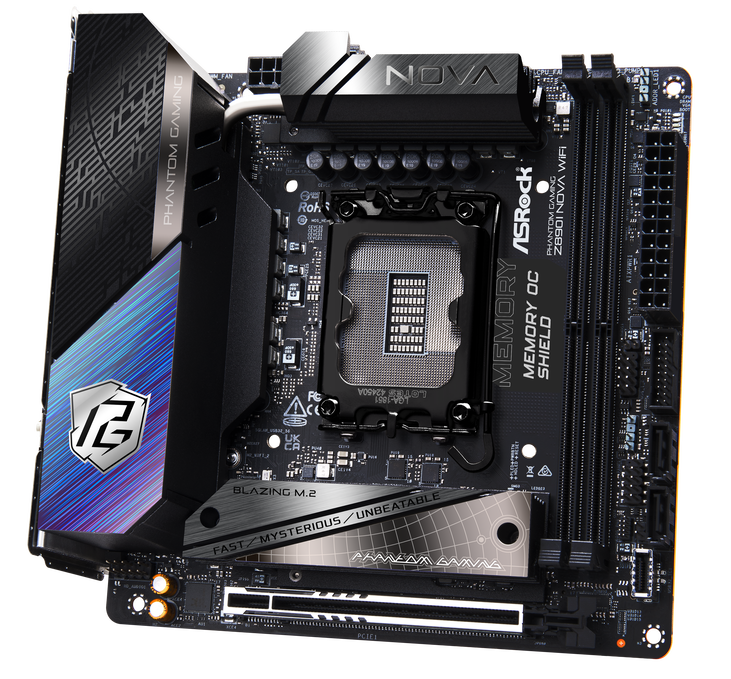

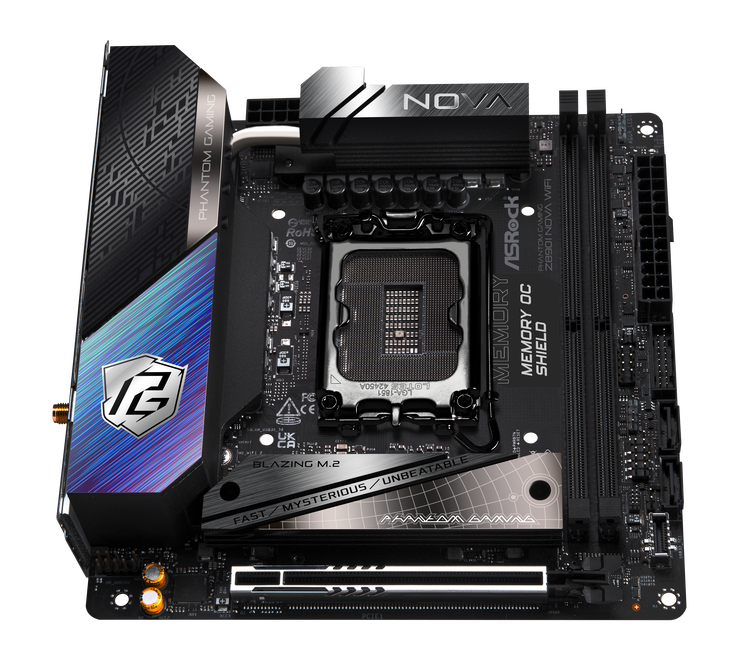

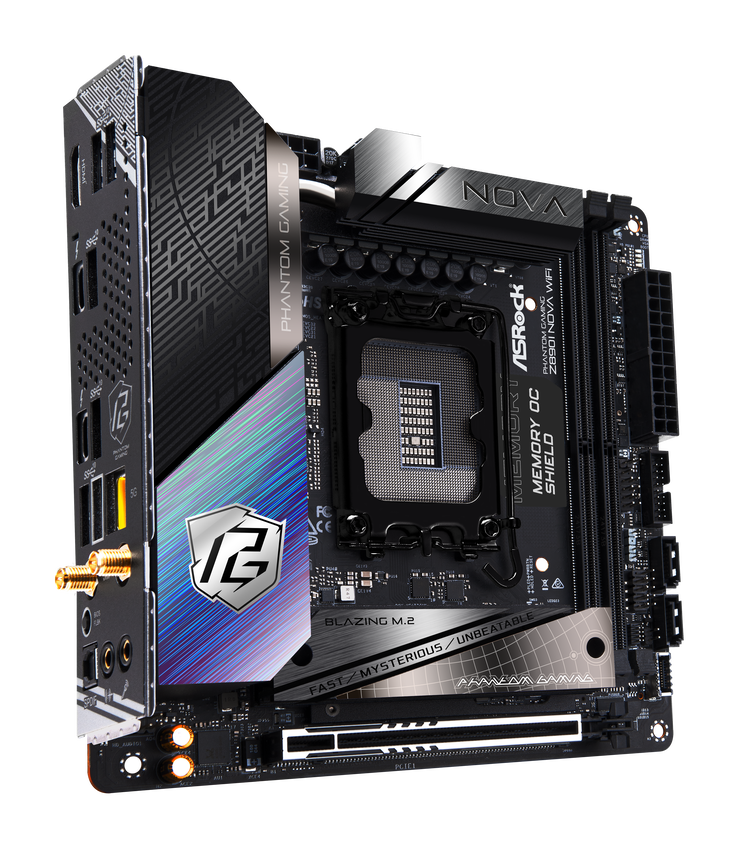

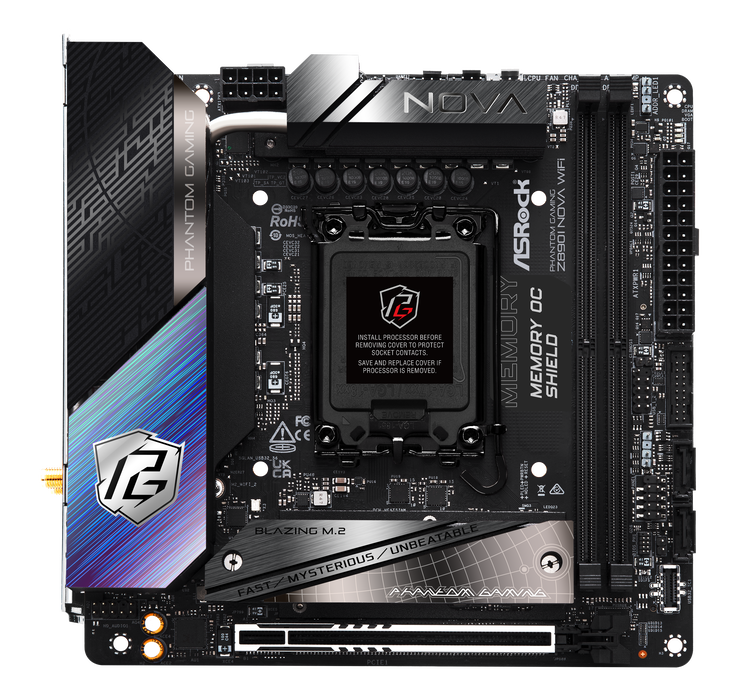

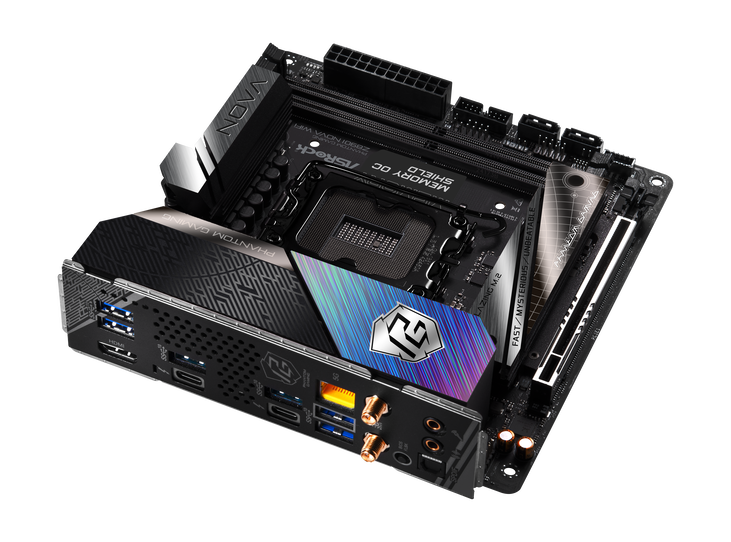

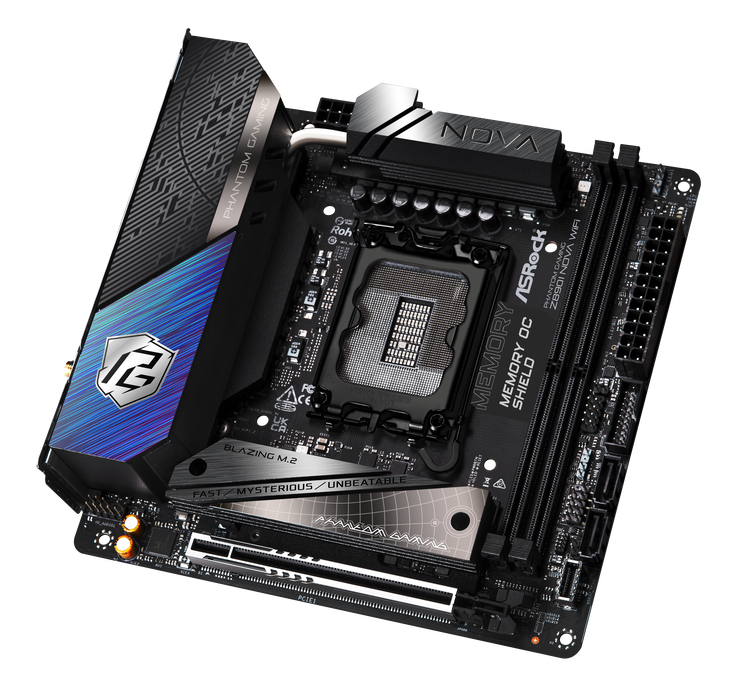

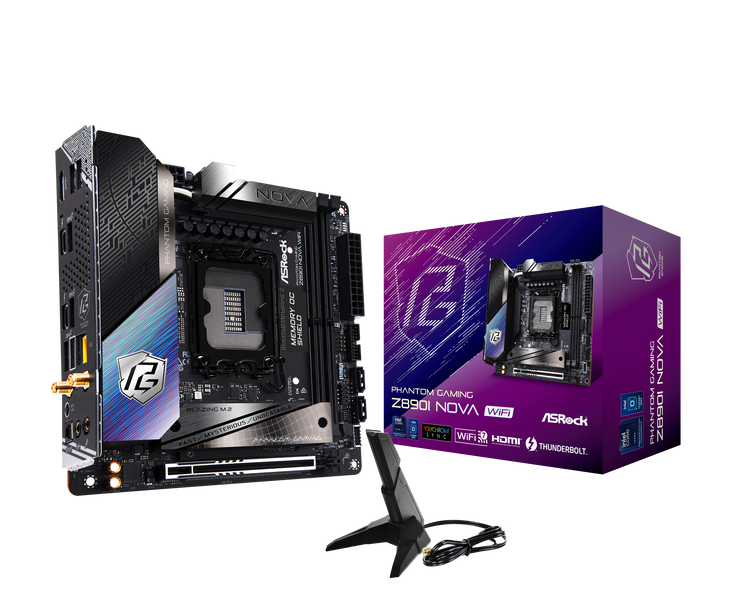

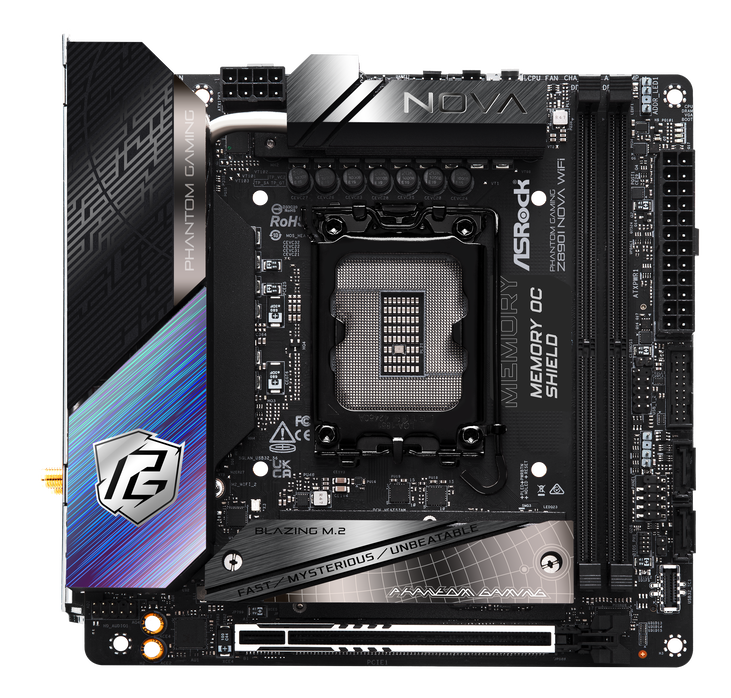

ASRock Z890I NOVA WiFi: Mini-ITX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASRock Z890I NOVA WiFi is a Mini-ITX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports 2nd generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB4, which offers data transfer rates of up to 40Gbit/s. Additionally, the ASRock Z890I NOVA WiFi impresses with full PCIe 5.0 support, providing double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
- Form factor:
Mini-ITX (170 x 170 mm) - Chipset:
Intel Z890 - Socket:
LGA 1851 (For Intel Core Ultra CPUs, 2nd generation) - RAM:
2x DDR5 DIMM (up to 9,466 MHz via OC / XMP 3.0)
Dual-channel
Max. 128 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16, CPU) - Total usable PCIe lanes: 44
- Internal connectors:
2x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4; 2280, CPU)
1x M.2 (PCIe 4.0 x4; 2280, CPU)
1x M.2 (PCIe 4.0 x4 & SATA; 2280, chipset)
1x USB-C (1 header, USB 3.2 Gen 2x2, max. 20 Gbit/s)
2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
2x USB 2.0 (1 header, max. 480 Mbit/s)
1x Thermistor cable header
1x Front panel audio connector - Fan headers:
1x CPU fan (4-pin)
1x AIO pump (4-pin)
1x Case fan (4-pin) - RGB headers:
2x 3-pin ARGB (5 V) - External connectors:
2x Thunderbolt 4 (USB-C, max. 40 Gbit/s)
6x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbit/s)
1x 5 Gigabit LAN (Realtek 8126CG)
2x 3.5 mm audio jack (Realtek ALC 4082)
1x BIOS Flashback button
1x HDMI
2x Antenna port
1x WiFi/Bluetooth module - Power supply:
1x 24-pin ATX
1x 8-pin +12V CPU - Accessories:
2x SATA cables
1x Antenna
1x ARGB splitter cable
1x Thermistor cable
3x Screws for M.2
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Mini-ITX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Memory
|
|
|
Max. Memory
|
128 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
9466 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
2x
|
|
Performance Profile
|
Intel XMP 3.0
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Cooling
|
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
1
|
|
USB 2.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
2x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 3x2 (external) Type C
|
2
|
|
USB 3.1 (external) Type C
|
6
|
|
Display Connectors
|
HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
2
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
3
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC4082
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
