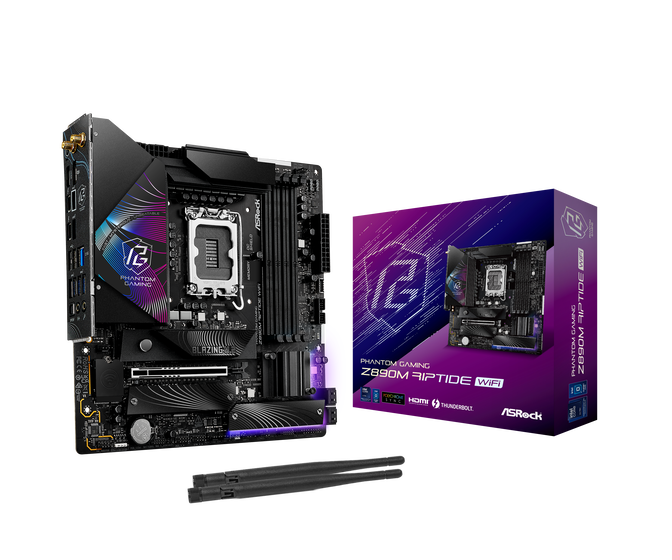

ASRock Z890M RIPTIDE WiFi motherboard, socket LGA 1851, Intel Z890, Micro-ATX, DDR5 image number 0

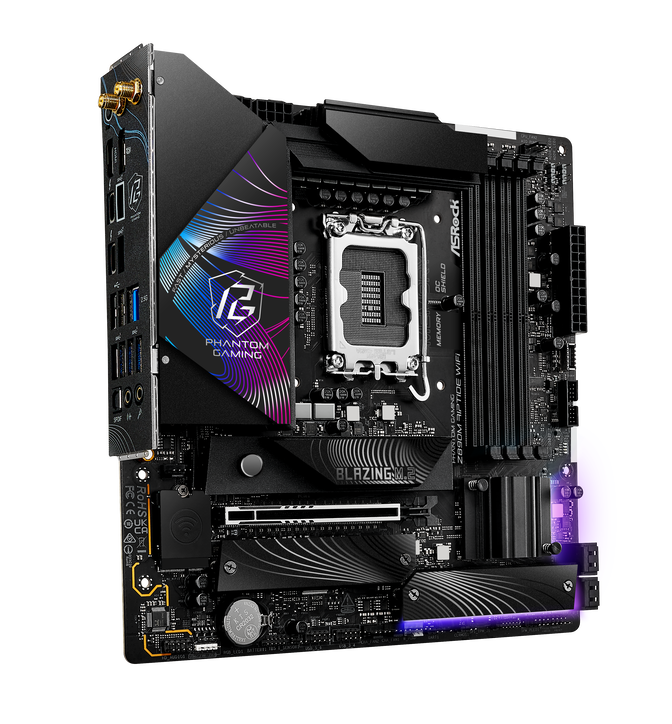

ASRock Z890M RIPTIDE WiFi motherboard, socket LGA 1851, Intel Z890, Micro-ATX, DDR5 image number 1

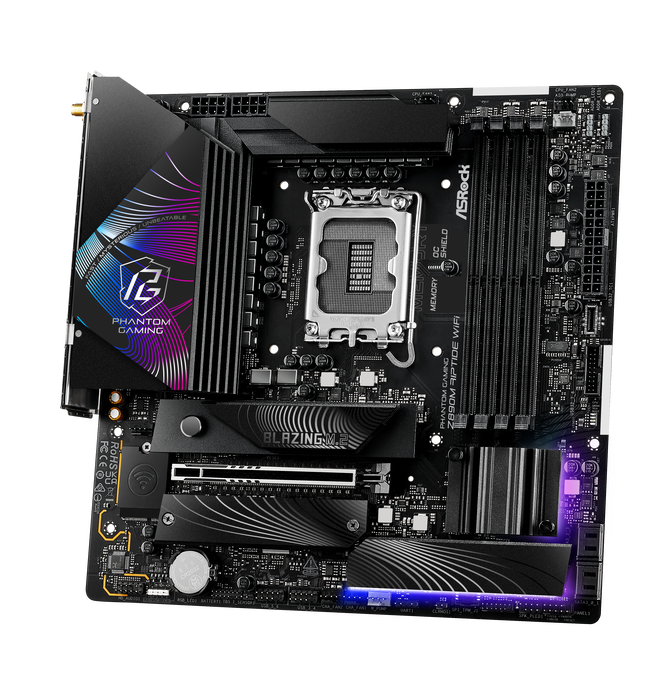

ASRock Z890M RIPTIDE WiFi motherboard, socket LGA 1851, Intel Z890, Micro-ATX, DDR5 image number 2

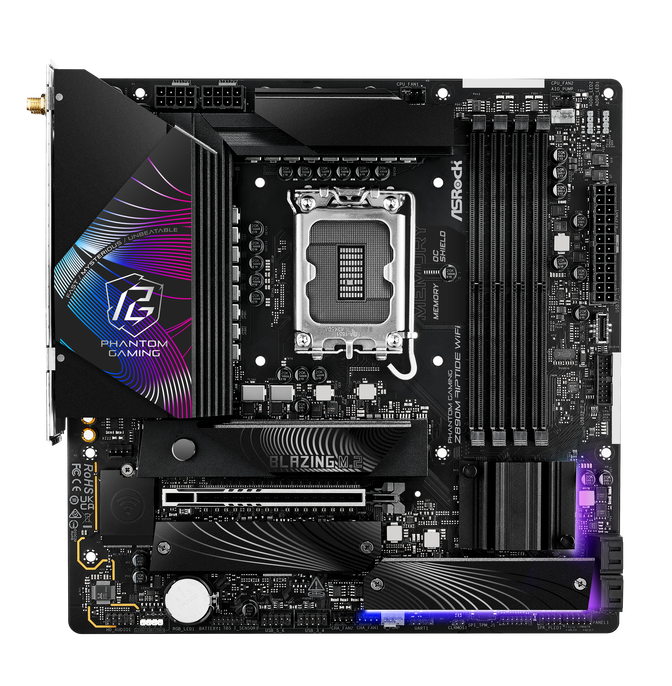

ASRock Z890M RIPTIDE WiFi motherboard, socket LGA 1851, Intel Z890, Micro-ATX, DDR5 image number 3

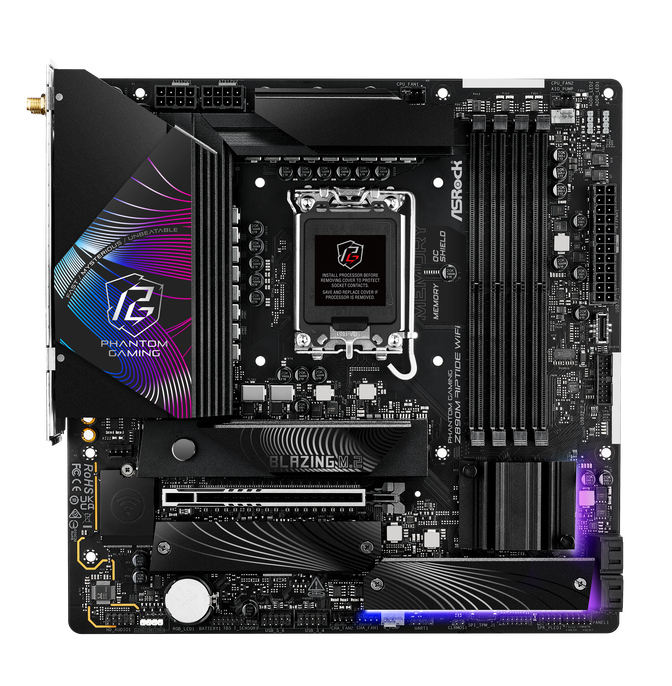

ASRock Z890M RIPTIDE WiFi motherboard, socket LGA 1851, Intel Z890, Micro-ATX, DDR5 image number 4
ASRock Z890M RIPTIDE WiFi motherboard, socket LGA 1851, Intel Z890, Micro-ATX, DDR5 image number 5

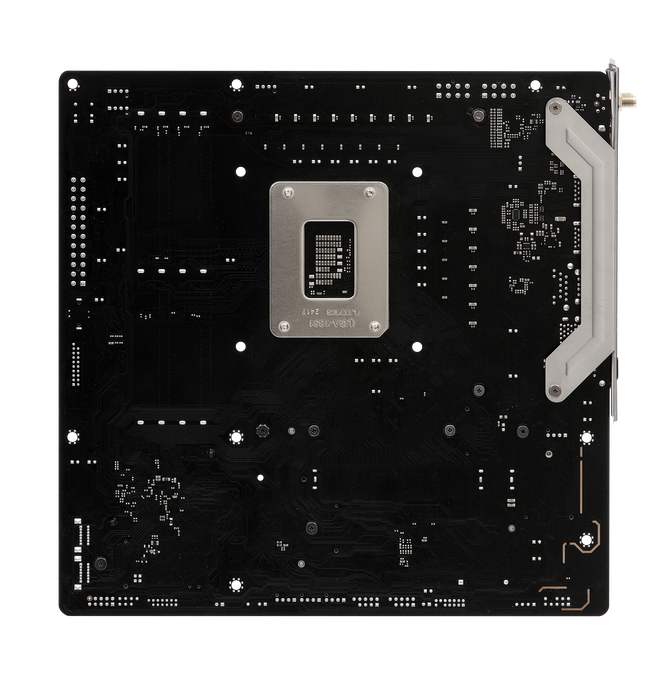

ASRock Z890M RIPTIDE WiFi motherboard, socket LGA 1851, Intel Z890, Micro-ATX, DDR5 image number 6
ASRock Z890M RIPTIDE WiFi motherboard, socket LGA 1851, Intel Z890, Micro-ATX, DDR5

ASRock Z890M RIPTIDE WiFi motherboard, socket LGA 1851, Intel Z890, Micro-ATX, DDR5

Micro-ATX motherboard with Intel Z890 chipset, 1x PCIe 5.0 x16, 2x Thunderbolt 4 (USB-C) / 2x USB 3.1 / 4x USB 3.0 / 2x USB 2.0, 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0) / 4x SATA 6G, 7x 4-pin PWM connectors
298,59 €
incl. VAT , add. delivery costs starting from 4.99€
SKU MBAR-503 |
EAN 4710483949722 |
MPN 90-MXBPK0-A0UAYZ |
Manufacturer ASRock

This motherboard is perfect for gaming enthusiasts.

  • 1x PCIe 5.0 x16 (x16)
  • 4x DIMM slots for up to 256GB DDR5 RAM, up to 9,066MHz
  • 3x M.2 (1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
  • USB at the I/O panel: 2x Thunderbolt 4, 2x USB 3.1, 4x USB-C 3.0, and 2x USB 2.0
  • OC features: 16+1+1+1+1 phase VRMs
  • 7x 4-pin headers for fans & pumps
  • Supports WiFi 6E and Bluetooth 5.3

ASRock Z890M RIPTIDE WiFi: Micro-ATX motherboard with Intel LGA 1851 socket and Z890 chipset

The ASRock Z890M RIPTIDE WiFi is a micro-ATX motherboard featuring the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. This Intel Z890 motherboard natively supports USB4, offering data transfer rates of up to 40Gbit/s. Additionally, the ASRock Z890M RIPTIDE WiFi features full PCIe 5.0 support, providing double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

  • Form factor:
    Micro-ATX (244 x 244 mm)
  • Chipset:
    Intel Z890
  • Socket:
    LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation)
  • RAM:
    4x DDR5 DIMM (up to 9,066 MHz via OC / XMP 3.0)
    Dual-Channel
    Max. 256 GB
  • Slots (physical):
    1x PCIe 5.0 x16 (electrically x16 or x8/x8, CPU)
  • Total usable PCIe lanes: 44
  • Internal connectors:
    4x SATA 6G (max.)
    1x M.2 (PCIe 5.0 x4; 2280, CPU)
    1x M.2 (PCIe 4.0 x4; 2280, CPU)
    1x M.2 (PCIe 4.0 x4 & SATA; 2280, Chipset)
    1x USB-C (1 header, USB 3.2 Gen 2x2, max. 20 Gbit/s)
    2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
    4x USB 2.0 (2 headers, max. 480 Mbit/s)
    1x SPI TPM header
    1x Thermistor cable
    1x Front panel audio connector
    1x Power LED / speaker header
  • Fan headers:
    2x CPU fan (4-pin)
    1x AIO pump (4-pin)
    1x Pump (4-pin)
    3x Case fans (4-pin)
  • RGB headers:
    2x 3-pin ARGB (5 V)
    1x RGB header

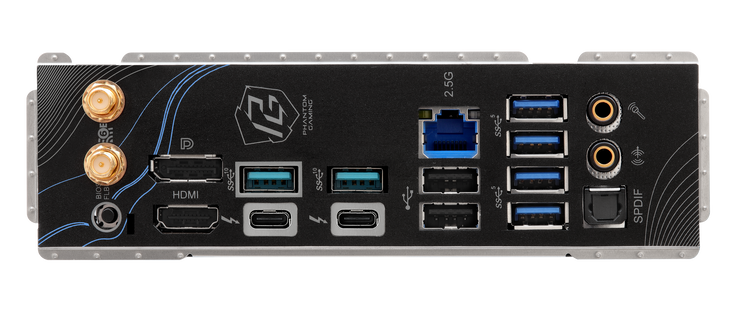

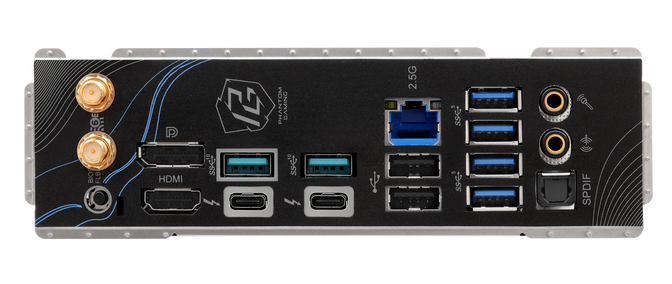

  • External connectors:
    2x Thunderbolt 4 (USB-C, max. 40 Gbit/s)
    2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
    4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
    2x USB 2.0 (Type A, max. 480 Mbit/s)
    1x 2.5 Gigabit LAN (Killer E3100G)
    2x 3.5 mm audio jack (Realtek ALC 897)
    1x BIOS flashback button
    1x HDMI
    1x DisplayPort
    1x Clear CMOS button
    2x Antenna ports
    1x WiFi/Bluetooth module
  • Power supply:
    1x 24-pin ATX
    2x 8-pin +12V CPU

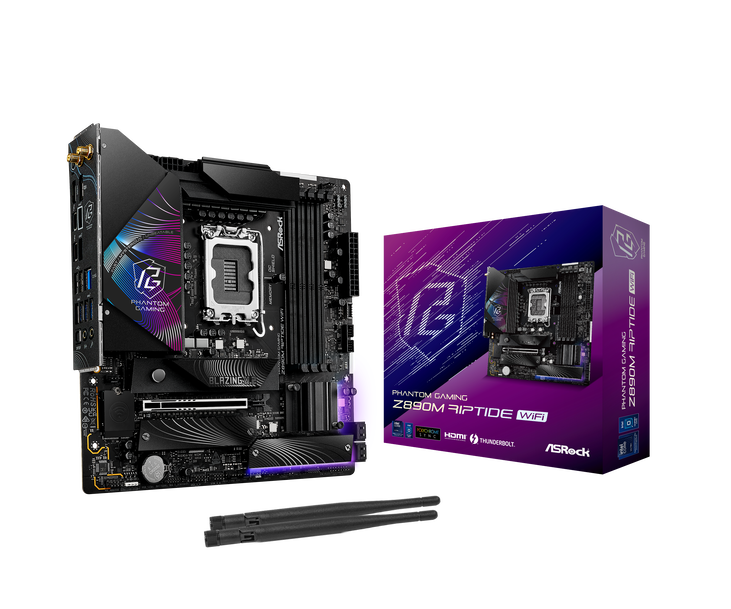

  • Accessories:
    2x SATA cables
    2x Antennas
    1x ARGB splitter cable
    1x Thermistor cable
Colour
Primary Colour
Black
Form Factor
Motherboard formfactor
Micro-ATX
CPU
CPU Manufacturer
Intel
CPU Socket
1851
Motherboard
Motherboard Chipset
Intel Z890
Memory
Max. Memory
256 GB
Memory Type
DDR5
Memory Form Factor
DIMM
Max. Memory Speed (OC)
9066 MT/s
EEC Support
Yes
Memory slots
4x
Performance Profile
Intel XMP 3.0
Wi-Fi & LAN
LAN
Yes
LAN Ports
1x 2.5 Gbit/s
Wi-Fi / Bluetooth
Yes
Wi-Fi Standard
Wi-Fi 6E
Bluetooth Standard
5.3
Internal Ports
CPU Power Supply
2x 8-Pin
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
1
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
1
USB 3.0 (internal) Header
1
USB 3.0 (internal) Possible Ports
2
USB 2.0 (internal) Header
2
USB 2.0 (internal) Possible Ports
4
RGB / LED connectors
1x RGB (4-Pin 5050 12VGRB), 2x Digital RGB (3-Pin 5VDG)
SPI TPM Header
Yes
External Ports
USB4 Gen 3x2 (external) Type C
2
USB 3.1 (external) Type A
2
USB 3.0 (external) Type C
4
USB 3.0 (external) Type A
2
Display Connectors
Display Port (1x), HDMI (1x)
Storage Ports
M.2 PCIe 4.0 x4
1
M.2 PCIe 4.0 x4 & SATA 6G
1
M.2 PCIe 5.0 x4
1
SATA 6G (internal)
4
Expansion Slots
PCIe x16 slots (total)
1
Fan Header
4 Pin Fan Connectors
7
Audio
Soundchip
Realtek ALC897
Lighting
Lighting / RGB
Yes
