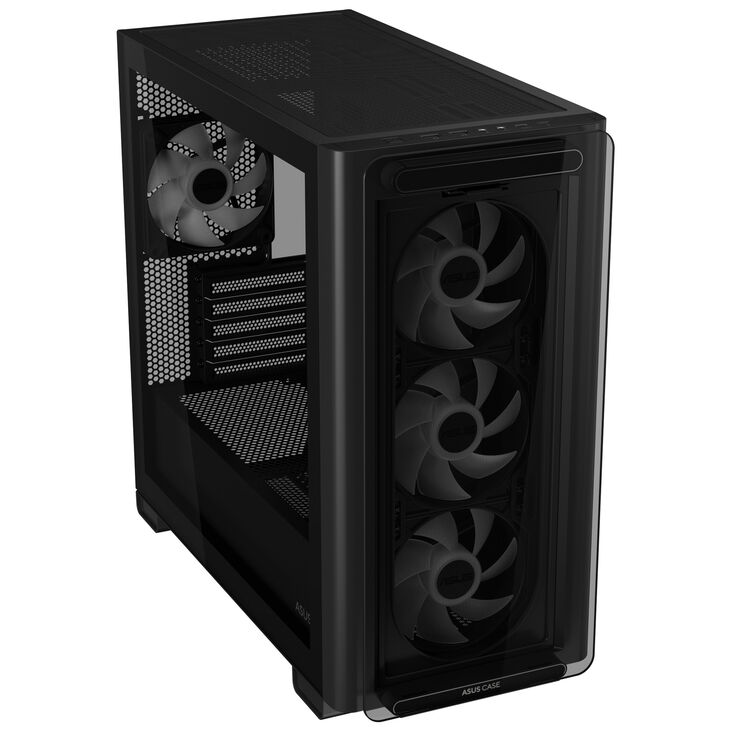

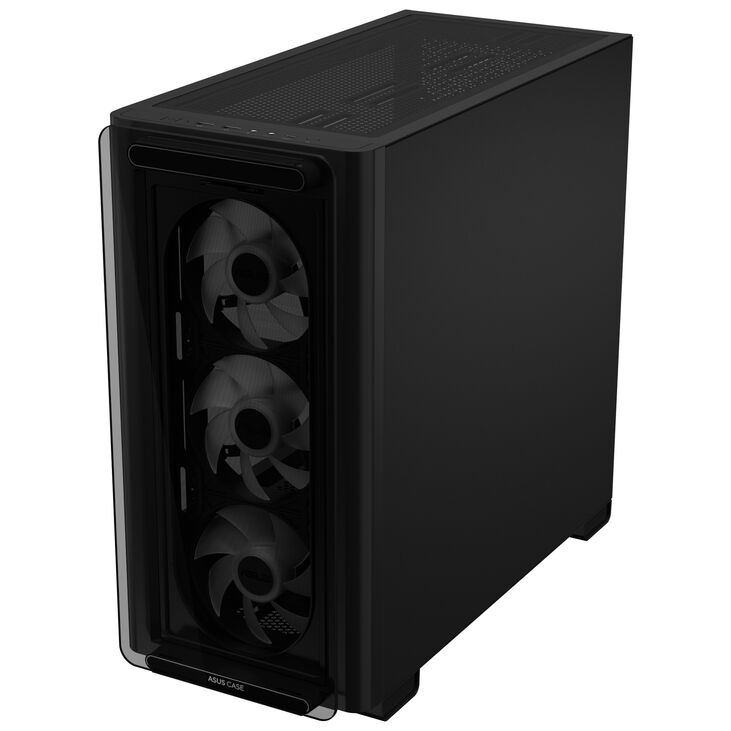

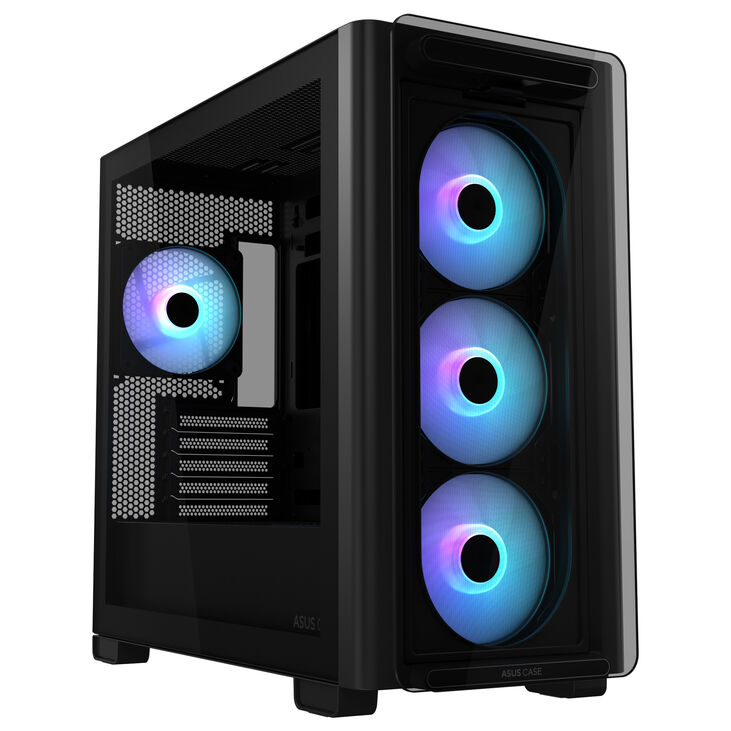

ASUS A23 PLUS case, Mini-Tower, Micro-ATX, RGB, Tempered Glass - black

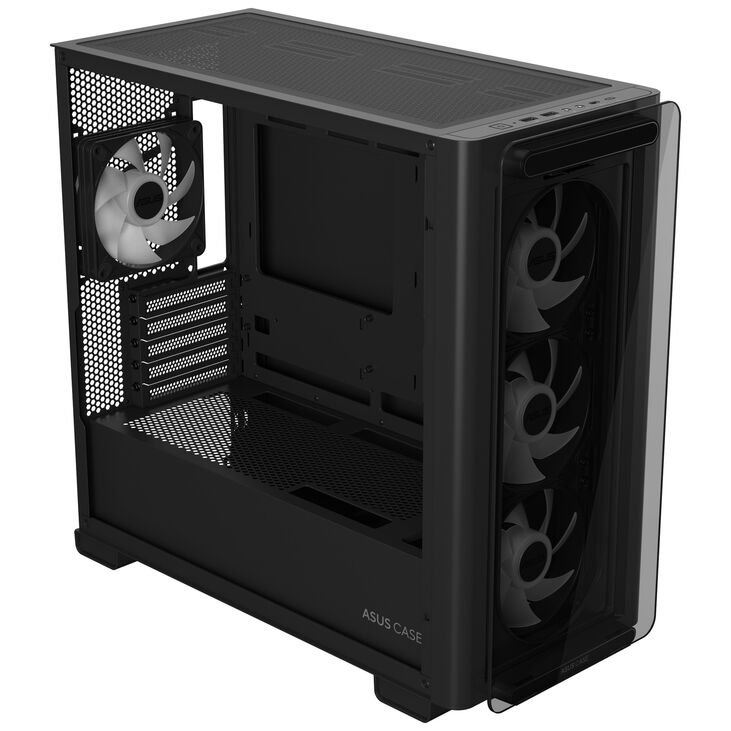

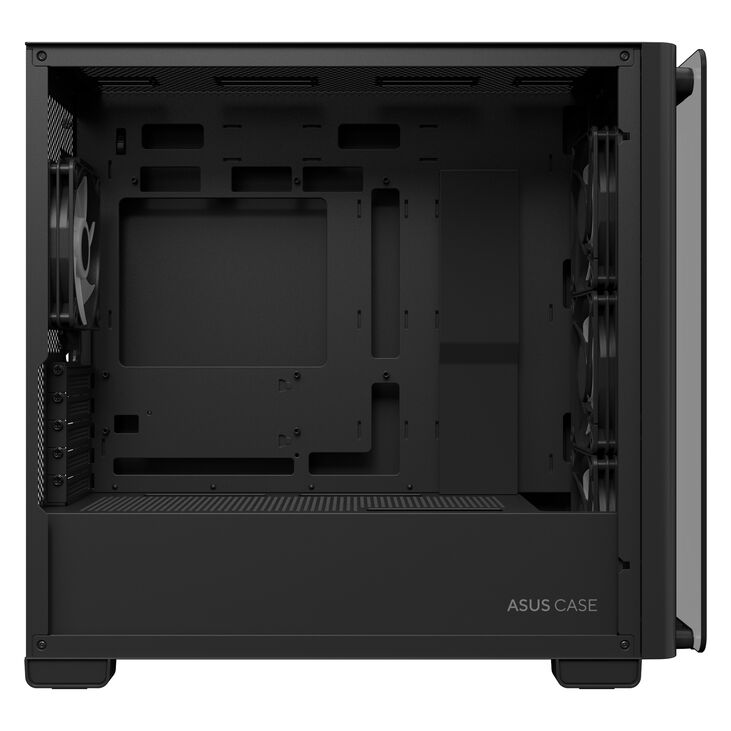

- Black chassis with tempered-glass side panel
- Comprehensive cooling options with up to seven fans and radiators up to 360mm

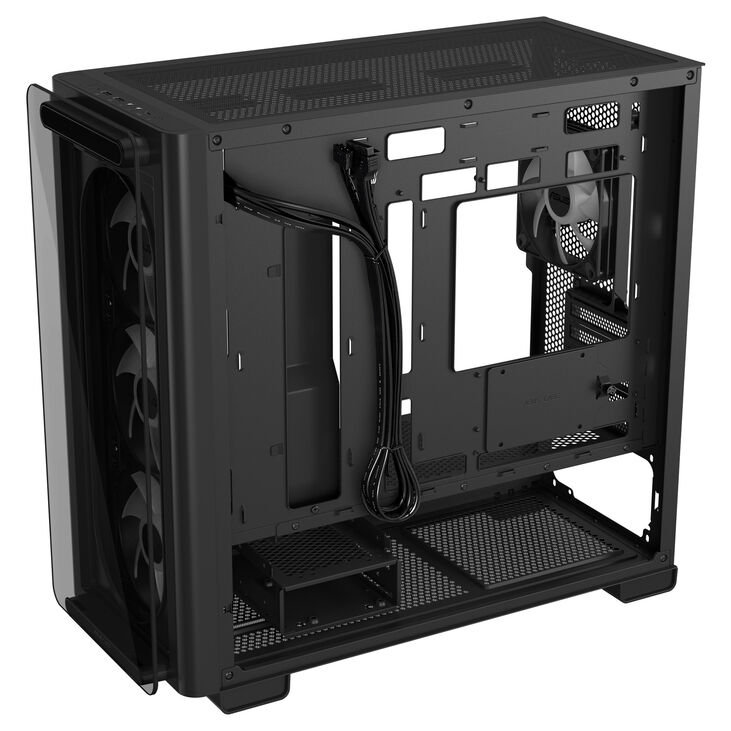

- Supports small motherboards up to Micro-ATX with Back-Connect
- Space for graphics cards up to 380mm and CPUs up to 165mm in height
- Supports up to three drives

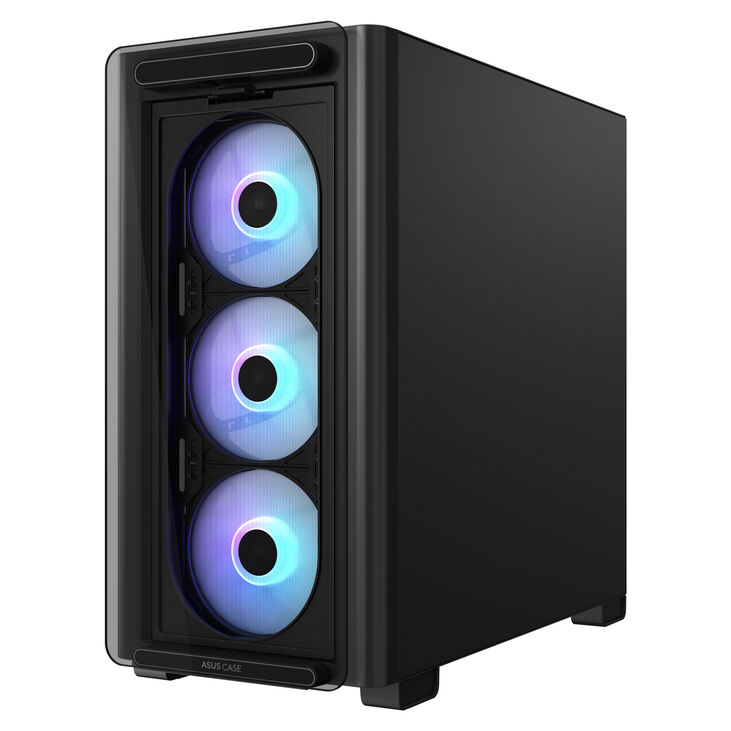

- Includes four ARGB fans
The ASUS A23 PLUS: Mini-Tower with Ample Space
The ASUS A23 PLUS provides plenty of room for high-end components despite its compact size. The numerous cooling options keep your gaming hardware effectively cooled. The tempered glass side and front panels offer a clear view of your case’s interior, allowing your RGB lighting to shine through beautifully.
Fans and Radiators

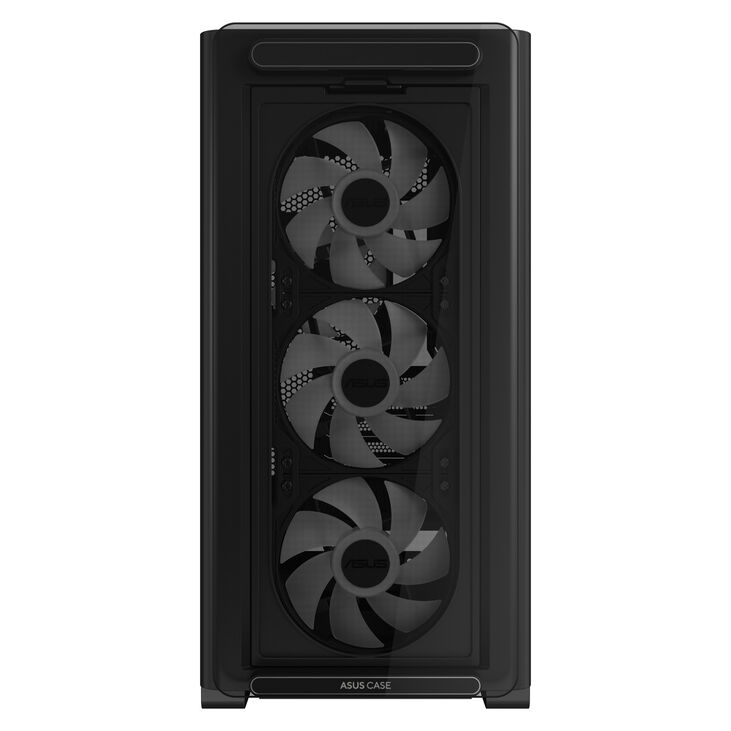

High-performance hardware requires equally powerful cooling to prevent overheating. The ASUS A23 PLUS can accommodate up to seven fans. Both the top and front panels support either three 120mm fans or two 140mm fans. An additional slot is available at the rear for a 120mm fan. Four ARGB fans are already included, with three 120mm fans at the front and one at the back.
If you prefer water cooling, radiator support is available at the top and front panels, each allowing up to a 360mm radiator. Additionally, a 120mm radiator can be installed at the rear if desired.
Hardware Compatibility
The mini-tower supports graphics cards up to 380mm in length, making it compatible with some of the latest NVIDIA 40-series GPUs. It accommodates motherboards up to the Micro-ATX form factor, including Back-Connect models.
The CPU cooler should not exceed a height of 165mm, and there is plenty of room for the PSU, which can be up to 210mm in length. To ensure ample storage, the ASUS A23 PLUS allows for up to three drives to be installed.
- Dimensions: 220 x 479 x 450 mm (W x H x D)
- Colour: Black
- Material: Steel, Tempered Glass
- Weight: 8.9 kg
- Form Factor: Micro-ATX, Mini-ITX
- Fan Capacity:
Top: 3x 120 mm / 2x 140 mm
Front: 3x 120 mm / 2x 140 mm
Rear: 1x 120 mm - Pre-installed Fans: 4
- Radiator Mountings:
Top: 1x 360 / 280 / 240 / 140 / 120 mm
Front: 1x 360 / 280 / 240 / 140 / 120 mm
Rear: 1x 120 mm - Drive Bays:
2x 3.5" / 2.5"
1x 2.5" - Power Supply: 1x ATX (optional, max. 210 mm)
- Expansion Slots: 5

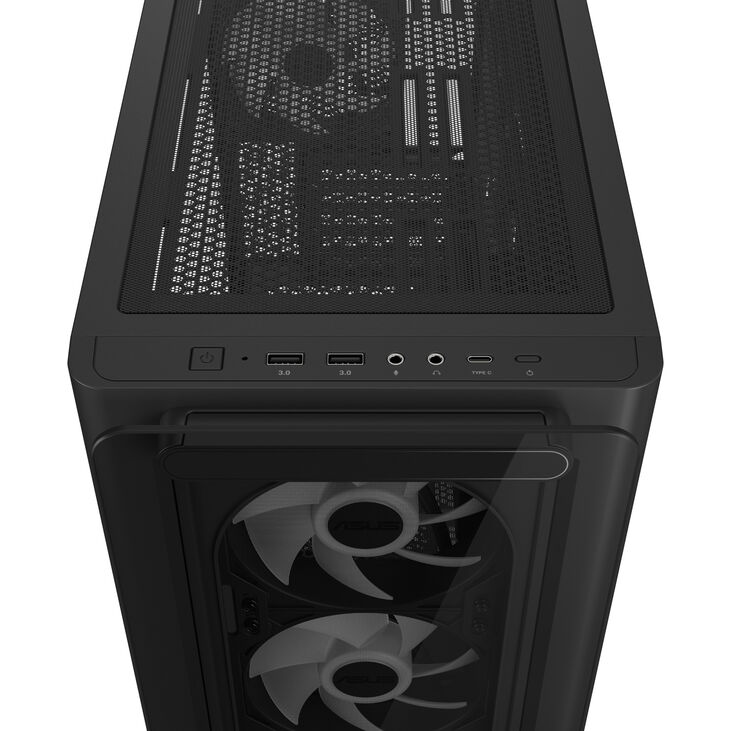

- I/O Panel:
1x Power Button
2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbps)
1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbps)
1x Microphone
1x Headphone - Maximum GPU Length: 380 mm
- Maximum CPU Cooler Height: 165 mm
- Included:
1x ASUS A23 PLUS Mini-Tower
4x ARGB Fans
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
450 mm
|
|
Width
|
220 mm
|
|
Height
|
479 mm
|
|
Weight
|
8.9 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
Micro-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
165 mm
|
|
Max. GPU Length
|
380 mm
|
|
Max. PSU Length / Depth
|
210 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Front)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
7
|
|
120 mm fans
|
7
|
|
140 mm fans
|
4
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Single (120 mm), 2x Triple (360 mm)
|
|
Radiator/AIO Support (Front)
|
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Radiator/AIO Support (Top)
|
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
3
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
1
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
2
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
|
|
Case Features
|
|
|
I/O position
|
Top
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
5
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
RGB Controller
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
4x 120 mm
|
