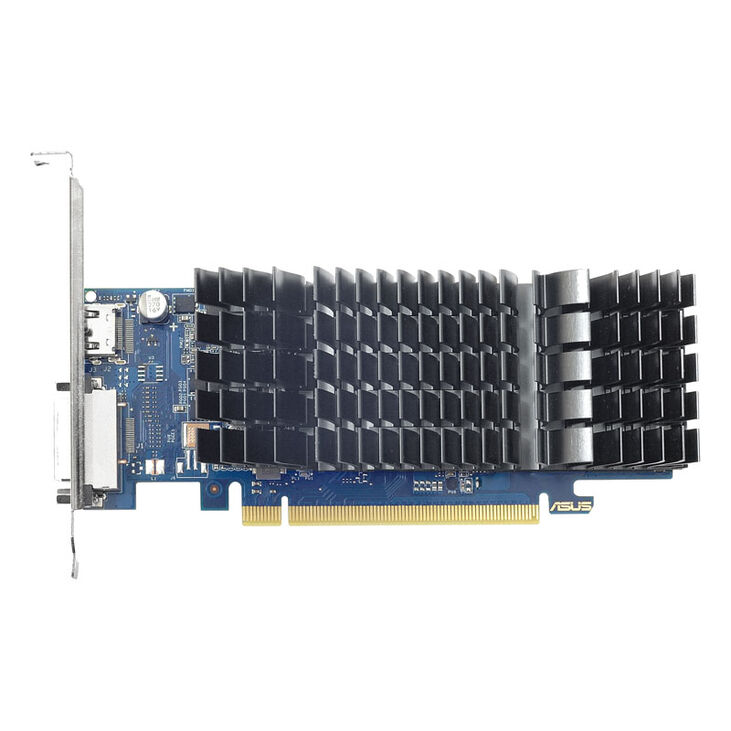

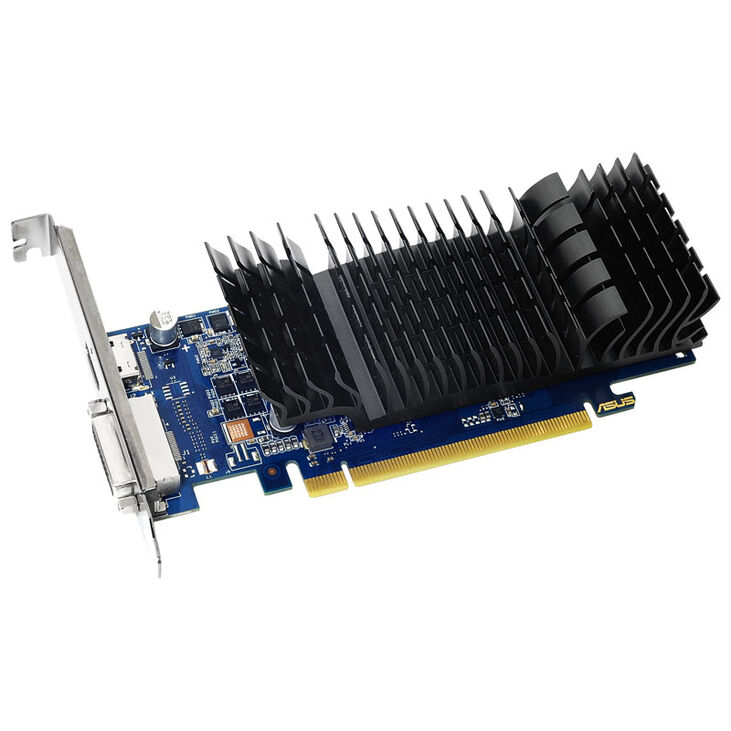

ASUS GeForce GT 1030, 2048 MB GDDR5, Low Profile
Compact "Pascal" entry-level graphics card, 1.266/1.506 MHz Base/Boost, 6.008 MHz memory frequency (effective), 1× HDMI / 1×DVI-D, Passive cooler design & 2 GB GDDR5 VRAM
83,77 €
incl. VAT
, add. delivery costs starting from 4.99€
The ASUS GeForce GT 1030 is clocked as standard at 1.228 MHz, should additional performance be required GPU Boost 3.0 increases the base clock to 1.468 MHz. OC Mode enables the base clock to be increased to 1.266 MHz and the boost clock to 1.506 MHz. The 2 GB VRAM is connected to the GPU via a 64-Bit interface and is clocked at 6.008 MHz effective. The low 30 Watt TDP of the graphics card allows it to be entirely passively cooled.
In order to exploit the full potential of the card in the long term, drivers from NVIDIA or ASUS should be downloaded and installed at regular intervals. Technical Details:
The Features der ASUS GeForce GT 1030:
- Passive cooler design for whisper-quiet operation
- Base clock: 1.266 MHz
- Boost clock: 1.506 MHz
- Memory frequency: 3.004 MHz (6.008 MHz effective)
- No additional power connector required
NVIDIA's GeForce GT 1030: Affordable & Efficient Full-HD Performance
The NVIDIA GeForce GT 1030 from the 10-series is, as an entry level graphics card, focused on energy efficiency and is therefore both affordable and efficient. The combination of a 16 nm FinFET manufacturing process, "Pascal" GPU architecture, and its specifications, enable the reference card to run without any additional power connectors while the GPU108 GPU allows the display of many of the most popular online games in Full HD resolution. Apart from the 2 GB GDDR5 VRAM the GeForce GT 1030 also comes with 384 CUDA Cores.In order to exploit the full potential of the card in the long term, drivers from NVIDIA or ASUS should be downloaded and installed at regular intervals. Technical Details:
- Dimensions: 173 x 40 x 69 mm (W × H × D)
Slot Height: 2-Slot - GPU: NVIDIA GeForce GT 1030
Type Maxwell GP108-300
Manufacturing Process: 16 nm
GPU Frequency (Gaming Mode): 1.228 MHz
GPU Frequency (OC Mode): 1.266 MHz
Boost Clock (Gaming Mode): 1.468 MHz
Boost Clock (OC Mode): 1.506 MHz
Shader Units (CUDA Cores): 384 - VRAM: 2.048 MB
Memory Frequency: 3.004 (6.008) MHz
Type: GDDR5
Memory Bandwidth: 64 Bit - Slot Type: PCIe x16 (PCIe/PCIe 2.x/PCIe 3.0)

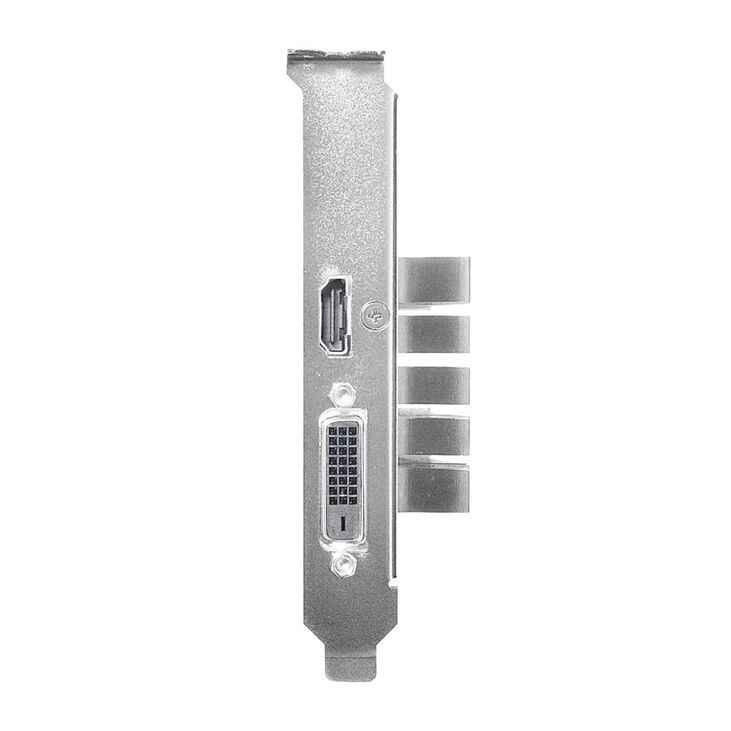

- Ports:
1× HDMI 2.0
1× DVI-D (Dual-Link) - Power Supply: Powered via PCIe-slot
Typical Power Usage Under Load: 30 Watt
Recommended Power Supply: min. 300 Watt
|
Colour
|
|
|
Primary Colour
|
Blue
|
|
Dimensions
|
|
|
Length / Depth
|
173 mm
|
|
Width
|
69 mm
|
|
Height
|
40 mm
|
|
Graphics Card
|
|
|
GPU Model
|
NVIDIA GeForce GT 1030 GDDR5
|
|
GPU Series Name
|
NVIDIA GeForce GT 1030 GDDR5
|
|
Graphics Chip
|
GP108-300
|
|
Manufacturing Process
|
14 nm
|
|
Shader Units
|
384
|
|
GPU Memory Type
|
GDDR5
|
|
Slot Type Standard
|
PCIe 3.0
|
|
GPU Memory Size (GB)
|
2
|
|
GPU Memory Interface (bit)
|
64
|
|
GPU Effective Memory Clock (MHz)
|
6008
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
1266 MHz
|
|
Max. GPU Clock (Boost)
|
1506 MHz
|
|
Max. Memory Clock
|
3004 MHz
|
|
Internal Ports
|
|
|
Required Power Connectors
|
Only over PCIe slot
|
|
External Ports
|
|
|
Display Connectors
|
DVI-D (1x), HDMI (1x)
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
2 Slots
|
|
Features
|
|
|
Features
|
low profile card
|
|
Virtual Reality Ready
|
No
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
