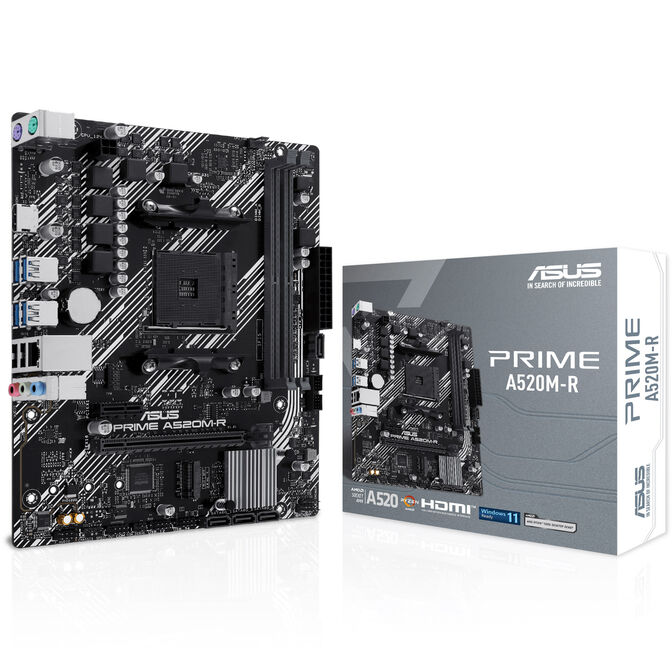

ASUS Prime A520M-R Motherboard - A520 Chipset, Socket AM4, DDR4

ASUS Prime A520M-R Motherboard - A520 Chipset, Socket AM4, DDR4

Micro-ATX motherboard with AM4 socket, with A520 chipset, PCIe 3.0, DDR4 memory up to 3,200 MHz (5,100 in OC), M.2 slot, 1 Gbit LAN
78,01 €
incl. VAT , add. delivery costs starting from 4.99€
SKU MBAS-779 |
EAN 4711387466414 |
MPN 90MB1H60-M0EAY0 |
Manufacturer ASUS
  • 1x PCIe 3.0 x16 (x16) and 1x PCIe 3.0 x1 (x1) slots
  • DDR4 memory up to 3,200 MHz (5,100 MHz OC)
  • 1x M.2 slot and 4x SATA
  • USB on I/O panel: 1x USB-A 3.0, 2x USB-A 2.0
  • 1-Gbit LAN
  • Supports Ryzen processors with AM4 socket
  • Only for AMD Ryzen CPUs of the 3000 / 3000G / 4000 / 4000G / 5000 and 5000G series

For Micro-ATX cases and Ryzen processors

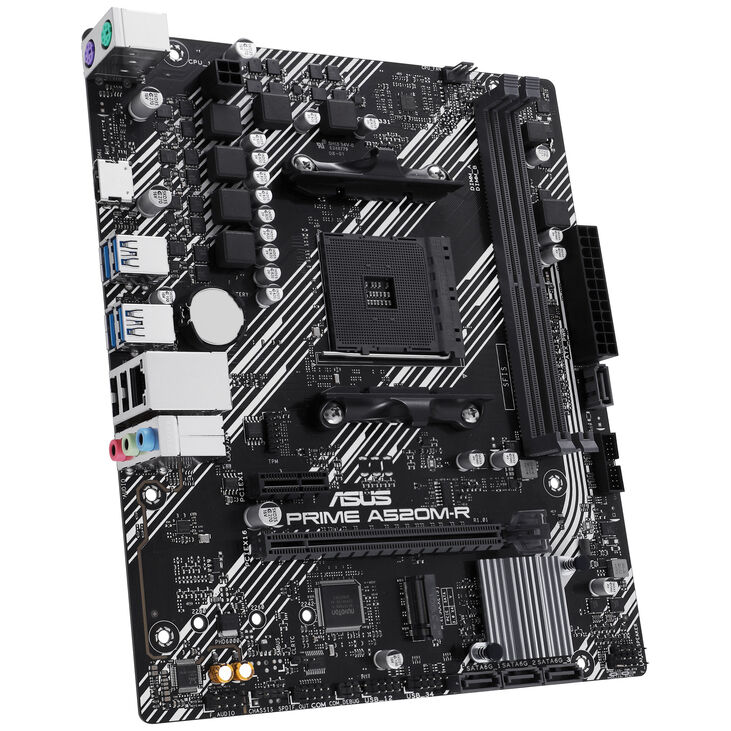

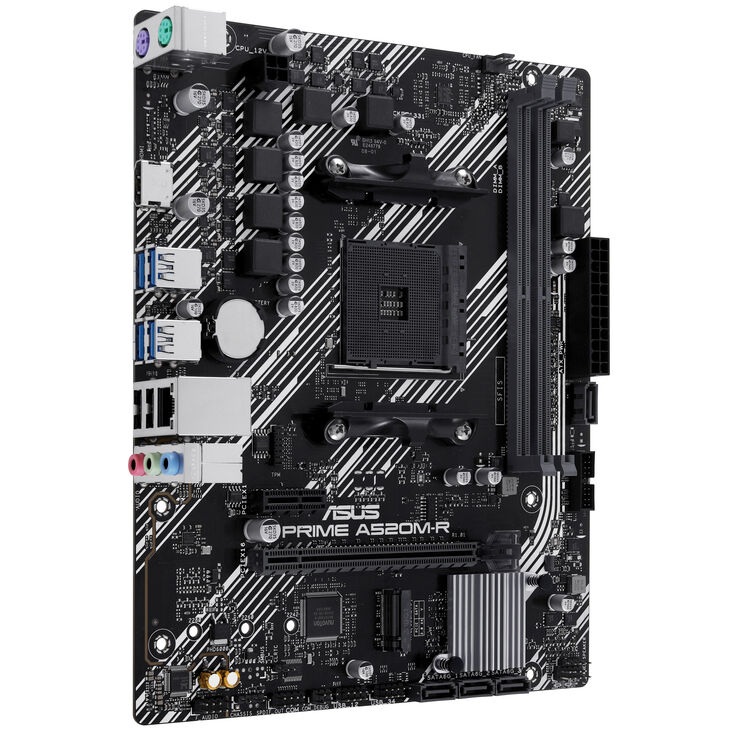

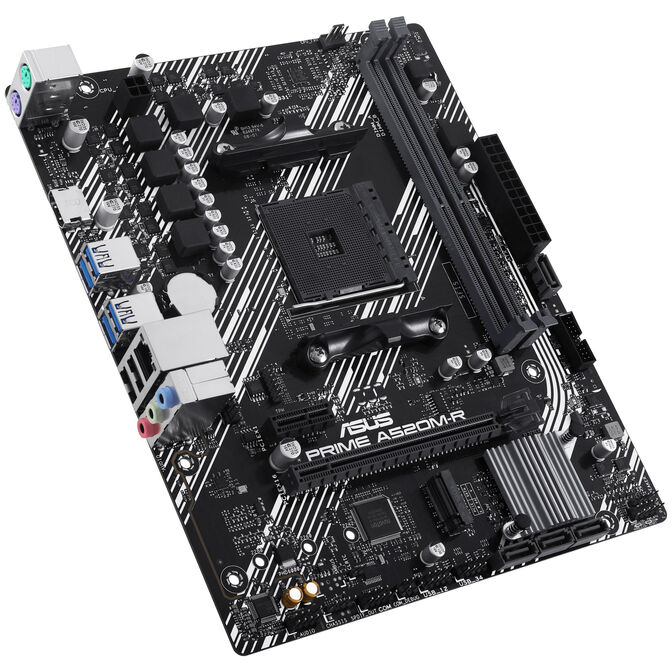

The Prime A520M-R motherboard from ASUS is specifically designed for Ryzen processors up to Ryzen 5000 with AM4 socket. With the Micro-ATX standard, you can easily install it in smaller and more compact cases.

Through the two RAM slots, you can expand the DDR4 memory up to 64 GB, allowing your PC to handle demanding multitasking tasks without any issues. Additionally, you can overclock the memory up to 5,100 MHz.

Many connections and support for M.2 SSDs

The motherboard offers enough connections for your peripherals and hardware. Of course, fast M.2 SSDs can also be installed on the motherboard. This ensures very fast boot and load times for your operating system and applications.

Furthermore, the motherboard provides a 1-Gbit LAN connection.

Temperature control

Using the integrated Fan Xpert 4 utility or directly through the ASUS UEFI BIOS, you can control the fans. Extensive configuration options are provided. Additionally, an intelligent circuit protects the fan head from overheating and overcurrent.

Note 1: The following specifications regarding the PCIe lanes, connection of the M.2 slots, and connection of the PCIe slots refer to the combination of A520 chipset with an AMD Ryzen CPU of the 5000 series!

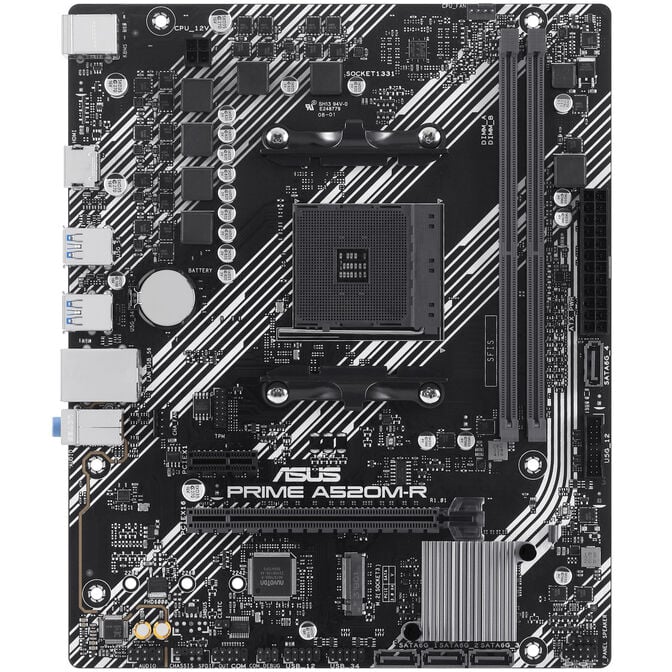

  • Format: Micro-ATX (236 x 193 mm)
  • Chipset: AMD A520
  • Socket: AM4
  • RAM:
    2x DDR4 (3,200 MHz, up to 5,100 MHz via OC)
    Dual-Channel
    max. 64 GB
  • Slots:
    1x PCIe 3.0 x16 (electrically x16)
    1x PCIe 3.0 x1
  • Internal connections:
    4x SATA 6G
    1x M.2 (M-Key, PCIe 3.0 x4, 2242 / 2260 / 2280)
    1x USB 3.0 (1 header, USB 3.0 Gen1, max. 5 Gbit/s)
    2x USB 2.0 (2 headers, max. 480 Mbit/s)
    1x Clear CMOS header
    1x COM port header
    1x S/PDIF out header
    1x Front audio
  • Fan headers:
    1x CPU fan (4-pin)
    1x case fan (4-pin)

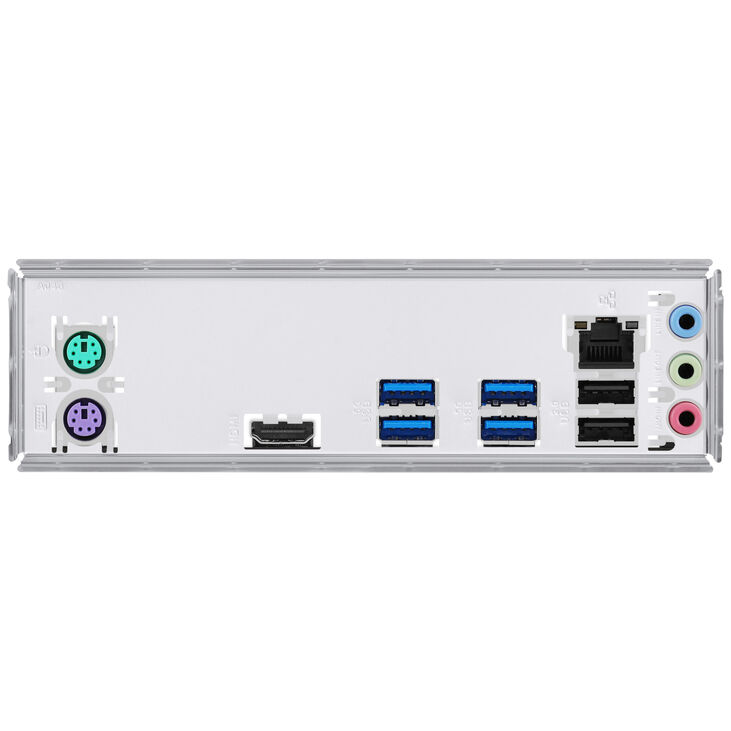

  • External connections:
    4x USB-A 3.1 (3.1 Gen2, max. 10 Gbit/s)
    2x USB-A 2.0
    1x HDMI 2.1
    1x 1-Gigabit LAN
    3x 3.5-mm jack
  • Power supply:
    1x 24-pin ATX12V
    2x 4-pin +12 V
Colour
Primary Colour
Black
Secondary Colour
White
Dimensions
Length / Depth
193 mm
Width
236 mm
Form Factor
Motherboard formfactor
Micro-ATX
CPU
CPU Manufacturer
AMD
CPU Socket
AM4
Motherboard
Motherboard Chipset
AMD A520
Memory
Max. Memory
64 GB
Memory Type
DDR4
EEC Support
No
Memory slots
2x
Wi-Fi & LAN
LAN Ports
1x (in total)
Internal Ports
CPU Power Supply
2x 4-Pin
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
USB 3.0 (internal) Possible Ports
1
USB 2.0 (internal) Possible Ports
2
External Ports
USB4 Gen 3x2 (external) Type C
0.0000
USB4 Gen 2x2 (external) Type C
USB 3.2 (external) Type C
USB 3.1 (external) Type C
USB 3.1 (external) Type A
USB 3.0 (external) Type C
USB 3.0 (external) Type A
4
USB 2.0 (external) Type A
2
Thunderbolt 3 (external) Type C
0.0000
Display Connectors
HDMI (1x)
Storage Ports
M.2 PCIe 2.0 x2
M.2 PCIe 2.0 x2 & SATA 6G
M.2 PCIe 2.0 x4
M.2 PCIe 3.0 x2
M.2 PCIe 3.0 x2 & SATA 6G
M.2 PCIe 3.0 x4
1
M.2 PCIe 3.0 x4 & SATA 6G
M.2 PCIe 4.0 x2
M.2 PCIe 4.0 x4
M.2 PCIe 4.0 x4 & SATA 6G
M.2 SATA 6G
SAS (internal)
SATA 6G (internal)
4
SATA Express (internal)
Expansion Slots
PCIe x16 slots (total)
1
PCIe x4 slots (total)
PCIe x1 slots (total)
1
PCIe 5.0 x16 mechanical slot
PCIe 5.0 x4 mechanical slot
PCIe 4.0 x16 mechanical slot
PCIe 4.0 x4 mechanical slot
PCIe 4.0 x1 mechanical slot
PCIe 3.0 x16 mechanical slot
PCIe 3.0 x4 mechanical slot
PCIe 3.0 x1 mechanical slot
PCIe 2.0 x16 mechanical slot
PCIe 2.0 x4 mechanical slot
PCIe 2.0 x1 mechanical slot
PCI slot
Fan Header
3 Pin Fan Connectors
4 Pin Fan Connectors
2
Lighting
Lighting / RGB
No
