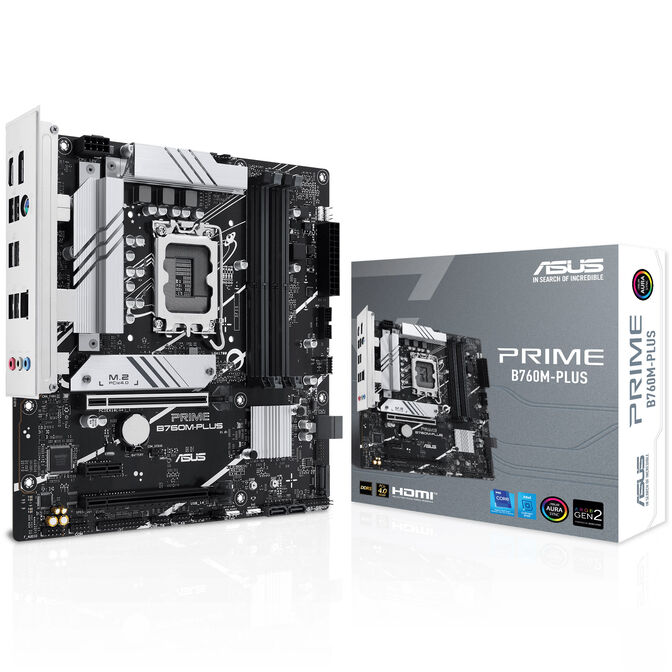

ASUS Prime B760M-Plus, Intel B760 motherboard, Socket 1700, DDR5
- 1x PCIe 4.0 x16 (x16), 1x PCIe 4.0 x16 (x4) and 1x PCIe 4.0 x1 slots
- DDR5 memory up to 7,200 MHz (OC)
- 2x M.2 PCIe 4.0 and 4x SATA for your games and programs
- USB on the I/O panel: 2x USB-A 3.2, 4x USB-A 2.0
- 2.5 Gbit LAN
- Supports Intel processors of the 12th, 13th, and 14th generation

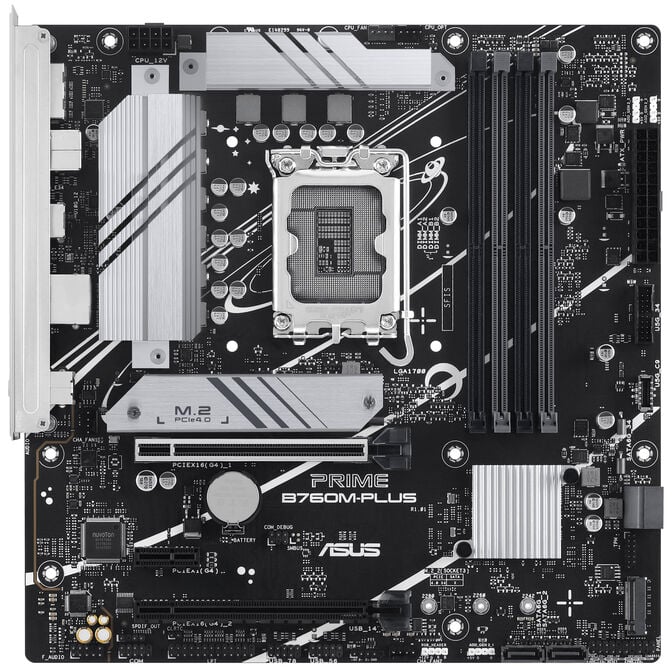

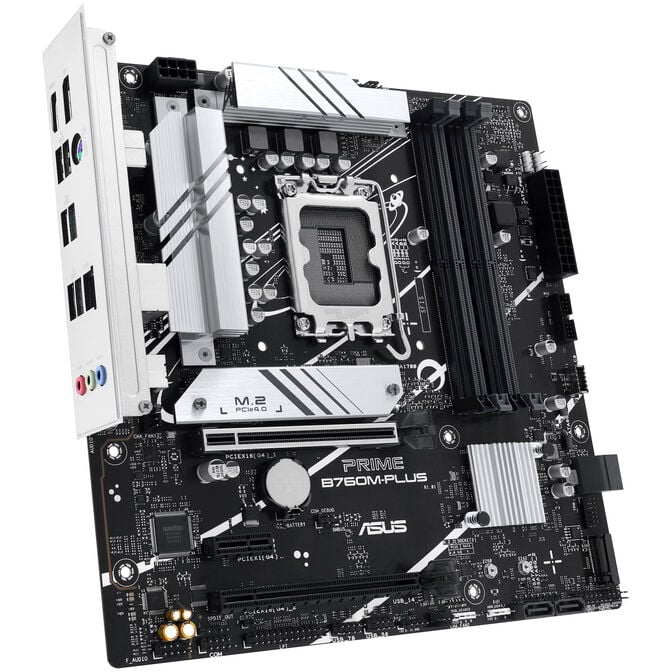

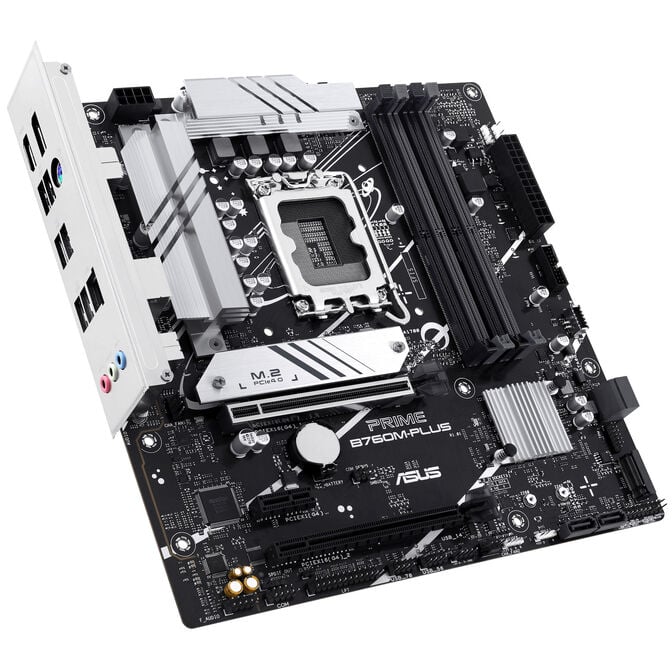

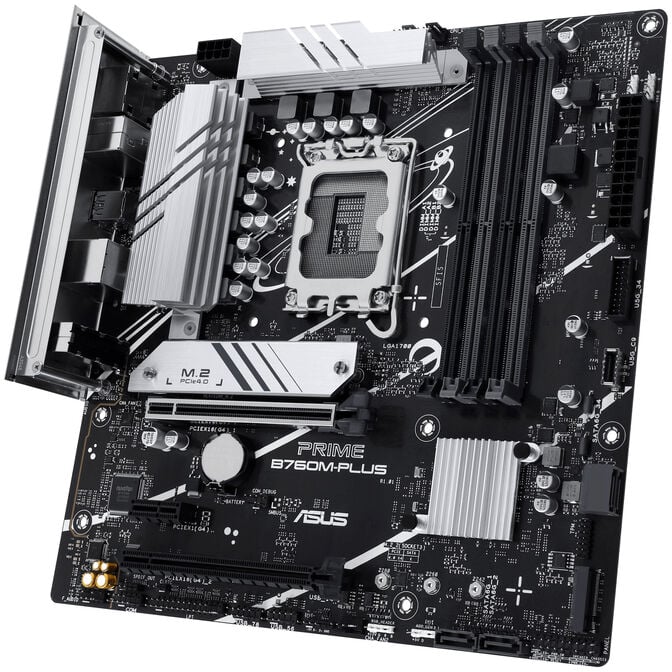

The Prime B760M-Plus motherboard from Asus for Intel processors
The Prime B760M-Plus from Asus has been specifically developed with its LGA1700 socket for Intel processors of the 12th, 13th, and 14th generation. Additionally, its Micro-ATX format allows for easy installation in smaller cases.
Through the four RAM slots, you can expand the DDR4 memory up to 192 GB, enabling your PC to handle demanding multitasking tasks without any issues. You can also overclock the memory up to 7,200 MHz.
Many connections and support for M.2 SSDs
The motherboard offers plenty of connections for your peripherals and hardware. Naturally, fast M.2 SSDs can also be installed on the motherboard, providing quicker boot and load times. Additionally, it has four SATA connections.
Moreover, the motherboard features a 2.5 Gbit/s LAN connection.
RGB and A-RGB connections for versatile lighting
The motherboard has RGB and A-RGB connections where you can connect compatible LED devices such as coolers, CPU fans, and many more. With Aura Sync, you have many options to customise the lighting to your liking.
Extensive cooling for your hardware
There is a heatsink at the M.2 slot that effectively prevents throttling of your M.2. The VRM heatsink and thermal pads also ensure that your hardware does not overheat. You can easily configure the cooling via the Fan Xpert 2+ software and the UEFI BIOS.
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processors: Intel Celeron, Intel Pentium Gold, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
- Supported processor sockets: LGA 1700
Memory
- Supported memory: DDR5-SDRAM
- Number of memory slots: 4
- Memory type: DIMM
- Memory channels: Dual-channel
- No ECC:
- Supported memory speed: 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
- Supported memory clock rate (max.): 7200 MHz
- Maximum RAM memory: 192 GB
- Unbuffered memory:
Storage Controller
- Supported storage drives: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of supported storage drives: 6
- RAID support:
- RAID level: 0, 1, 5, 10
Graphics
- Parallel processing technology: Not supported
Internal I/O connections
- Number of USB 2.0 interfaces: 3
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- SATA III ports: 4
- S/PDIF out connector:
- Front panel audio connector:
- ATX power connector (24-pin):
- CPU fan connector:
- Number of chassis fan connectors: 2
- EPS power connector (8-pin):
- Number of COM connectors: 1
- TPM connector:
Internal I/O connectors
- 12V power connection:
- RGB LED header:

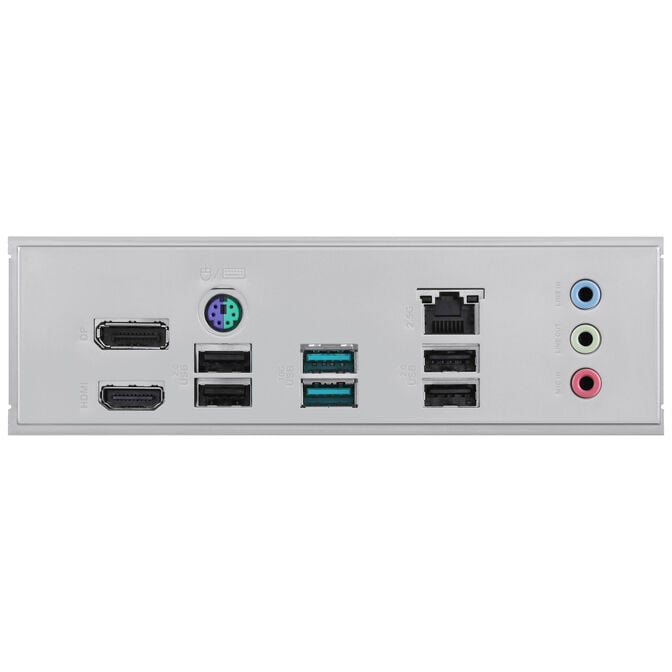

I/O connections on the back
- Number of USB 2.0 ports: 4
- USB 3.2 Gen 2 (3.1 Gen 2) number of Type A ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Number of PS/2 ports: 1
- Number of HDMI ports: 1
- Number of DisplayPort ports: 1
- Microphone input:
Network
- Ethernet/LAN:
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi:
Features
- Motherboard chipset: Intel B760
- Audio channels: 7.1 channels
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- Supports Windows operating systems: Windows 10 x64, Windows 11
Expansion slots
- PCI Express x1 slots (Gen 4.x): 1
- PCI Express x16 slots (Gen 4.x): 2
- Number of M.2 (M) slots: 2
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
Weight and dimensions
- Width: 244 mm
- Depth: 244 mm
Scope of delivery
- Included cables: SATA
- Screws included:
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
244 mm
|
|
Width
|
244 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1700
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel B760
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN Ports
|
1x (in total)
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Possible Ports
|
5
|
|
RGB / LED connectors
|
yes
|
|
External Ports
|
|
|
USB4 Gen 3x2 (external) Type C
|
0
|
|
USB4 Gen 2x2 (external) Type C
|
0
|
|
USB 3.2 (external) Type C
|
0
|
|
USB 3.1 (external) Type C
|
0
|
|
USB 3.1 (external) Type A
|
0
|
|
USB 3.0 (external) Type C
|
0
|
|
USB 3.0 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
4
|
|
Thunderbolt 3 (external) Type C
|
0
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 2.0 x2
|
0
|
|
M.2 PCIe 2.0 x2 & SATA 6G
|
0
|
|
M.2 PCIe 2.0 x4
|
0
|
|
M.2 PCIe 3.0 x2
|
0
|
|
M.2 PCIe 3.0 x2 & SATA 6G
|
0
|
|
M.2 PCIe 3.0 x4
|
0
|
|
M.2 PCIe 3.0 x4 & SATA 6G
|
0
|
|
M.2 PCIe 4.0 x2
|
0
|
|
M.2 PCIe 4.0 x4
|
2
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
0
|
|
M.2 SATA 6G
|
0
|
|
SAS (internal)
|
0
|
|
SATA 6G (internal)
|
4
|
|
SATA Express (internal)
|
0
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
2
|
|
PCIe x4 slots (total)
|
0
|
|
PCIe x1 slots (total)
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
4
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
