ASUS Prime B810M-A WiFi Motherboard, socket LGA 1851, Intel H810, mATX, DDR5
Micro-ATX motherboard with Intel H810 chipset, supports PCI-Express 4.0 for graphics cards, suitable for DDR5 RAM, with Wi-Fi and Bluetooth
146,19 €
incl. VAT
, add. delivery costs starting from 4.99€
- Slots: 1x PCIe 4.0 x16 (x16) and 1x PCIe 4.0 x1
- RAM: 2x DIMM slots supporting up to 96 GB DDR5 RAM at up to 6,400 MT/s
- Storage: 2x M.2 (2x PCIe 4.0) and 4x SATA
- USB: 2x USB 3.1 and 4x USB 2.0
- Cooling: 3x 4-pin PWM headers for fans and radiators

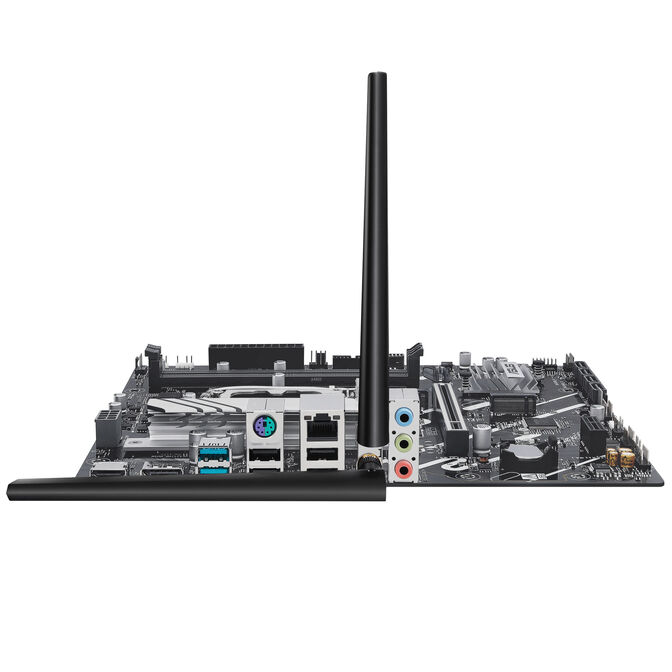

- Connectivity: Wi-Fi 6 and Bluetooth 5.3

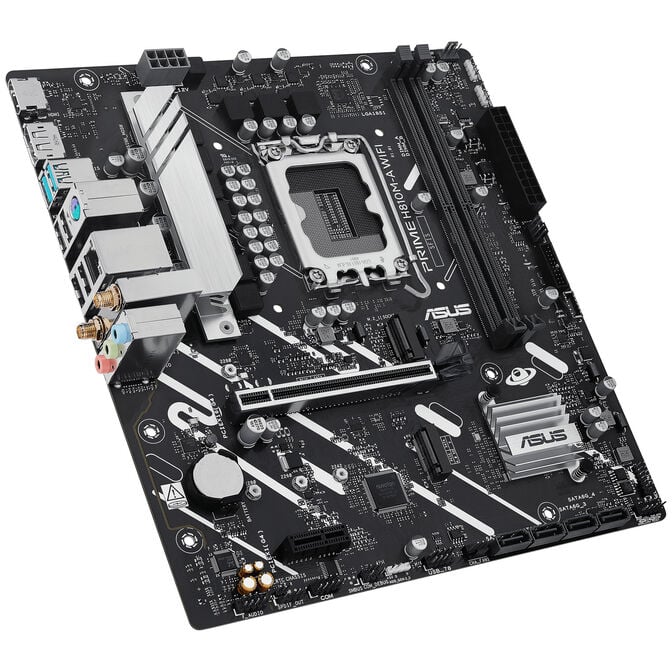

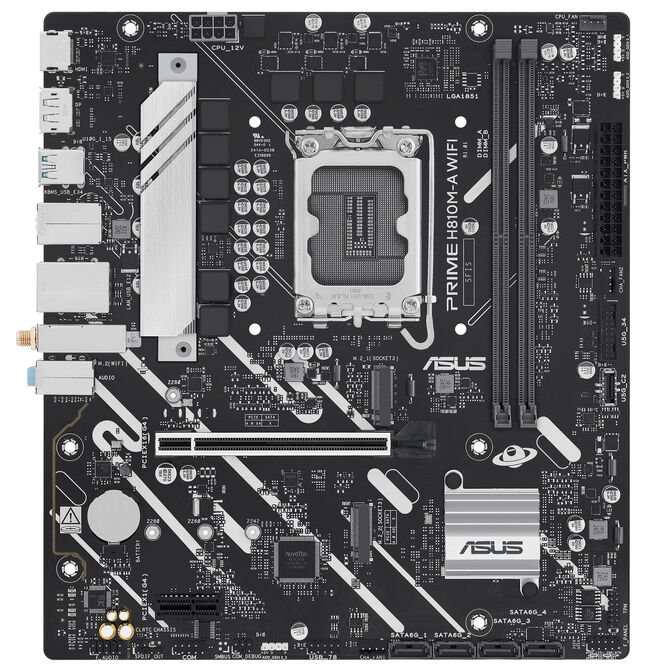

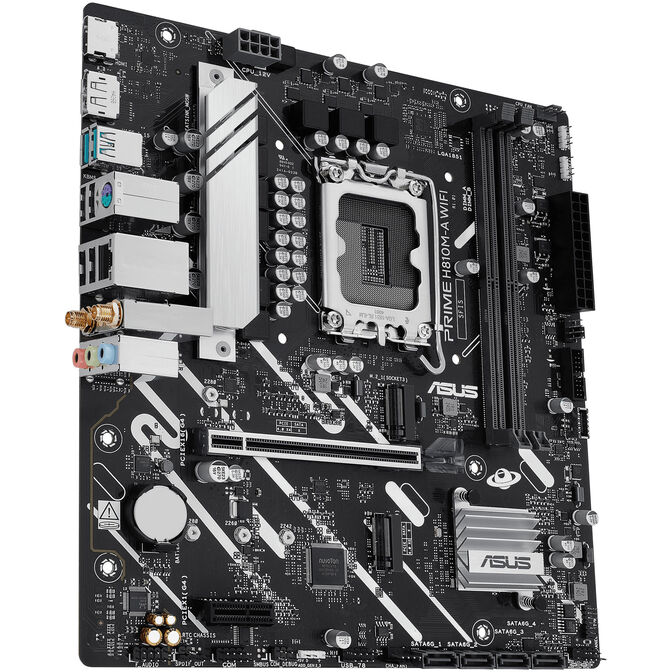

ASUS Prime B810M-A WiFi: Micro-ATX Motherboard with Intel LGA 1851 Socket and H810 Chipset
The ASUS Prime B810M-A WiFi is a Micro-ATX motherboard equipped with the entry-level Intel H810 chipset and LGA 1851 socket. It supports Intel processors from the Arrow Lake generation, making it suitable for office tasks and casual gaming. Overclocking the CPU and memory is not supported.
The ASUS Prime B810M-A WiFi also features PCIe 4.0 for graphics cards and M.2 SSDs, offering double the speed of PCIe 3.0.
|
Dimensions
|
|
|
Length / Depth
|
244 mm
|
|
Width
|
222 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel H810
|
|
Memory
|
|
|
Max. Memory
|
96 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
System Memory Subtype
|
CUDIMM, UDIMM
|
|
Max. Memory Speed (OC)
|
6400 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
2x
|
|
Performance Profile
|
Intel XMP
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 1 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Bluetooth Standard
|
5.3
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
1
|
|
USB 2.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|

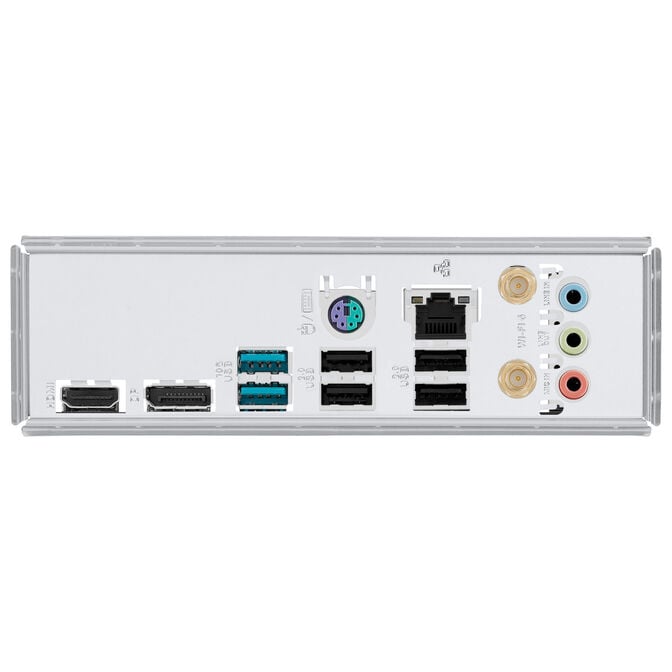

External Ports
|
|
|
USB 3.1 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x2
|
1
|
|
M.2 PCIe 4.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x1 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
3
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
