ASUS Prime GeForce RTX 5080 OC Edition, 16384 MB GDDR7

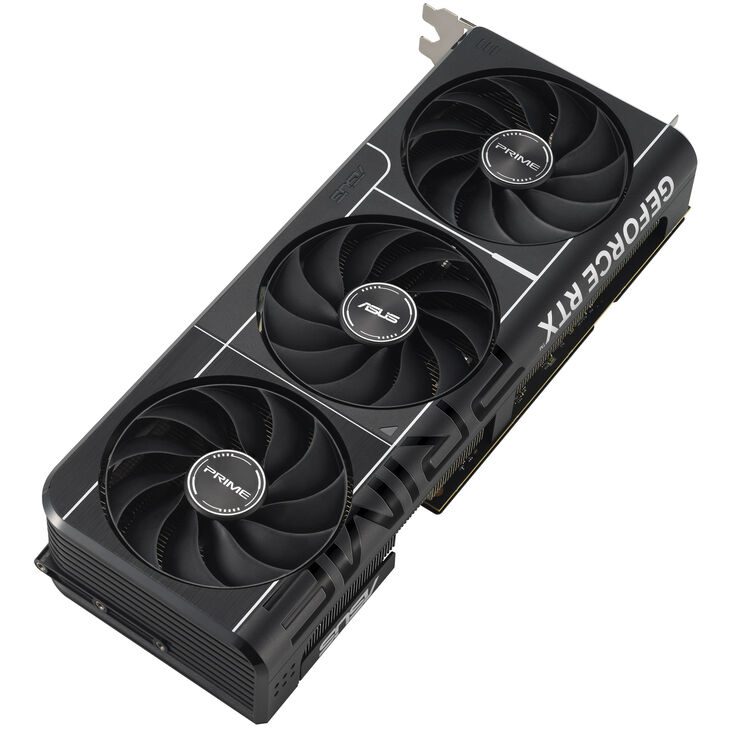

- Efficient triple fan cooler design with semi-passive cooling
- Extremely high base clock of the GPU: TBA MHz
- Enormous boost clock of the GPU: TBA MHz
- Next-generation graphics memory: 16 GB GDDR7
- Extremely high memory clock: 2,366 MHz (effective 30,000 MHz)
- Wide memory interface of 256 bits
- Very large memory bandwidth of 960 GB/s
- Pure computing power: 10,752 CUDA cores (shaders)
- Additional PCIe power connectors: 1x 16-pin 12VHPWR

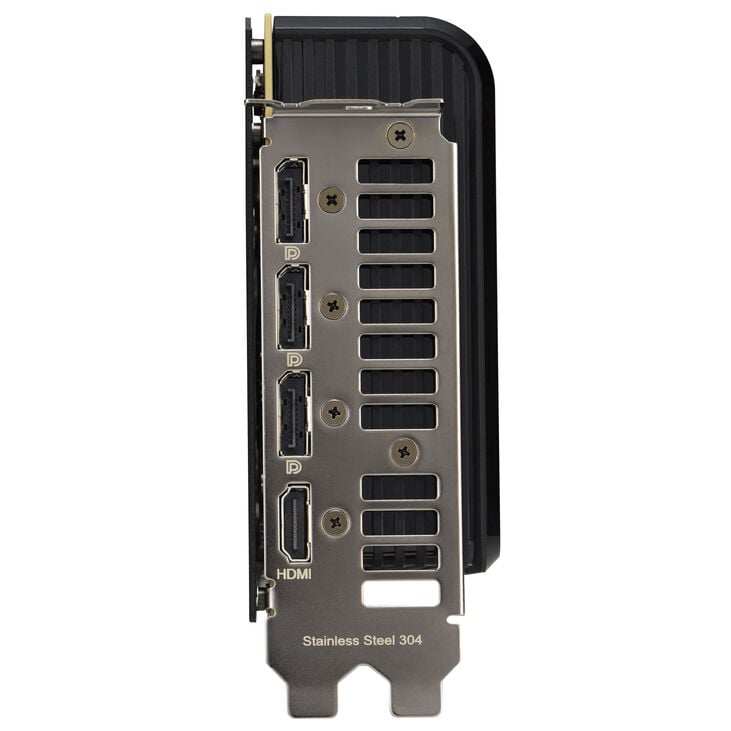

- Video outputs: 3x DP 2.1b, 1x HDMI 2.1
- Supports DLSS 4 and NVIDIA Reflex 2
The ASUS Prime GeForce RTX 5080 OC Edition in Detail
The GeForce RTX 5080 is exactly what you need if you are looking for a powerful high-end graphics card that is perfectly suited for demanding games and applications. With its efficient graphics processor and modern GDDR7 graphics memory, it delivers impressive gaming performance – without going straight into the absolute enthusiast class.
Compared to the RTX-4080 series, both rasterization and ray tracing performance have been significantly improved. This means for you: realistic light, shadow, and reflection effects in even better quality. Thanks to the new Blackwell architecture and support for PCI Express 5.0, the RTX 5080 is also well-equipped for the next generation of hardware and systems.
With the RTX 5080, you enjoy high frame rates in 4K and smooth gameplay with impressive graphic quality. This card is perfect for you if you want to play on high to maximum graphic presets – without worrying about performance or stability. Get the RTX 5080 and enjoy smooth gameplay and stunning graphics!
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
306 mm
|
|
Width
|
126 mm
|
|
Height
|
50 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RTX 50 Series
|
|
GPU Model
|
NVIDIA GeForce RTX 5080
|
|
GPU Series Name
|
NVIDIA GeForce RTX 5080
|
|
Graphics Chip
|
GB203-400
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
10752
|
|
Tensor Cores
|
336
|
|
Raytracing Cores / Ray Acceleratorss
|
84
|
|
GPU Memory Type
|
GDDR7
|
|
Slot Type Standard
|
PCIe 5.0
|
|
GPU Memory Size (GB)
|
16
|
|
GPU Memory Interface (bit)
|
256
|
|
GPU Memory Bandwidth (GB/s)
|
960
|
|
GPU Effective Memory Clock (MHz)
|
2366
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
2295 MHz
|
|
Max. GPU Clock (Boost)
|
2655 MHz
|
|
Max. Memory Clock
|
30000 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
3
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
16-Pin PCIe 5.0 - 12v-2x6 (1x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (3x), HDMI (1x)
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
2.5 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
NVIDIA G-SYNC
|
|
Features
|
|
|
Virtual Reality Ready
|
Yes
|
|
AI
|
|
|
AI Acceleration
|
Yes
|
|
AI Accelerator
|
Tensor Cores
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
| Manufacturer Information | ASUS GLOBAL PTE. LTD. 15A Changi Business Park Central 1, 486035 Singapore, Singapore |
| Responsible Person | ASUS GLOBAL PTE. LTD. 15A Changi Business Park Central 1, 486035 Singapore, Singapore |
