ASUS Prime N100I-D D4-CSM motherboard, Intel N100, Mini-ITX – DDR4
Mini-ITX motherboard from ASUS, fixed pre-installed Intel N100 CPU, supports PCI-Express 3.0, suitable for DDR4 RAM
98,41 €
incl. VAT
, add. delivery costs starting from 4.99€
- Supports DDR4 memory up to 3,200 MHz
- 2x M.2 slots with PCIe 3.0
- Integrated Intel N100 CPU with heatsink
- USB on I/O panel: 2x USB 2.0 / 2x USB 3.2 Gen 1 Type A / 2x USB 3.2 Gen 2 Type A
ASUS Prime N100-D D4-CSM Motherboard in Detail

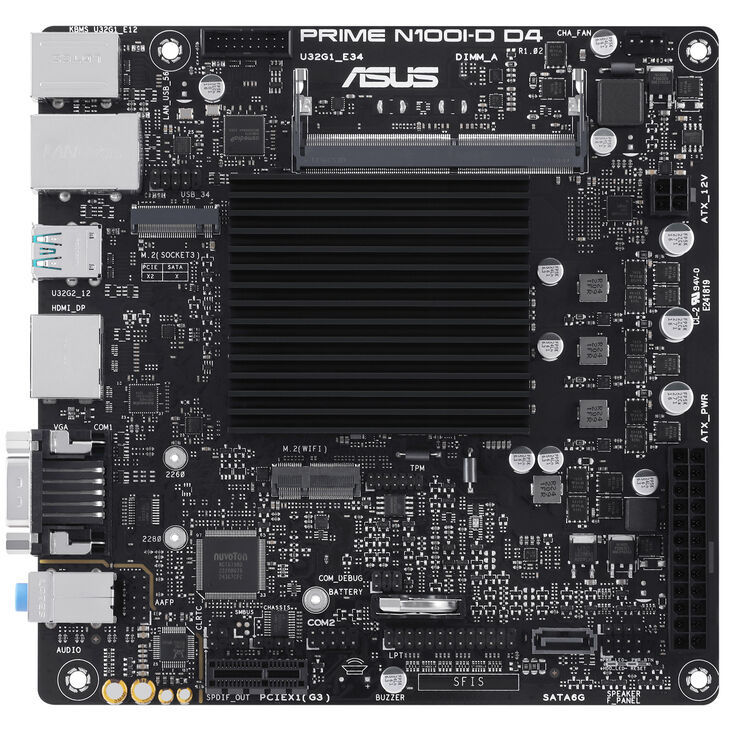

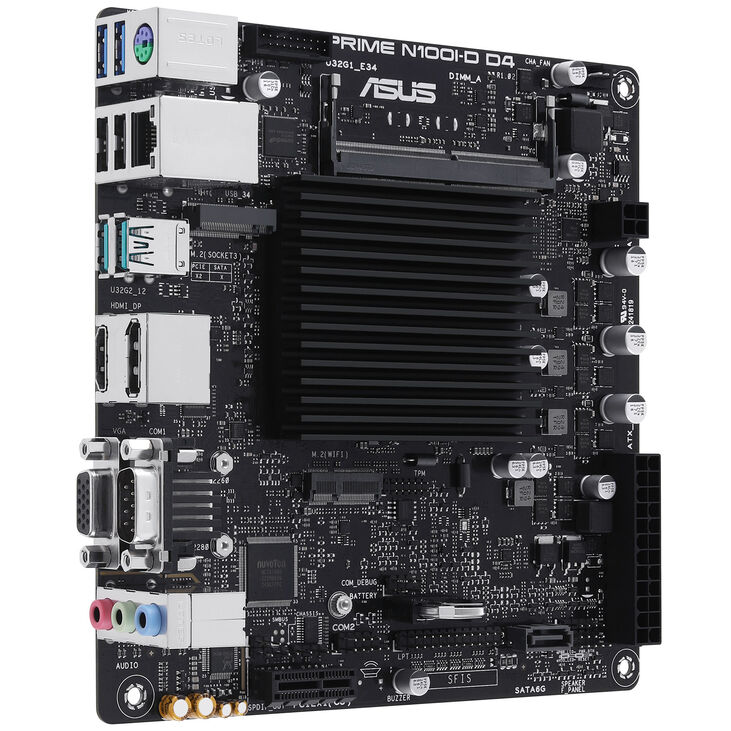

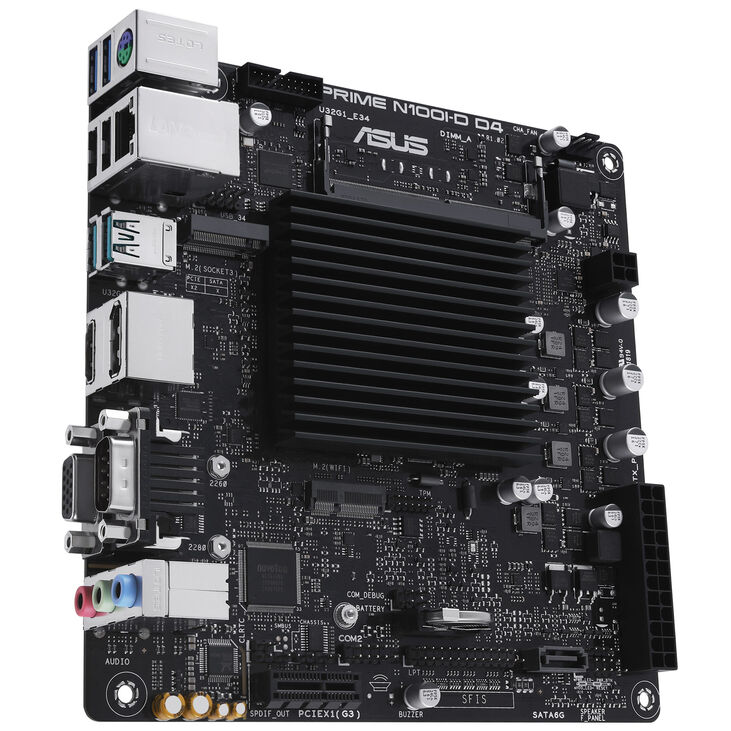

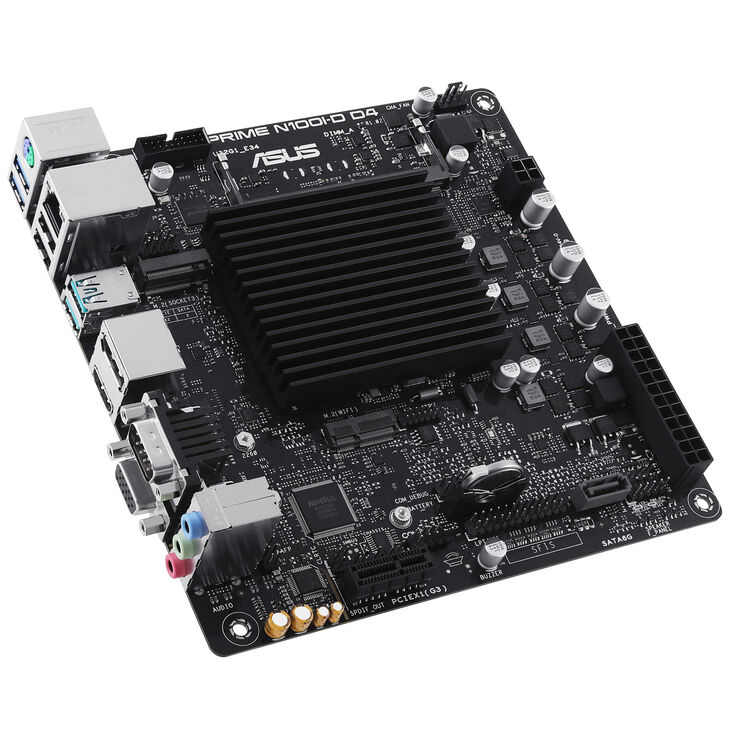

The ASUS PRIME N100I-D D4-CSM is a Mini-ITX motherboard specifically designed for the Intel N100 processor. It has a soldered processor (BGA type) and supports DDR4 SO-DIMM memory up to 3200 MHz.
- Form factor:
Mini-ITX (170 x 170 mm) - Processor (pre-installed): Intel N100
- RAM:
1x DDR4 (3,200 MHz)
Max. 16 GB - Slots (physical):
1x PCIe 3.0 x1 - Internal connections:
1x M.2 (PCIe 3.0 x2, 2260/2280, Key M)
1x M.2 (Key E, CNVi & PCIe)
1x SATA 6Gb/s
1 x 24-pin main power connector
1 x 4-pin +12V power connector
1x USB 3.2 Gen 1 Header (5 Gbit/s, supports 2 ports)
1x USB 2.0 Header (480 Mbit/s, supports 2 ports)
1x Front Panel Audio Connector
1x System Panel Connector
1x Clear CMOS Header
1x COM Port Header
1x SPI TPM Header (14-1 Pin)
1x Chassis Intrude Header - Fan header:

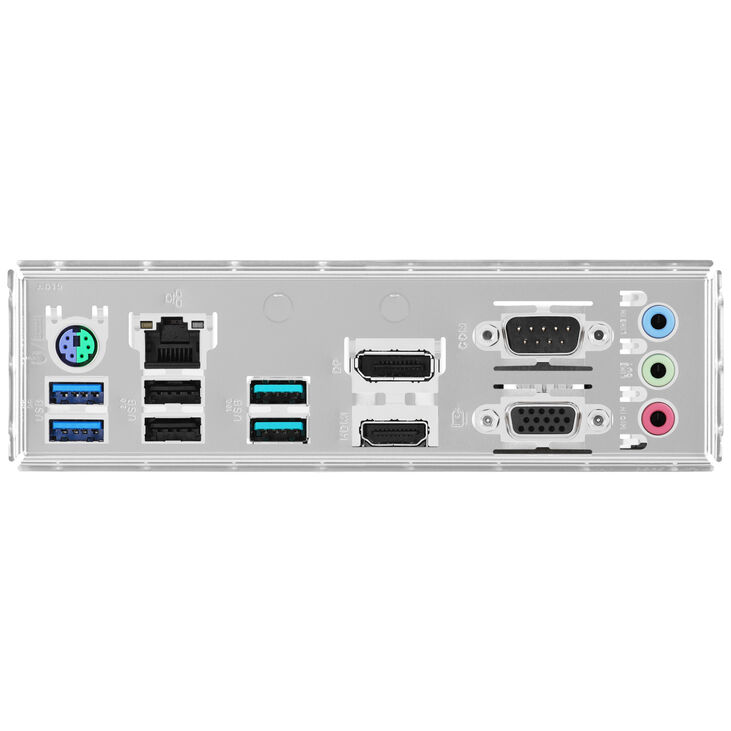

1x 4-Pin chassis fan header - External connections:
1x PS/2 for keyboard or mouse
2x USB 3.2 Gen 2 (10 Gbit/s, Type-A)
2x USB 3.2 Gen 1 (5 Gbit/s, Type-A)
2x USB 2.0 (480 Mbit/s, Type-A)
1x DisplayPort
1x HDMI
1x VGA
1x RJ-45 (Realtek 1Gb Ethernet)
3x Audio Jacks (Realtek 7.1 Surround Sound High Definition Audio Codec)
1x COM Port
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Mini-ITX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
Memory
|
|
|
Max. Memory
|
16 GB
|
|
Memory Type
|
DDR4
|
|
Memory Form Factor
|
SO-DIMM
|
|
EEC Support
|
No
|
|
Memory slots
|
1x
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
1
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Product Series
|
|
|
Product Series/Family
|
Prime
|
