ASUS Prime X870-P motherboard, AMD X870, Socket AM5, DDR5
- 1x PCIe 5.0 x16, 2x PCIe 4.0 x1
- 4x DIMM slots for up to 192 GB DDR5 RAM up to 8000 MHz (OC)
- 5x M.2 (1x PCIe 5.0, 3x PCIe 4.0, and 1x PCIe 3.0) / 2x SATA 6G
- 2x USB4, 1x USB 3.1, 3x USB 3.0, and 4x USB 2.0 on the I/O panel
- OC features: 14+2+1 phase VRMs
- Total of 7x 4-Pin PWM fans supported
ASUS Prime X870-P: ATX Motherboard with AMD AM5 Socket and X870 Chipset
The ASUS Prime X870-P is equipped with the mid-tier X870 chipset for AMD's Ryzen 9000 series processors and offers numerous features for gamers and content creators. The Ryzen 9000 processors also use the reliable AM5 socket (LGA 1718).
Additionally, the AMD X870 motherboard provides USB 4.0, now standard, with data transfer rates of up to 40 Gbps. The ASUS Prime X870-P also supports PCIe 5.0, offering twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
Geared for Gaming
The ASUS Prime X870-P is designed for high-end gaming, ensuring you can enjoy demanding games smoothly. The high-quality voltage regulators provide stable power to the CPU, ensuring its high clock rates are maintained over extended periods. Additional features such as HD audio processors provide precise sound for your games.
- Form Factor:
ATX (305 x 244 mm) - Chipset:
AMD X870 (Single Promontory 21) - Socket:
AM5 (LGA 1718) - RAM:
4x DDR5 DIMM (validated up to 8000 MHz via OC)
Dual-channel
Max. 192 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16 CPU)
1x PCIe 4.0 x16 (electrical x1) - Internal Connectors:
Total PCIe lanes: 36 (24 CPU and 12 PCIe)
2x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4)
2x M.2 (PCIe 4.0 x4 & SATA)
1x M.2 (PCIe 3.0 x3)
1x USB-C (1 header, USB 3.2 Gen 2, max. 10 Gbps)
2x USB 2.0 (1 header, max. 480 Mbps)
1x System-panel header
1x Front Panel Audio Connector
1x Start Button
1x Reset Button - Fan Connectors:
3x CPU fan headers (4-Pin)
4x fan headers (4-Pin) - RGB Headers:

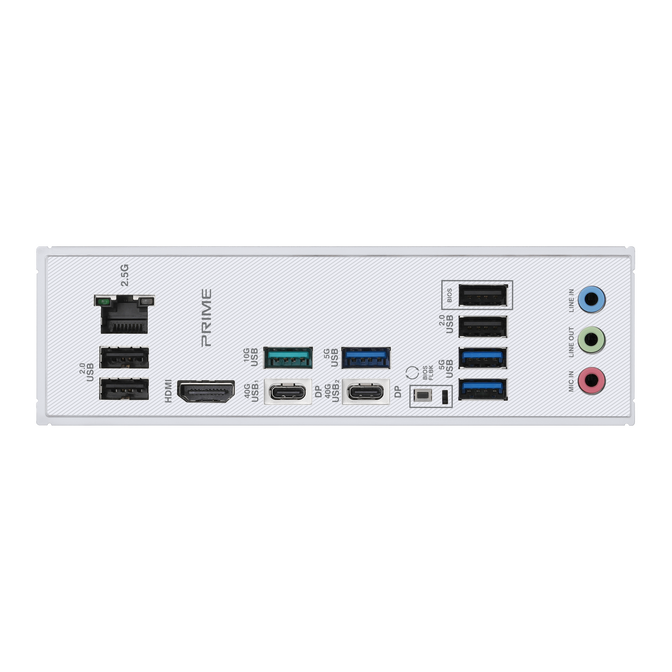

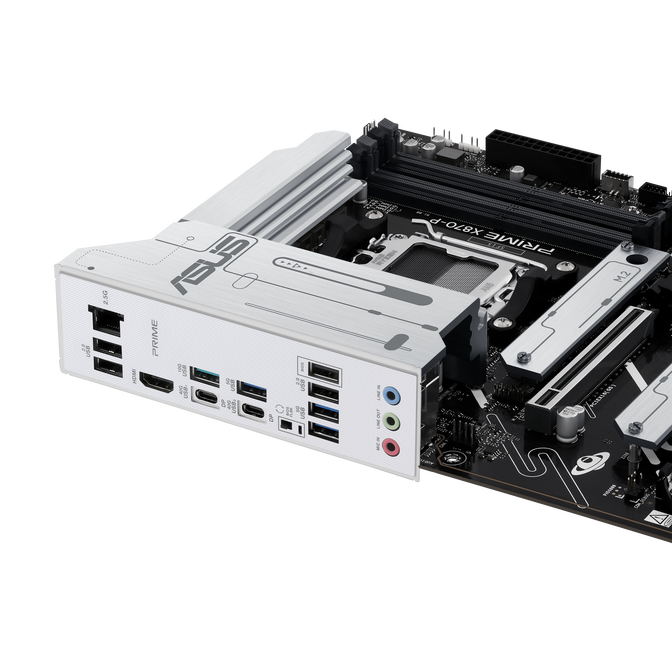

3x 4-Pin RGB header (12 V) - External Connectors:
2x USB4 (Type-C, USB4 Gen 3x2, max. 40 Gbps)
2x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbps)
3x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbps)
4x USB 2.0 (Type-A, max. 480 Mbps)
1x HDMI 2.1
1x 2.5 Gigabit LAN
3x 3.5 mm audio jacks
- Power Supply:
1x 24-Pin ATX
2x 8-Pin 12V
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
White
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD X870
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
8000 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Performance Profile
|
AMD EXPO
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
No
|
|
Cooling
|
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 2.0 (internal) Header
|
2
|
|
Front Panel Audio Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 3x2 (external) Type C
|
2
|
|
USB 3.1 (external) Type A
|
2
|
|
USB 3.0 (external) Type A
|
3
|
|
USB 2.0 (external) Type A
|
4
|
|
Storage Ports
|
|
|
M.2 PCIe 3.0 x2
|
1
|
|
M.2 PCIe 4.0 x4
|
2
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
2
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
3
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x1 mechanical slot
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
7
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Product Series
|
|
|
Product Series/Family
|
Prime
|
