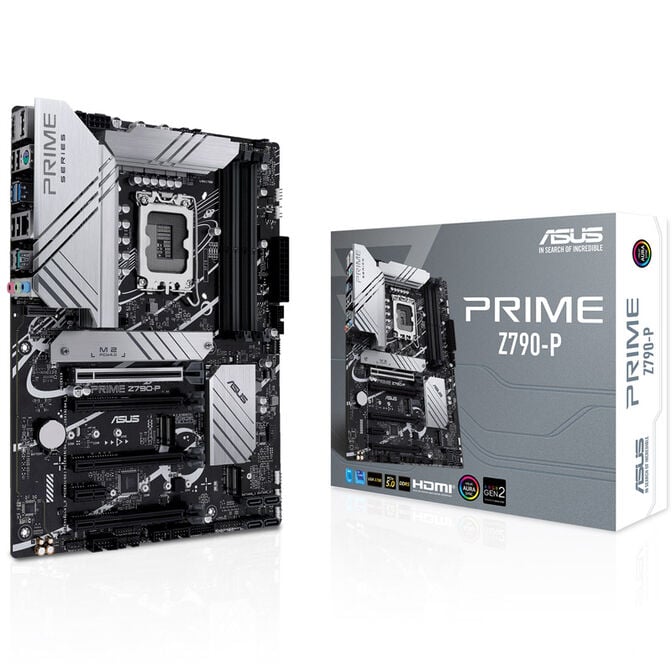

ASUS Prime Z790-P, Intel Z790 motherboard - Socket 1700, DDR5
- 1x PCIe 5.0 x16 (x16), 3x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1
- DDR4 memory up to 5,600 MHz, up to 7,200 MHz with RAM overclocking
- 3x M.2 slots, all 3x PCIe 4.0
- USB on I/O panel: 1x USB 3.2 Type C, 1x USB 3.1, 2x USB 3.0 and 4x USB 2.0
- OC features: 10+1 phase VRMs, BIOS Flashback, Clear CMOS button, VRM heatsink, DIGI+ VRM
- A total of 6 connections for fans and pumps

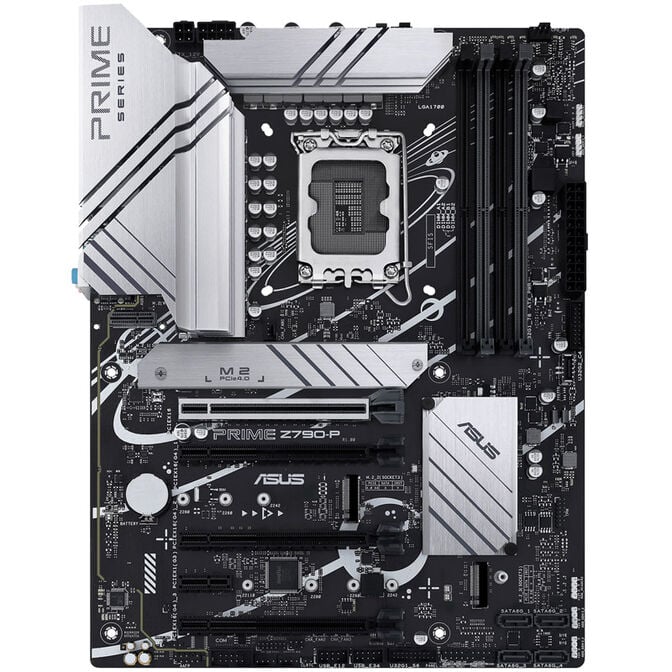

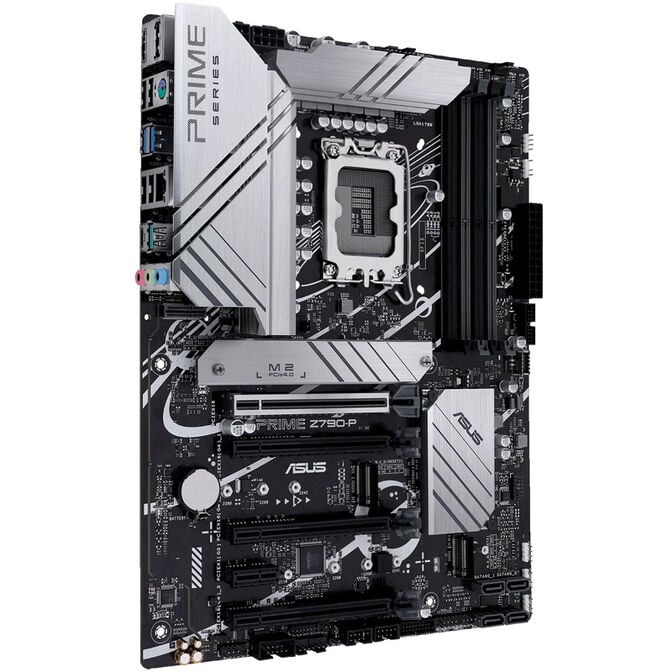

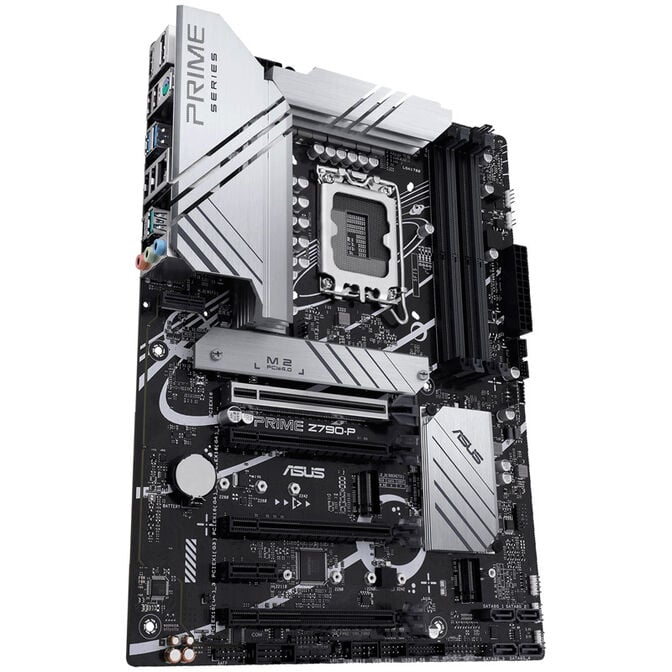

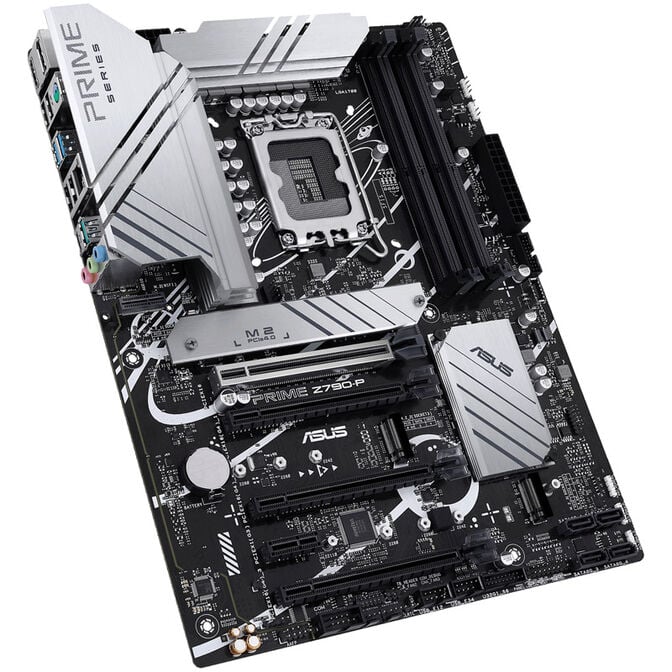

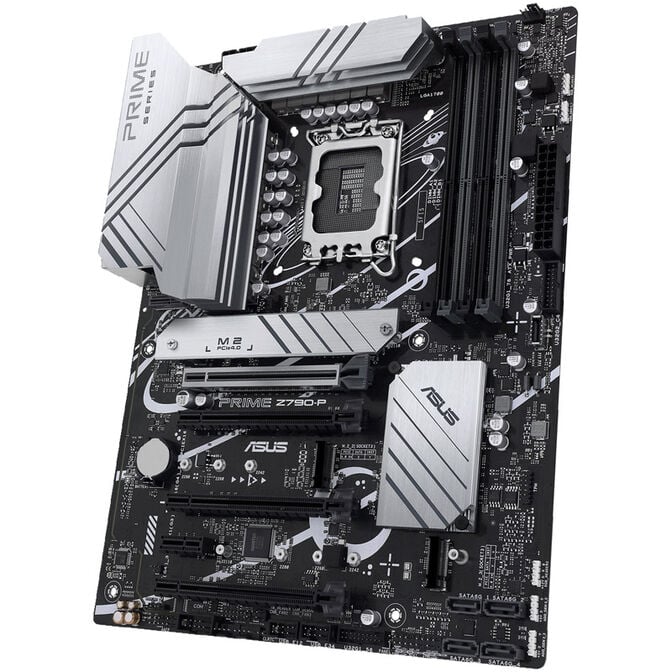

The ATX motherboard ASUS Prime Z790-P with Intel Z790 chipset in detail
The ASUS Prime Z790-P is an ATX motherboard featuring the high-end Intel Z790 chipset and LGA 1700 socket. This mainboard is suitable for desktop processors of the 12th and 13th generation Intel Core CPUs, codenamed Alder Lake and Raptor Lake. It supports DDR5 memory up to 7,200 MHz and, thanks to its outstanding power delivery, is excellent for overclocking.
In addition to a reliable power supply with 10+1 phase VRMs, the ASUS Prime Z790-P impresses with further highlights that make overclocking your system significantly easier. DIGI+ VRM allows adjustment of VRM voltage and frequency modulation, while buttons for BIOS switch, ReTry, or system start provide security during record-breaking overclocking attempts.
For the best possible processor performance, it is recommended to regularly update the motherboard BIOS. This is especially important for motherboards that may have been shipped with an early BIOS version from the manufacturer.
Our King Mod Service is happy to perform a BIOS update to the latest version in advance:
Please note that this may delay shipping preparation by 1 to 4 working days!
More information about Intel Alder Lake and Raptor Lake as well as the 12th, 13th, and 14th generation Core processors can be found at the following link:
Technical Details:
- Form Factor:
ATX (305 x 234 mm) - Chipset:
Intel Z790 - Socket:
LGA 1700 (for Intel CPUs of the 12th, 13th, and 14th Core Generation) - RAM:
4x DDR5 (5,600 MHz, up to 7,200 MHz via OC)
Dual-Channel
Max. 128 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16, CPU)
3x PCIe 4.0 x16 (electrical x4, chipset)
1x PCIe 4.0 x1 (chipset) - Internal Connectors:
4x SATA 6G
1x M.2 (PCIe 4.0 x4, 2242-22110, CPU)
1x M.2 (PCIe 4.0 x4, 2242-2280, chipset)
1x M.2 (PCIe 4.0 x4 and SATA, 2242-22110, chipset)
1x Thunderbolt 4 (USB4)
1x USB-C (1 header, USB 3.2 Gen 2, max. 10 Gbit/s)
4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (2 headers, max. 480 Mbit/s)
1x COM Port Header
1x CPU Over Voltage Jumper
1x Front Panel Audio Header (AAFP)
1x Power Button
1x SPI TPM Header (14-1 pin)
1x 20-5 pin System Panel Header with Chassis Intrude Function
1x Clear CMOS Header
1x S/PDIF Out Header - Fan Headers:
1x CPU Fan (4-Pin)
1x CPU OPT Fan (4-Pin)
1x AiO Pump (4-Pin)
3x Chassis Fans (4-Pin) - RGB Headers:
2x 4-Pin RGB (12 V)

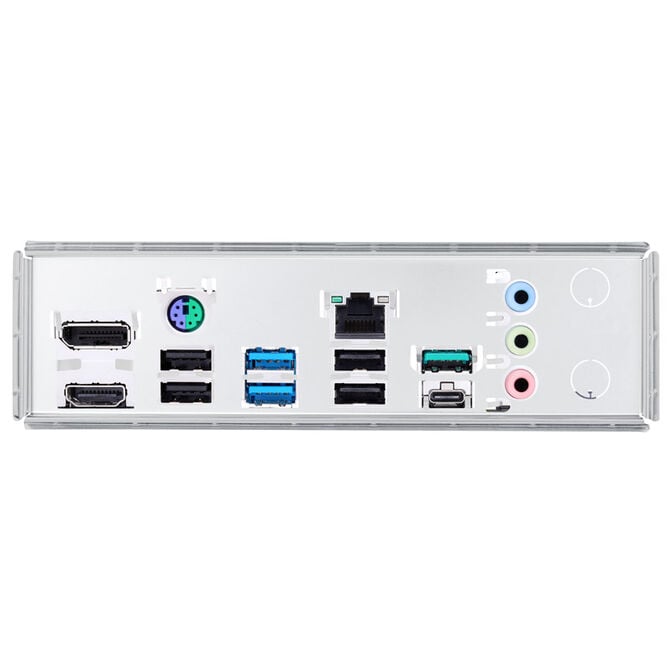

3x 3-Pin ARGB (5 V) - External Connectors:
1x PS/2 (Mouse/Keyboard)
1x USB 3.2 (Type C, USB 3.2 Gen 2x2, max. 20 Gbit/s)
1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (Type A, max. 480 Mbit/s)
1x HDMI
1x DisplayPort
1x RJ-45 (max. 2.5 Gbit/s, Realtek)
3x 3.5 mm Jack (Realtek 7.1) - Power Supply:
1x 24-Pin ATX
1x 8-Pin ATX/EPS 12V
1x 4-Pin PCIe ATX
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Silver
|
|
Dimensions
|
|
|
Length / Depth
|
30.5 cm
|
|
Width
|
24.4 cm
|
|
Form Factor
|
|
|
Motherboard Form Factor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1700
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z790
|
|
Memory
|
|
|
Max. Memory
|
128 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 4-Pin, 1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
2x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
External Ports
|
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Display Connectors
|
Display Port (1x), HDMI (1x), Thunderbolt 4 (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
3
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
4
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
3
|
|
PCIe 4.0 x1 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
6
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
