This motherboard is excellent for gaming enthusiasts.
- 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4) and 1x PCIe 4.0 x16 (x1)
- 4x DIMM slots for max. 192GB DDR5 RAM up to 7,600MHz)
- 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G
- USB on the I/O panel: 1x Thunderbolt (USB-C), 1x USB 3.2, 2x USB 3.0 and 4x USB 2.0
- OC features: CMOS reset, Digi+
- A total of 7x 4-pin connectors for fans & pumps

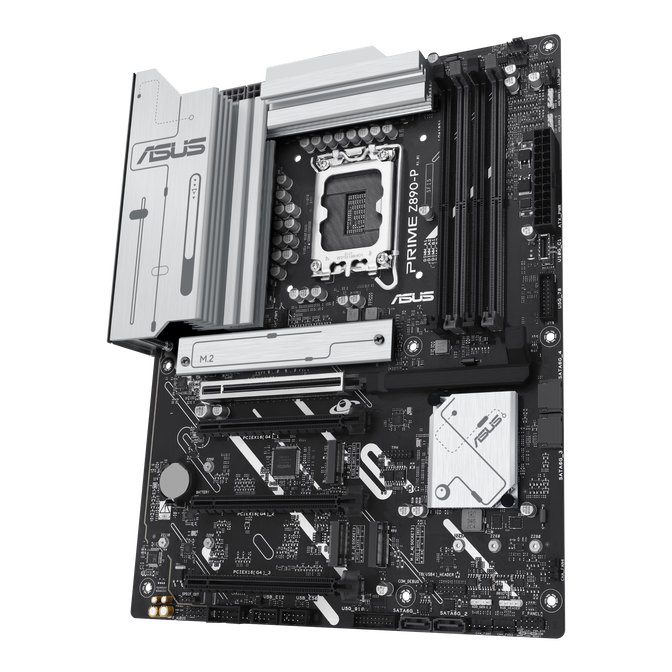

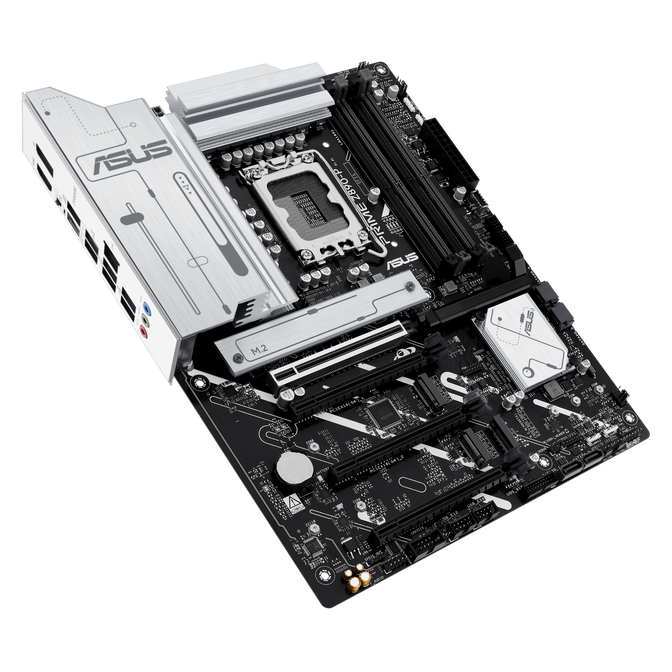

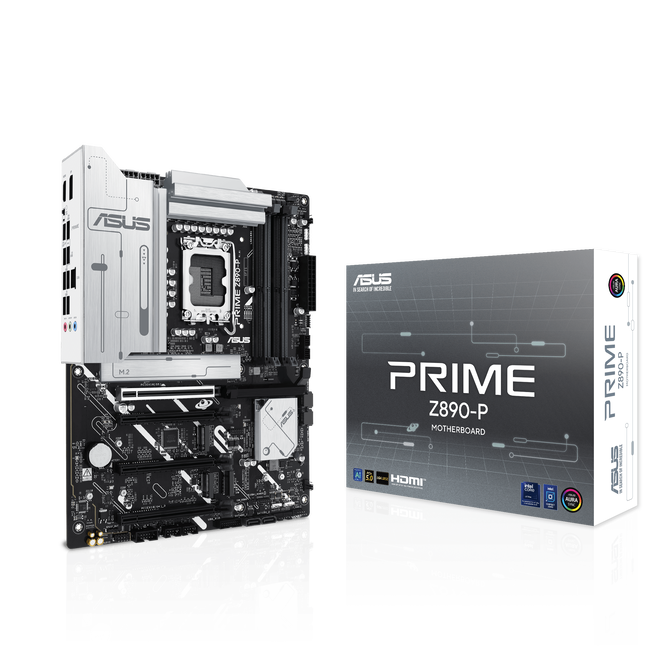

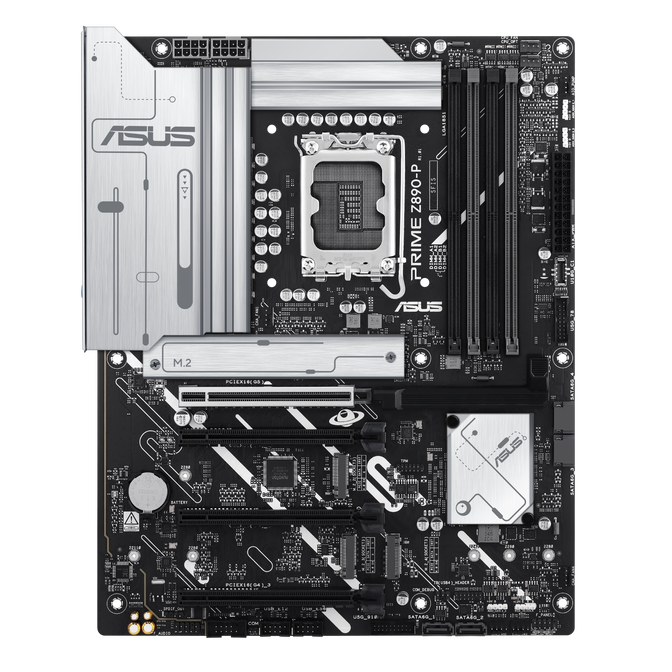

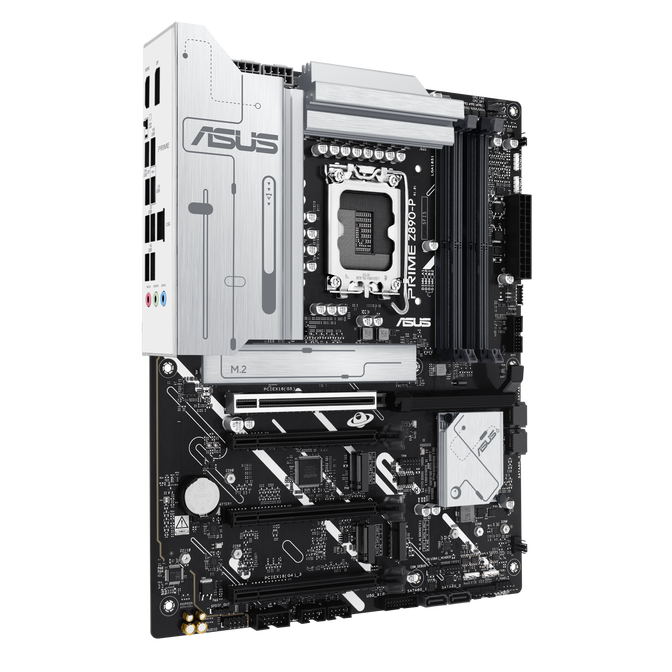

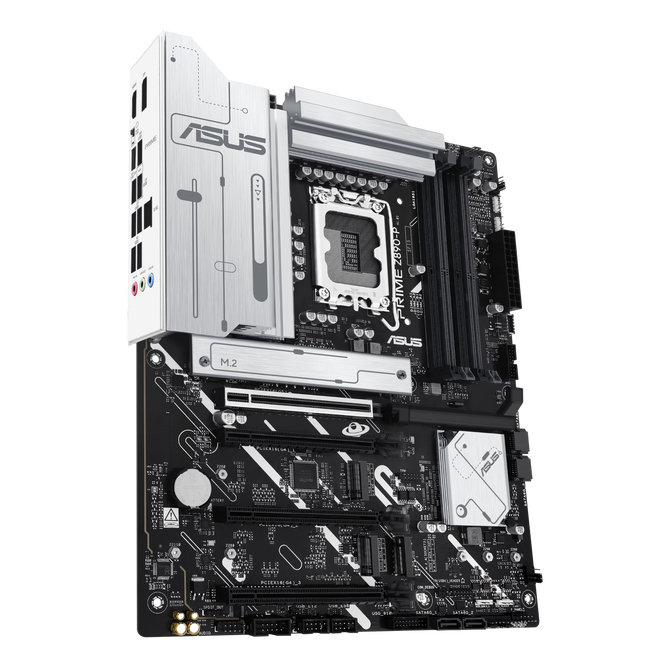

ASUS Prime Z890-P: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASUS Prime Z890-P is an ATX motherboard featuring the high-end chipset Intel Z890 and the LGA 1851 socket. It supports Intel Core Ultra processors of the second generation with the codename Arrow Lake. The Intel Z890 motherboard natively supports USB4, which offers data transfer rates of up to 40Gbit/s. Furthermore, the ASUS Prime Z890-P impresses with full PCIe 5.0 connectivity, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
Designed for demanding gaming
The ASUS Prime Z890-P has been specifically designed for high-end gaming, allowing you to experience even the most demanding games without interruptions. The premium voltage regulators ensure a stable power supply to the CPU, guaranteeing that it operates reliably even at high clock rates over extended periods. Additionally, DDR5 RAM can also be overclocked to higher clock rates.
- Form factor:
ATX (305 x 244 mm) - Chipset:
Intel Z890 - Socket:
LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation) - RAM:
4x DDR5 DIMM (up to 7,600 MHz via OC)
Dual-Channel
Max. 192 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16, CPU)
2x PCIe 4.0 x16 (electrical x4, chipset)
1x PCIe 4.0 x16 (electrical x1, chipset) - Total maximum usable PCIe lanes: 44
- Internal connections:
4x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4; 2280 / 22110, CPU)
1x M.2 (PCIe 4.0 x4; 2280, CPU)
1x M.2 (PCIe 4.0 x4; 2280 / 22110, chipset)
1x M.2 (PCIe 4.0 x4 & SATA; 2242 / 2260 / 2280, chipset)
1x USB-C (1 Header, USB 3.2 Gen 2, max. 10 Gbit/s)
4x USB 3.0 (2 Headers, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (2 Headers, max. 480 Mbit/s)
1x Thunderbolt Header
1x Front Panel Audio Header
1x 10-1-Pin System Panel Header
1x SPI TPM Header (14-1 Pin)
1x COM Port Header
1x BIOS Flashback Button
1x Clear CMOS Button - Fan headers:
1x CPU Fan (4-Pin)
1x CPU OPT Fan (4-Pin)
1x AIO Pump Header
4x Case Fans (4-Pin) - RGB headers:
3x 3-Pin ARGB (5 V)
1x Aura RGB Header - External connections:

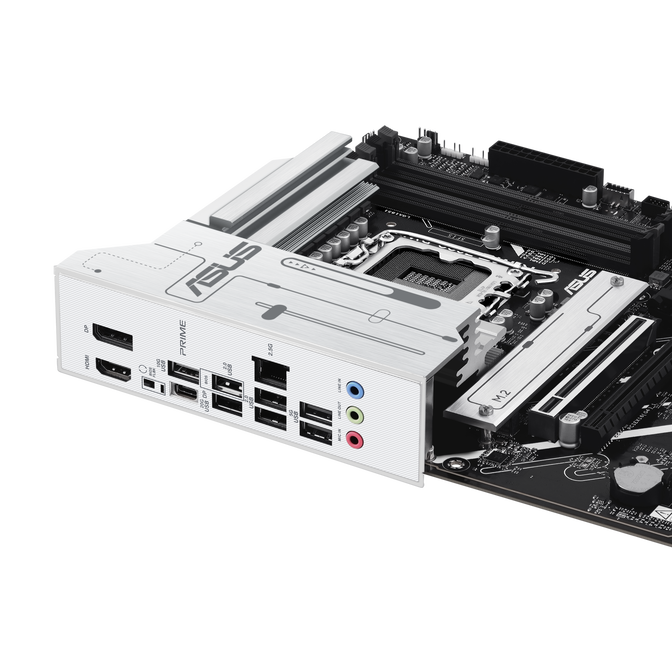

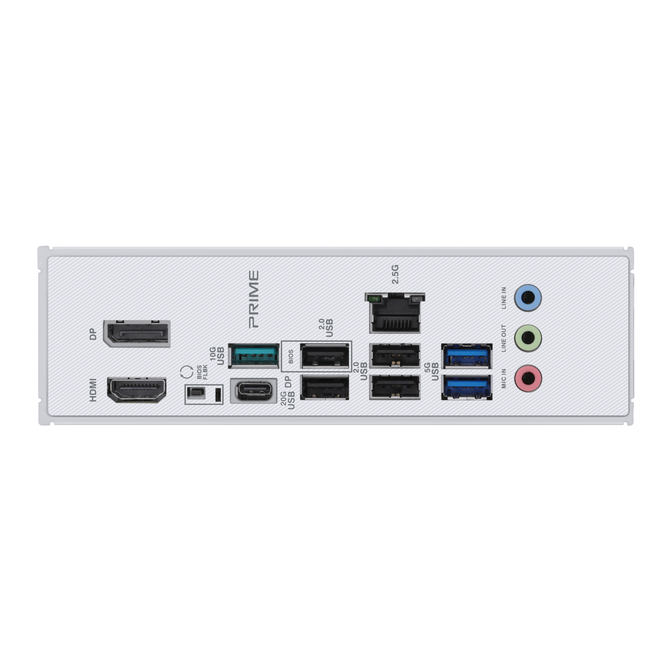

1x Thunderbolt (USB-C)
1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (Type A, max. 480 Mbit/s)
1x DisplayPort
1x HDMI
1x 2.5 Gigabit LAN (Intel I219V)
3x 3.5 mm Jack
1x S/PDIF Audio - Power supply:
1x 24-Pin ATX
2x 8-Pin +12V CPU - Accessories:
2x SATA cables
Colour
|
|
Primary Colour
|
Black
|
Form Factor
|
|
Motherboard formfactor
|
ATX
|
CPU
|
|
CPU Manufacturer
|
Intel
|
CPU Socket
|
1851
|
Motherboard
|
|
Motherboard Chipset
|
Intel Z890
|
Memory
|
|
Max. Memory
|
192 GB
|
Memory Type
|
DDR5
|
Memory Form Factor
|
DIMM
|
Max. Memory Speed (OC)
|
7600 MT/s
|
Memory slots
|
4x
|
Wi-Fi & LAN
|
|
LAN
|
Yes
|
LAN Ports
|
1x 2.5 Gbit/s
|
Wi-Fi / Bluetooth
|
No
|
Internal Ports
|
|
CPU Power Supply
|
2x 8-Pin
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
USB 3.0 (internal) Header
|
2
|
USB 3.0 (internal) Possible Ports
|
4
|
USB 2.0 (internal) Header
|
2
|
USB 2.0 (internal) Possible Ports
|
4
|
Front Panel Audio Header
|
Yes
|
SPI TPM Header
|
Yes
|
External Ports
|
|
USB 3.1 (external) Type A
|
1
|
USB 3.0 (external) Type A
|
2
|
USB 2.0 (external) Type A
|
4
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
Storage Ports
|
|
M.2 PCIe 4.0 x4
|
2
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
M.2 PCIe 5.0 x4
|
1
|
SATA 6G (internal)
|
4
|
Expansion Slots
|
|
PCIe x16 slots (total)
|
3
|
Fan Header
|
|
4 Pin Fan Connectors
|
7
|
Lighting
|
|
Lighting / RGB
|
Yes
|
Product Series
|
|
Product Series/Family
|
Prime
|
