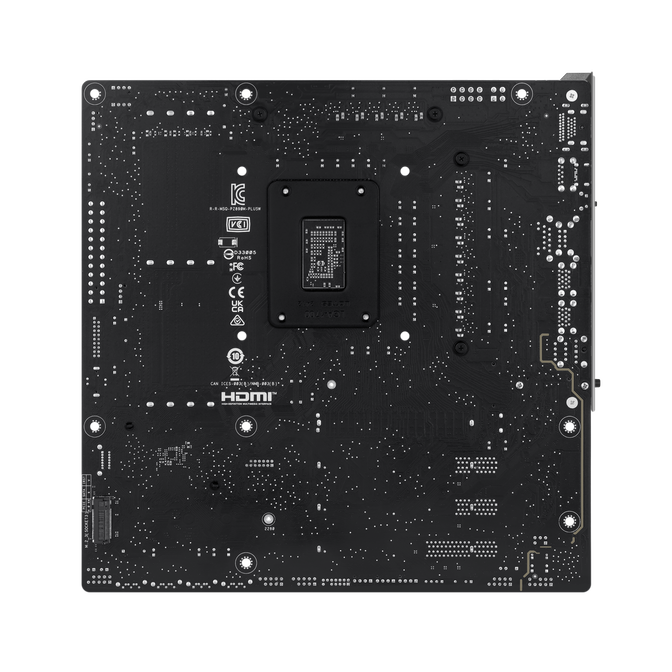

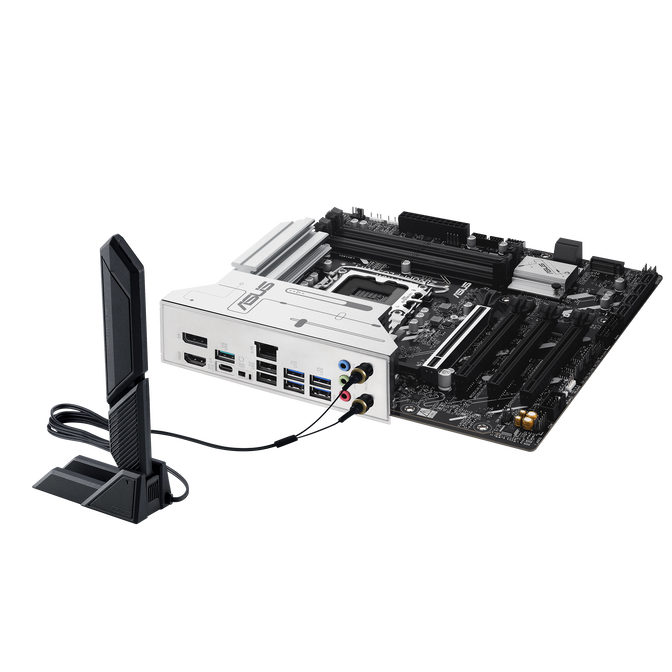

ASUS Prime Z890M Plus WiFi motherboard, socket LGA 1851, Intel Z890, mATX, DDR5
mATX motherboard with Intel Z890 chipset, 1x PCIe 5.0 x16 / 2x PCIe 4.0 x16, 3x USB-C 3.2 / 1x USB 3.2 / 4x USB 3.0 / 2x USB 2.0, 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0) / 6x SATA 6G, 7x 4-pin PWM connectors
235,73 €
incl. VAT
, add. delivery costs starting from 4.99€
This motherboard is excellent for gaming enthusiasts.
- 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4) and 1x PCIe 4.0 x16 (x1)
- 4x DIMM slots for max. 192GB DDR5 RAM up to 7,600MHz)
- 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 6x SATA 6G
- USB on the I/O panel: 3x USB 3.2 Type-C, 1x USB 3.2, 4x USB 3.0 and 2x USB 2.0
- OC features: CMOS reset, Digi+
- A total of 7x 4-pin connectors for fans & pumps

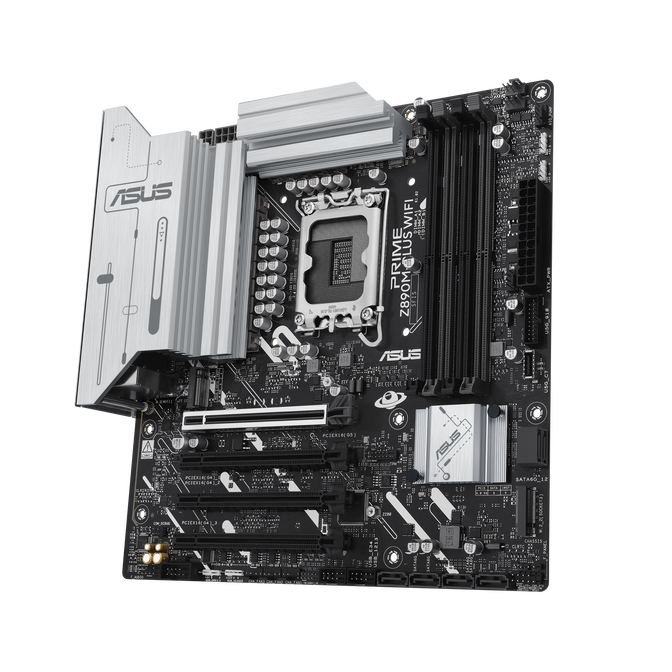

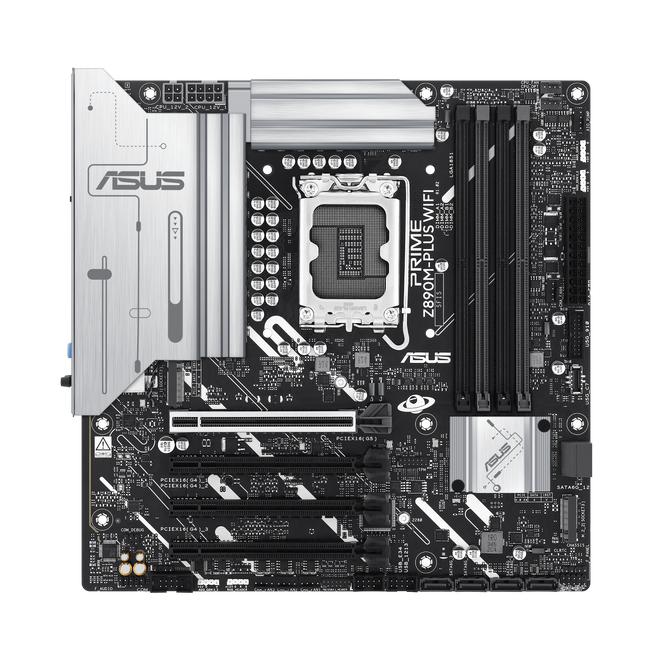

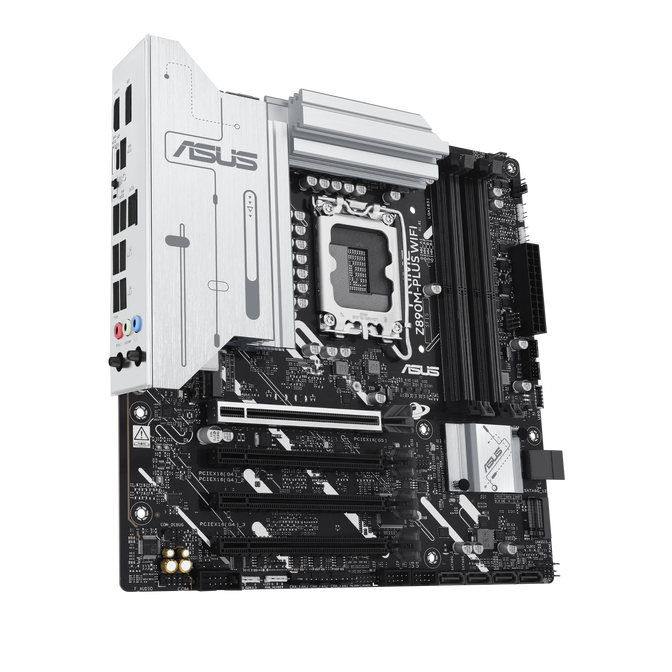

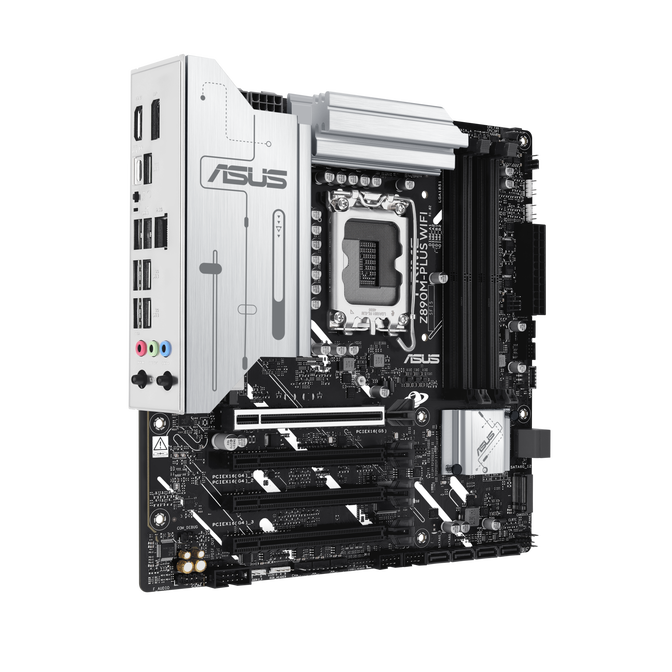

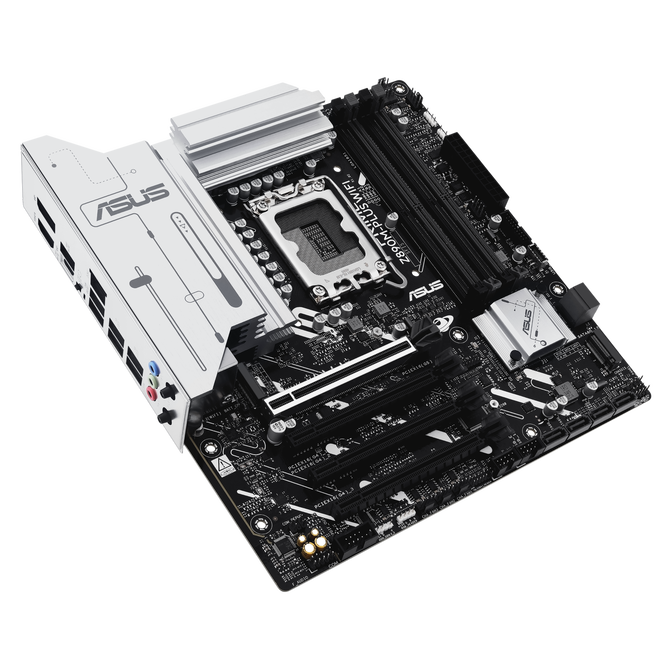

ASUS Prime Z890M Plus WiFi: mATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASUS Prime Z890M Plus WiFi is an mATX motherboard featuring the high-end chipset Intel Z890 and the LGA 1851 socket. It supports Intel Core Ultra processors of the second generation with the codename Arrow Lake. The Intel Z890 motherboard natively supports USB4, which offers data transfer rates of up to 40Gbit/s. Furthermore, the ASUS Prime Z890M Plus WiFi impresses with full PCIe 5.0 connectivity, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
- Form factor:
mATX (244 x 244 mm) - Chipset:
Intel Z890 - Socket:
LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation) - RAM:
4x DDR5 DIMM (up to 7,600 MHz via OC)
Dual-Channel
Max. 192 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16 or x8/x4/x4, CPU)
1x PCIe 4.0 x16 (electrical x4, chipset)
1x PCIe 4.0 x16 (electrical x1, chipset) - Total maximum usable PCIe lanes: 44
- Internal connections:
6x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4; 2280, CPU)
2x M.2 (PCIe 4.0 x4; 2280, chipset)
1x USB-C (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (2 headers, max. 480 Mbit/s)
1x Thunderbolt header
1x Front Panel Audio header
1x 10-1-Pin System Panel header
1x SPI TPM header (14-1 Pin)
1x COM Port header
1x Chassis Intrusion header
1x BIOS Flashback button
1x Clear CMOS button - Fan headers:
1x CPU-Fan (4-Pin)
1x CPU OPT-Fan (4-Pin)
1x AIO Pump header
4x Case fans (4-Pin) - RGB headers:
3x 3-Pin ARGB (5 V)

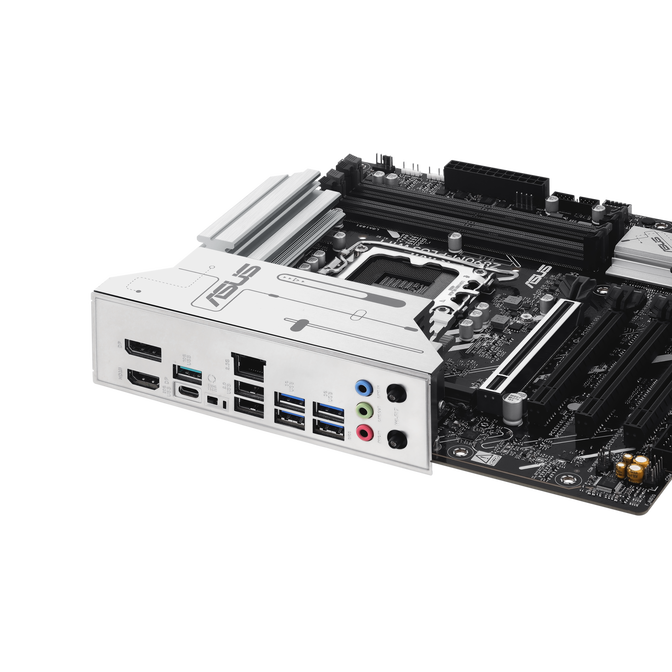

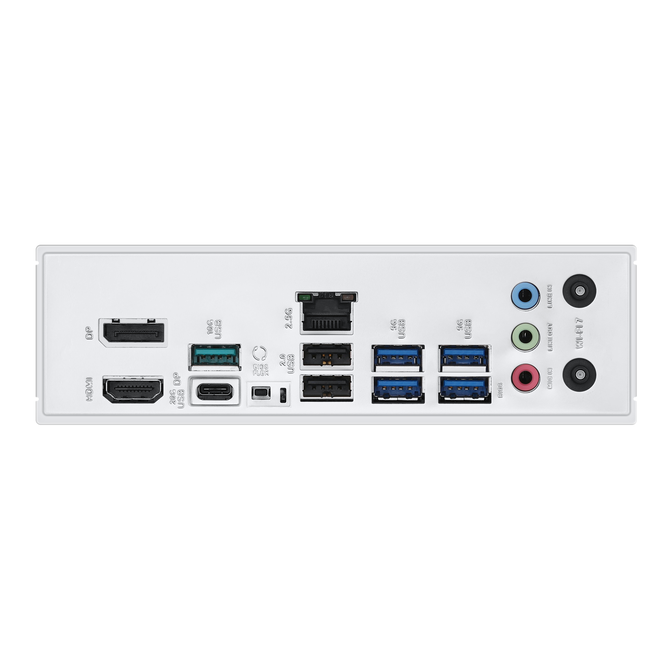

1x Aura RGB header - External connections:
1x USB 3.1 (Type C, USB 3.2, Gen2x2, max. 20 Gbit/s)
1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
2x USB 2.0 (Type A, max. 480 Mbit/s)
1x DisplayPort
1x HDMI
1x 2.5 Gigabit LAN (Intel I219V)
1x WiFi/Bluetooth module (Realtek AC9560)
3x 3.5 mm jack (Realtek ALC 4080)
1x S/PDIF Audio - Power supply:
1x 24-Pin ATX
1x 8-Pin +12V CPU

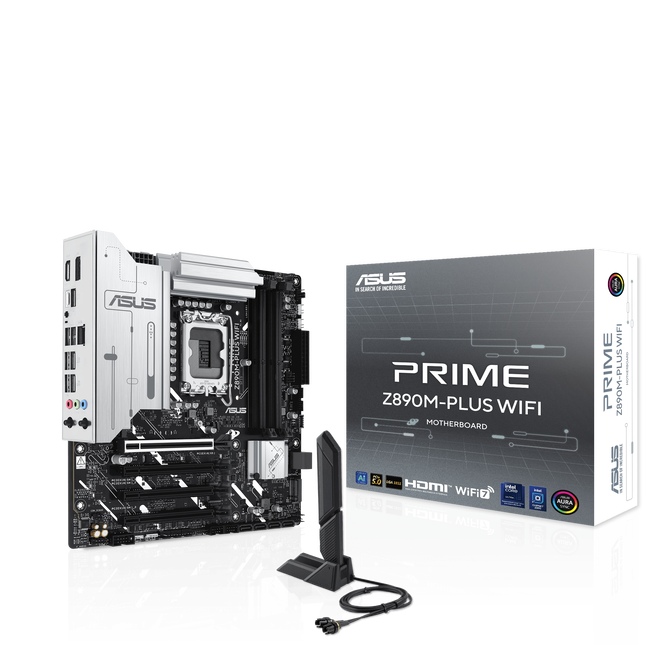

1x 4-Pin +12V CPU - Accessories:
1x WLAN antenna
2x SATA cables
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
7600 MT/s
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 4-Pin + 1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 2x2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
1
|
|
USB 3.0 (external) Type A
|
4
|
|
USB 2.0 (external) Type A
|
2
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
61
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
3
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
7
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC4080
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Product Series
|
|
|
Product Series/Family
|
Prime
|
