- Slots: 1x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x1
- RAM: 2x DIMM slots supporting up to 96 GB DDR5 RAM at up to 6,400 MT/s
- Storage: 2x M.2 (2x PCIe 4.0) and 4x SATA
- USB: 1x USB-C 3.1, 1x USB 3.1, 2x USB 3.0, and 2x USB 2.0
- Cooling: 3x 4-pin PWM headers for fans and radiators

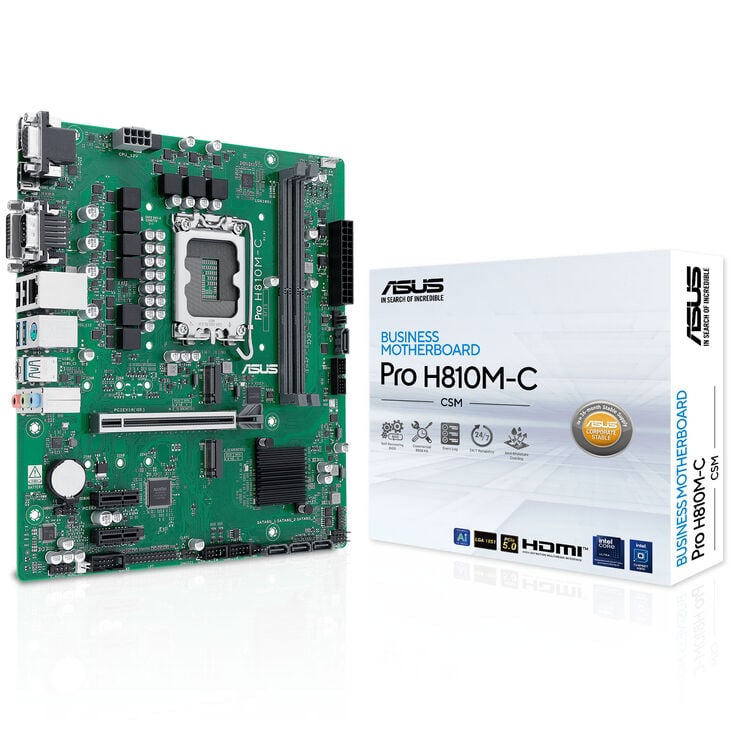

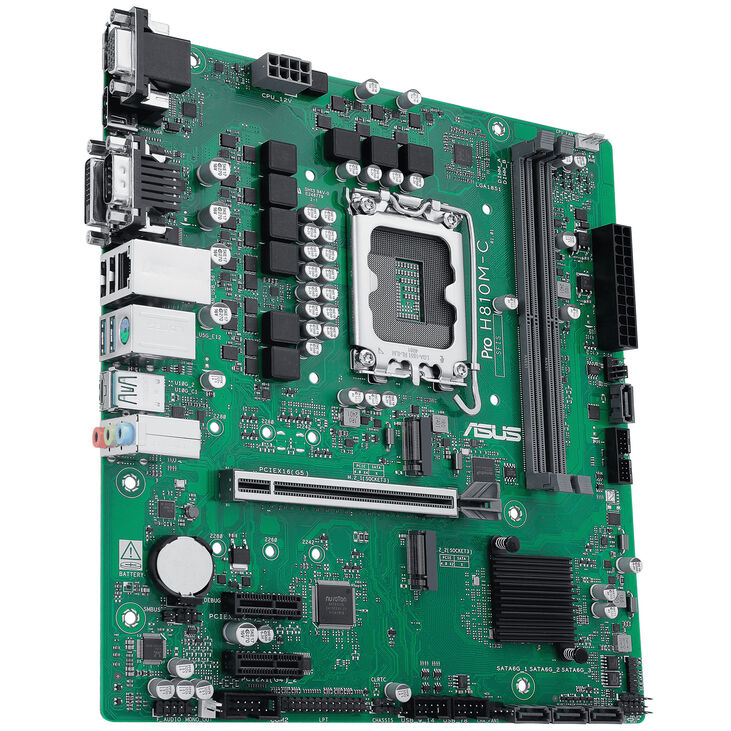

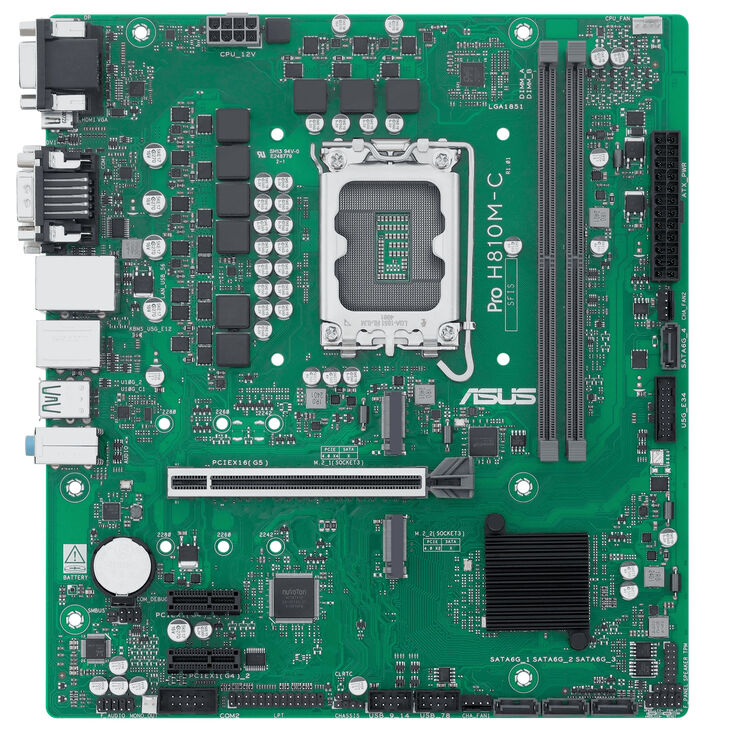

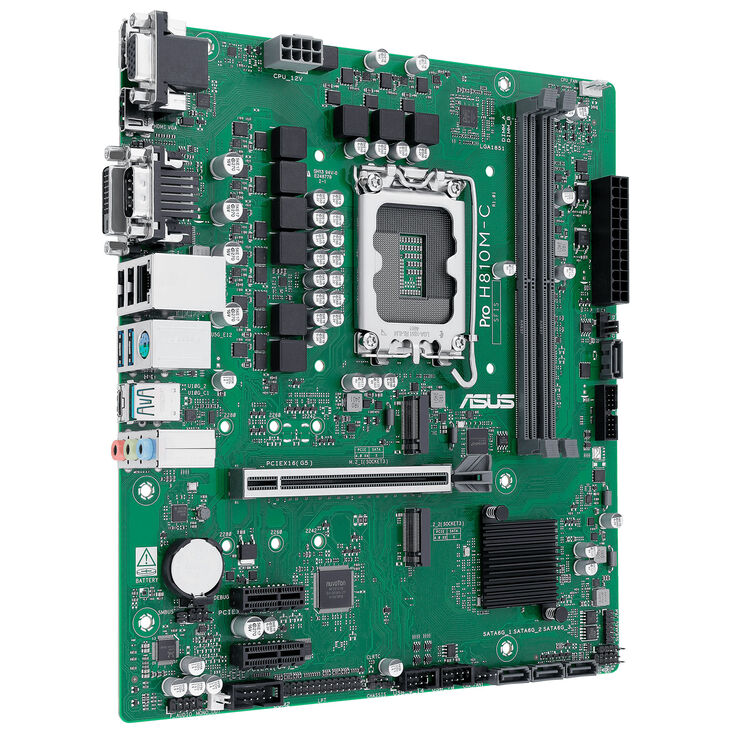

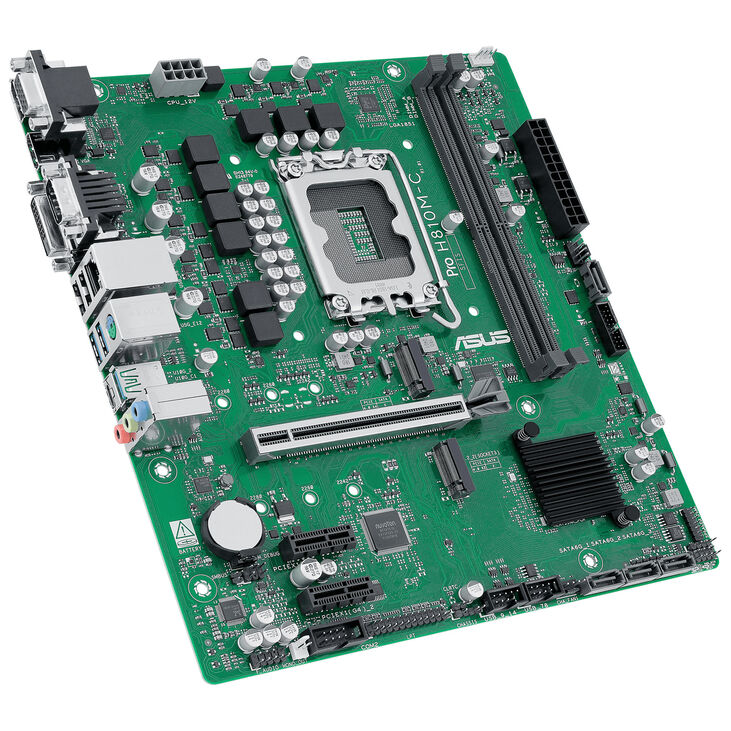

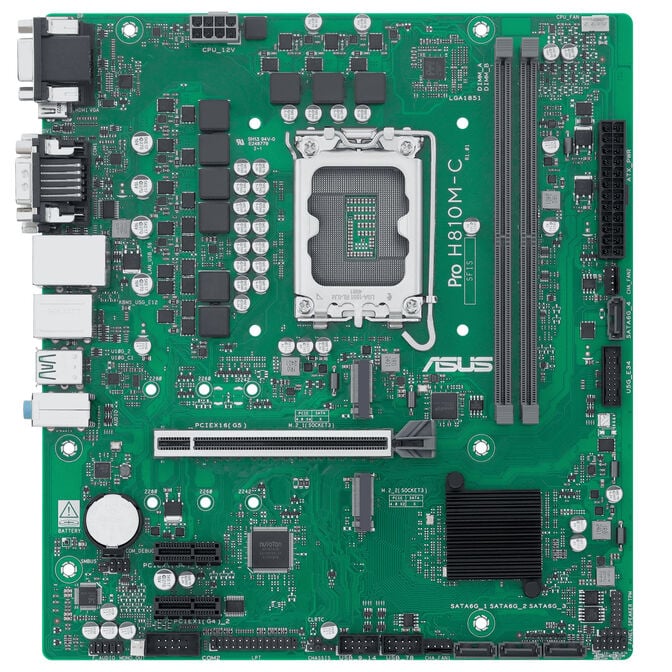

ASUS Pro B810M-C-CSM: Micro-ATX Motherboard with Intel LGA 1851 Socket and H810 Chipset
The ASUS Pro B810M-C-CSM is a Micro-ATX motherboard featuring the entry-level Intel H810 chipset and LGA 1851 socket. It supports Intel processors from the Arrow Lake generation, making it ideal for office tasks and casual gaming. Overclocking the CPU and memory is not supported.
The ASUS Pro B810M-C-CSM also includes PCIe 5.0 for graphics cards and PCIe 4.0 for M.2 SSDs, offering excellent speed and compatibility for modern components.
Dimensions
|
|
Length / Depth
|
244 mm
|
Width
|
222 mm
|
Form Factor
|
|
Motherboard formfactor
|
Micro-ATX
|
CPU
|
|
CPU Manufacturer
|
Intel
|
CPU Socket
|
1851
|
Motherboard
|
|
Motherboard Chipset
|
Intel H810
|
Memory
|
|
Max. Memory
|
96 GB
|
Memory Type
|
DDR5
|
Memory Form Factor
|
DIMM
|
System Memory Subtype
|
CUDIMM, UDIMM
|
Max. Memory Speed (OC)
|
6400 MT/s
|
EEC Support
|
No
|
Memory slots
|
2x
|
Performance Profile
|
Intel XMP
|
Wi-Fi & LAN
|
|
LAN
|
Yes
|
LAN Ports
|
1x 1 Gbit/s
|
Wi-Fi / Bluetooth
|
No
|
Cooling
|
|
Backplate
|
Yes
|
M.2 Heatsinks
|
Yes
|
VRM Heatsinks
|
Yes
|
Internal Ports
|
|
CPU Power Supply
|
1x 8-Pin
|
USB 3.0 (internal) Header
|
1
|
USB 3.0 (internal) Possible Ports
|
2
|
USB 2.0 (internal) Header
|
2
|
USB 2.0 (internal) Possible Ports
|
4
|
Front Panel Audio Header
|
No
|
SPI TPM Header
|
No
|

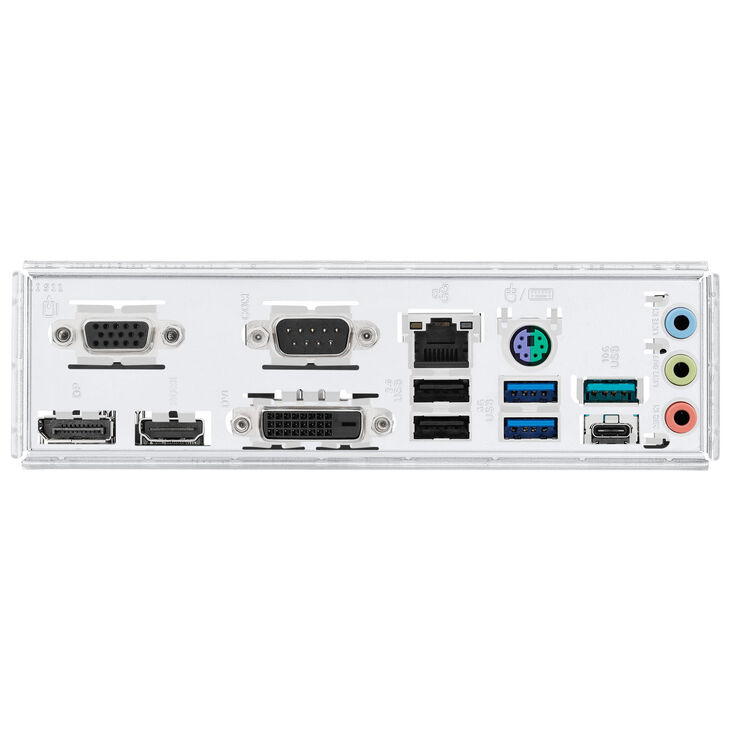

External Ports
|
|
USB 3.1 (external) Type C
|
1
|
USB 3.1 (external) Type A
|
1
|
USB 3.0 (external) Type A
|
2
|
USB 2.0 (external) Type A
|
2
|
Display Connectors
|
Display Port (1x), DVI (1x), HDMI (1x), VGA (D-Sub) (1x)
|
Storage Ports
|
|
M.2 PCIe 4.0 x2
|
1
|
M.2 PCIe 4.0 x4
|
1
|
SATA 6G (internal)
|
4
|
Back Connect
|
|
Back Connect
|
No
|
Expansion Slots
|
|
PCIe x16 slots (total)
|
1
|
PCIe x1 slots (total)
|
2
|
PCIe 5.0 x16 mechanical slot
|
1
|
PCIe 4.0 x1 mechanical slot
|
2
|
Fan Header
|
|
4 Pin Fan Connectors
|
3
|
Lighting
|
|
Lighting / RGB
|
No
|
