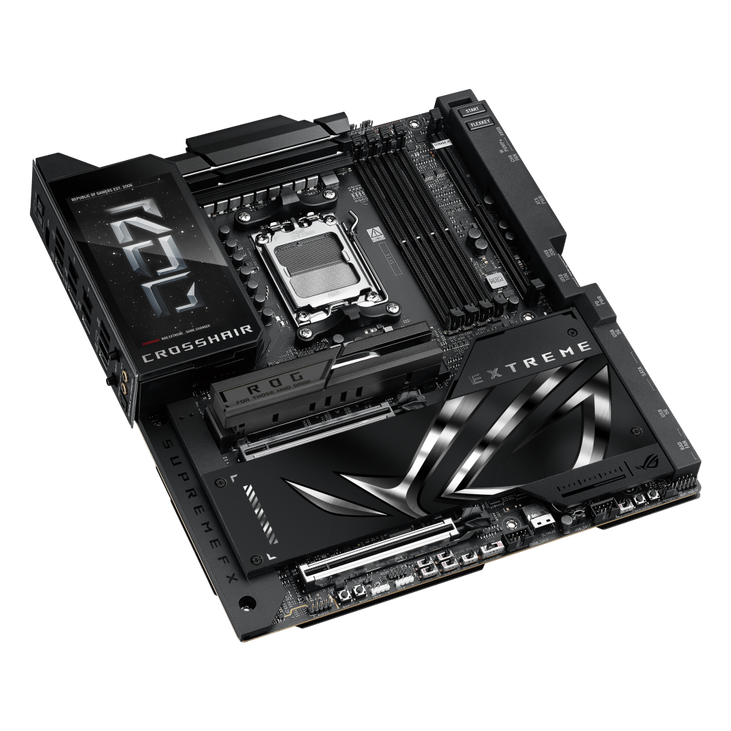

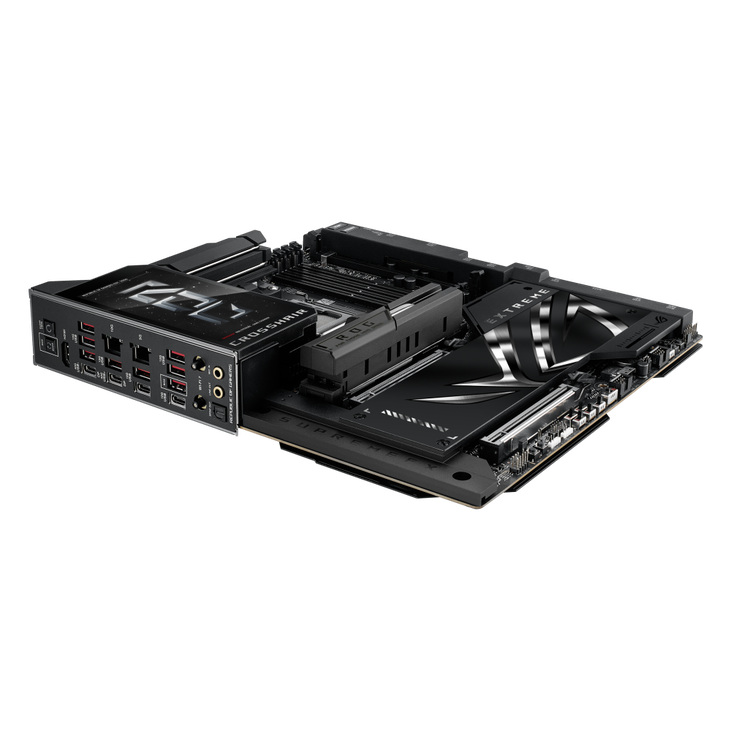

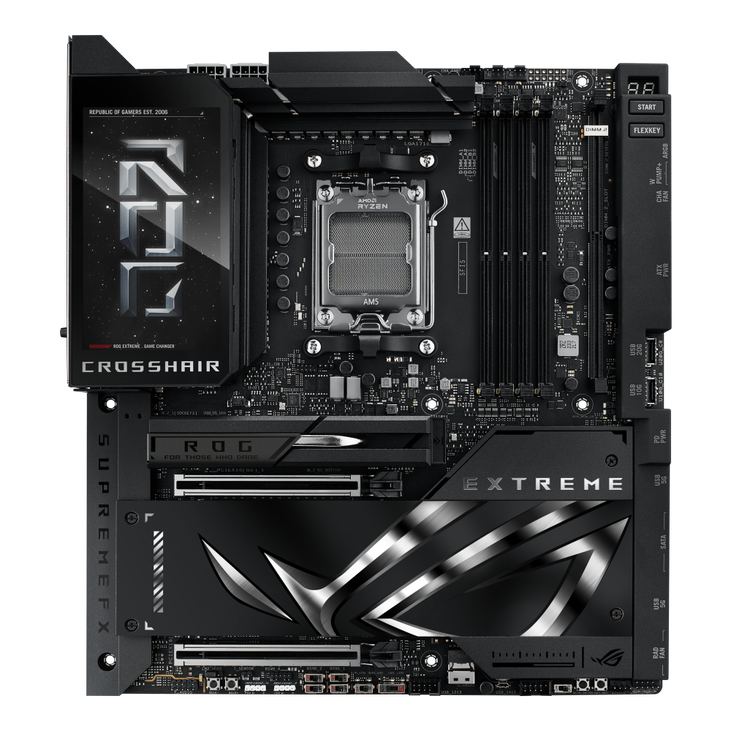

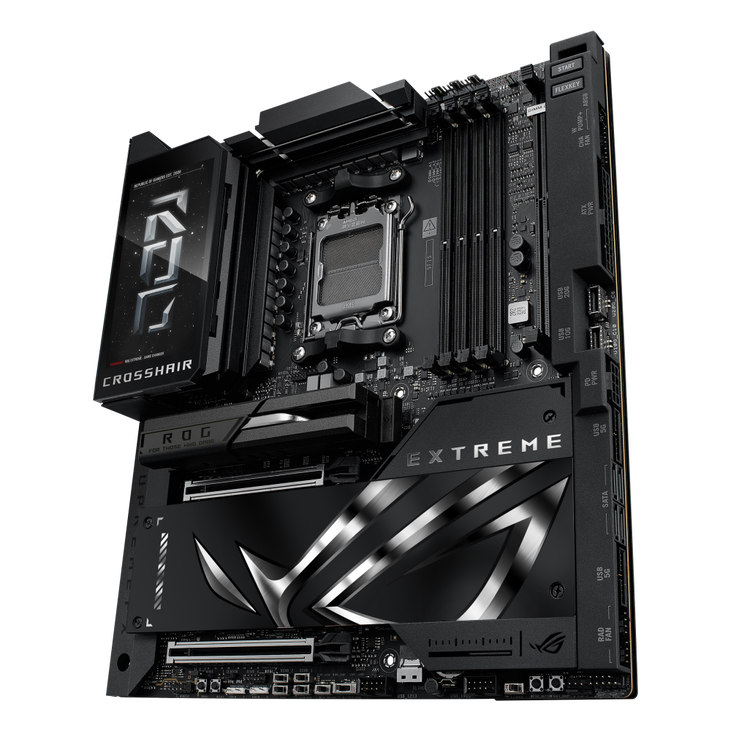

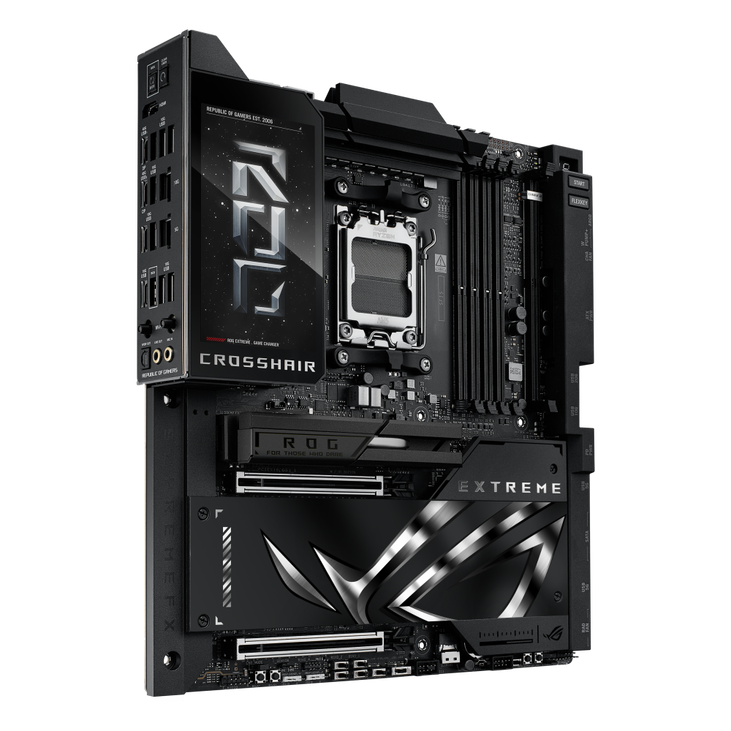

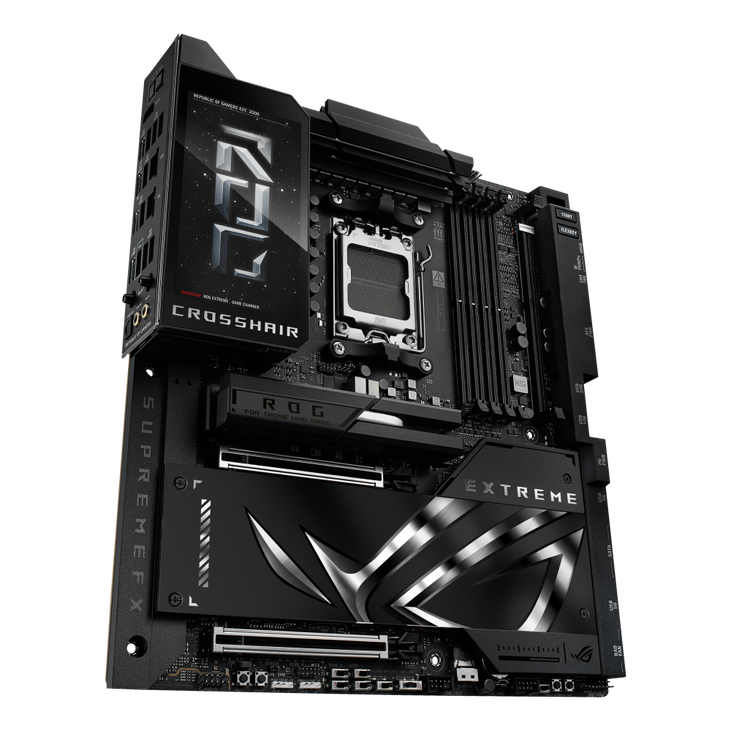

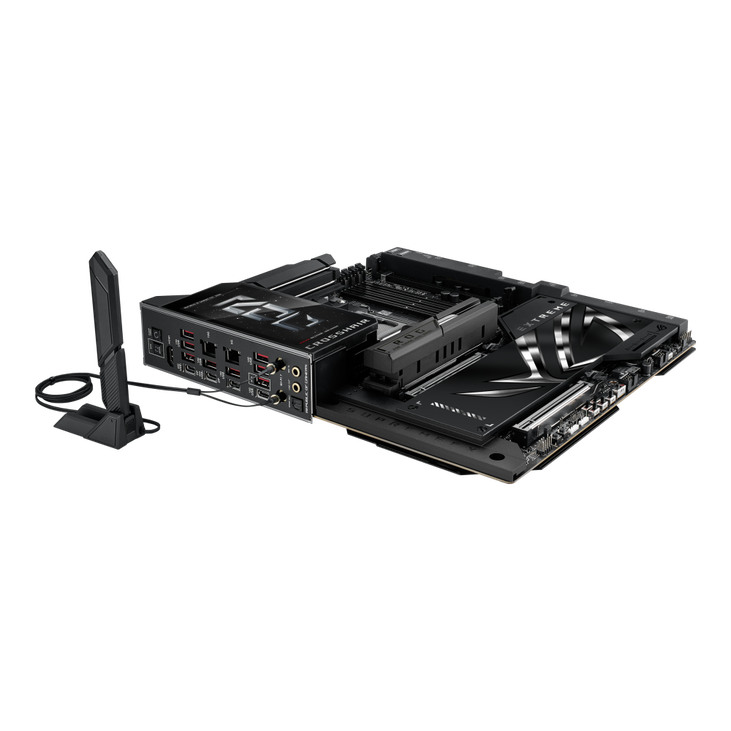

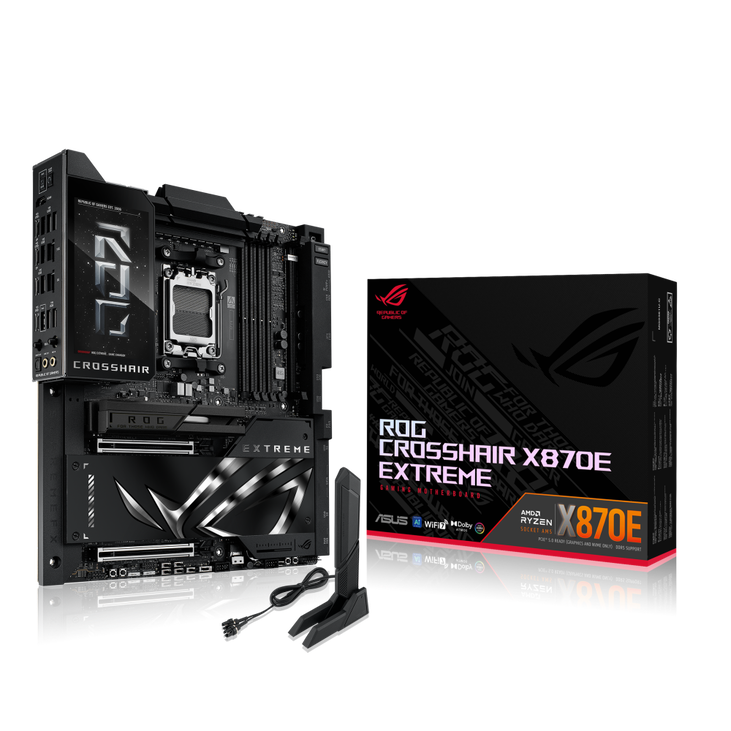

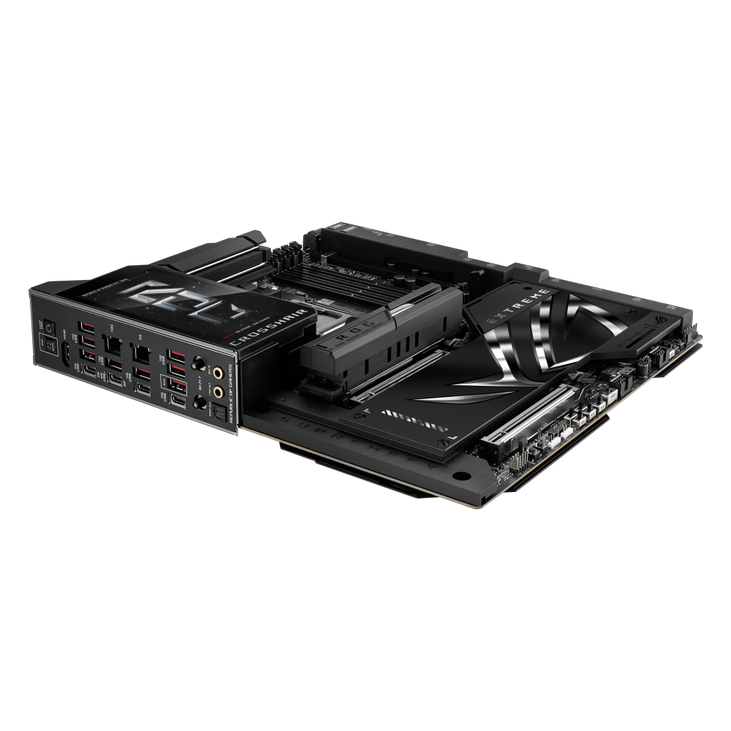

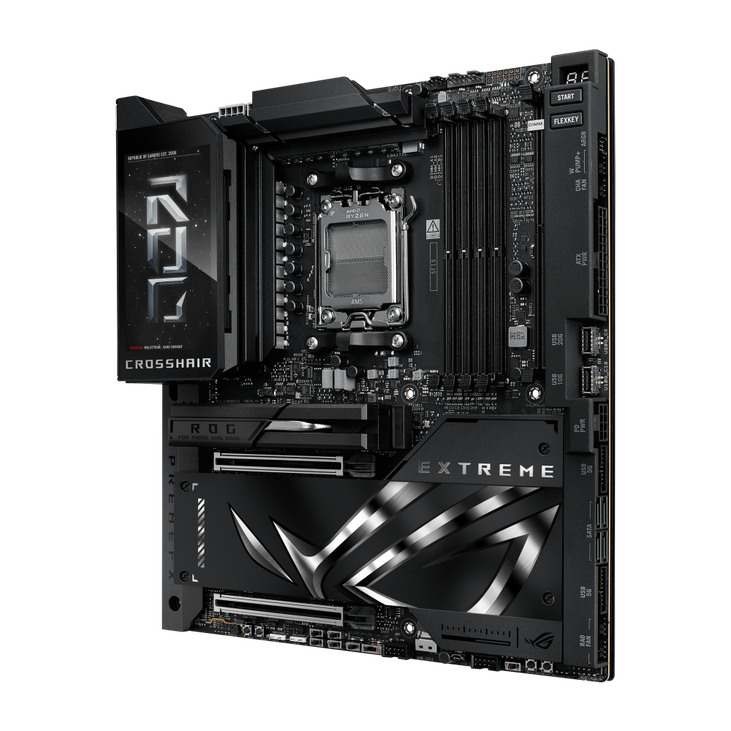

ASUS ROG Crosshair X870E EXTREME Motherboard, Socket AM5, AMD X870E, E-ATX, DDR5
- 2x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x16 (x4)
- 4x DIMM slots for up to 256 GB DDR5 RAM up to 9,000 MT/s (OC)
- 5x M.2 (3x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G

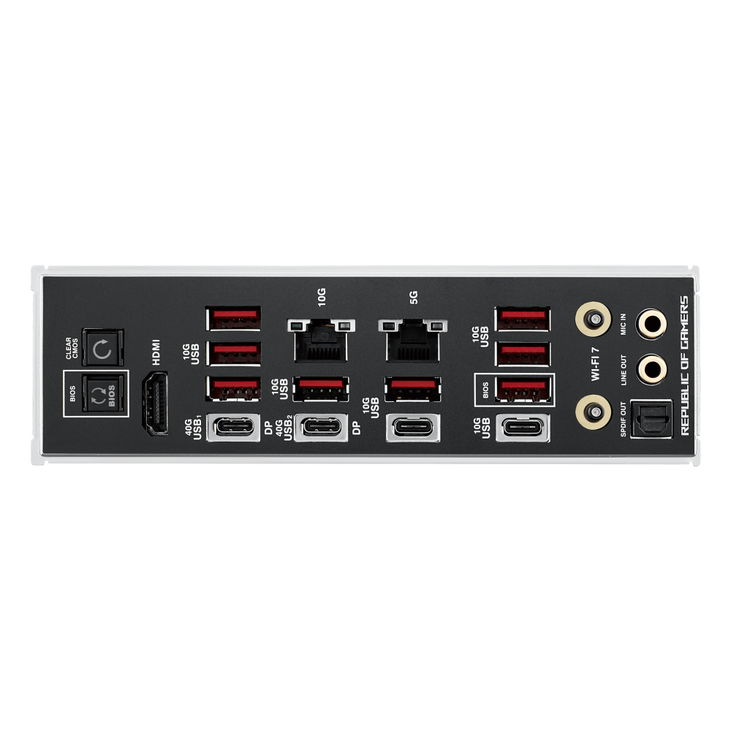

- 2x USB4, 2x USB-C 3.1 and 8x USB 3.1 on the I/O panel
- OC features: 20+2+2 phase VRMs, CMOS reset
- Up to 9x 4-pin PWM fans supported
ASUS ROG Crosshair X870E EXTREME: E-ATX motherboard with AMD AM5 socket and X870E chipset
The ASUS ROG Crosshair X870E EXTREME is equipped with the high-end X870E chipset for AMD’s Ryzen 9000 series processors and offers numerous features for overclockers and gaming enthusiasts. The Ryzen 9000 processors also use the proven AM5 socket (LGA 1718).
Furthermore, the AMD X870E motherboard provides USB 4.0, which is now available as standard and achieves data transfer rates of up to 40 Gbit/s. In addition, the ASUS ROG Crosshair X870E EXTREME supports PCIe 5.0, offering you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
Perfectly equipped for gaming
The motherboard is designed for overclocking so you can enjoy even demanding games. The voltage regulators provide stable power delivery to the CPU to guarantee its high clock speeds over a longer period. Clear CMOS allows you to easily reset these settings if something goes wrong. As usual, DDR5 RAM can also be pushed to higher clock speeds.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard Form Factor
|
E-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD X870E
|
|
Dual BIOS
|
Yes
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
9000 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Performance Profile
|
AMD EXPO
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 10 Gbit/s, 1x 5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Cooling
|
|
|

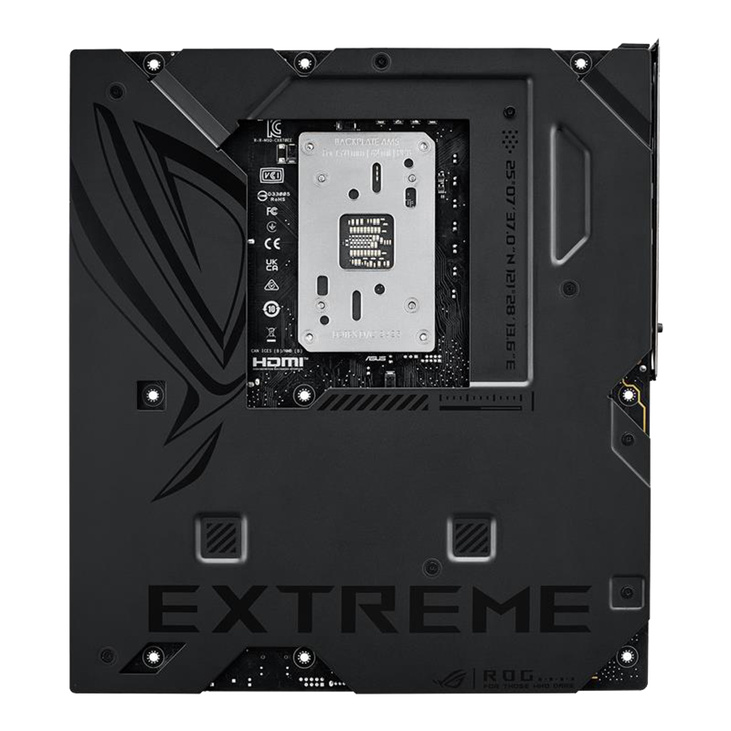

Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 4+4-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
2
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
2
|
|
USB 3.0 (internal) Header
|
2
|
|
USB 3.0 (internal) Possible Ports
|
4
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 2x2 (external) Type C
|
2
|
|
USB 3.1 (external) Type C
|
2
|
|
USB 3.1 (external) Type A
|
8
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
M.2 PCIe 5.0 x4
|
3
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
4
|
|
PCIe 5.0 x16 mechanical slot
|
2
|
|
PCIe 4.0 x4 mechanical slot
|
2
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
9
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC4082
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
