ASUS ROG Maximus Z890 Hero motherboard, socket LGA 1851, Intel Z890, ATX, DDR5
ATX motherboard with Intel Z890 chipset, 1x PCIe 5.0 x16 / 1x PCIe 4.0 x4 / 1x PCIe 4.0 x1, 2x USB4 / 1x USB-C 3.2 / 6x USB 3.1 / 8x USB 3.0 / 4x USB 2.0, 6x M.2 (3x PCIe 5.0, 3x PCIe 4.0) / 4x SATA 6G, 8x 4-Pin PWM connectors
715,63 €
incl. VAT
, add. delivery costs starting from 4.99€
This motherboard is excellent for high-end builds and overclocking your CPU.
- 1x PCIe 5.0 x16 (x16 / x8 / x4), 1x PCIe 4.0 x16 (x4) and 1x PCIe 4.0 x1
- 4x DIMM slots for up to 192 GB DDR5 RAM at 8800 MHz (XMP 3.0 & CUDIMM Support)
- 6x M.2 (including 3x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G

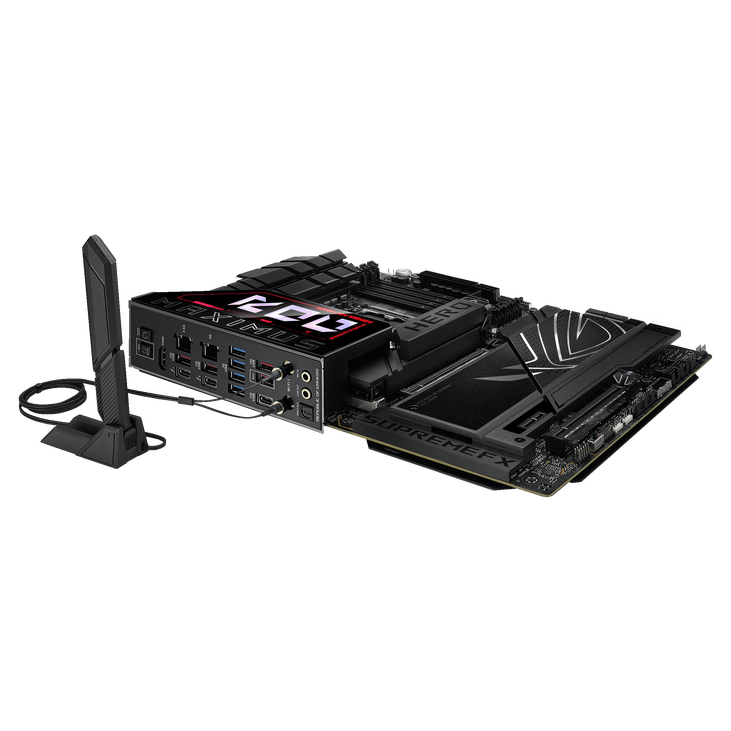

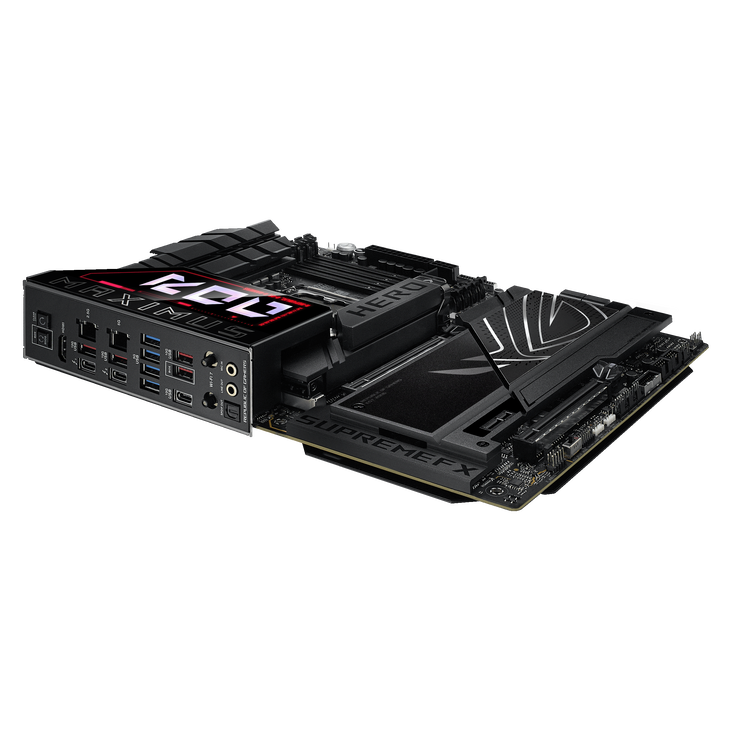

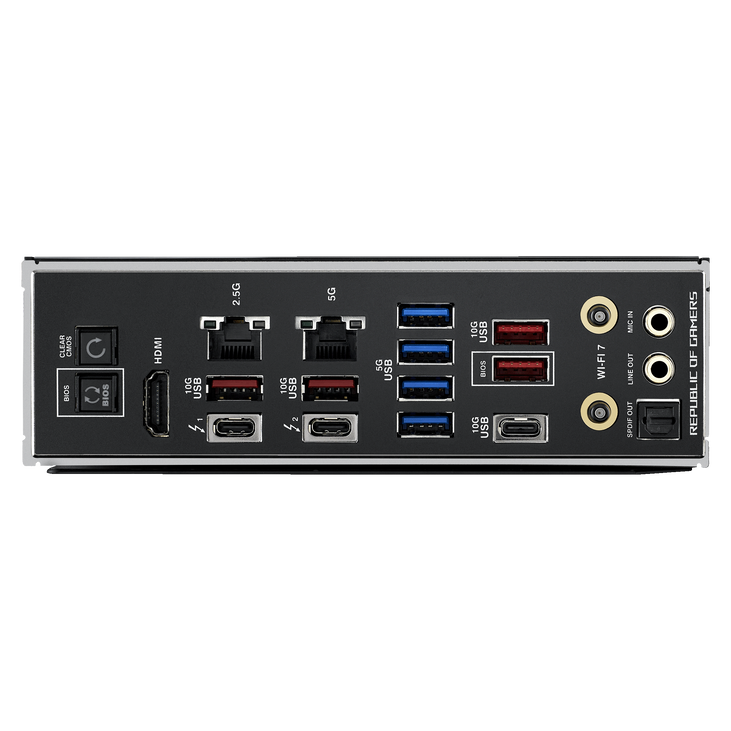

- USB on the I/O panel: 2x USB4, 1x USB 3.1 Type-C, 4x USB 3.1, 4x USB 3.0 and 2x USB 2.0
- OC features: 27-phase VRMs, BIOS FlashBack, CMOS Reset, ReTry and FlexKey button, etc.
- A total of 8x 4-pin connectors for fans & pumps

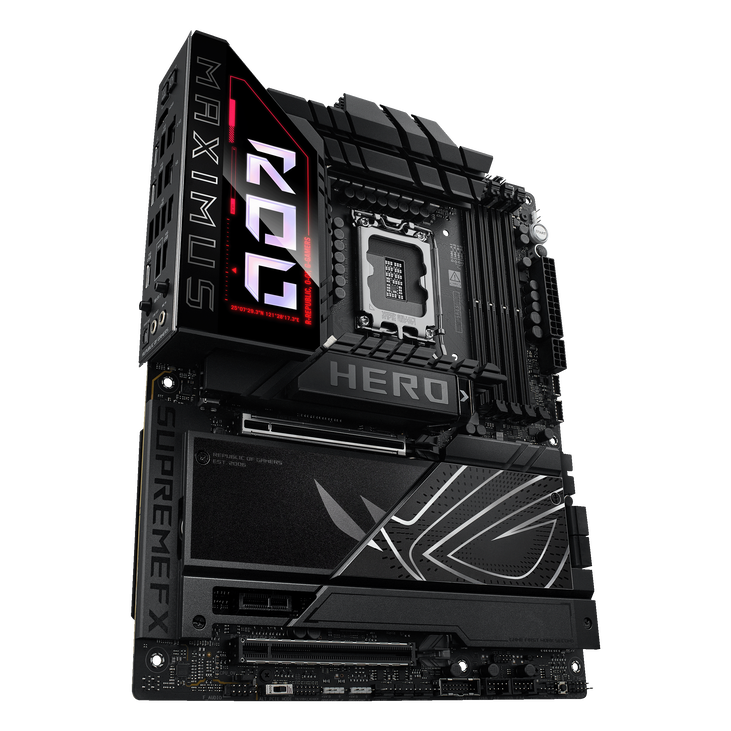

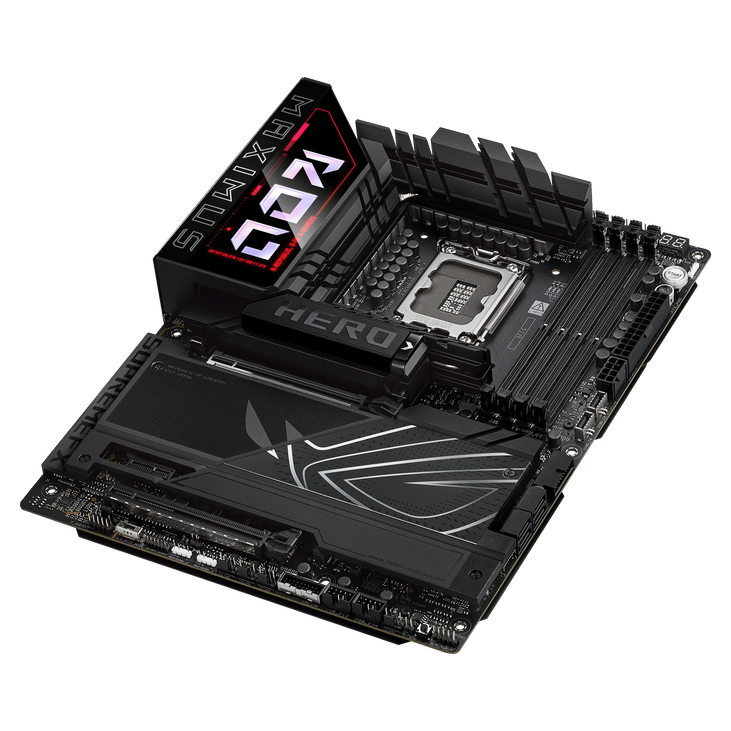

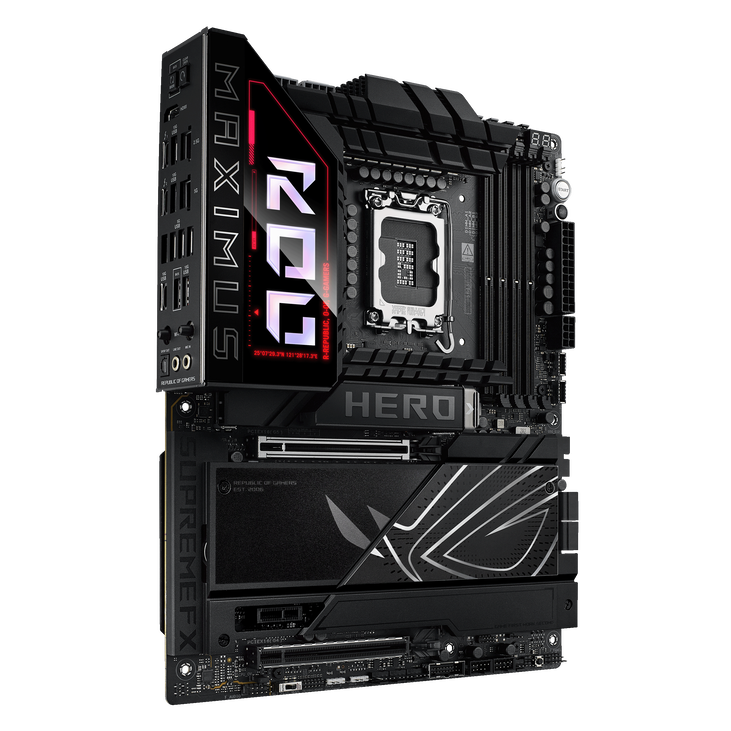

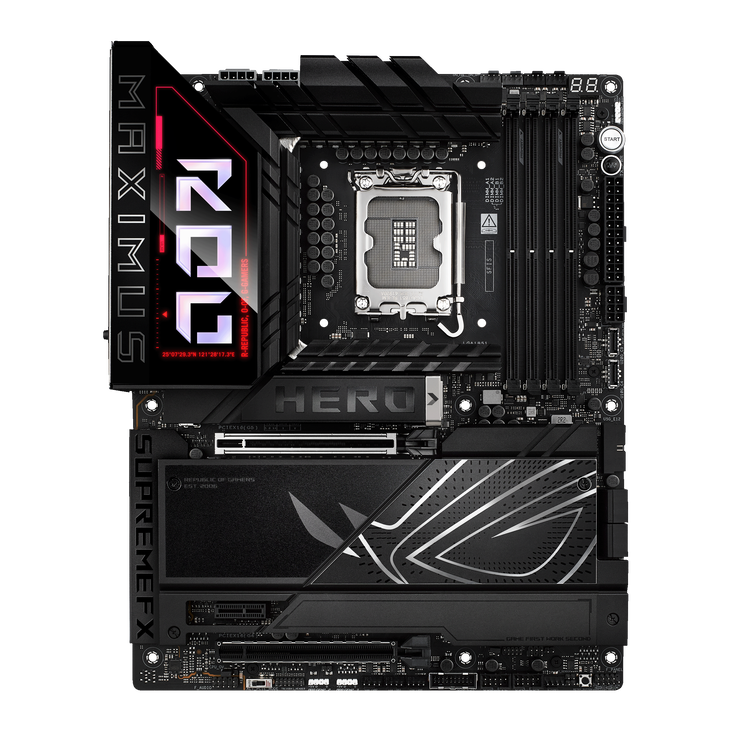

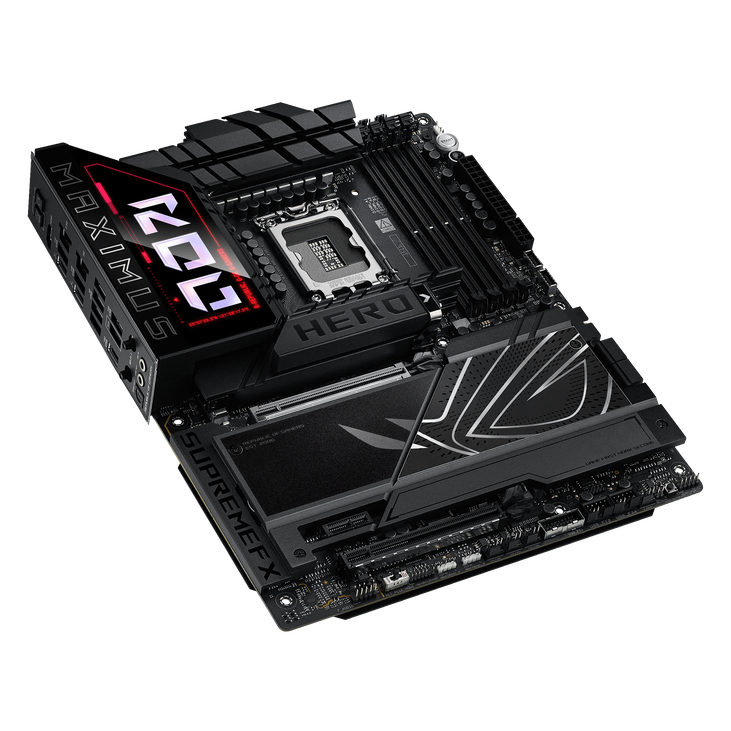

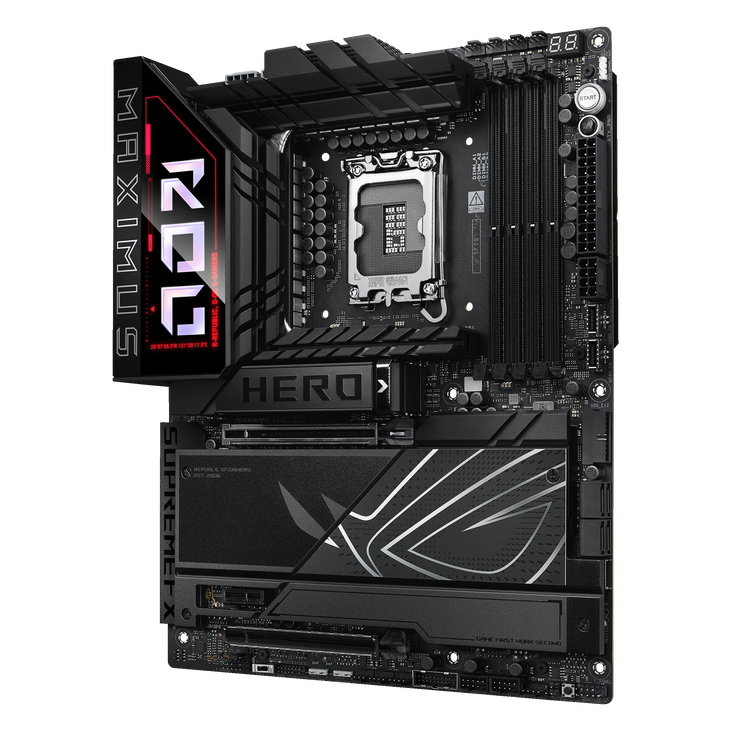

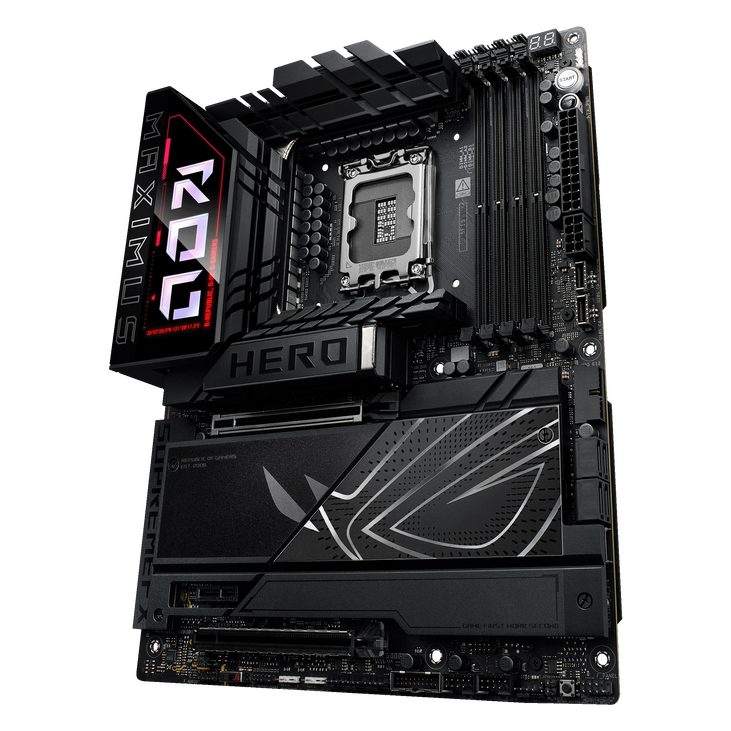

ASUS ROG Maximus Z890 Hero: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASUS ROG Maximus Z890 Hero is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB4, offering data transfer rates of up to 40 Gbps. Furthermore, the Maximus Z890 Hero impresses with full PCIe 5.0 connectivity, providing double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
The Maximus Z890 Hero is geared towards high-end gaming, ensuring you can enjoy even demanding games without interruptions. The high-quality voltage regulators provide a stable power supply to the CPU, ensuring its high clock speeds are maintained over extended periods. Features like BIOS Flashback and Clear CMOS also allow you to recover your PC if something goes wrong. As usual, the DDR5 RAM can be pushed to higher clock speeds.
- Form Factor:
ATX (305 x 244 mm) - Chipset:
Intel Z890 - Socket:
LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation) - RAM:
4x DDR5 DIMM (up to 8800 MHz via XMP / OC / CUDIMM)
Quad- / Dual-Channel
Max. 192 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16 or x8/x4)
2x PCIe 4.0 x16 (x4) / x1 - Total maximum usable PCIe lanes: 44
- Internal connections:
4x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280 / 22110, CPU)
2x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280, CPU)
1x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280, CPU)
2x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280, chipset)
1x USB-C (1 header, USB 3.2 Gen 2x2, max. 20 Gbit/s)
1x USB-C (1 header, USB 3.2 Gen 2, max. 10 Gbit/s)
4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (2 headers, max. 480 Mbit/s)
1x Thunderbolt 4 (USB-C)
1x Front Panel Audio Header
1x 10-1-Pin System Panel Header
1x FlexKey Button
1x ReTry Button
1x Start Button
- Fan headers:
1x CPU Fan (4-Pin)
1x CPU OPT Fan (4-Pin)
1x W_PUMP+ Header
1x AIO Pump Header
4x Case Fans (4-Pin) - RGB headers:
2x 3-Pin ARGB (5 V) - External connections:
2x Thunderbolt 4 (USB-C)
4x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x HDMI
1x 2.5 Gigabit LAN (Intel I219V)
1x 5 Gigabit LAN (Realtek)
1x WiFi/Bluetooth module
2x 3.5 mm jack (Realtek ALC 4082)
1x S/PDIF Audio - Power supply:
1x 24-Pin ATX
2x 8-Pin ATX12V

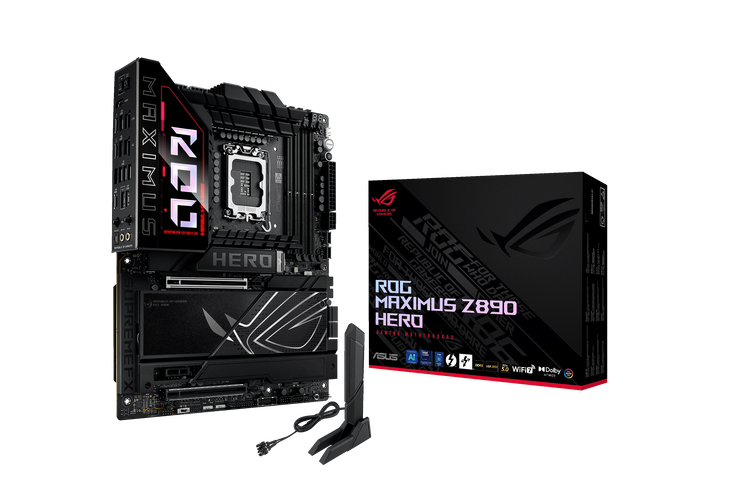

1x 8-Pin PCIe ATX - Accessories:
1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
1 x DDR5 fan bracket
1 x thermal pad for M.2 22110
1 x ASUS WiFi Q antenna
1 x Q-Connector
1 x M.2 Q-Latch package
3 x M.2 Q-Slide packages
1 x ROG sticker
6 x M.2 rubber packages
1 x ROG thank you card
1 x ROG bottle opener
1 x USB stick with utilities and drivers
Manual
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
305 mm
|
|
Width
|
244 mm
|
|
Height
|
50 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Dual BIOS
|
No
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
8800 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
Intel XMP 3.0
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s, 1x 5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
Required Power Connectors
|
8-pin PCIe (1x)
|
|
USB4 (internal) Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
2
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
2
|
|
USB 3.0 (internal) Header
|
2
|
|
USB 3.0 (internal) Possible Ports
|
4
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
No
|
|
External Ports
|
|
|
USB4 Gen 3x2 (external) Type C
|
2
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
4
|
|
USB 3.0 (external) Type A
|
4
|
|
Display Connectors
|
HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
3
|
|
M.2 PCIe 5.0 x4
|
3
|
|
SAS (internal)
|
1
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
2
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x4 mechanical slot
|
1
|
|
PCIe 4.0 x1 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC4082
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Lighting Compatibility
|
ASUS Aura Sync
|
|
Product Series
|
|
|
Product Series/Family
|
ROG
|
