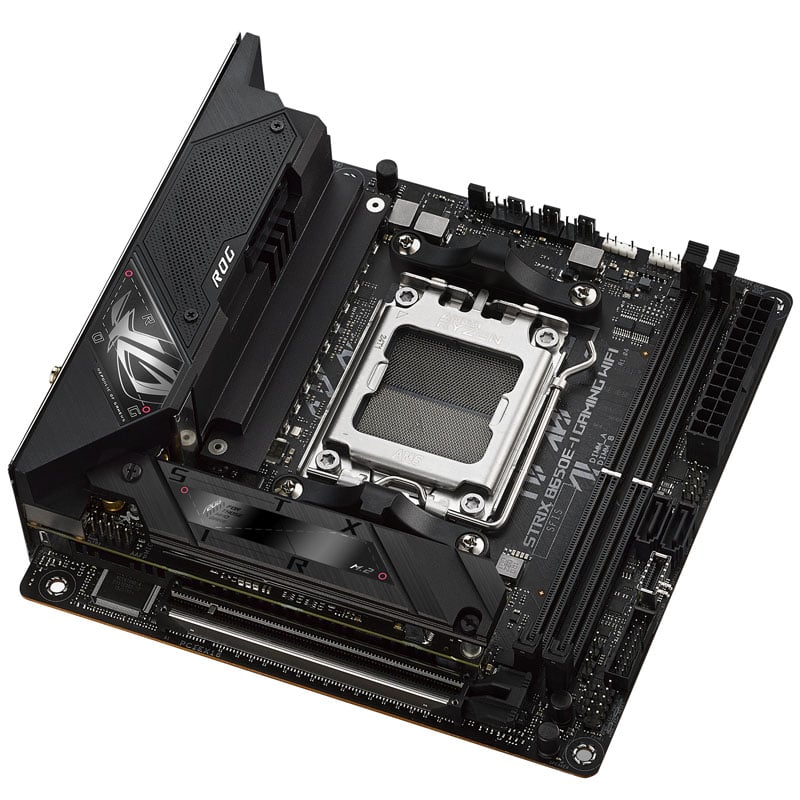

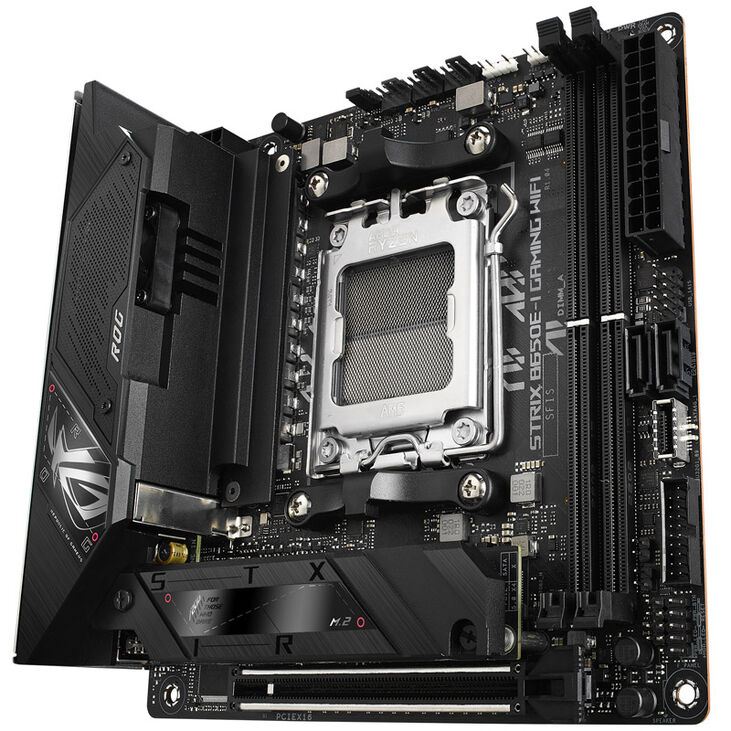

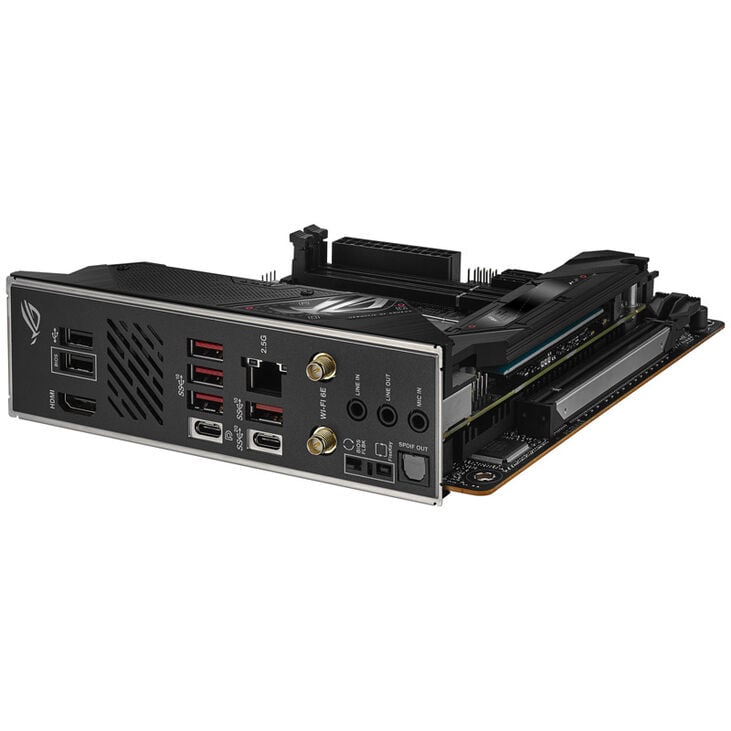

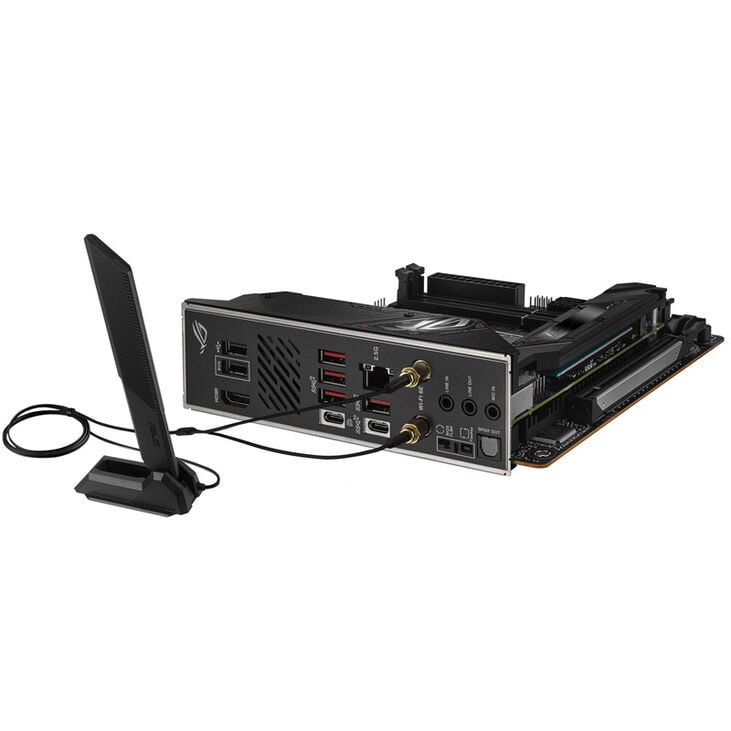

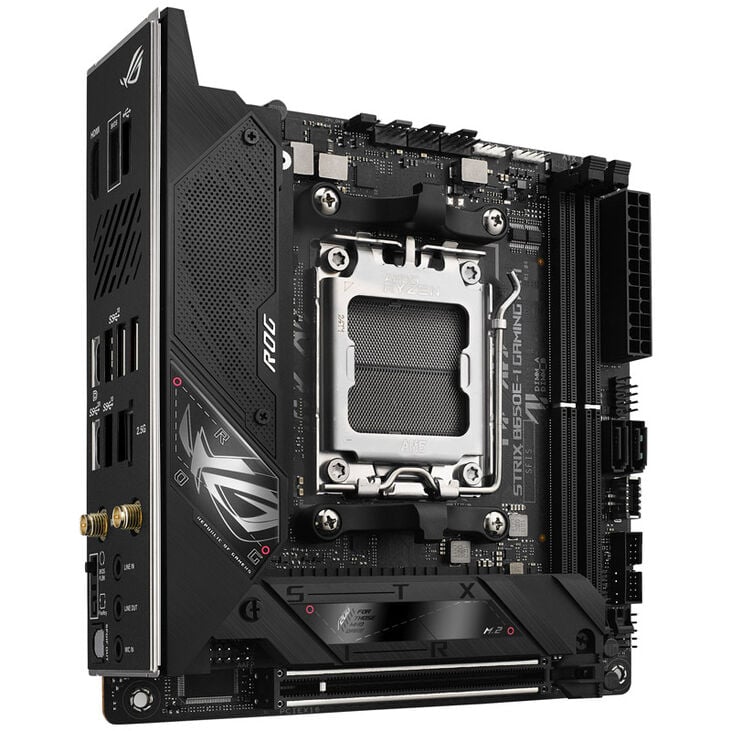

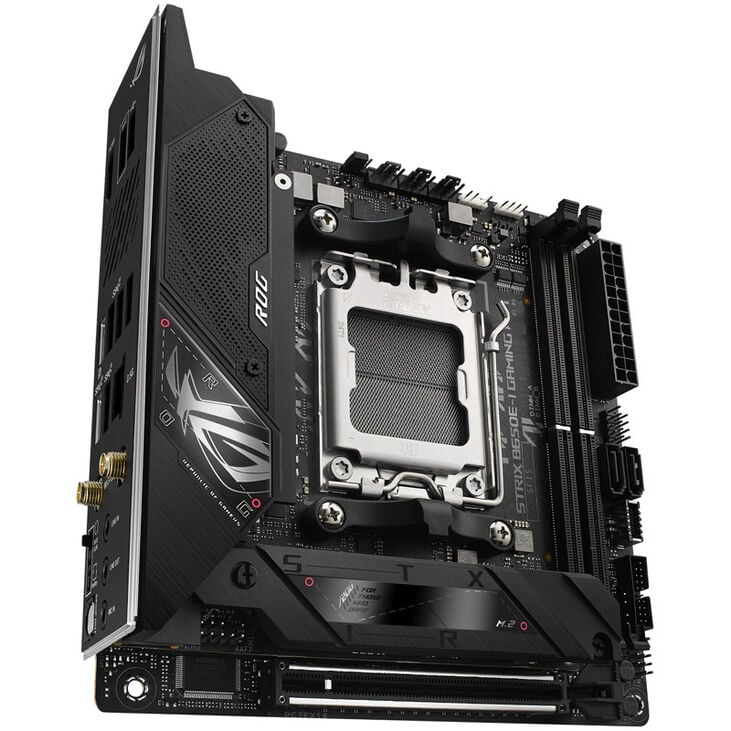

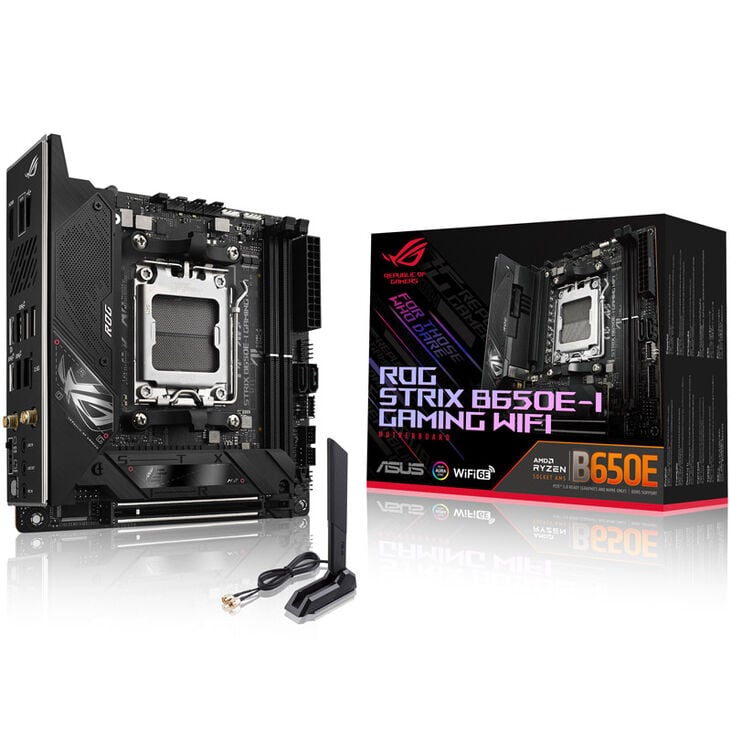

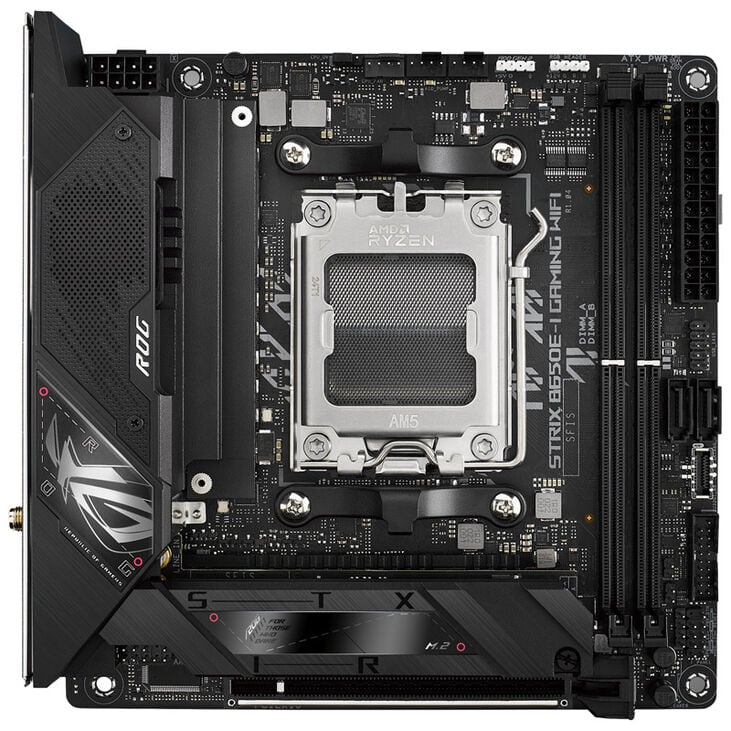

ASUS ROG Strix B650E-I Gaming WiFi Motherboard, Socket AM5, AMD B650, Mini-ITX, DDR5
Mini-ITX motherboard with B650E chipset from AMD, 1x PCIe 5.0 x16, 1x USB-C 3.2 / 1x USB-C 3.1 / 5x USB 3.1 / 2x USB 3.0, 2x M.2 (1x PCIe 5.0, 4x PCIe 4.0) / 2x SATA 6G, 3x 4-pin PWM connectors, for DDR5 RAM
269,90 €
incl. VAT
, add. delivery costs starting from 4.99€
- 1x PCIe 5.0 x16 (x16)
- Supports max. 64 GB DDR5 RAM up to 6,400 MHz (OC)
- 2x M.2 (of which 1x PCIe 5.0 and 1x PCIe 4.0) and 4x SATA 6G
- 1x USB 3.2, 5x USB 3.1, 2x USB 2.0 on the I/O panel
- OC features: 10+2 phase VRMs, Dual BIOS, CMOS Reset, Digi+ VRM
- A total of 10x 4-Pin PWM fans possible
ROG STRIX B650E-I GAMING WIFI: Mini-ITX motherboard with AMD B650E chipset for AM5 CPUs
The ROG STRIX B650E-I GAMING WIFI is equipped with the B650E chipset for AMD's Ryzen 7000 processors and comes with numerous features for overclockers and gamers. Since the Ryzen 7000 processors require a new socket due to PCIe 5.0 support and enhanced power delivery, the 600 series motherboards use the AM5 socket (LGA 1718).
Despite the higher pin count of AM5, the actual size of the socket remains identical to the older generation, allowing most CPU coolers for AM4 socket to be mounted on the motherboard.
Despite the higher pin count of AM5, the actual size of the socket remains identical to the older generation, allowing most CPU coolers for AM4 socket to be mounted on the motherboard.
BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates may also bring fixes and optimisations.
Our King Mod Service is happy to perform a BIOS update to the latest version in advance:
Please note that this may delay shipping preparation by 1 to 4 working days!
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Silver
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Mini-ITX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD B650E
|
|
Memory
|
|
|
Max. Memory
|
64 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Memory slots
|
2x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG), 1x RGB (4-Pin 5050 12VGRB)
|
|
External Ports
|
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
5
|
|
Display Connectors
|
HDMI (1x), USB Type C (Display Port shared) (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
SATA 6G (internal)
|
2
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCI slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
3
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
