ASUS ROG STRIX B850-E Gaming WiFi Motherboard, Socket AM5, AMD B850, ATX, DDR5
ATX motherboard with AMD B850 chipset, supports PCI-Express 5.0, suitable for DDR5 RAM, with Wi-Fi and Bluetooth
341,84 €
incl. VAT
, add. delivery costs starting from 4.99€
- Slots: 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
- RAM: 4x DIMM slots for a maximum of 192 GB DDR5 RAM up to 8,000 MT/s
- Storage: 5x M.2 (2x PCIe 5.0 & 3x PCIe 4.0) and 4x SATA
- USB: 1x USB4, 1x USB-C 3.2, 6x USB 3.1 and 4x USB 2.0
- Cooling: 8x 4-pin PWM connectors for fans and radiators
- Connectivity: Wi-Fi 7 and Bluetooth 5.4

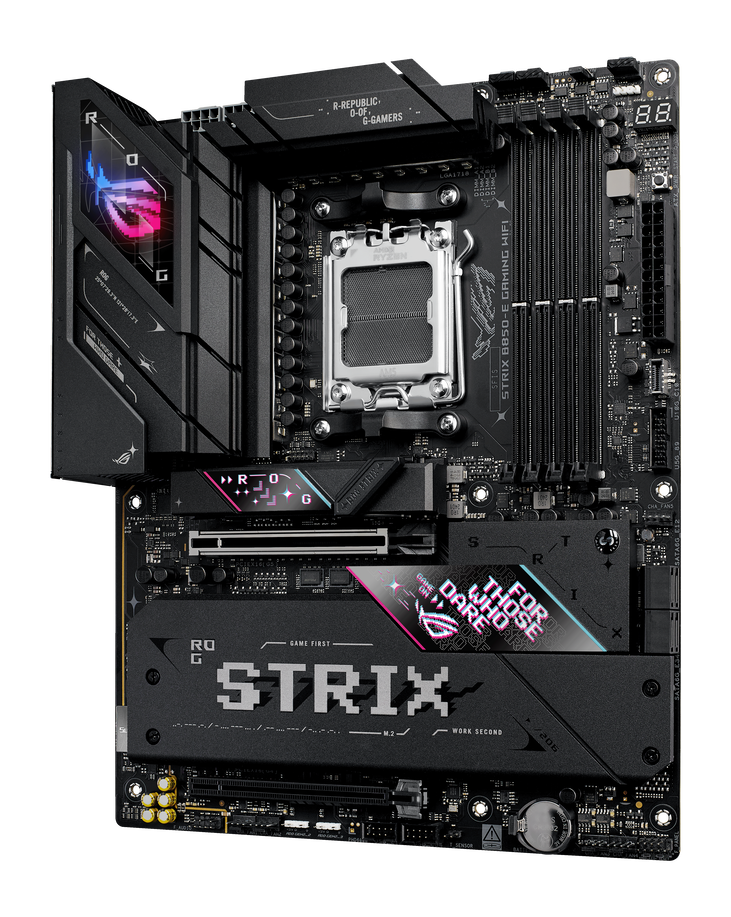

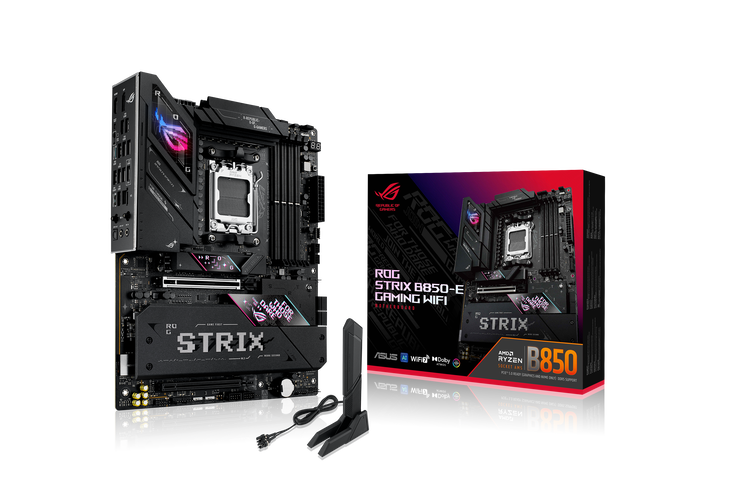

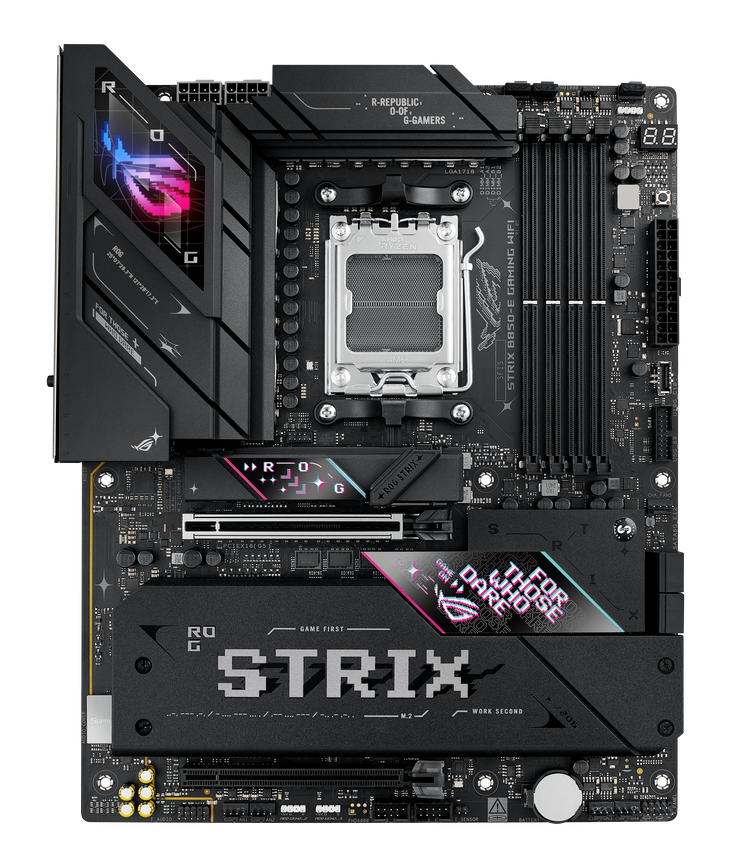

ASUS ROG STRIX B850-E Gaming WiFi: ATX Motherboard with AMD AM5 Socket and B850 Chipset
The ASUS ROG STRIX B850-E Gaming WiFi is an ATX motherboard featuring the mid-range AMD B850 chipset and the AMD AM5 socket. It supports Ryzen 9000, 8000, and 7000 CPUs.
Connection to graphics cards and NVMe SSDs is via PCIe 5.0. With USB4, data transfer rates of up to 40 Gbit/s are possible.
Overclocking for Gamers
To get the most out of your gaming PC, the CPU can be overclocked via the motherboard to achieve higher clock rates. A stable power supply for the processor is ensured, allowing even high-end CPUs to operate at full performance over extended periods. You can also fully utilise the DDR5 memory with overclocking. In case of emergencies, the ASUS ROG STRIX B850-E Gaming WiFi offers BIOS flashback and Clear CMOS.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
244 mm
|
|
Width
|
305 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD B850
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
System Memory Subtype
|
UDIMM
|
|
Max. Memory Speed (OC)
|
8000 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Performance Profile
|
AMD EXPO
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 2x2 (external) Type C
|
1
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
6
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
3
|
|
M.2 PCIe 5.0 x4
|
2
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
2
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC4080
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
