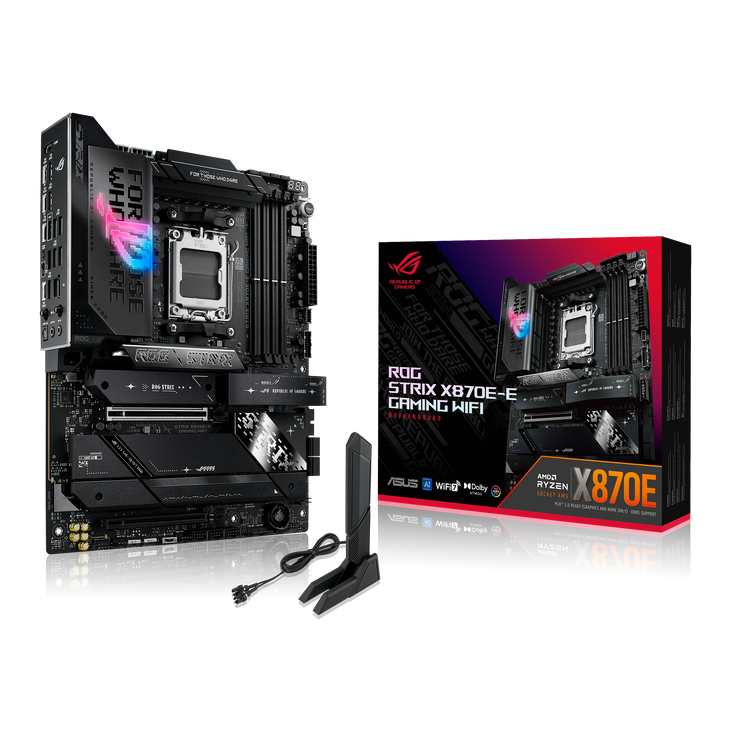

ASUS ROG Strix X870E-E Gaming WiFi motherboard, AMD X870E, Socket AM5, DDR5
ATX motherboard with X870 chipset, 2x PCIe 5.0 x16 / 1x PCIe 4.0 x4, 2x USB 4 / 5x USB 3.1 / 1x USB-C 3.1 / 8x USB 3.0 / 1x USB-C 3.2 / 4x USB 2.0, 5x M.2 (3x PCIe 5.0, 2x PCIe 4.0) / 4x SATA 6G, 8x 4-pin PWM connectors
439,99 €
incl. VAT
, add. delivery costs starting from 4.99€
- 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 (x16)
- 4x DIMM slots for up to 192 GB DDR5 RAM up to 8400 MHz (OC)
- 5x M.2 (3x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
- 2x USB4, 1x USB-C 3.2, 1x USB-C 3.1, and 9x USB 3.1 on the I/O panel
- OC features: 22-phase VRMs, Dual BIOS, CMOS reset, Digi+ VRM
- A total of 8x 4-pin PWM fans supported

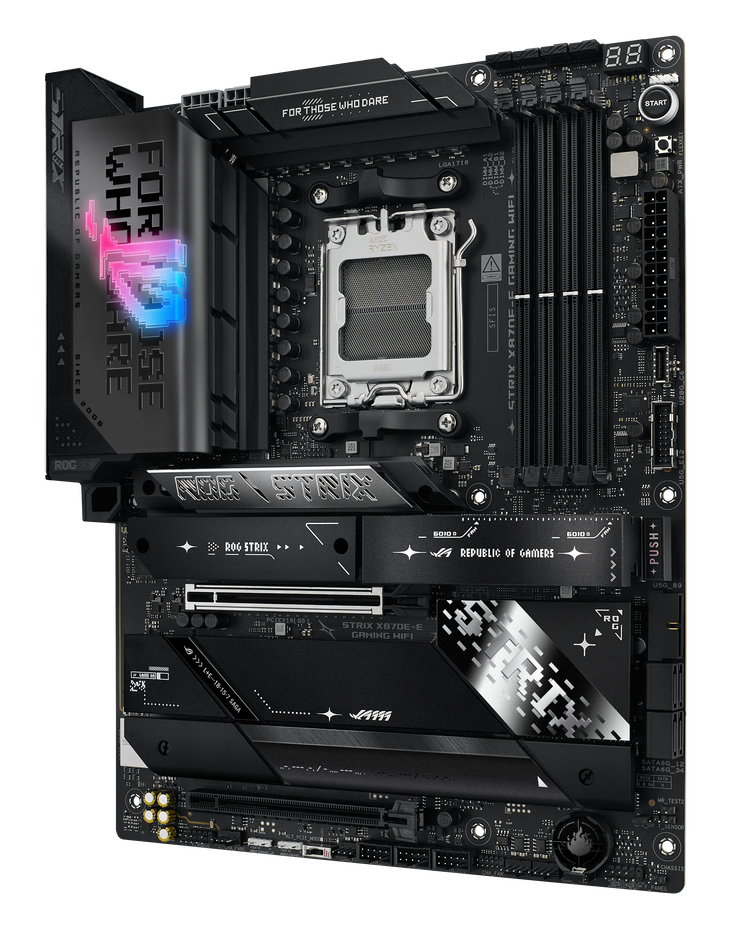

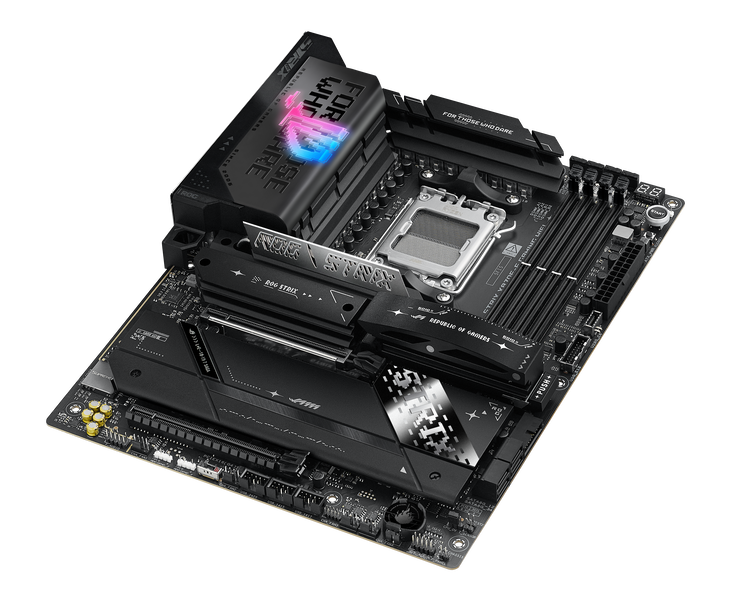

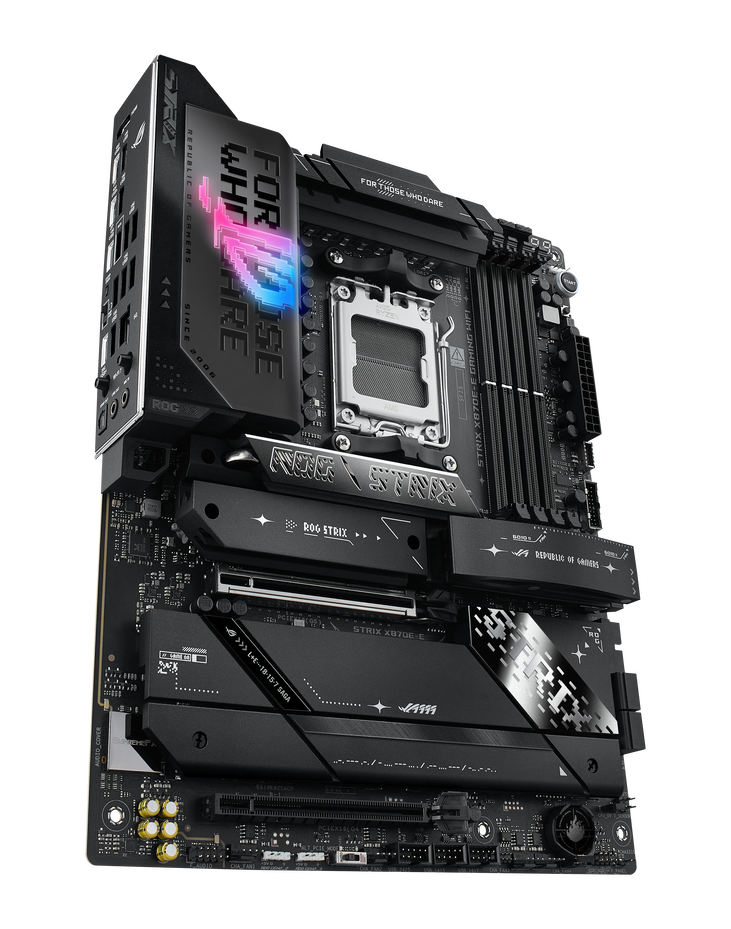

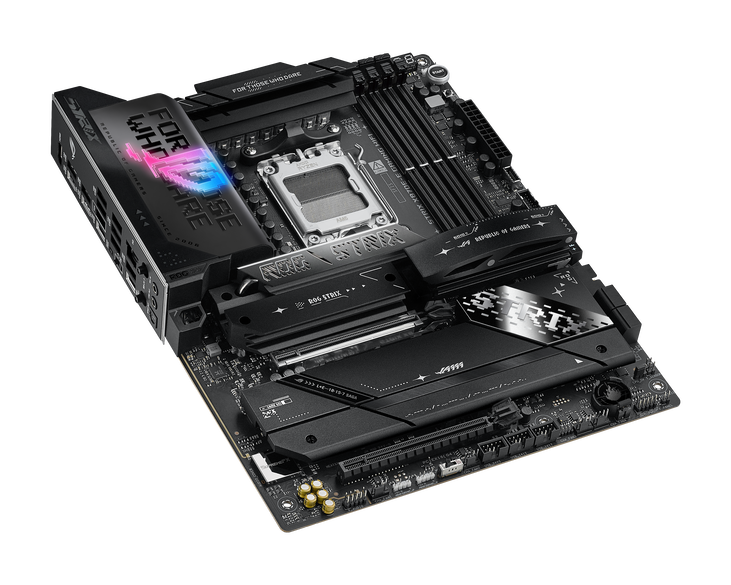

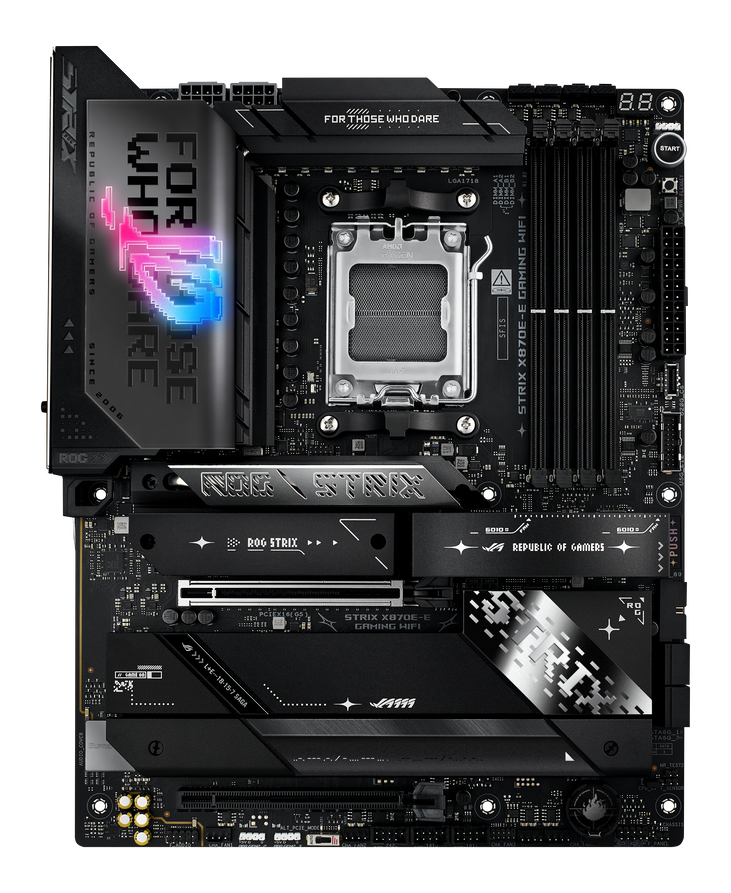

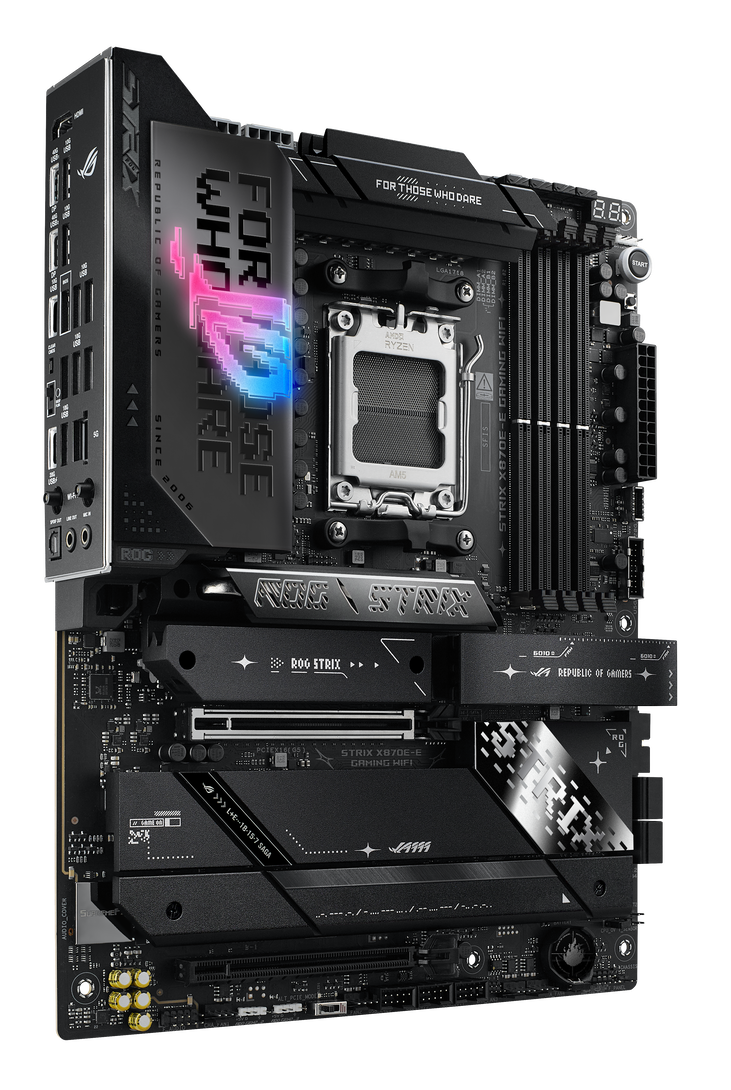

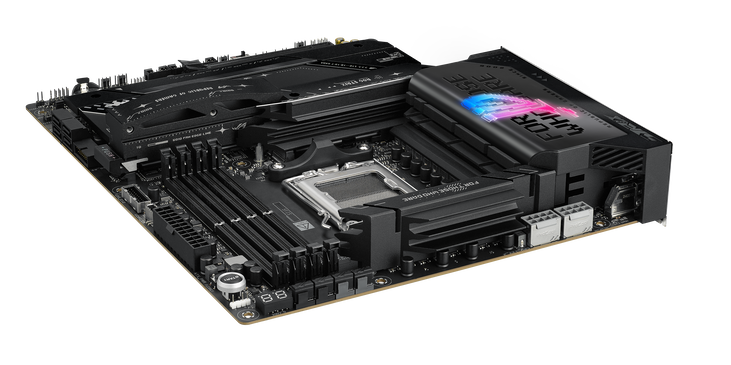

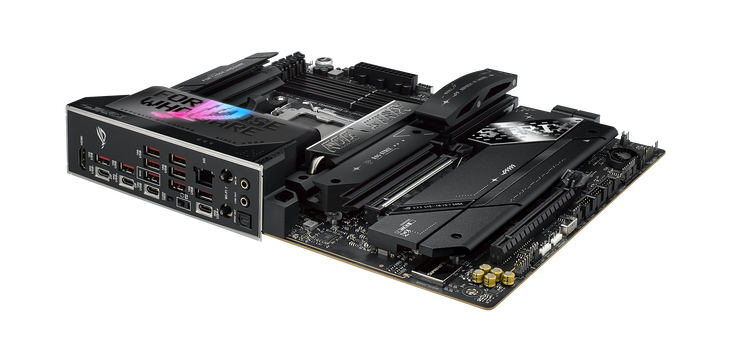

ASUS ROG STRIX X870E-E GAMING WIFI: ATX motherboard with AMD AM5 socket and X870 chipset
The ASUS ROG STRIX X870E-E GAMING WIFI is equipped with the mid-tier X870 chipset, designed for AMD’s Ryzen 9000 series processors, and offers numerous features for gamers. The Ryzen 9000 series also uses the tried-and-tested AM5 socket (LGA 1718).
Additionally, the AMD X870 motherboard offers USB 4.0, now standard, with data transfer rates of up to 40 Gbit/s. Moreover, the ASUS ROG STRIX X870E-E GAMING WIFI supports PCIe 5.0, providing double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
The ASUS ROG STRIX X870E-E GAMING WIFI is designed for high-end gaming, allowing you to enjoy demanding games smoothly. The high-quality voltage regulators ensure stable power delivery to the CPU, enabling it to maintain high clock speeds over extended periods. Features like DIGI+ VRM for adjusting VRM voltage and frequency modulation, as well as BIOS Flashback and Clear CMOS, let you reset the PC if something goes wrong. As usual, the DDR5 RAM can also be overclocked to higher speeds.
- Form factor:
ATX (305 x 244 mm) - Chipset:
AMD X870 (Single Promontory 21) - Socket:
AM5 (LGA 1718) - RAM:
4x DDR5 DIMM (up to 8400 MHz via OC)
Dual-Channel
Max. 192 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16, CPU)
1x PCIe 4.0 x16 (electrical x4, chipset) - Internal connectors:
Total usable PCIe lanes: 36 (24 CPU and 12 PCIe)
2x SATA 6G (max.)
2x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280, CPU)
1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280 / 22110, CPU)
2x M.2 (PCIe 4.0 x4; 2280, chipset)
1x USB-C (1 header, USB 3.2 Gen 2x2, max. 20 Gbit/s)
4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (2 headers, max. 480 Mbit/s)
1x System panel header
1x Front panel audio connector
1x Start button
1x Reset button - Fan connectors:
1x CPU fan header (4-pin)
1x CPU-OPT fan header
5x Fan headers (4-pin)
1x AiO pump header
- RGB headers:
2x 3-pin ARGB headers (5 V)

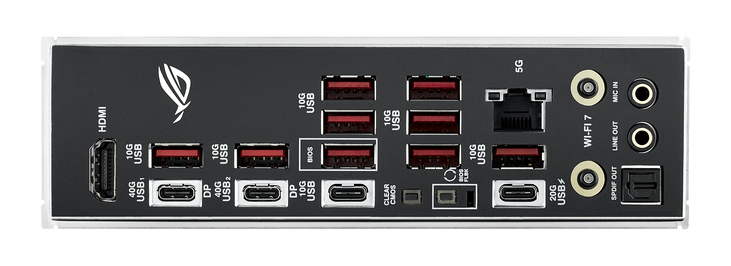

2x 4-pin RGB headers (12 V) - External connectors:
2x USB4 (Type C, USB4 Gen 3x2, max. 40 Gbit/s with DisplayPort)
5x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
1x USB 3.1 (Type C, USB 3.2 Gen 2, PD 30 W, max. 10 Gbit/s)
4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x DisplayPort 1.4
1x HDMI 2.1
1x 5 Gigabit LAN
2x 3.5 mm jack and 1x S/PDIF audio (Realtek ALC4080)
2x RP-SMA Quick Connect antenna ports
1x Clear CMOS button
1x Reset
1x BIOS Flashback - Power supply:
1x 24-pin ATX
2x 8-pin 12V - Accessories:
2 x SATA 6Gb/s cables
1 x Thermal pad for M.2 22110
1 x ASUS Wi-Fi movable antennas
1 x Cable ties pack
1 x M.2 Q-Latch pack
2 x M.2 Q-Slides
1 x ROG keychain
1 x ROG Strix stickers
5 x M.2 rubber packages
1 x Quick start guide
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
305 mm
|
|
Width
|
244 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD X870E
|
|
Dual BIOS
|
No
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
8400 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Cooling
|
|
|
M.2 Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
2
|
|
USB 3.0 (internal) Possible Ports
|
4
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 3x2 (external) Type C
|
2
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
5
|
|
USB 3.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
M.2 PCIe 5.0 x4
|
3
|
|
M.2 E-Key
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
2
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x4 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC4080
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Product Series
|
|
|
Product Series/Family
|
ROG Strix
|
