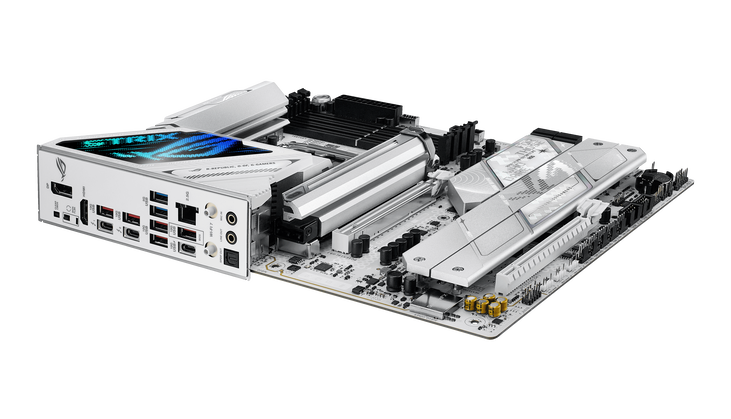

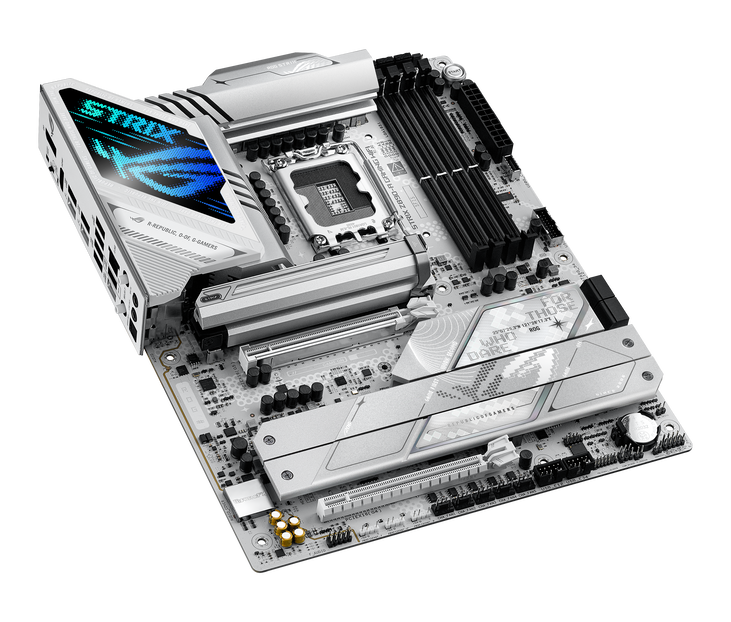

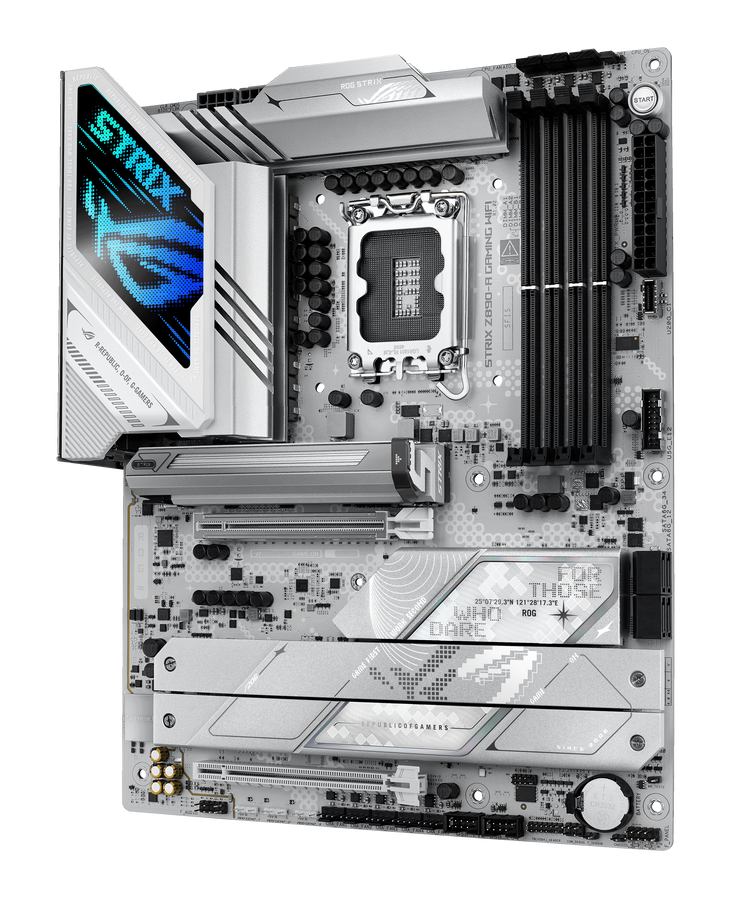

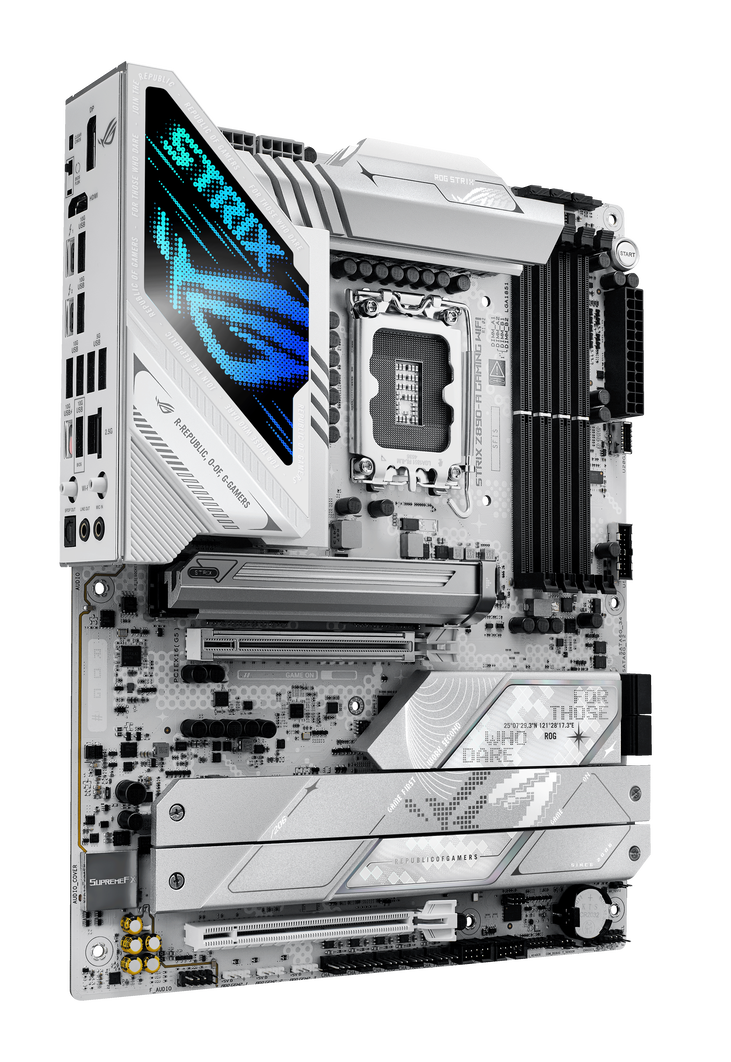

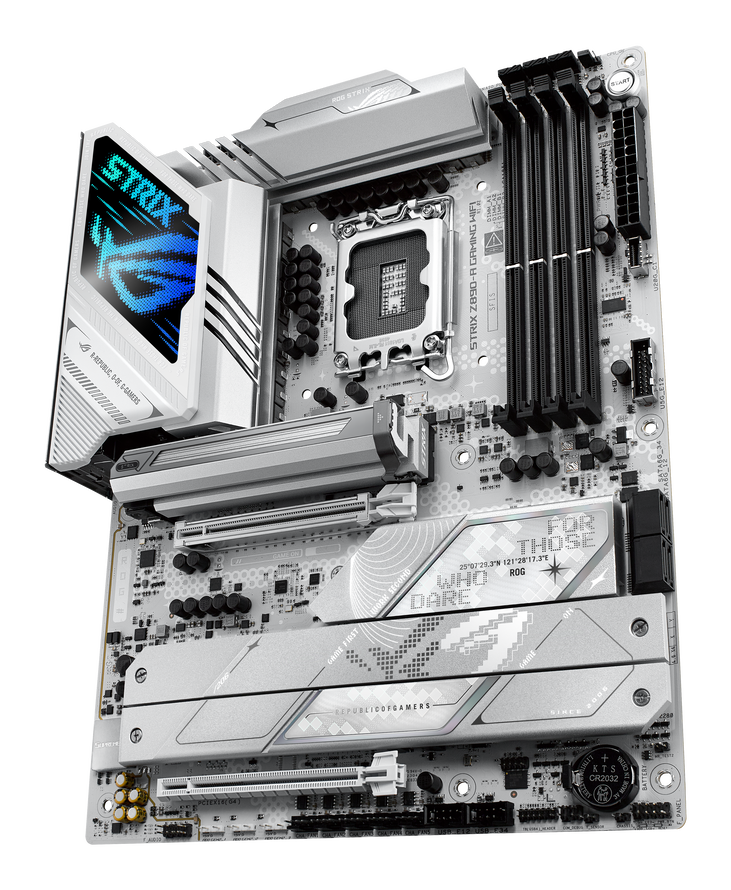

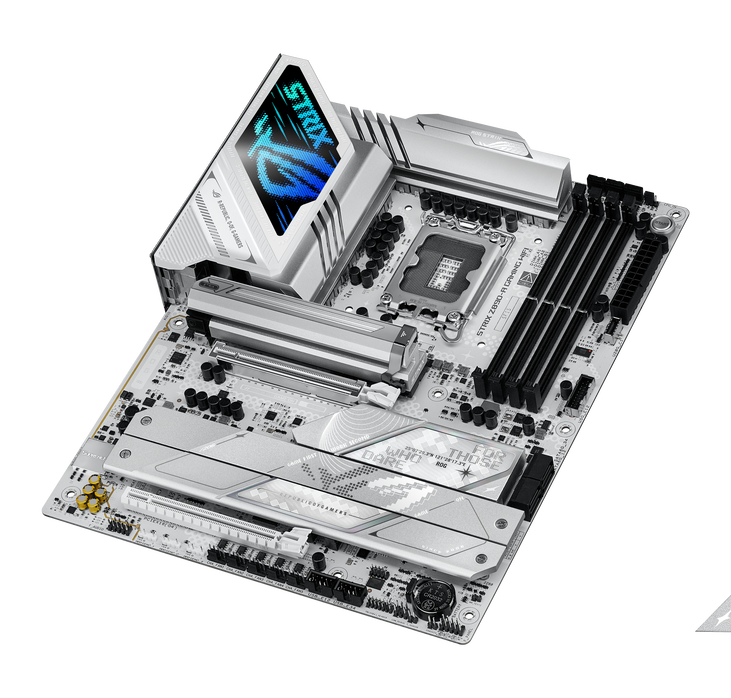

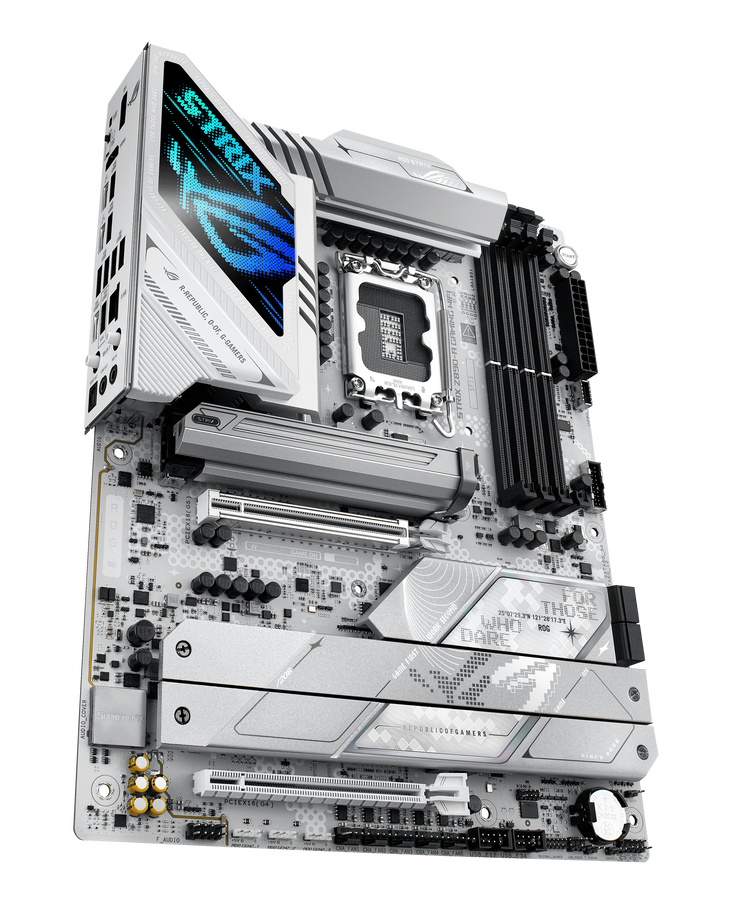

ASUS ROG Strix Z890-A Gaming WiFi motherboard, socket LGA 1851, Intel Z890, ATX, DDR5
ATX motherboard with Intel Z890 chipset, 1x PCIe 5.0 x16 / 1x PCIe 4.0 x4, 2x USB4 / 5x USB 3.1 / 1x USB 3.1 Type-C / 4x USB 3.0 / 1x USB 3.2 Type-C / 4x USB 2.0, 5x M.2 (2x PCIe 5.0, 1x PCIe 4.0, 1x PCIe 3.0) / 4x SATA 6G, 8x 4-pin PWM connectors
459,00 €
incl. VAT
, add. delivery costs starting from 4.99€
This motherboard is excellent for high-end builds.
- 1x PCIe 5.0 x16 and 1x PCIe 4.0 x16 (x4)
- 4x DIMM slots for a maximum of 192 GB DDR5 RAM up to 8000 MHz (XMP 3.0 & CUDIMM Support)
- 5x M.2 (including 1x PCIe 5.0, 3x PCIe 4.0 and 1x PCIe 4.0 & SATA) / 4x SATA 6G
- USB on the I/O panel: 2x USB4, 1x USB 3.1 Type-C, 5x USB 3.1 and 2x USB 3.0
- OC features: 16+1+2+2 phase VRMs, CMOS Reset, Digi+, BIOS Flashback
- A total of 8x 4-pin connectors for fans & pumps
ASUS ROG STRIX Z890-A GAMING WIFI: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASUS ROG STRIX Z890-A GAMING WIFI is an ATX motherboard with the high-end chipset Intel Z890 and the LGA 1851 socket. It supports Intel Core Ultra processors of the second generation with the codename Arrow Lake. The Intel Z890 motherboard natively supports USB4, which offers data transfer rates of up to 40 Gbit/s. Furthermore, the ASUS ROG STRIX Z890-A GAMING WIFI impresses with full PCIe 5.0 connectivity, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
Ready for gaming
The ASUS ROG STRIX Z890-A GAMING WIFI is designed for high-end gaming, allowing you to enjoy demanding games without interruptions. The high-quality voltage regulators provide stable power to the CPU, ensuring high clock rates over extended periods. With features like BIOS Flashback and Clear CMOS, you can easily restore the PC if something goes wrong. Additionally, the DDR5 RAM can also be fully exploited at higher clock rates to extract maximum performance from your system.
- Form factor:
ATX (305 x 244 mm) - Chipset:
Intel Z890 - Socket:
LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation) - RAM:
4x DDR5 DIMM (up to 8000 MHz via XMP / OC / CUDIMM)
Dual-Channel
Max. 192 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16, CPU)
1x PCIe 4.0 x4 (electrical x4, chipset) - Maximum usable PCIe lanes in total: 44
- Internal connections:
4x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280 / 22110, CPU)
1x M.2 (PCIe 4.0 x4; 2280, CPU)
1x M.2 (PCIe 4.0 x4; 2280, chipset)
1x M.2 (PCIe 4.0 x4; 2280 / 22110, chipset)
1x M.2 (PCIe 4.0 x4 & SATA; 2242 / 2260 / 2280, chipset)
1x USB-C (1 Header, USB 3.2 Gen 2x2, max. 20 Gbit/s)
2x USB 3.0 (1 Header, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (2 Header, max. 480 Mbit/s)
1x Front Panel Audio Header
1x 10-1-Pin System Panel Header
1x FlexKey Button
1x Start Button
- Fan headers:
1x CPU-Fan (4-Pin)
1x CPU OPT-Fan (4-Pin)
1x W_PUMP+ Header
5x Case fans (4-Pin) - RGB headers:
2x 3-Pin ARGB (5 V) - External connections:

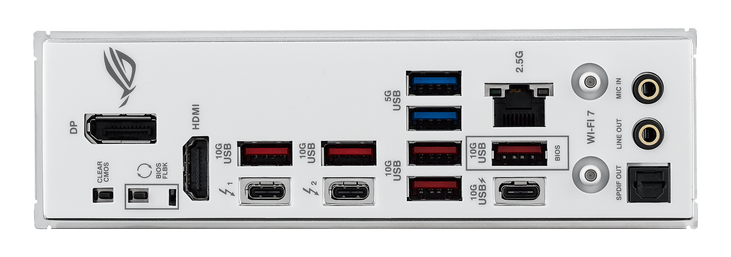

2x Thunderbolt 4 (USB-C)
5x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
1x USB 3.1 (Type C, USB 3.2 Gen 2, PD/PPD 30 W, max. 10 Gbit/s)
2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x DisplayPort
1x HDMI
1x 2.5 Gigabit LAN (Intel)
1x WiFi/Bluetooth module
2x 3.5 mm jack (Realtek ALC 4080)
1x S/PDIF Audio - Power supply:
1x 24-Pin ATX
2x 8-Pin ATX12V - Accessories:
2x SATA 6Gb/s cables
1 x thermal pad for M.2 22110

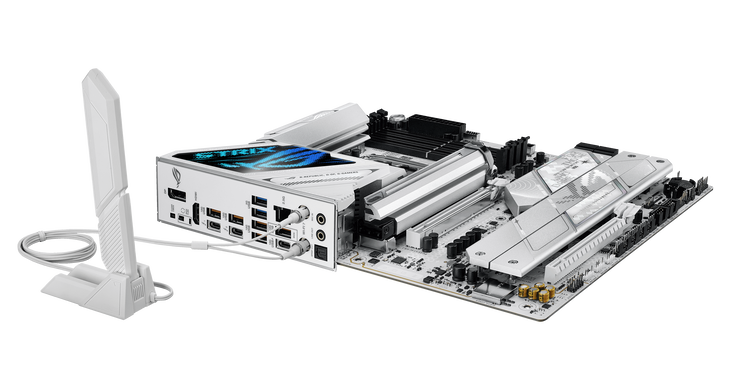

1 x ASUS WiFi Q antenna
1 x cable tie package
1 x M.2 Q-Latch package
1 x ROG keychain
1 x ROG Strix sticker
2 x M.2 rubber packages
1 x quick start guide
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
244 mm
|
|
Width
|
305 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Dual BIOS
|
No
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
8000 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
Intel XMP 3.0
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
3x RGB (4-Pin 5050 12VGRB)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
No
|
|
External Ports
|
|
|
USB4 Gen 3x2 (external) Type C
|
2
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
5
|
|
USB 3.0 (external) Type A
|
2
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
3
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x4 slots (total)
|
1
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x4 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC4080
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Compatibility
|
ASUS Aura Sync
|
|
Product Series
|
|
|
Product Series/Family
|
ROG Strix
|
