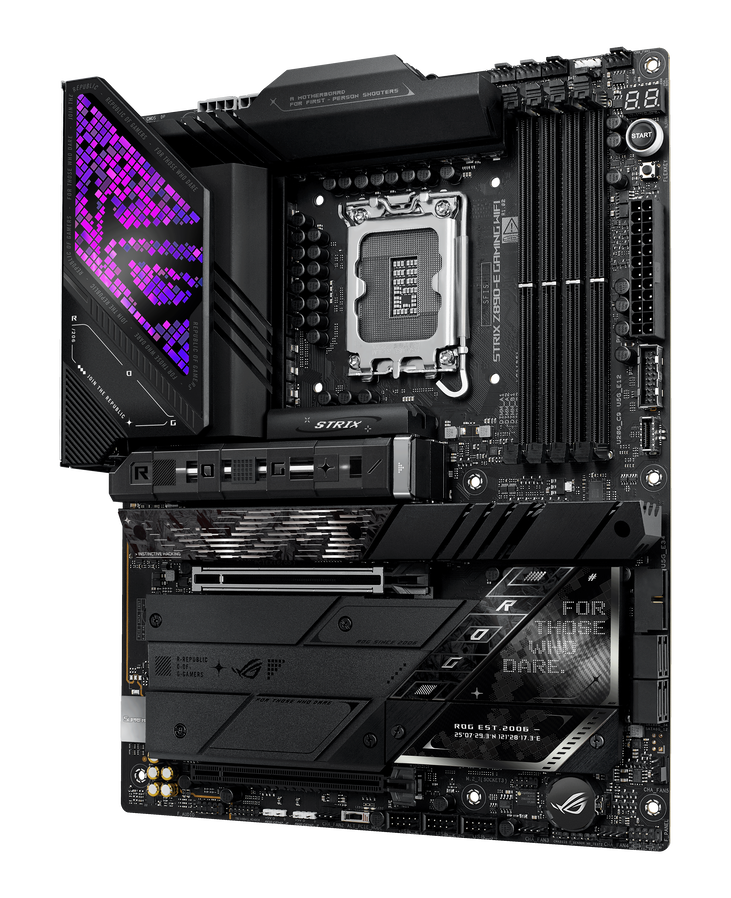

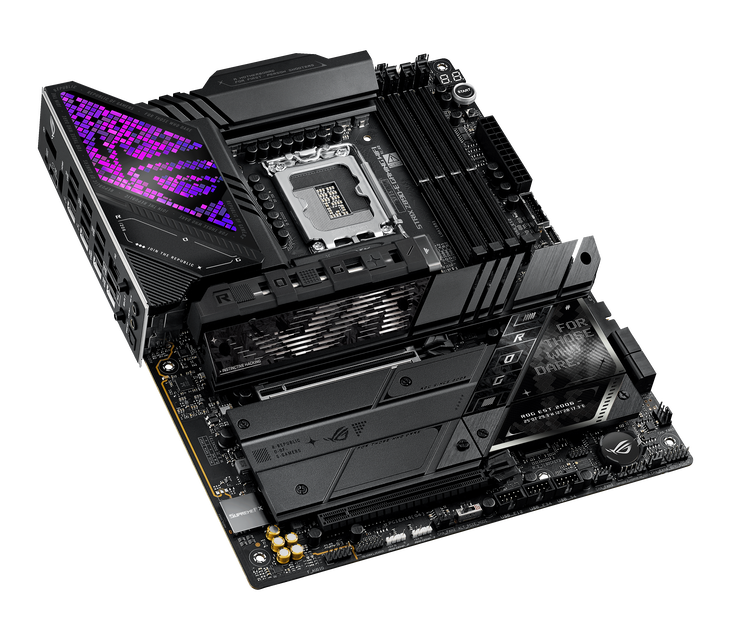

ASUS ROG Strix Z890-E Gaming WiFi motherboard, socket LGA 1851, Intel Z890, ATX, DDR5
ATX motherboard with Intel Z890 chipset, 2x PCIe 5.0 x16 / 2x PCIe 4.0 x4, 2x USB4 / 7x USB 3.1 / 2x USB 3.1 Type-C / 7x USB 3.0 / 1x USB 3.2 Type-C / 6x USB 2.0, 7x M.2 (3x PCIe 5.0, 3x PCIe 4.0, 1x PCIe 4.0 & SATA) / 4x SATA 6G, 8x 4-Pin PWM connectors
541,03 €
incl. VAT
, add. delivery costs starting from 4.99€
This motherboard is excellent for high-end builds.
- 1x PCIe 5.0 x16 (x16 or x8/x4/x4) and 1x PCIe 4.0 x16 (x4)
- 4x DIMM slots for max. 192 GB DDR5 RAM up to 8800 MHz (XMP 3.0 & CUDIMM Support)
- 7x M.2 (of which 3x PCIe 5.0 / 3x PCIe 4.0 and 1x PCIe 4.0 & SATA) / 4x SATA 6G
- USB on the I/O panel: 2x USB4, 7x USB 3.1, 1x USB 3.1 Type-C, 1x USB 3.1 Type-C (PD 30W) and 3x USB 3.0
- OC features: 18+1+2+2 phase VRMs, CMOS Reset, BIOS Flashback
- A total of 8x 4-pin connectors for fans & pumps

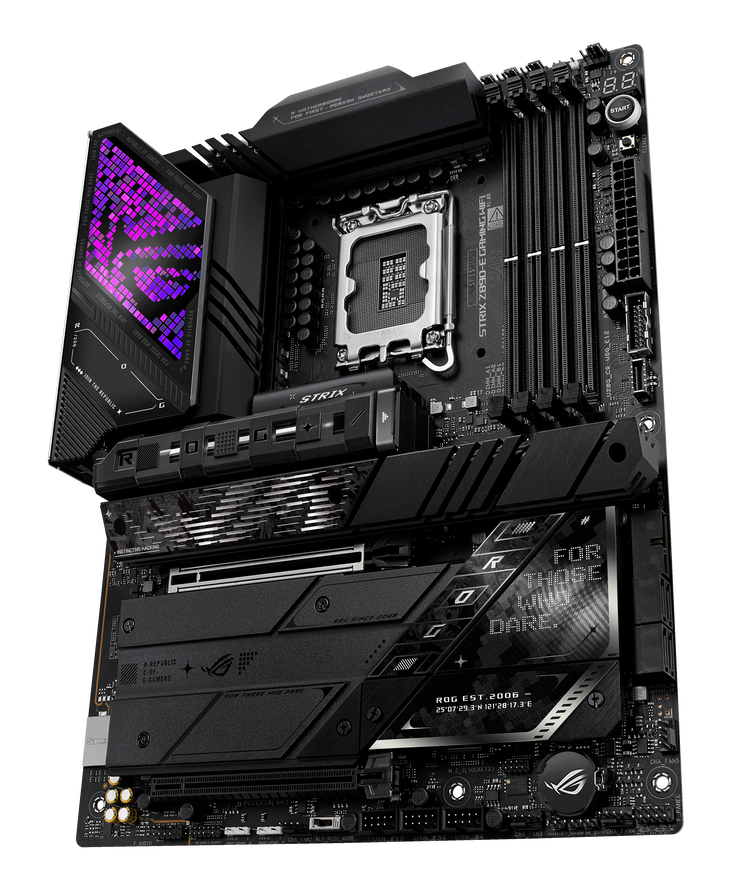

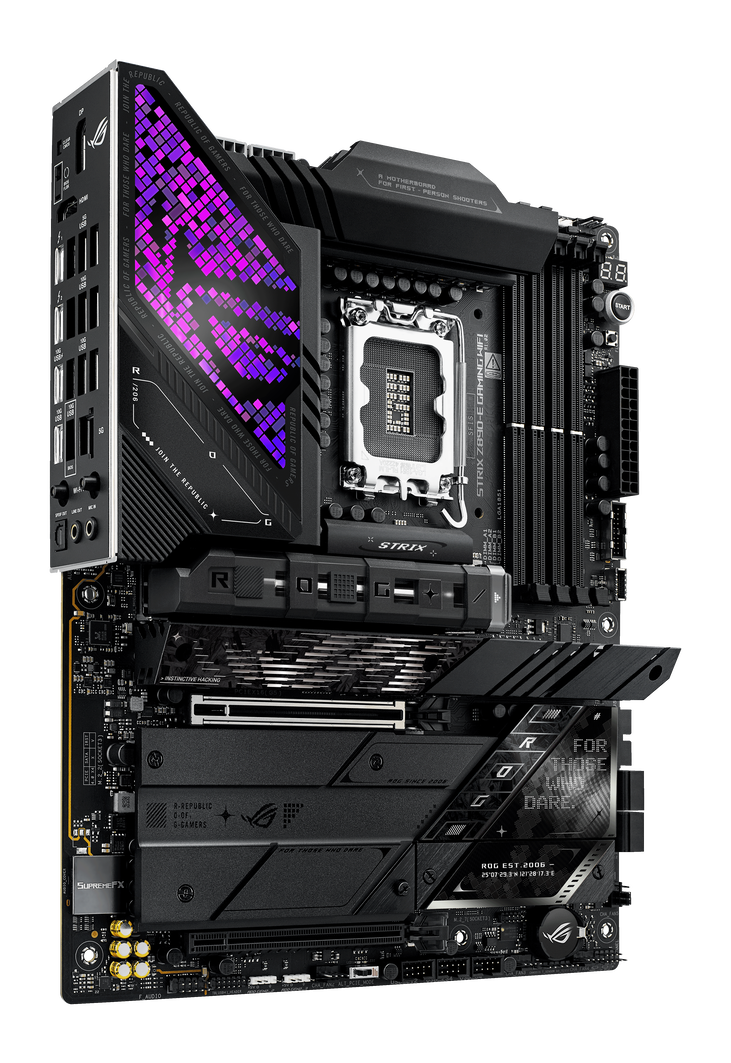

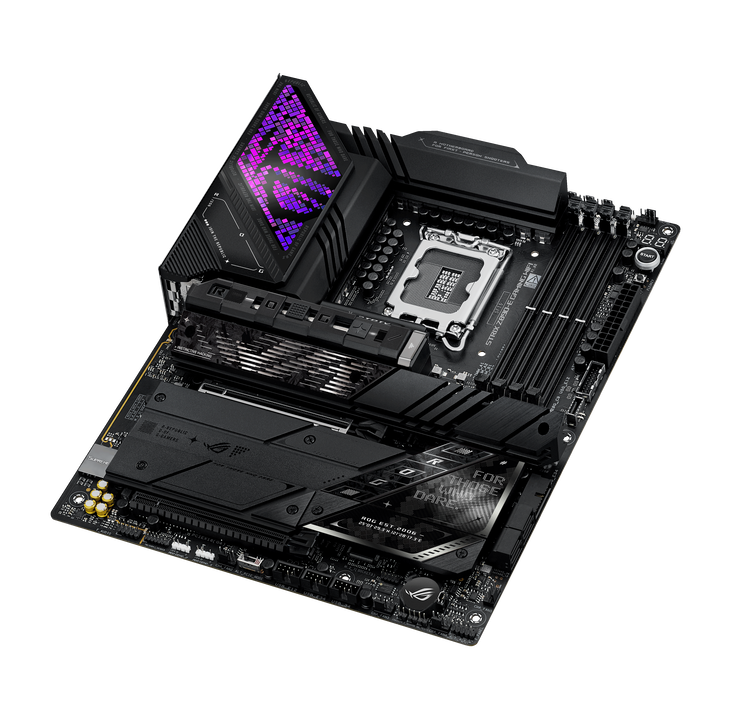

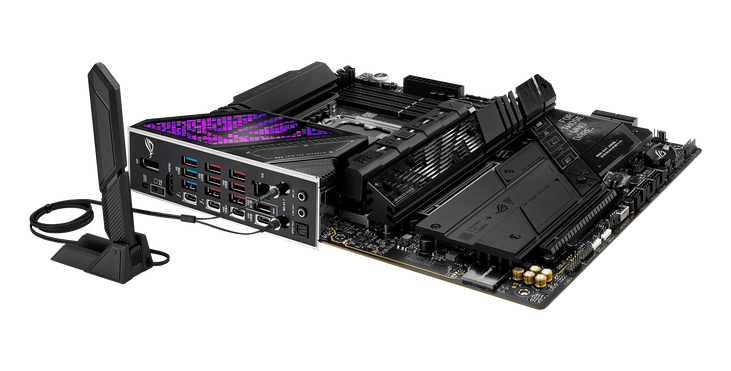

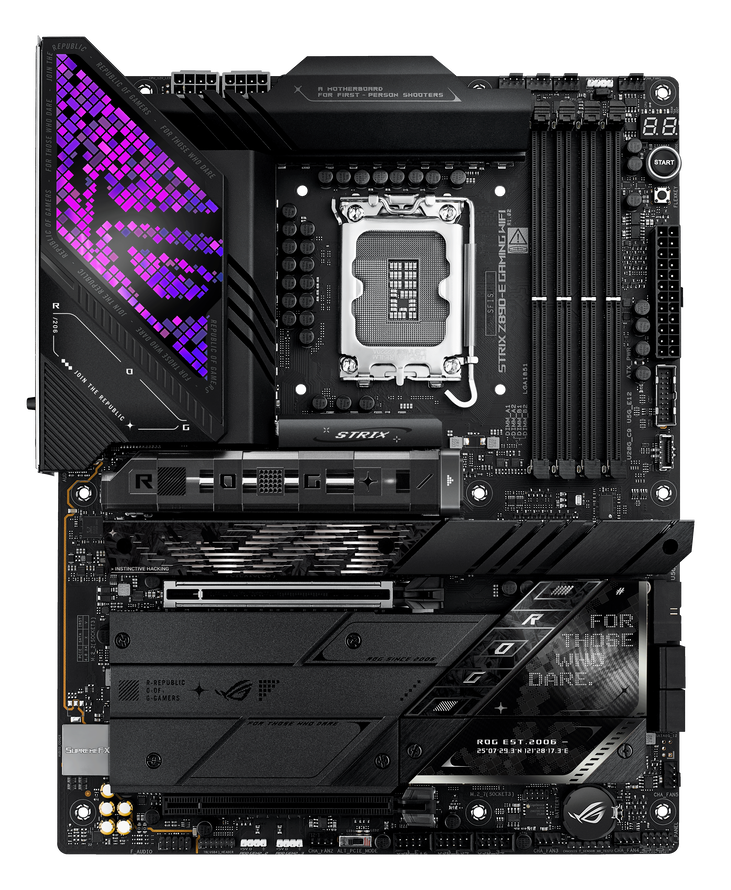

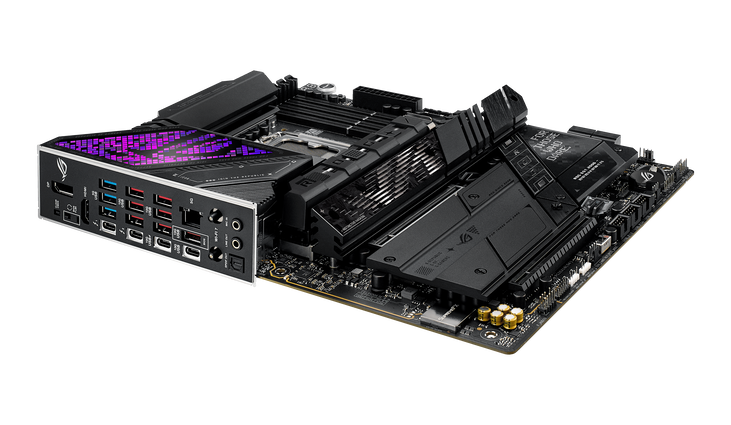

ASUS ROG STRIX Z890-E GAMING WIFI: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASUS ROG STRIX Z890-E GAMING WIFI is an ATX motherboard featuring the high-end Intel Z890 chipset and the LGA 1851 socket. It supports Intel Core Ultra processors of the second generation with the codename Arrow Lake. The Intel Z890 motherboard natively supports USB4, which offers data transfer rates of up to 40 Gbit/s. Furthermore, the ASUS ROG STRIX Z890-E GAMING WIFI impresses with full PCIe 5.0 connectivity, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
Designed for gaming
The ASUS ROG STRIX Z890-E GAMING WIFI is geared towards high-end gaming, allowing you to enjoy demanding games smoothly. The high-quality voltage regulators provide stable power supply to the CPU, ensuring its high clock rates over extended periods. Additionally, features like BIOS Flashback and Clear CMOS are included, enabling you to use the PC again if something goes wrong. As usual, DDR5 RAM can also be pushed to higher clock rates.
- Form factor:
ATX (305 x 244 mm) - Chipset:
Intel Z890 - Socket:
LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation) - RAM:
4x DDR5 DIMM (up to 8800 MHz via XMP / OC / CUDIMM)
Dual-Channel
Max. 192 GB - Slots (physical):
1x PCIe 5.0 x16 (electrical x16 or x8/x4/x4)
1x PCIe 4.0 x4 (electrical x4) - Total maximum usable PCIe lanes: 44
- Internal connections:
4x SATA 6G (max.)
1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280 / 22110, CPU)
1x M.2 (PCIe 4.0 x4; 2280, CPU)
2x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280, CPU)
2x M.2 (PCIe 4.0 x4; 2280, chipset)
1x M.2 (PCIe 4.0 x4 & SATA; 2242 / 2260 / 2280, chipset)
1x USB-C (1 header, USB 3.2 Gen 2x2, max. 20 Gbit/s)
4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
6x USB 2.0 (3 headers, max. 480 Mbit/s)
1x Front Panel Audio Header
1x 10-1-Pin System Panel Header
1x FlexKey Button
1x Start Button
1x Thermal Sensor Header
- Fan headers:
1x CPU-Fan (4-Pin)
1x CPU OPT-Fan (4-Pin)
1x W_PUMP+ Header
5x Case fans (4-Pin)
- RGB headers:
3x 3-Pin ARGB (5 V) - External connections:

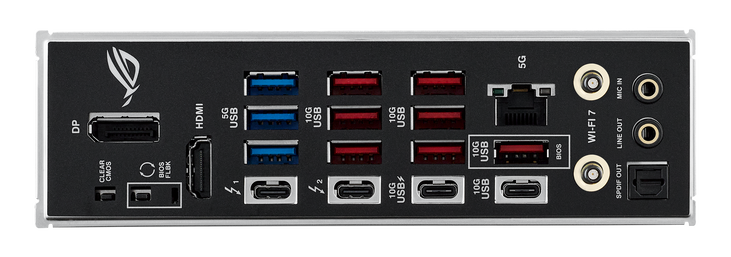

2x USB4 (Type C, USB4 Gen 3x2, max. 40 Gbit/s with DisplayPort)
7x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
1x USB 3.1 (Type C, USB 3.2 Gen 2, PD 30 W, max. 10 Gbit/s)
3x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x DisplayPort
1x HDMI
1x 5 Gigabit LAN (Realtek)
1x WiFi/Bluetooth module
2x 3.5 mm jack (Realtek ALC 4080)
1x S/PDIF Out Audio
1x BIOS Flashback
1x Clear CMOS - Power supply:
1x 24-Pin ATX

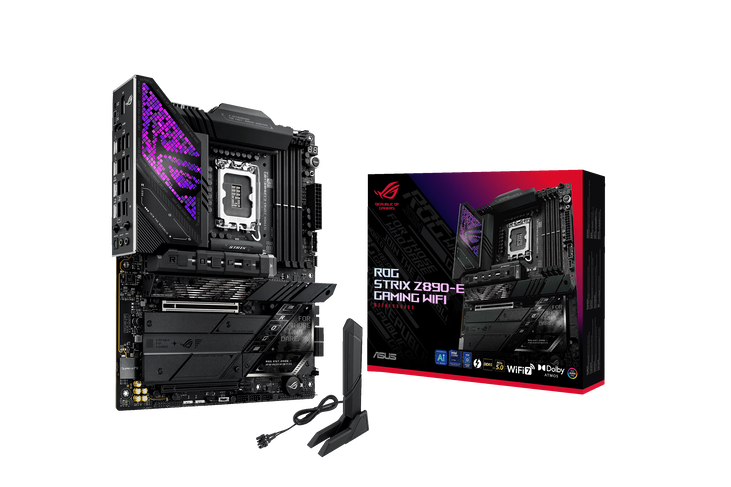

2x 8-Pin ATX12V - Accessories:
2 x SATA 6Gb/s cables
1 x thermal pad for M.2 22110
1 x ASUS Wi-Fi Q antenna
1 x pack of cable ties
1 x M.2 Q-Latch package
2 x M.2 Q-Slides
1 x ROG keychain
1 x ROG Strix sticker
7 x M.2 rubber buffers
1 x quick start guide
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
305 mm
|
|
Width
|
244 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Dual BIOS
|
No
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
8800 MT/s
|
|
EEC Support
|
No
|
|
Memory slots
|
4x
|
|
Performance Profile
|
Intel XMP 3.0
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
2
|
|
USB 3.0 (internal) Possible Ports
|
4
|
|
USB 2.0 (internal) Header
|
3
|
|
USB 2.0 (internal) Possible Ports
|
6
|
|
RGB / LED connectors
|
3x RGB (4-Pin 5050 12VGRB)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
No
|
|
External Ports
|
|
|
USB4 Gen 3x2 (external) Type C
|
2
|
|
USB 3.1 (external) Type C
|
2
|
|
USB 3.1 (external) Type A
|
7
|
|
USB 3.0 (external) Type A
|
3
|
|
Display Connectors
|
Display Port (1x), HDMI (1x), USB Type C (Display Port shared) (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
3
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
M.2 PCIe 5.0 x4
|
3
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
2
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x4 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC4080
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Compatibility
|
ASUS Aura Sync
|
|
Product Series
|
|
|
Product Series/Family
|
ROG Strix
|
