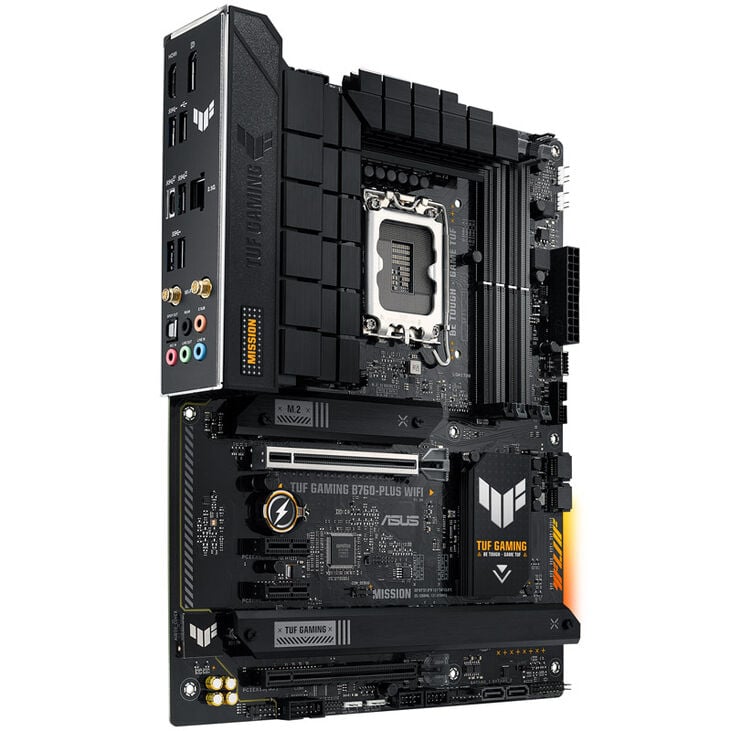

ASUS TUF Gaming B760-Plus WIFI motherboard, socket 1700, Intel B760, ATX, DDR5
ATX motherboard with Intel B760 chipset, socket: Intel 1700, PCIe 5.0 for graphics cards, suitable for DDR5 RAM, 3x M.2 PCIe 4.0 SSDs, 2.5 Gbit LAN & WLAN & Bluetooth 5.2
161,49 €
incl. VAT
, add. delivery costs starting from 4.99€
- 1x PCIe 5.0 x16 (x16), 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1
- DDR5 memory up to 5,600 MHz, with RAM OC up to 7,200 MHz
- 3x M.2 slots, all 3x PCIe 4.0

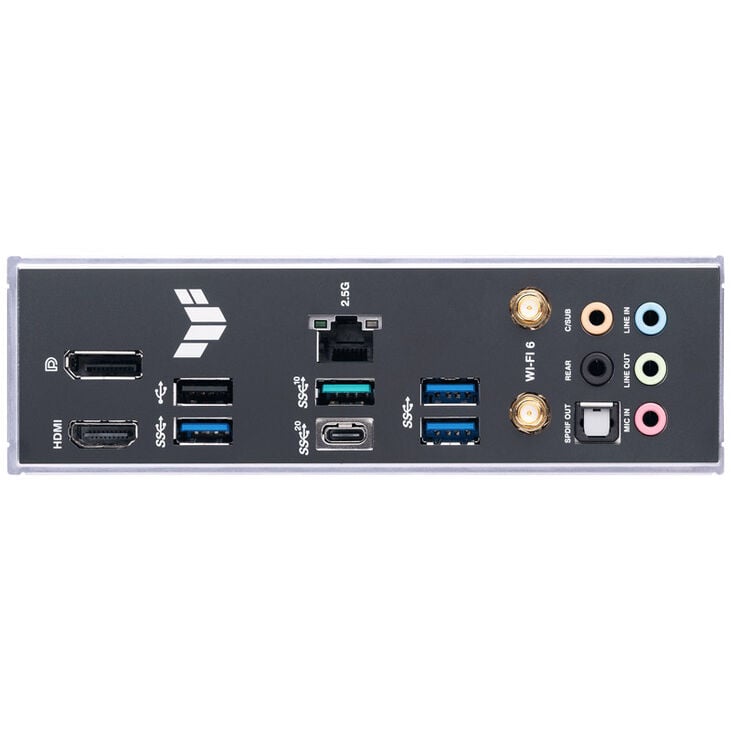

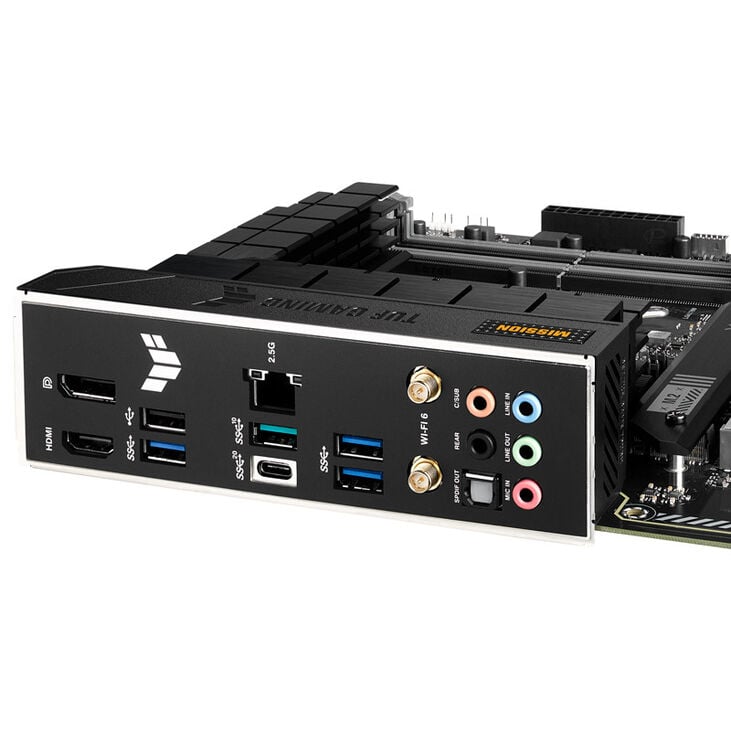

- USB on the I/O panel: 1x USB-C 3.2, 1x USB-A 3.1, 3x USB-A 3.0 and 1x USB-A 2.0
- A total of 7 connections for fans and pumps

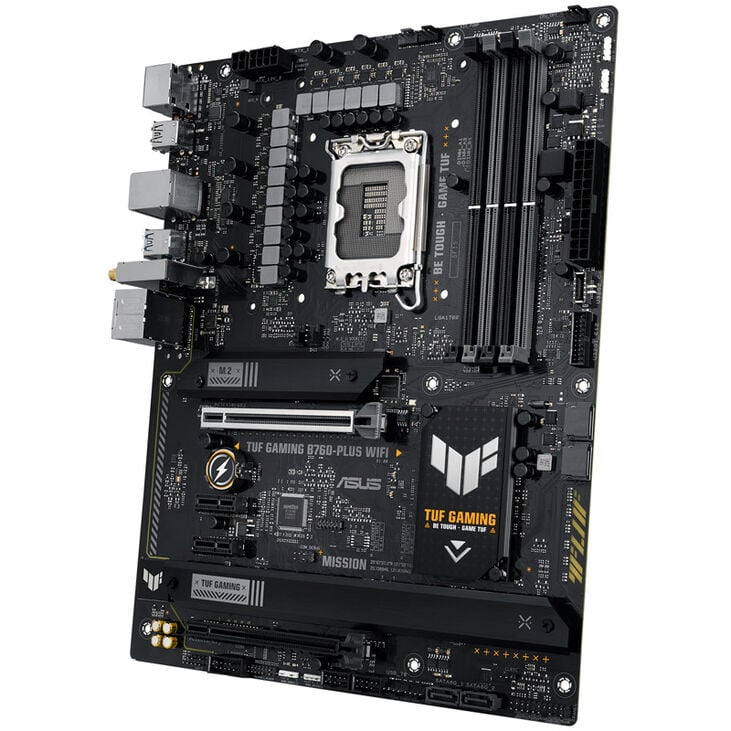

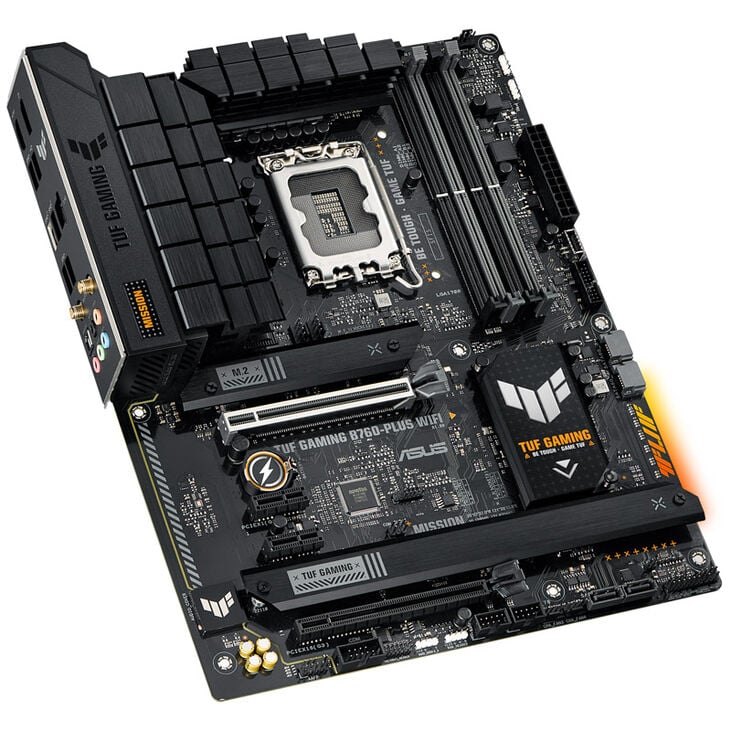

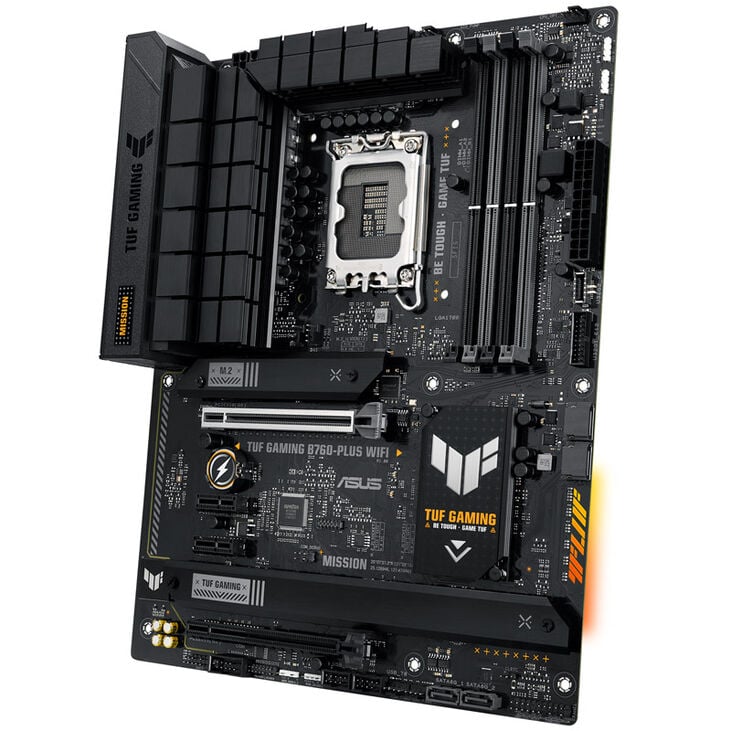

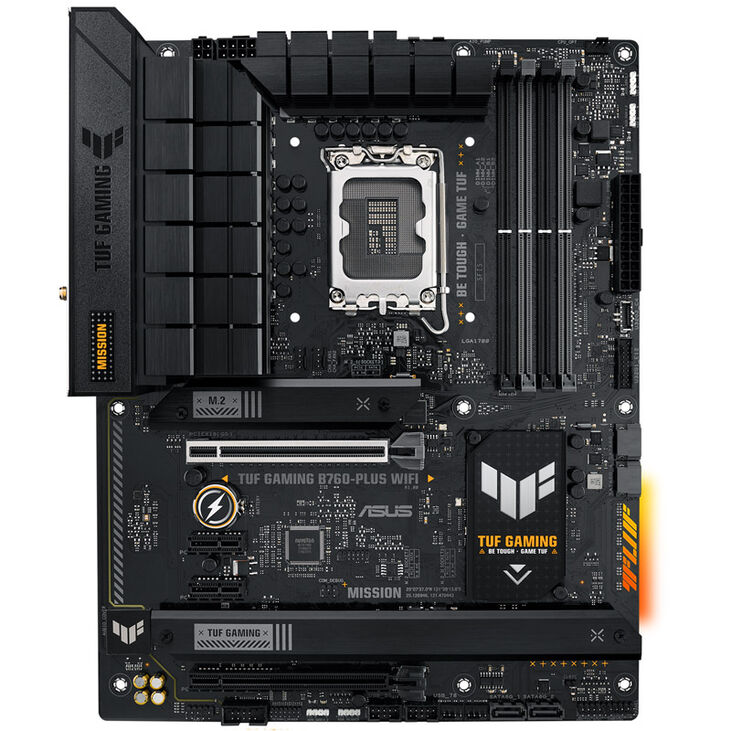

The ATX motherboard ASUS TUF Gaming B760-Plus WiFi with Intel B760 chipset in detail
The ASUS TUF Gaming B760-Plus WiFi is an ATX motherboard featuring the Intel B760 chipset and LGA 1700 socket. The mainboard is suitable for desktop processors of the 12th, 13th, and 14th generation Intel Core CPUs, Codename: Alder Lake and Raptor Lake. It supports DDR5 memory with speeds of up to 7,200 MHz and is particularly well-suited for RAM overclocking due to its excellent power delivery.
Note: This motherboard supports memory with the DDR5 standard. LGA 1700 motherboards with DDR4 compatibility can be found at the following link:
For optimal processor performance, it is recommended to regularly perform BIOS updates for the motherboard. This is especially important for motherboards that may have been shipped with an early BIOS version by the manufacturer.
Our King Mod Service is happy to perform a BIOS update to the latest version in advance:
Our King Mod Service is happy to perform a BIOS update to the latest version in advance:
Please note that this may delay the shipping preparation by 1 to 4 working days!
More information on Intel Alder Lake and Raptor Lake, as well as the Core processors of the 12th, 13th, and 14th generations, can be found at the following link:|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Grey, Silver
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Socket
|
1700
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel B760
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
External Ports
|
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
1
|
|
USB 3.0 (external) Type A
|
3
|
|
Display Connectors
|
Display Port (1x), HDMI (1x), Thunderbolt 4 (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
3
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
2
|
|
PCIe x1 slots (total)
|
2
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x1 mechanical slot
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
7
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
