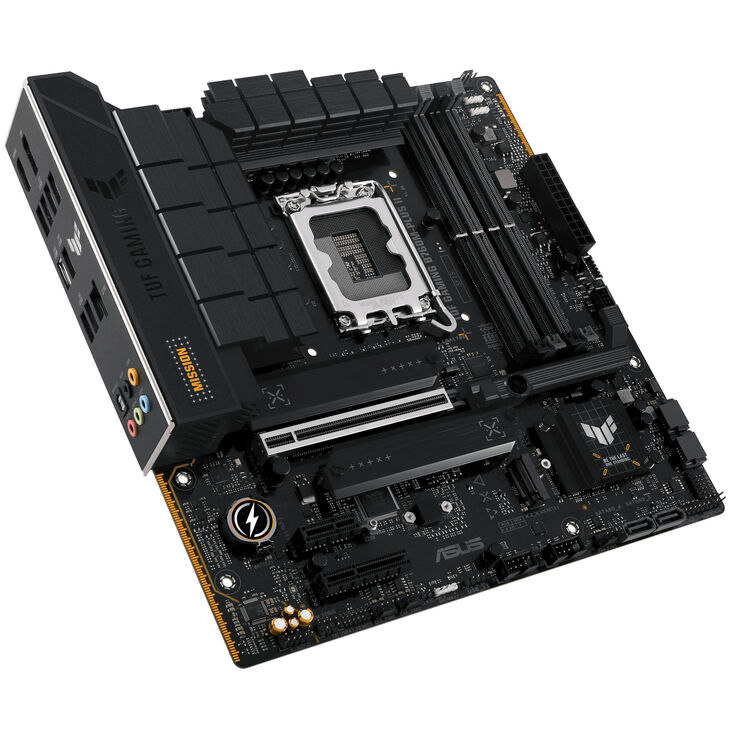

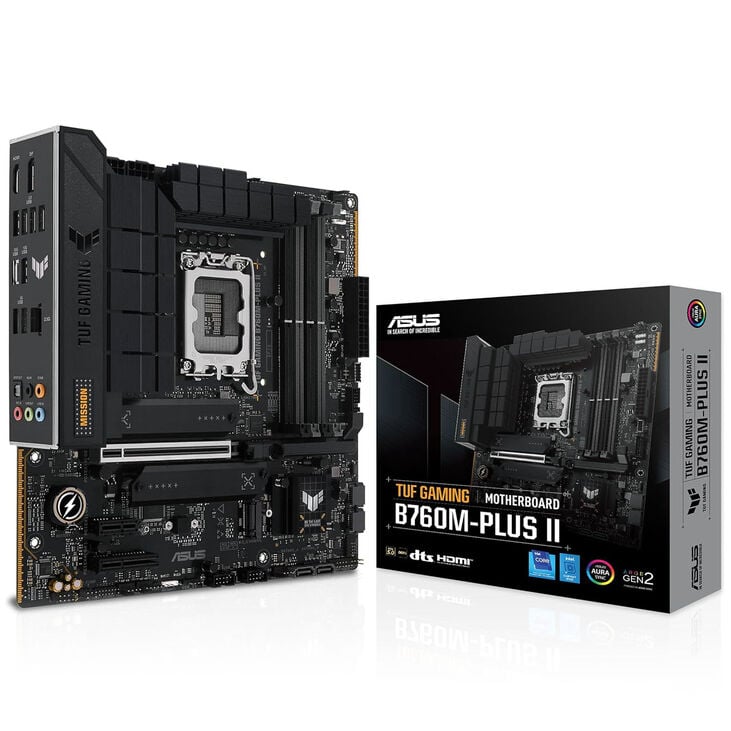

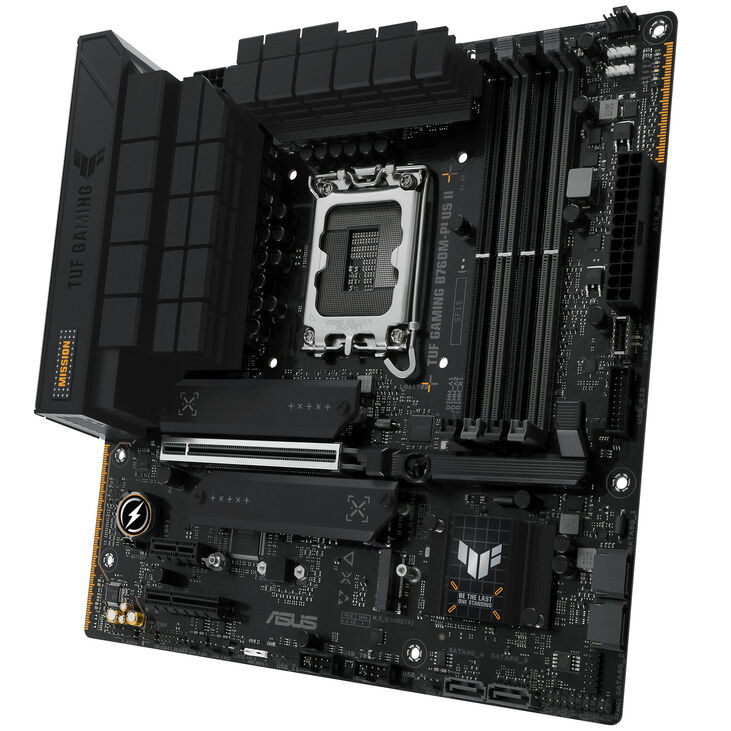

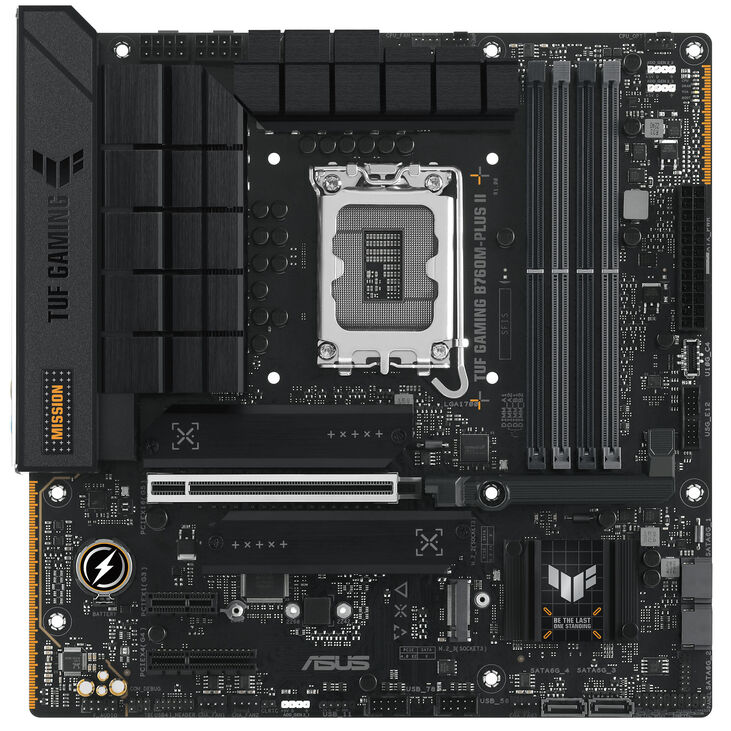

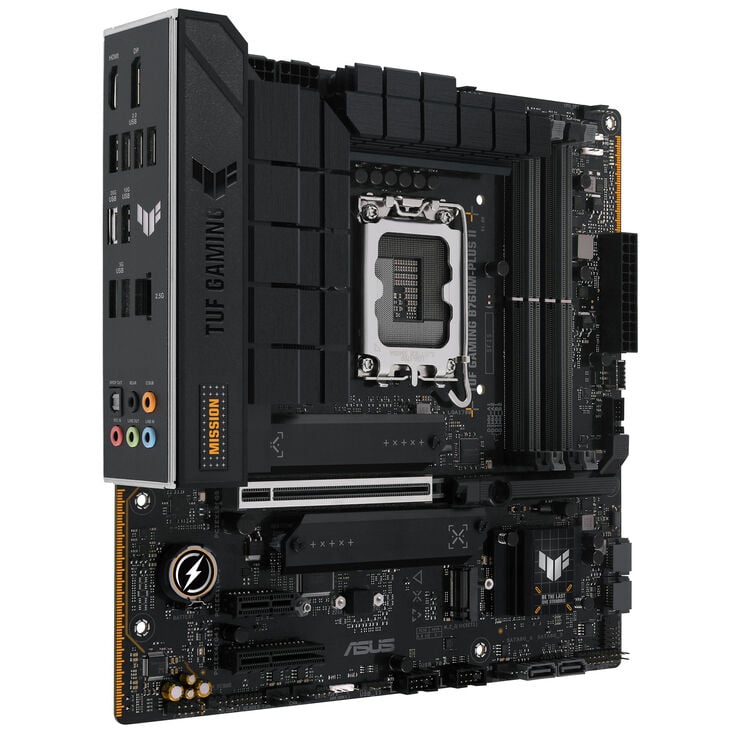

ASUS TUF GAMING B760M-PLUS II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
187,46 €
incl. VAT
, add. delivery costs starting from 4.99€
- Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- PC micro ATX Intel B760 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI 128 Mbit
- 2.5 Gigabit Ethernet
TUF GAMING B760M-PLUS II takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
INTELLIGENT CONTROL
The TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.
All-Around Energy Efficiency
The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Colour
|
|
Primary Colour
|
Black
|
Form Factor
|
|
Motherboard formfactor
|
Micro-ATX
|
CPU
|
|
CPU Manufacturer
|
Intel
|
CPU Socket
|
1700
|
Motherboard
|
|
Motherboard Chipset
|
Intel B760
|
Memory
|
|
Max. Memory
|
192 GB
|
Memory Type
|
DDR5
|
Memory Form Factor
|
DIMM
|
Max. Memory Speed (Standard)
|
5600 MT/s
|
Max. Memory Speed (OC)
|
7800 MT/s
|
EEC Support
|
No
|
Memory slots
|
4x
|
Performance Profile
|
Intel XMP
|
Wi-Fi & LAN
|
|
LAN
|
Yes
|
LAN Ports
|
1x 2.5 Gbit/s
|
Wi-Fi / Bluetooth
|
No
|
Cooling
|
|
M.2 Heatsinks
|
Yes
|
VRM Heatsinks
|
Yes
|
Water Cooling
|
|
Watercooling
|
No
|
Internal Ports
|
|
CPU Power Supply
|
2x 8-Pin
|
USB4 (internal) Header
|
1
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
USB 3.0 (internal) Header
|
1
|
USB 3.0 (internal) Possible Ports
|
2
|
USB 2.0 (internal) Header
|
3
|
USB 2.0 (internal) Possible Ports
|
5
|
RGB / LED connectors
|
3x Digital RGB (3-Pin 5VDG)
|
Front Panel Audio Header
|
Yes
|

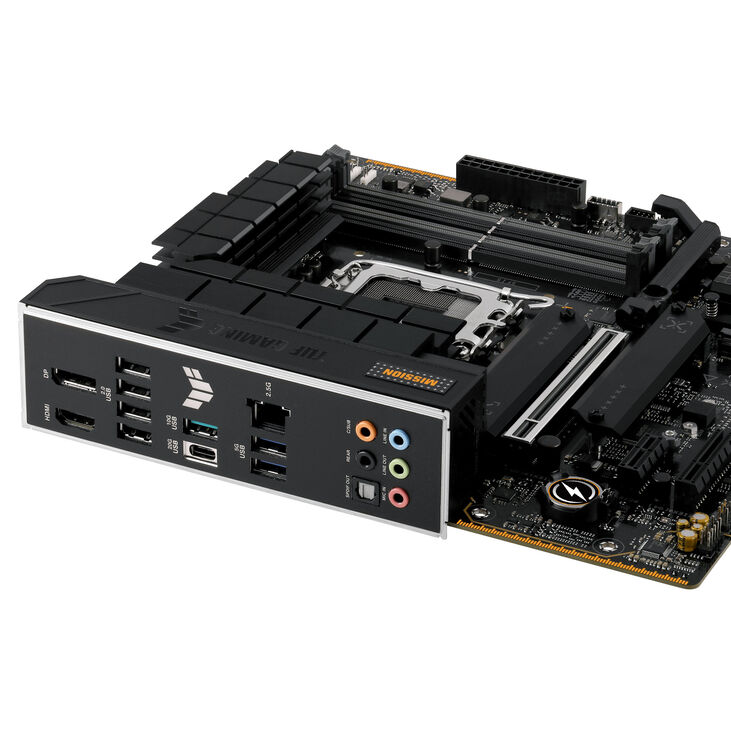

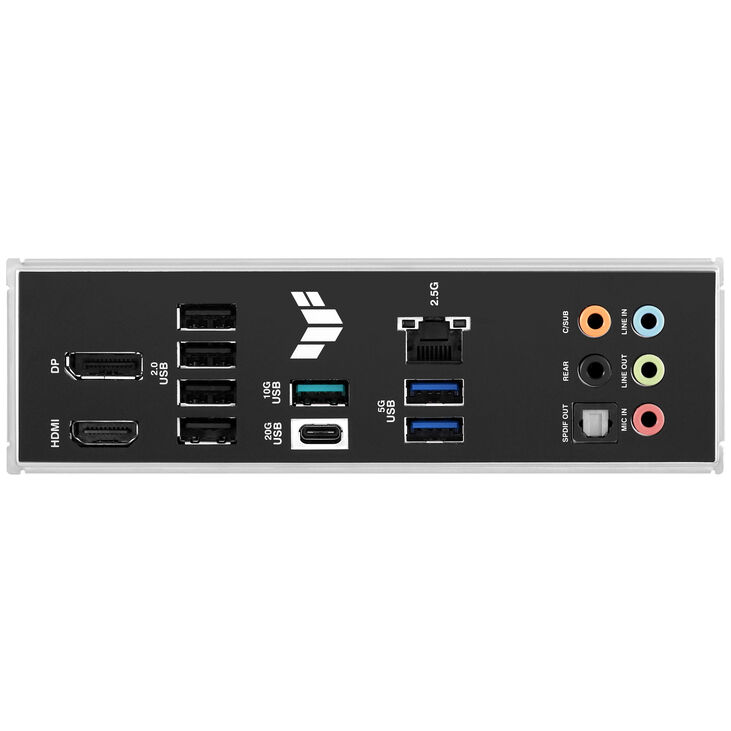

External Ports
|
|
USB 3.2 (external) Type C
|
1
|
USB 3.1 (external) Type A
|
1
|
USB 3.0 (external) Type A
|
2
|
USB 2.0 (external) Type A
|
4
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
Storage Ports
|
|
M.2 PCIe 4.0 x2
|
1
|
M.2 PCIe 4.0 x4
|
2
|
SATA 6G (internal)
|
4
|
Expansion Slots
|
|
PCIe x16 slots (total)
|
1
|
PCIe x4 slots (total)
|
1
|
PCIe x1 slots (total)
|
1
|
PCIe 5.0 x16 mechanical slot
|
1
|
PCIe 4.0 x4 mechanical slot
|
1
|
PCIe 3.0 x1 mechanical slot
|
1
|
Fan Header
|
|
4 Pin Fan Connectors
|
6
|
Lighting
|
|
Lighting / RGB
|
Yes
|
