AXAGON HMC-U4 USB-C Dock, HDMI + DP, USB 3.2 Gen 2, PD 100W - black

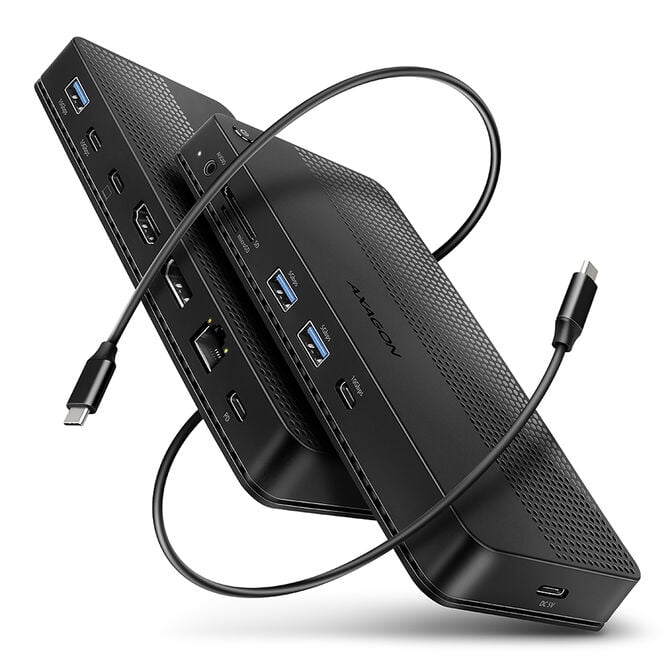

The AXAGON HMC-U4 USB dock is a versatile dock with a connection speed of 40 Gbit/s. From the SD card slot with UHS-II speeds to HDMI and DisplayPort, each supporting 8K at 30 Hz, everything needed is included with the dock from AXAGON. With a total of three USB Type-A ports and two additional USB Type-C sockets, you can easily connect a multitude of USB devices through a single USB-4 port.
There is also plenty of power under the hood for monitors. A single monitor can be operated at up to 8K at 30 Hz, while when both display ports are occupied, one screen can run at 4K at 144 Hz and the second at 4K at 60 Hz. Thus, the dock from AXAGON is also suitable for demanding workloads, especially when using two additional monitors. The overall package is rounded off with a 1-Gigabit RJ45 socket, an SD and microSD card reader, and a TRRS jack with an exceptionally high sampling rate.
- Dimensions: 188 x 20 x 80 mm (W x H x D)
- Colour: Black
- Cable: Detachable, 80 cm
- Connection: USB 4.0 (Thunderbolt 3/4)

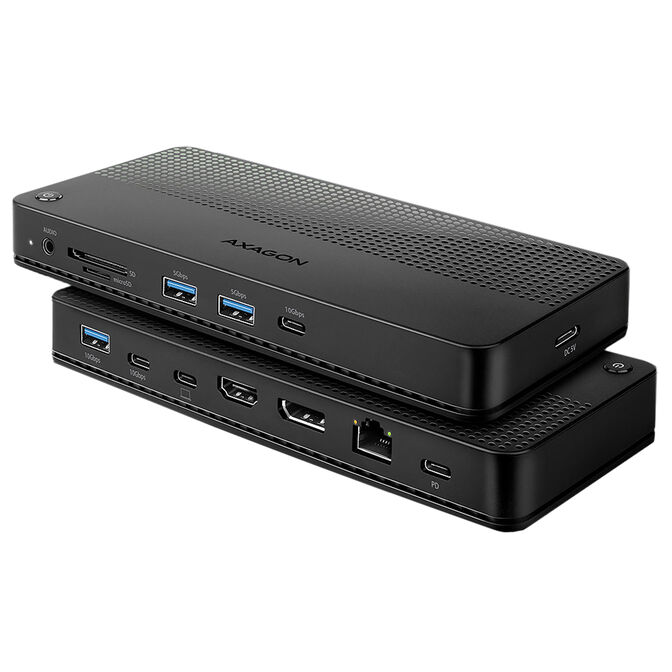

- Ports:
2x USB Type-C 3.1 (10 Gbit/s)
1x USB Type-A 3.1 (10 Gbit/s)
2x USB Type-A 3.0 (5 Gbit/s)
1x HDMI
1x DisplayPort
1x RJ-45
1x SD card reader
1x microSD card reader
1x 3.5 mm jack (TRRS, 4-pole)
1x USB Type-C PD (100 W)
1x USB-C (DC-IN-5V)
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
80 mm
|
|
Width
|
188 mm
|
|
Height
|
20 mm
|
|
Cable Specifications
|
|
|
Cable Type
|
hub
|
|
Standards / Specifications
|
|
|
Standard / specification
|
USB 4.0
|
|
Connectivity
|
|
|
Connector 1 (external)
|
USB 4.0 Type C PLUG
|
|
Cable Length
|
80 cm
|
|
Materials
|
|
|
Materials
|
Plastic
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
| Manufacturer Information | RealQ s.r.o Železná 663/5, 61900 Brno, Tschechien [email protected] |
| Responsible Person | RealQ s.r.o Železná 663/5, 61900 Brno, Tschechien [email protected] |
