PCIe 3.0 adapter for two M.2 SSDs, 1x M.2 NVMe and 1x M.2 SATA SSD, sizes up to 22110, no capacity limit, active cooling with fan, low-profile bracket included
19,90 €
In Stock
Incl. VAT, add. delivery costs starting from 4.99€
In Stock
SKU ZUUS-533 |
EAN 8595247903853 |
MPN PCEM2-DC |
AXAGON

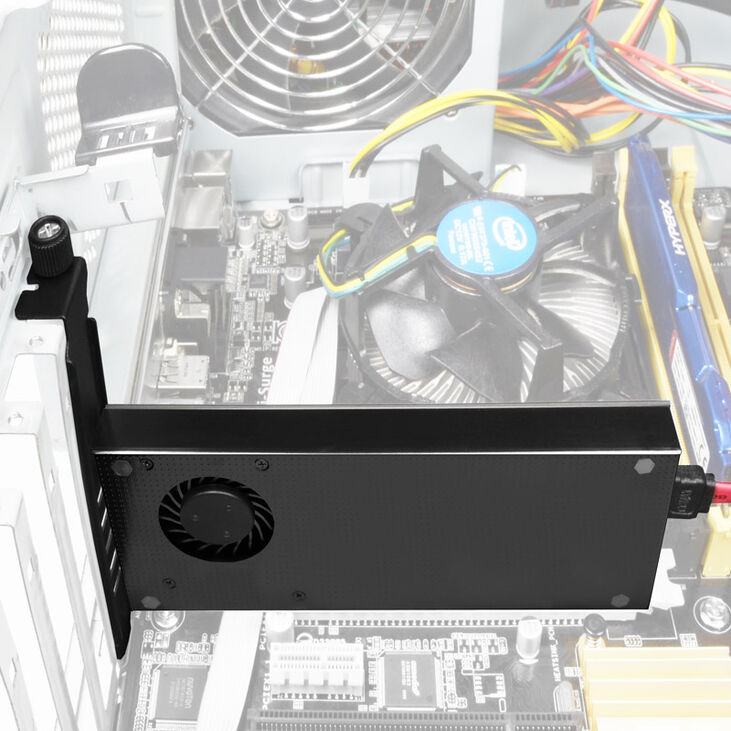

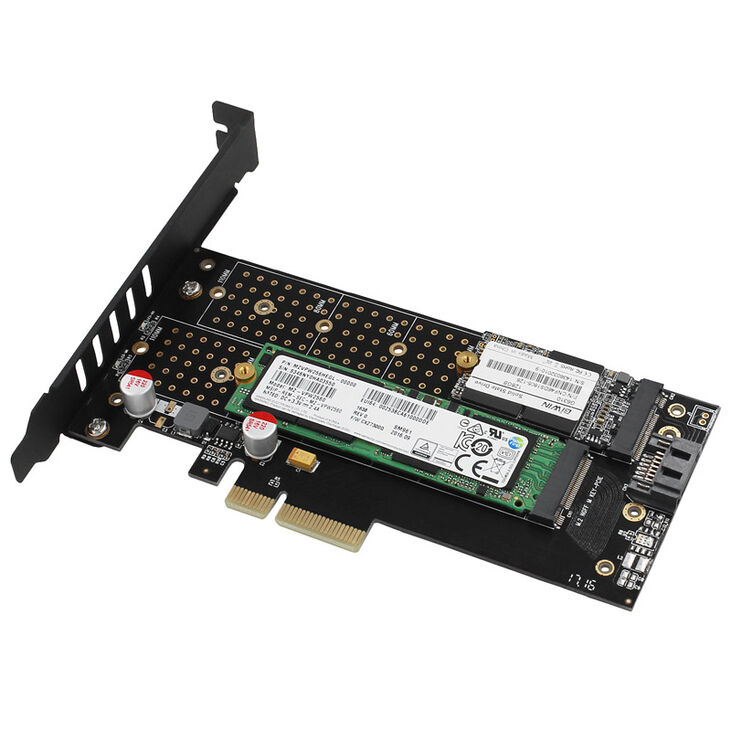

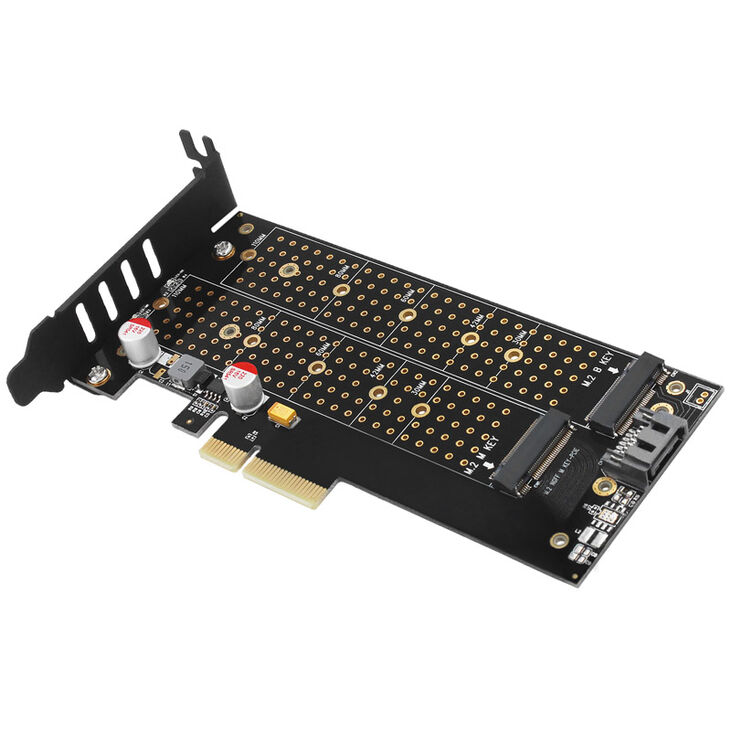

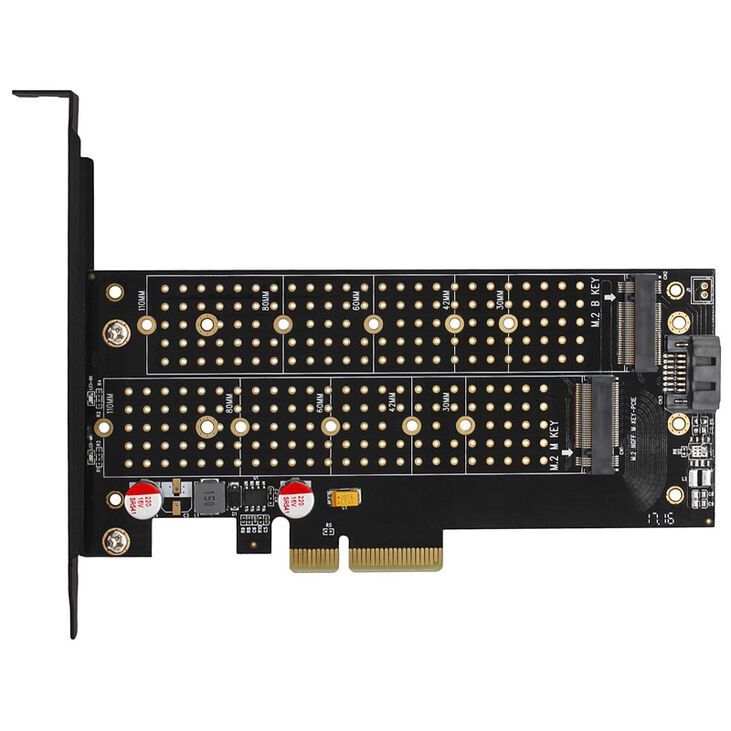

With the PCEM2-DC, AXAGON offers an internal adapter that connects both an NVMe M.2 SSD and a SATA M.2 SSD to the PC via a PCI-Express slot. This is particularly useful if the motherboard does not have a corresponding M.2 slot or if these are already occupied. The adapter supports the use of single- and double-sided M.2 SSDs in x16, x8, and x4 PCIe 3.0 slots. Data from an M.2 NVMe SSD is transmitted directly via the PCIe bus, while M.2 SATA SSDs connect via a SATA connector linked to a corresponding slot.

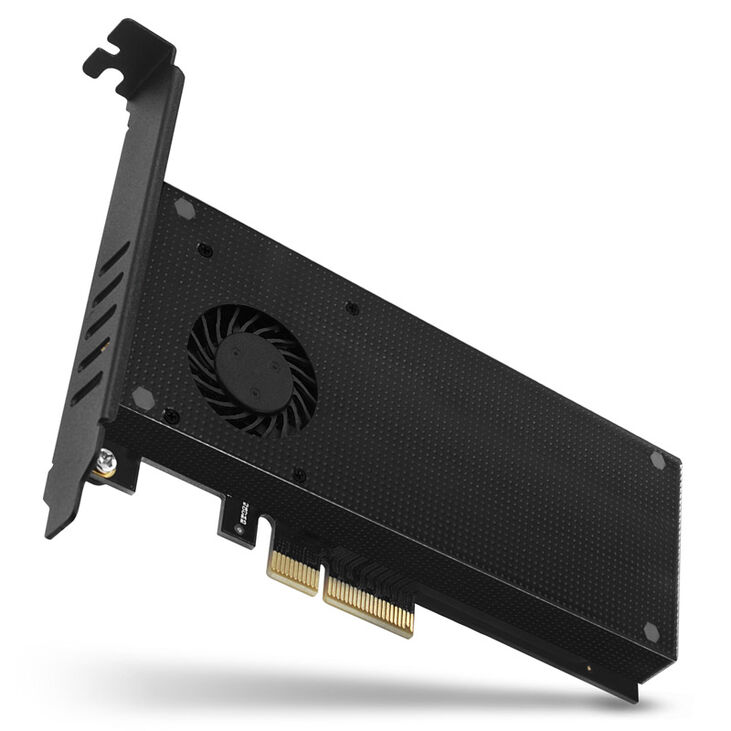

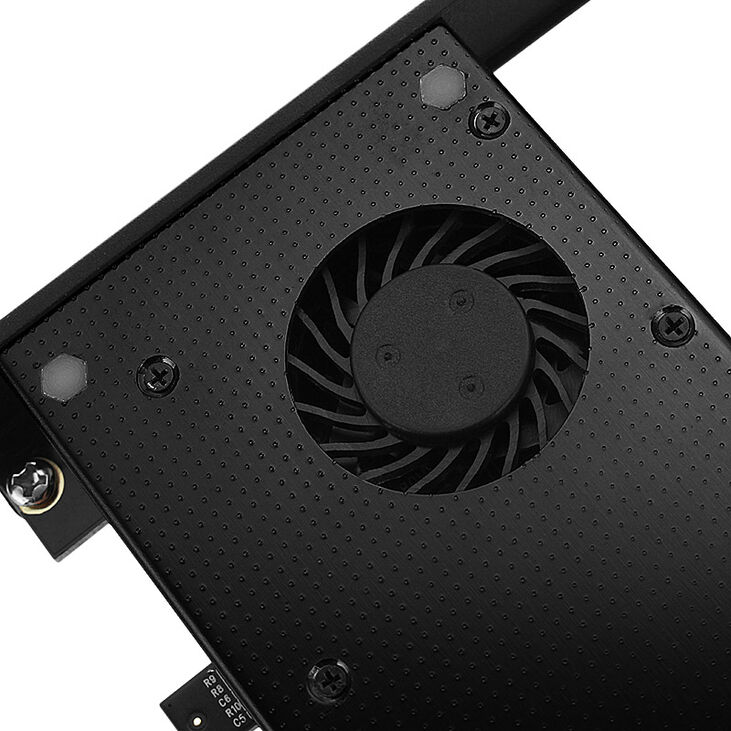

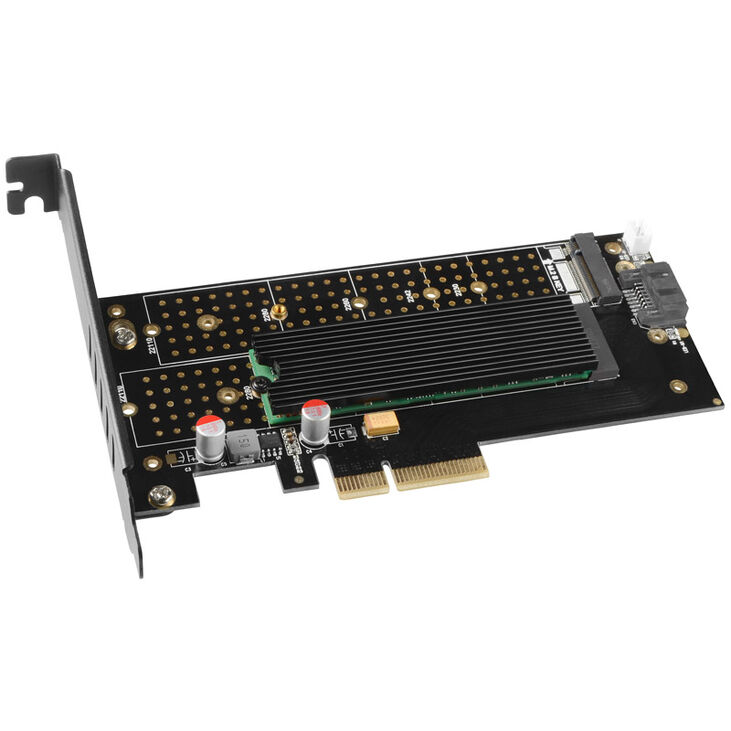

The PCI-Express bus powers the PCEM2-DC directly, so no external power source is required. Thermal pads and a bracket with an active fan help dissipate the heat generated by the M.2 SSDs under load. Two LED indicators provide information on whether the connection is established and the activity of data transfer.

Technical Details:

  • Dimensions: 140 x 17 x 68 mm (W x H x D)
  • Input:
    Interface: PCI-Express 3.0 + Serial ATA 3.1
    Number of lanes: 4-lane (x4)
    Speed (PCI-Express): 8 GB/s (bidirectional)
    Speed (SATA): 6 / 3 / 1.5 Gbit/s (SATA III / SATA II / SATA I)
    Connector: Data SATA (7-pin)
    Compatibility:
    PCI-Express 1.0a / 1.1 / 2.0 / 2.1 / 3.0
    PCIe slot: x4 / x8 / x16
    SATA controller: SATA I / SATA II / SATA III
  • Output:
    Interface: M.2 NVMe (PCI-Express) + NGFF M.2 (SATA)
    Connector: 75-pin M.2 M-key
    Compatibility: all NVMe M.2 SSDs / all SATA M.2 SSDs (B-key / B+M-key)
  • Supported sizes:
    22110 / 2280 / 2260 / 2242 / 2230
    Height: single- / double-sided M.2 SSDs
    Max. drive capacity: unlimited
  • Compatibility:
    MS Windows: 10 / 8.1 / 8 / 7 (all 32- and 64-bit versions)
    MS Windows Server: 2016 / 2012 / 2008 R2 (all 32- and 64-bit versions)
    Linux: Kernel 2.6.31 and higher
  • Scope of delivery:
    1x PCI-Express adapter with standard bracket and cover with fan
    1x low-profile bracket
    2x thermal pads
    Mounting materials and screwdriver
    Installation manual
Colour
Primary Colour
Black
Dimensions
Length / Depth
68 mm
Width
140 mm
Height
17 mm
Connectivity
Connector 1 (internal)
PCIe (4x) PLUG, SATA (data) PLUG
Connector 2 (internal)
M.2 SOCKET
