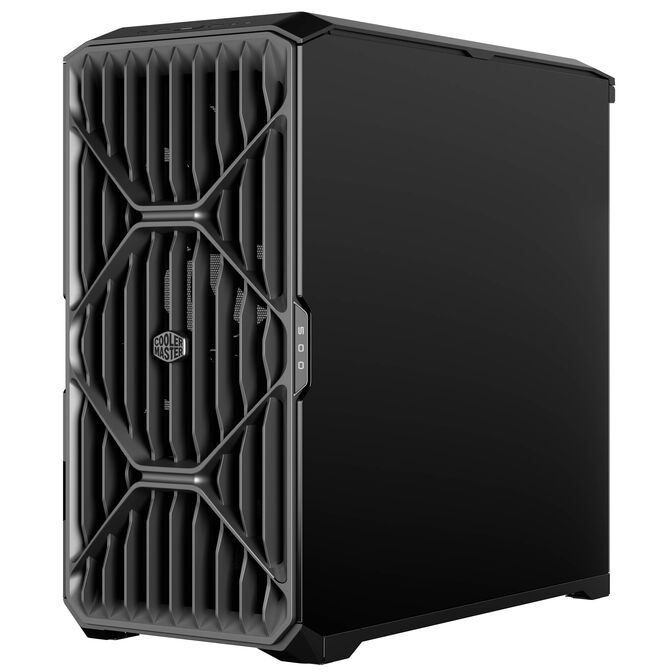

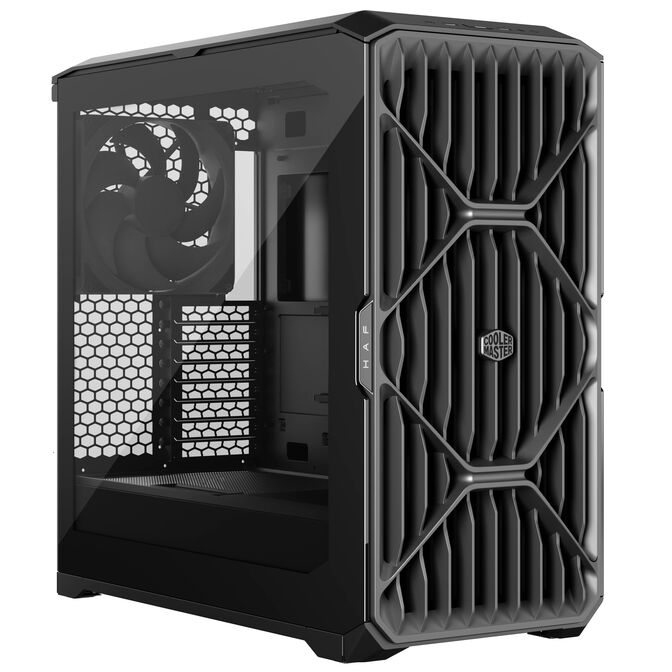

Cooler Master HAF II 500

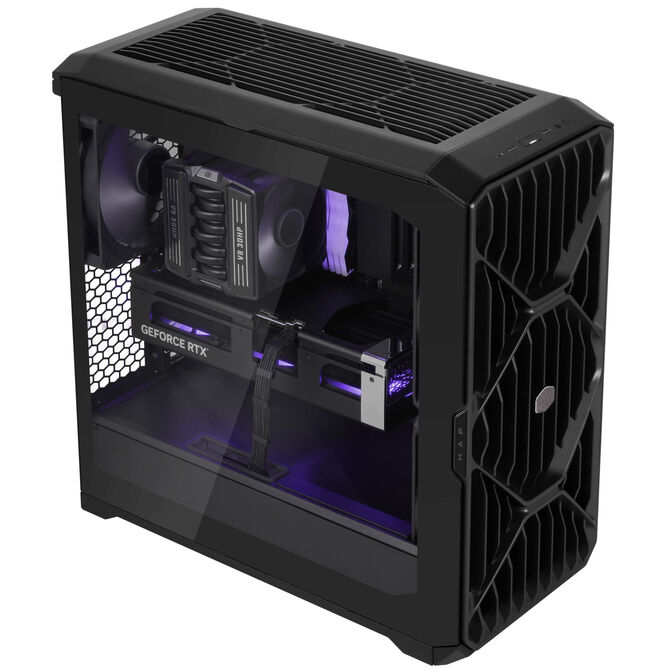

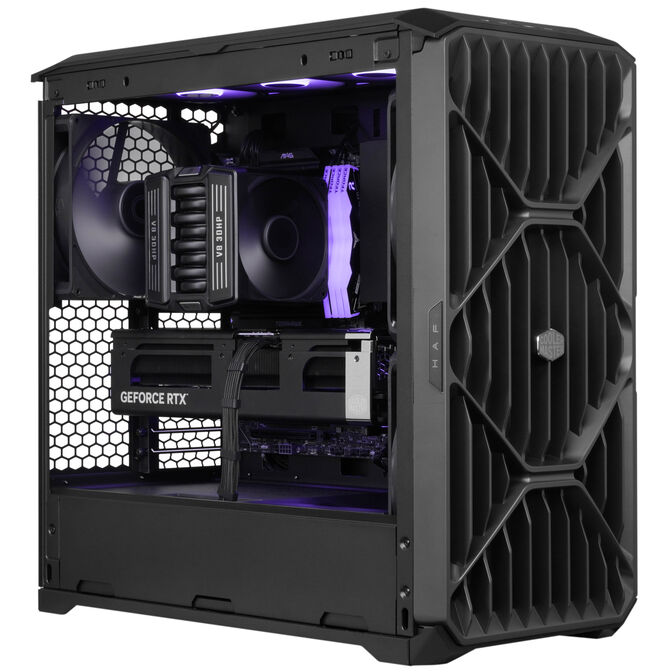

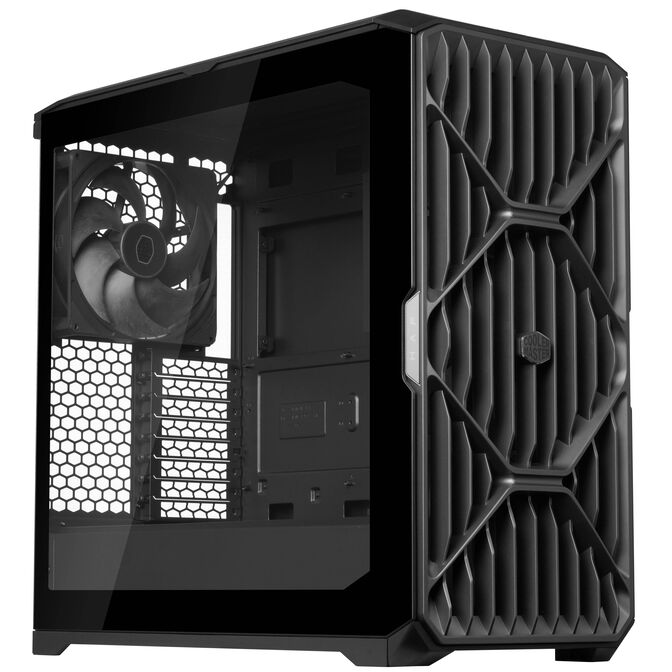

The Cooler Master HAF II 500 is designed for high-performance gaming and workstation hardware that generates significant heat. Two 220 mm fans at the front and one 180 mm fan at the rear provide a powerful airflow right from the factory. At the same time, the spacious interior offers plenty of room for large graphics cards and extensive cooling solutions.
- Three large fans for high airflow straight out of the box
- Up to 430 mm space for long graphics cards
- MasterRail for flexible fan and radiator placement

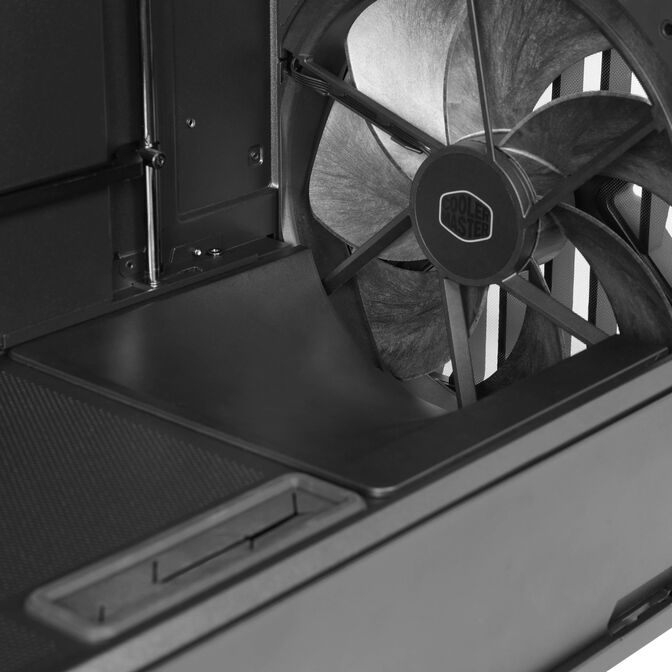

- Airflow divider directs fresh air to the graphics card
- Ample space for high-performance hardware
Strong airflow for gaming hardware

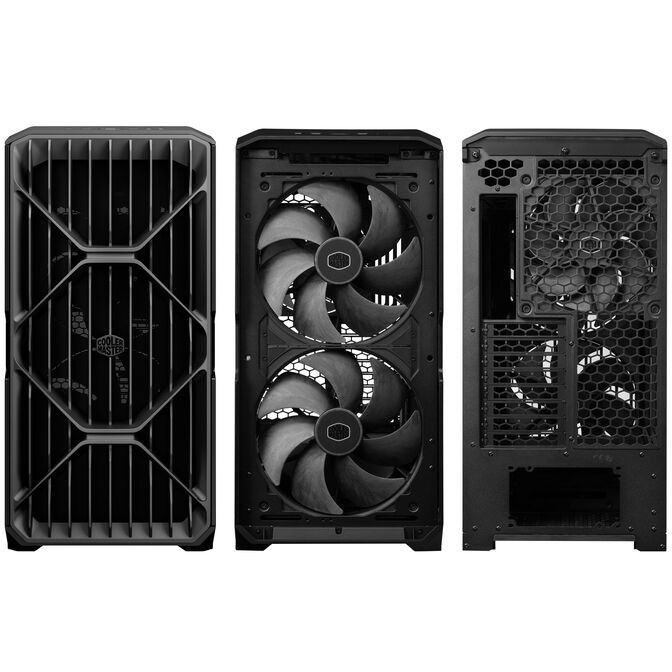

Two 220 mm fans at the front supply fresh air to the CPU and graphics card, while a 180 mm fan expels heated air at the rear. An additional airflow divider directs some of the incoming air straight to the graphics card. This supports cooling during long gaming sessions, rendering, and other compute-intensive tasks.

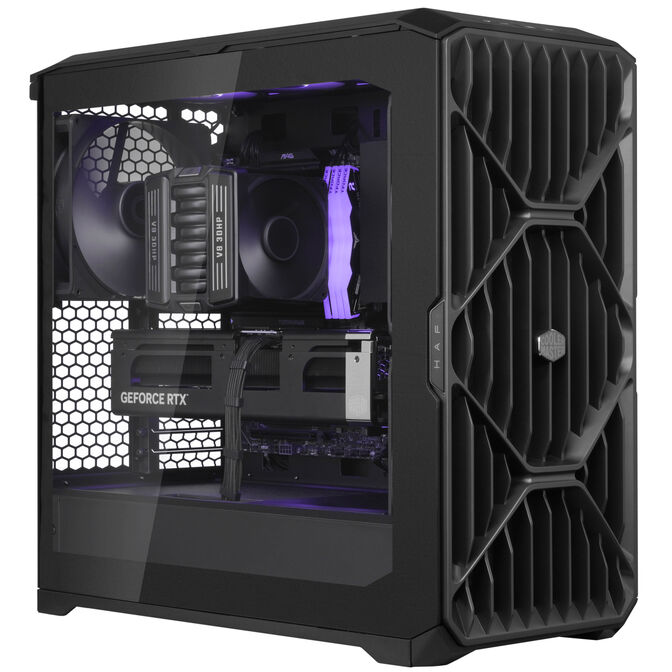

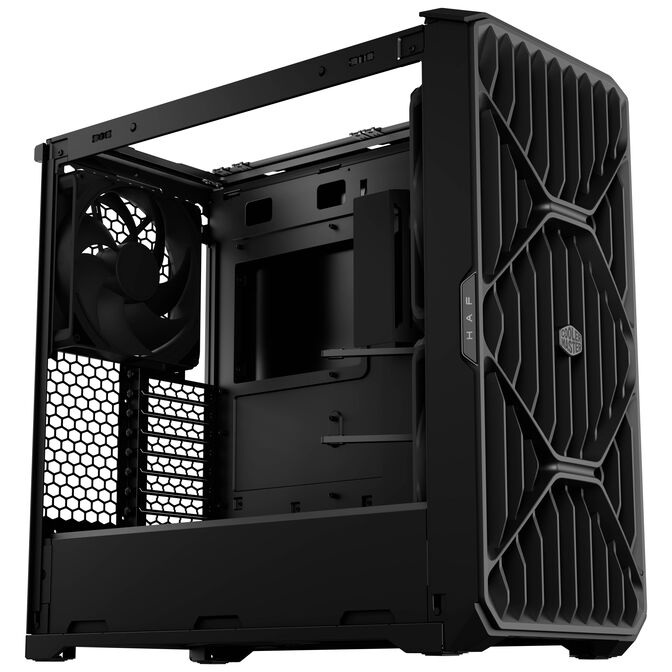

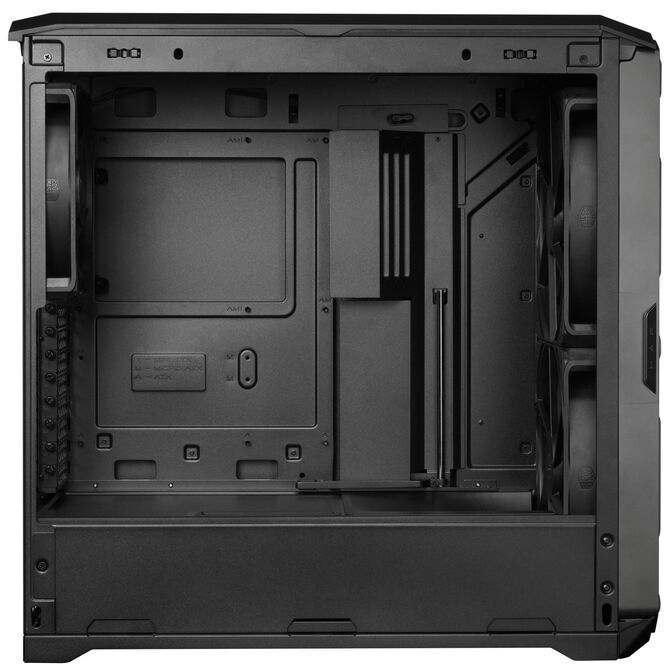

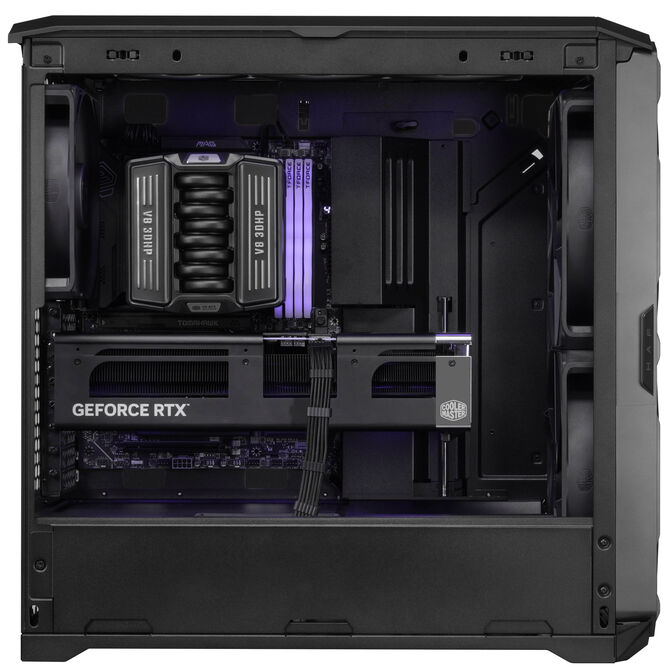

Plenty of space for large components

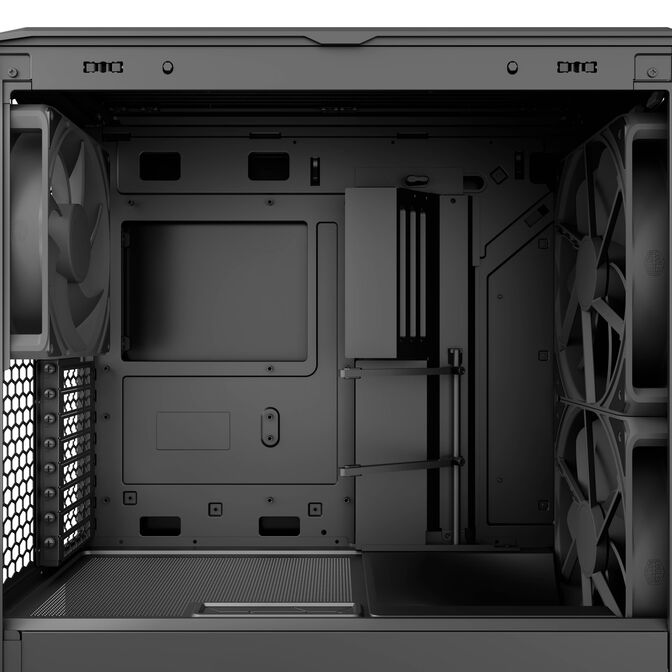

Graphics cards can be up to 430 mm long, and CPU coolers up to 221 mm in height are supported. Motherboards from Mini-ITX to E-ATX are compatible. This case thus offers ample room for powerful gaming systems and fully equipped workstations.

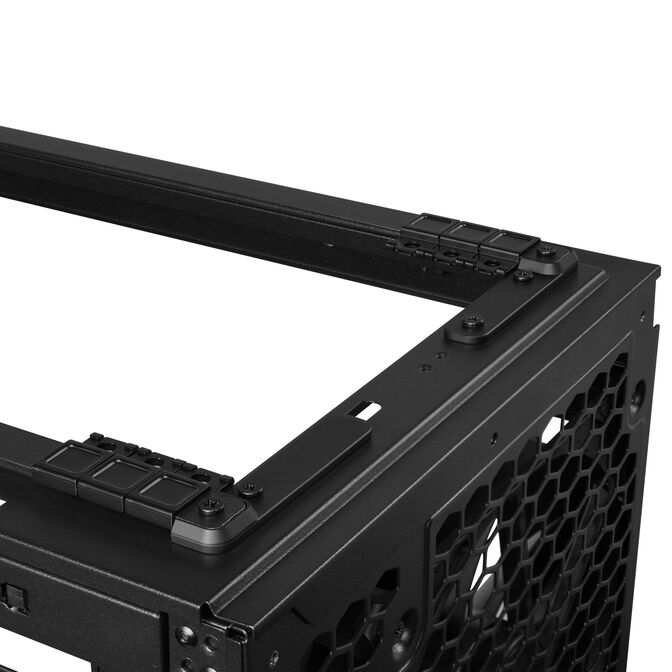

Flexible cooling with MasterRail
The MasterRail mounting system allows flexible positioning of fans and radiators. Radiators up to 360 mm can be installed in the top and front. This lets you configure the cooling setup to suit your hardware and expand it later if needed.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
557 mm
|
|
Width
|
262 mm
|
|
Height
|
548 mm
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, CEB, E-ATX, Micro-ATX, Mini-DTX, Mini-ITX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
221 mm
|
|
Max. GPU Length
|
430 mm
|
|
Max. GPU Width
|
72 mm
|
|
Max. PSU Length / Depth
|
210 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Front)
|
120mm Fan (3x), 140mm Fan (3x), 160mm Fan (2x), 180mm Fan (2x), 220mm Fan (2x)
|
|
Case Fan Support (Rear)
|
180mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (3x), 160mm Fan (2x), 180mm Fan (2x)
|
|
Max. Number of Fans
|
6
|
|
120 mm fans
|
6
|
|
140 mm fans
|
6
|
|
160 mm fans
|
4
|
|
180 mm fans
|
5
|
|
220 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
2x Triple (360 mm)
|
|
Radiator/AIO Support (Front)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Top)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
6
|
|
Max. 3.5 Inch Drives
|
3
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|

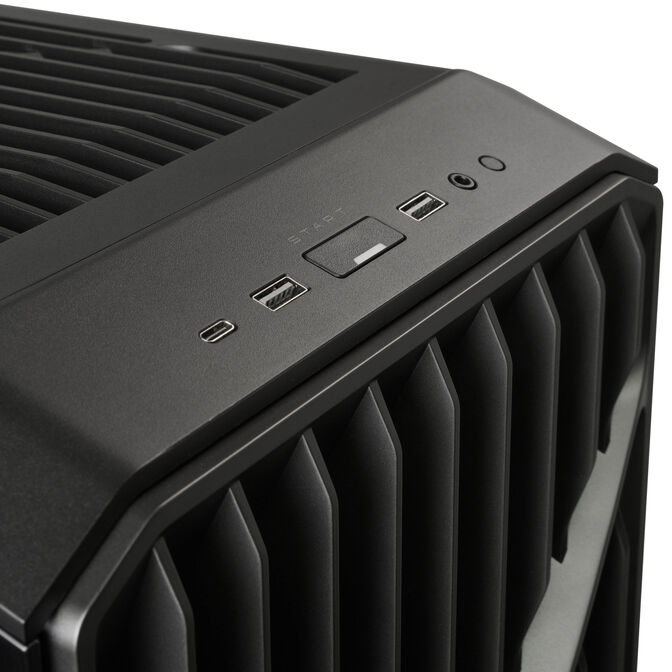

External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Top
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|

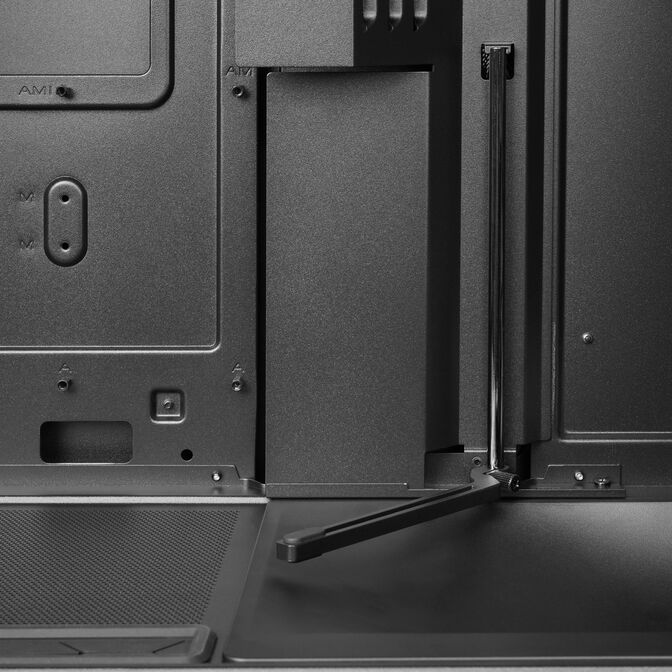

Adjustable Vertical GPU Bracket
|
Yes
|
|
Front door
|
No
|
|

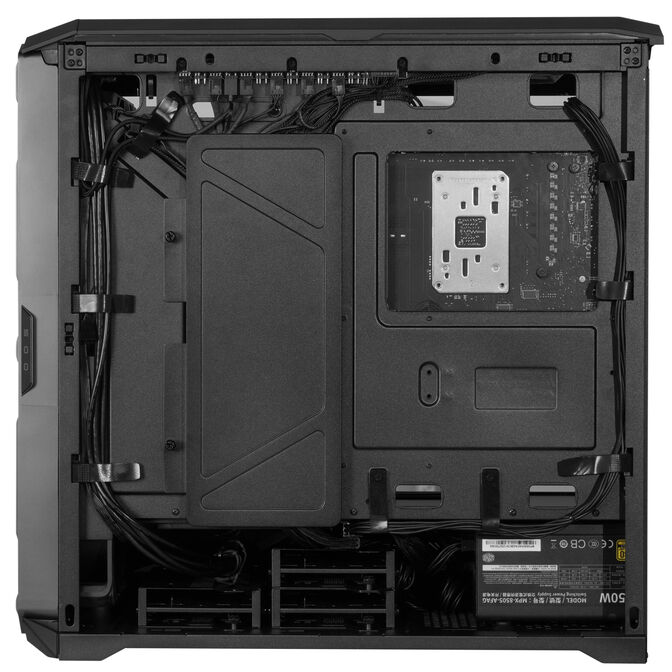

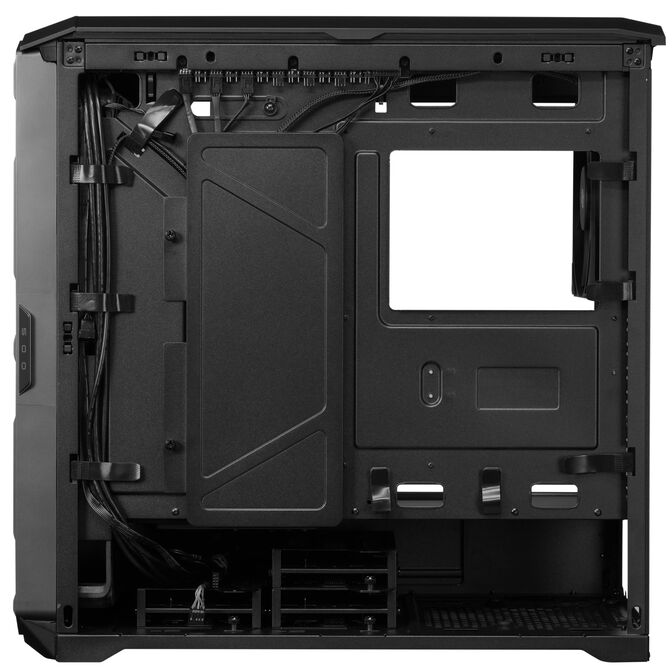

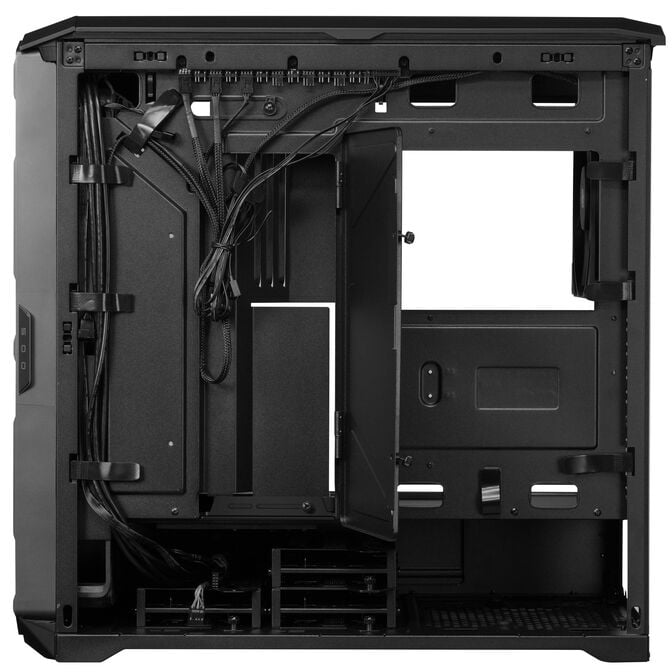

Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom, Front, Top
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
8
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
ABS, SGCC (Steel), Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
1x 180 mm, 2x 220 mm
|
