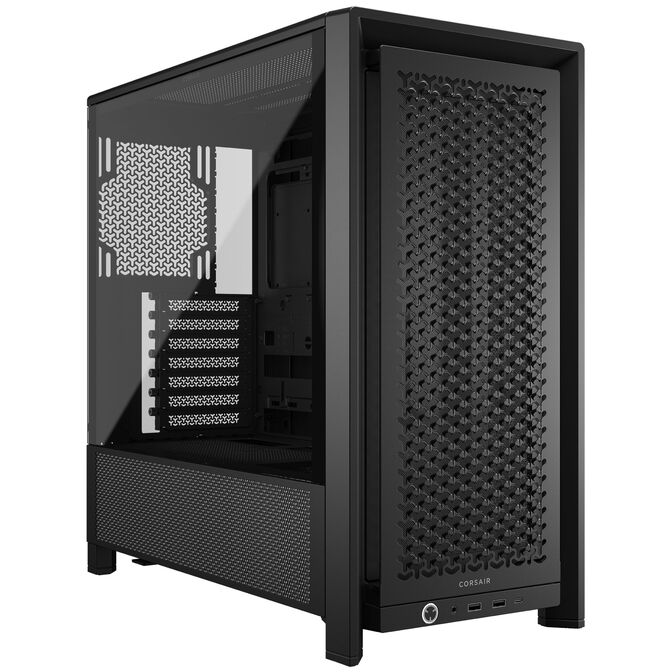

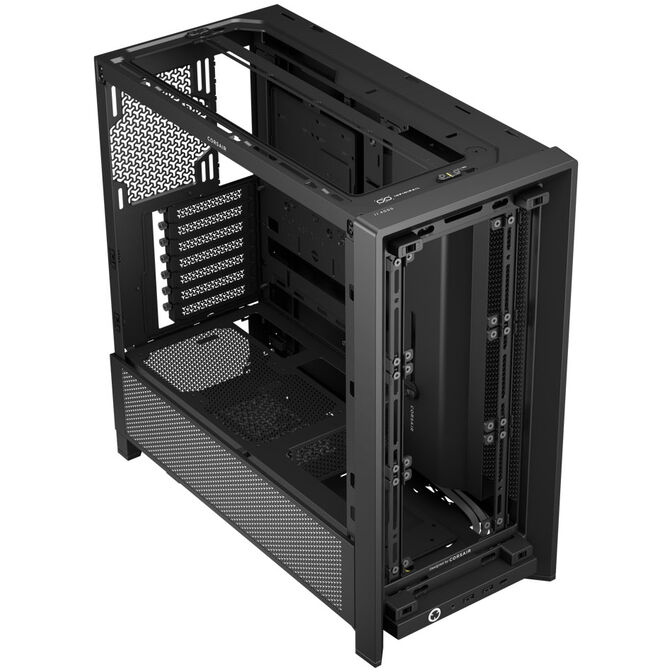

Corsair Frame 4000D PC case, Mid Tower, E-ATX, Tempered Glass - black

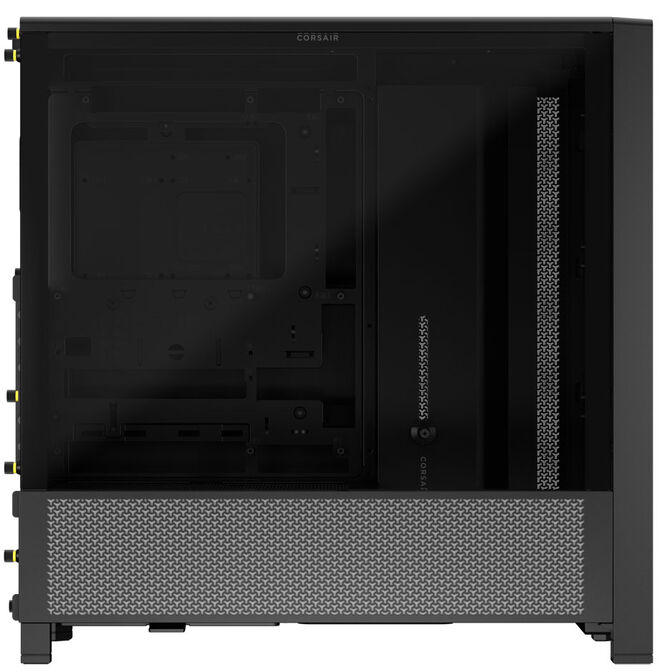

- Black case with tempered glass side panel
- Versatile options due to modularity
- Efficient cooling options with up to 12 fans and radiators up to 360mm

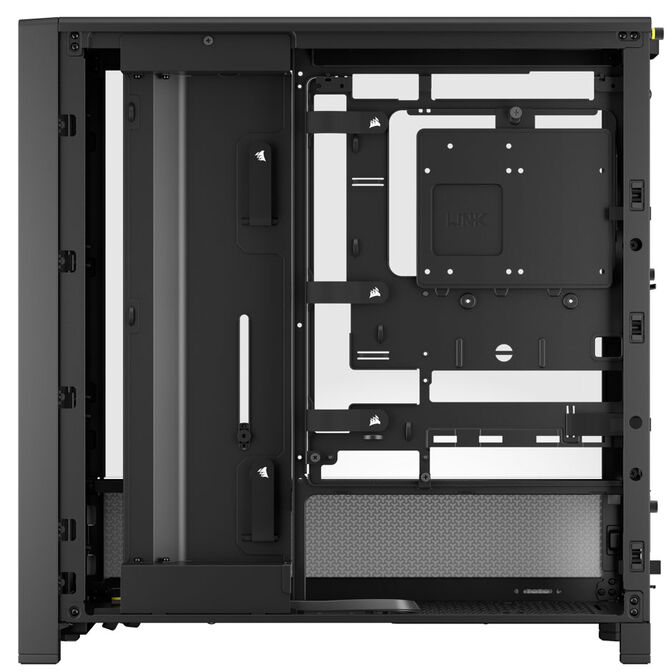

- Support for motherboards up to E-ATX, including back-connect design
- Space for graphics cards up to 430mm and CPU coolers with a height of up to 170mm
- Up to two four drives possible
The Corsair Frame 4000D: Modular Midi-Tower

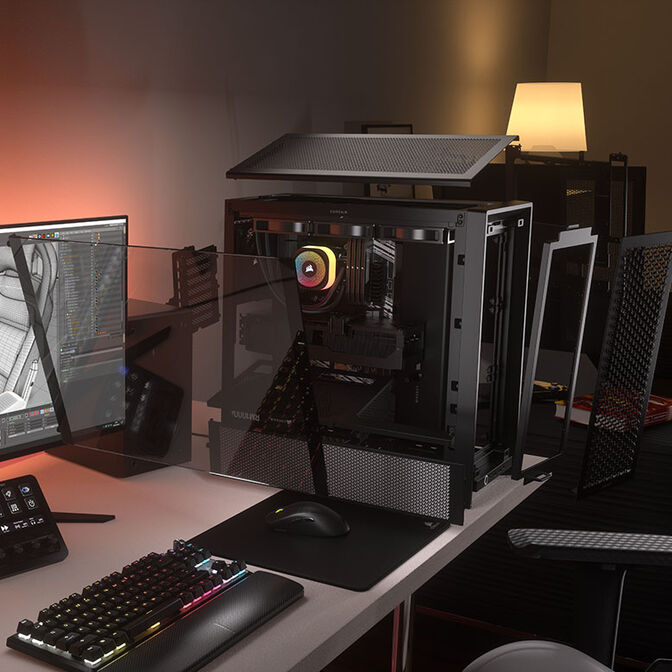

The Corsair Frame 4000D is a midi-tower that stands out from the competition due to its modularity. It offers you the opportunity to customise it according to your wishes - all external parts can be easily removed and replaced. Additionally, you have enough space for your high-end components, as well as extensive options to cool them effectively.
Perfectly cooled with fans and radiators

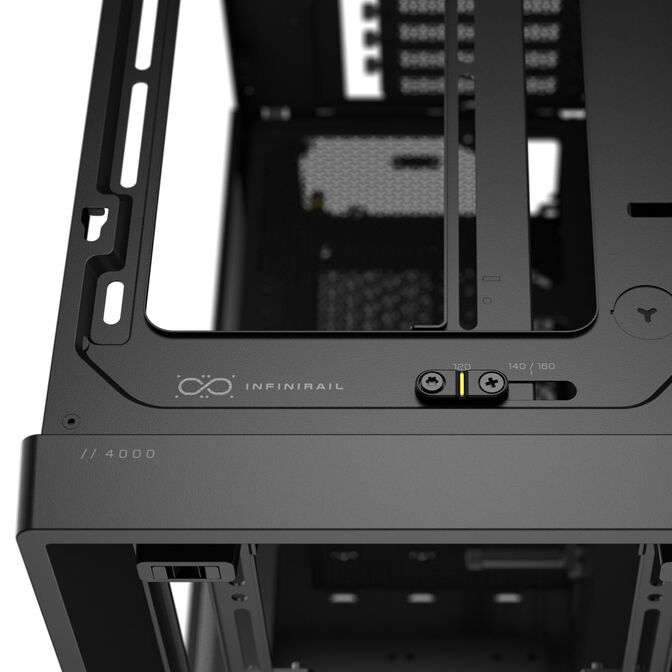

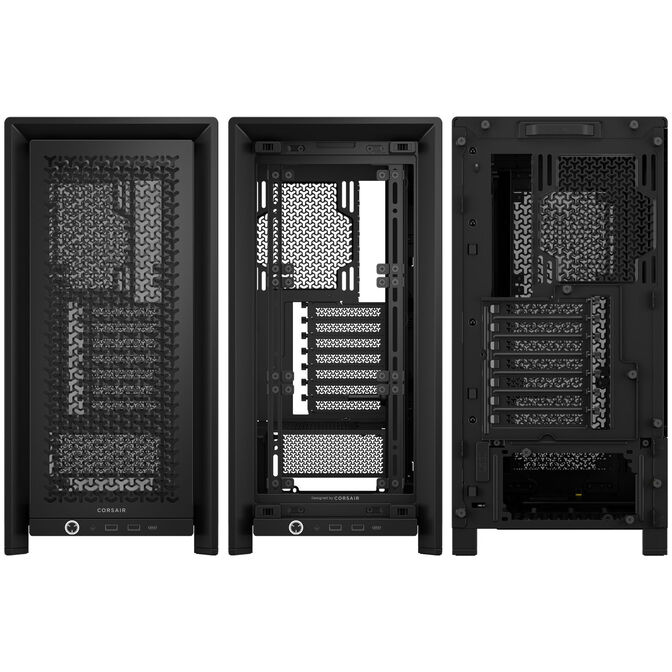

To cool your hardware under any load, the Corsair Frame 4000D allows for the installation of up to 12 fans. The top and side support the installation of three 120mm or two 140mm fans, while the front can accommodate three 120mm, two 140mm, or two 200mm fans. You can install two additional 120mm fans at the bottom. Additionally, a further 120mm or 140mm fan can be mounted at the back.

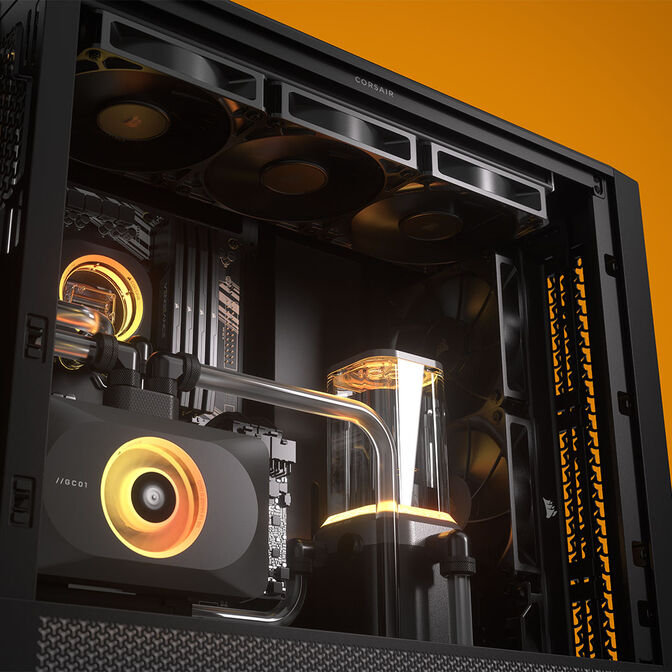

If you prefer liquid cooling - whether an all-in-one liquid cooler or a custom-built liquid cooling system - there are several places where you can install a radiator. Large radiators up to 360mm can be installed at the top, front, and side. The back supports a 120mm or 140mm radiator.
Installing your hardware

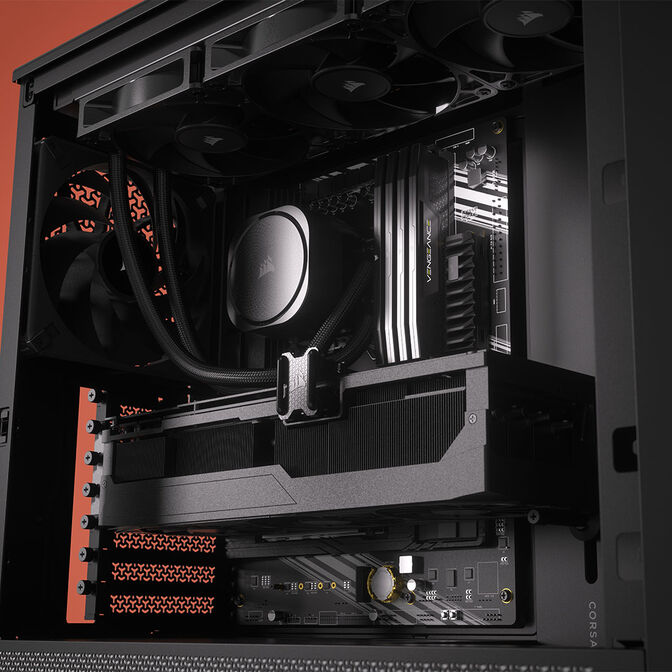

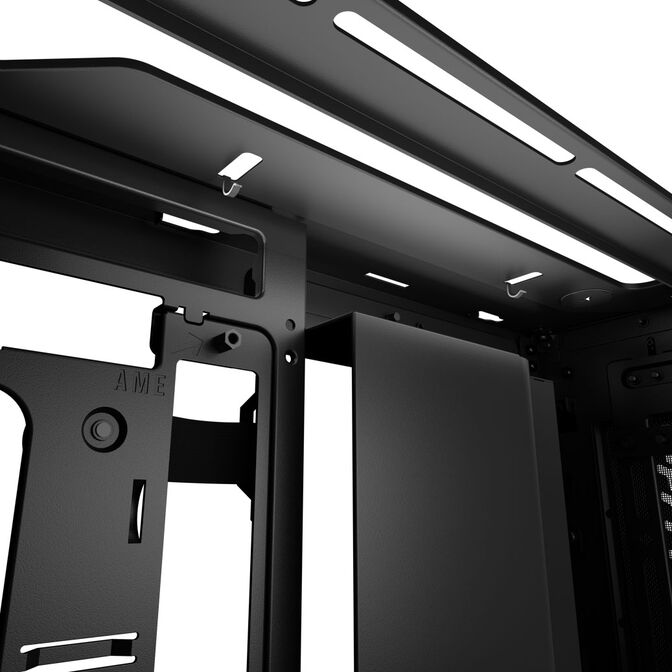

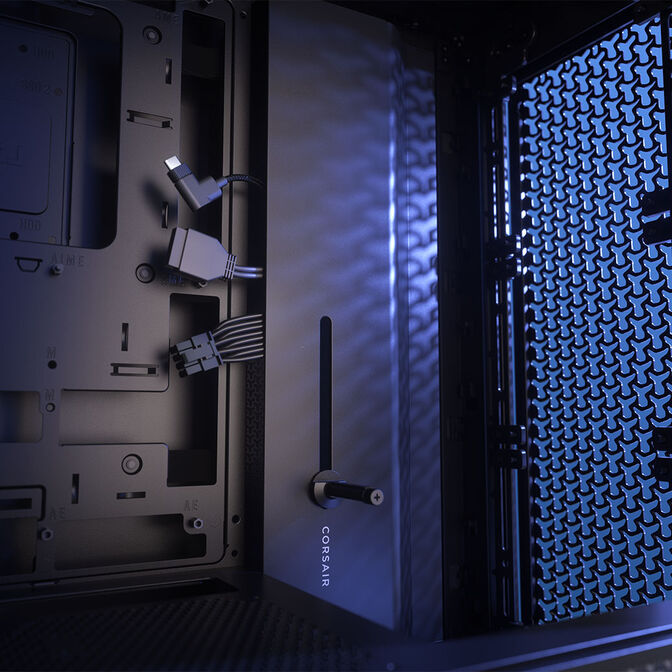

The case supports the installation of graphics cards up to 430mm in size. Therefore, the current NVIDIA GPUs of the 50 series are also possible. To prevent sagging of particularly heavy graphics cards, a GPU stabilisation arm is built into the tower. Motherboards up to E-ATX format can be accommodated.
The CPU cooler should not exceed a height of 170mm. However, there are hardly any limits for the power supply, as it can be up to 220mm long. To store programs and games, up to four drives can be installed.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
490 mm
|
|
Width
|
239 mm
|
|
Height
|
486 mm
|
|
Weight
|
10.03 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|

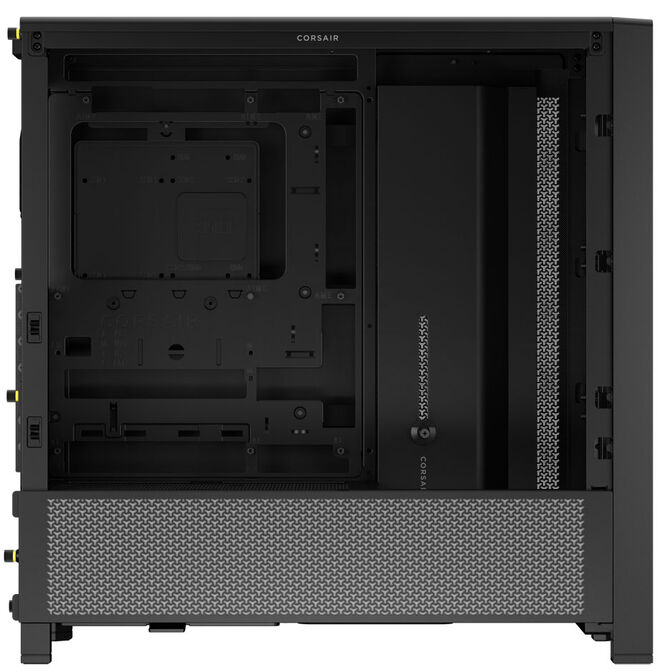

Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
170 mm
|
|
Max. GPU Length
|
430 mm
|
|
Max. PSU Length / Depth
|
220 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (2x)
|
|
Case Fan Support (Front)
|
120mm Fan (3x), 140mm Fan (2x), 200mm Fan (2x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x), 140mm Fan (1x)
|
|
Case Fan Support (Side)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
12
|
|
120 mm fans
|
12
|
|
140 mm fans
|
7
|
|
200 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Single (140 mm), 3x Triple (360 mm)
|
|
Radiator/AIO Support (Front)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator, 140mm Radiator
|
|
Radiator/AIO Support (Side)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Top)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
4
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
2
|
|
3.5 inch internal drive bay
|
2
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|

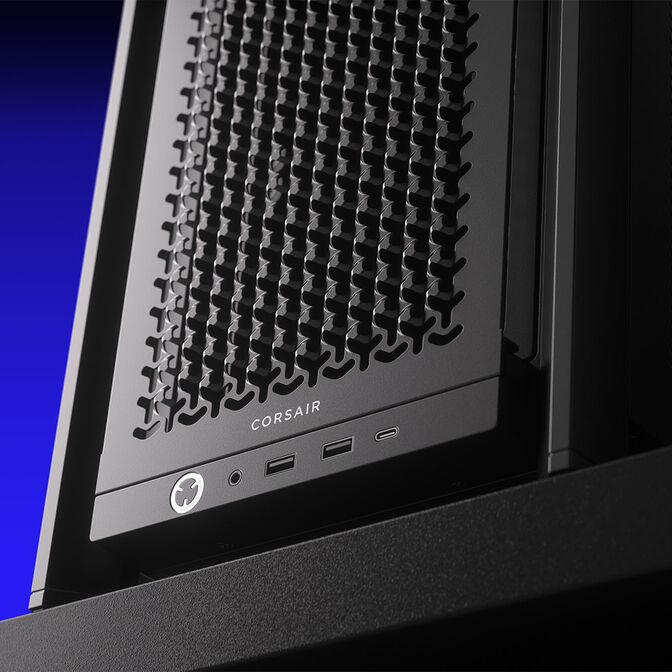

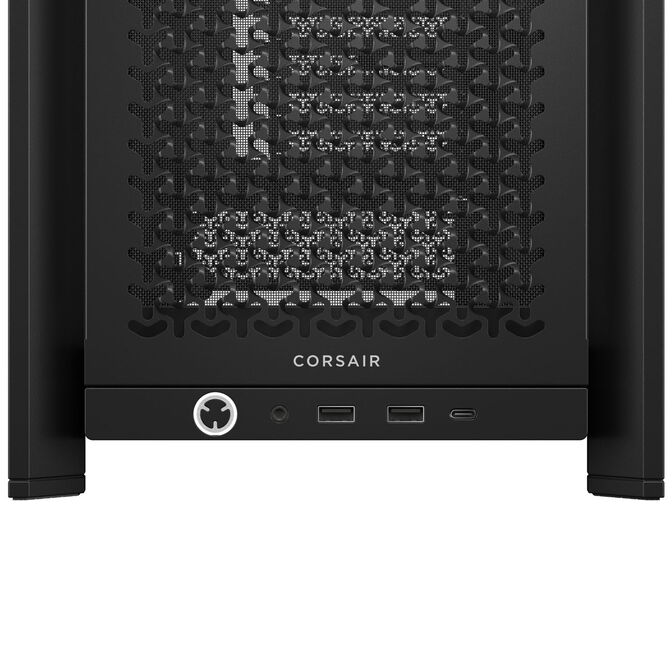

Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|

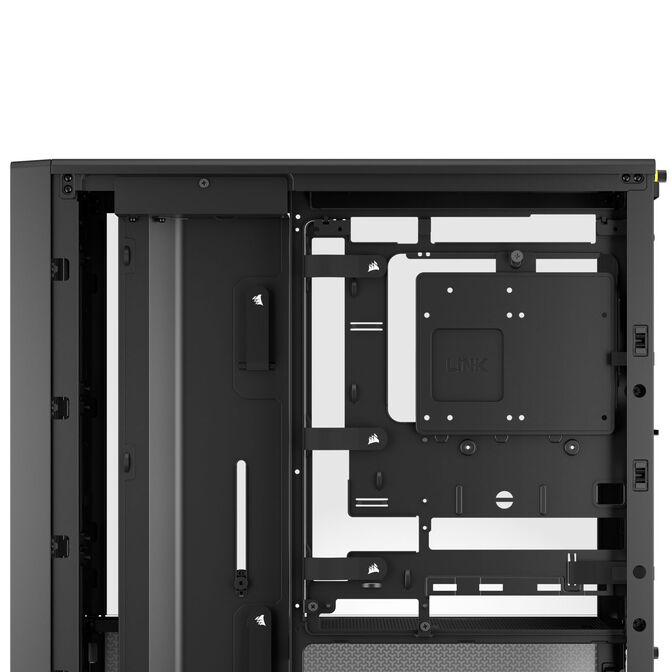

Back Connect
|
|
|
Back Connect
|
Yes
|
|
Back-Connect Compatibility
|
ASUS BTF, Gigabyte Project Stealth, MSI Project Zero
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Plastic, Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
No
|
|
Included fans
|
None
|
