Corsair HXi Series (2025) HX1200i Power Supply 80 PLUS Platinum, modular - 1200 Watt
- 1,200 watts of power for high-end builds with strong components
- Excellent efficiency with 80 PLUS Platinum and Cybenetics Platinum certification
- 140 mm fan with fluid dynamic bearing (FDB) and zero RPM mode for powerful and quiet cooling
- High-quality components ensure safe and long-lasting operation
- Control and monitoring via iCUE software through internal USB-C connection
Corsair HX1200i: Reliable high-end power supply with strong performance
With the HX1200i (2025), Corsair updates the HX power supply lineup. Supporting the ATX 3.1 and PCIe 5.1 standards, special features such as an integrated connection for the 12V-2x6 connector with dedicated sense pins for an even safer power supply are included. With a total of 600 watts over a single cable, even the latest graphics cards are powered safely and efficiently.
Optimal cooling for long lifespan

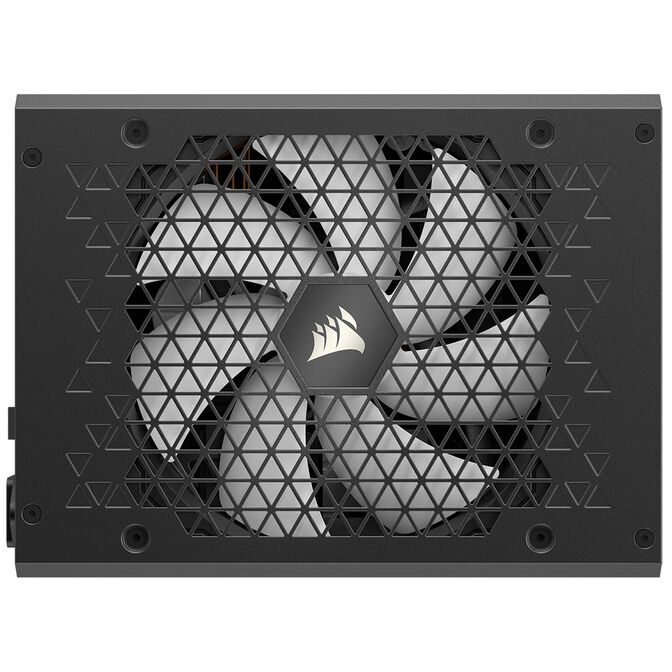

The power supply is cooled by a 140 mm fan with a fluid dynamic bearing. Together with the switchable zero RPM mode, this results in an exceptionally long lifespan for the power supply, as the fan only activates at over 50% load. Additionally, high-quality components such as Japanese capacitors contribute to the safe and long-lasting power supply for your PC.
Excellent efficiency and software control
With 80 PLUS and Cybenetics Platinum certifications, the power supply from Corsair is particularly well positioned regarding efficiency. With up to 92% efficiency, the power supply guarantees efficient operation and, thanks to the special control of its components, a particularly quiet operation. The platform ensures stable power supply, thus minimising the phenomenon of coil whine.
To keep you fully informed at all times, the power supply is equipped with an additional USB-C connection. This opens up the possibility to monitor and adjust all voltages and the fan via software. All of this is made possible through the manufacturer's proprietary and well-known iCUE software. Thus, the power supply also serves as a perfect addition to your own iCUE ecosystem.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
200 mm
|
|
Width
|
150 mm
|
|
Height
|
86 mm
|
|
Weight
|
2.4 kg
|
|
Fan Specifications
|
|
|
Fan Size
|
140 mm
|
|
Power Supply
|
|
|
PSU Format
|
ATX
|
|
ATX Standard
|
ATX 3.1
|
|
12V Distribution
|
single rail
|
|
Modular Power Supply
|
Yes
|
|
Modular Type
|
fully modular
|
|
Protection Circuits
|
OCP (Overcurrent Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OVP (Overvoltage and Undervoltage Protection), SCP (Short-Circuit Protection), UVP (Undervoltage Protection)
|
|
Power Specifications
|
|
|
Total Power Output
|
1200 W
|
|
Power Output +3.3V
|
82.5 W
|
|
Power Output +5V
|
125 W
|
|
Power Output +3.3V & +5V (combined)
|
150 W
|
|
Power Output +12V rails
|
1200 W
|
|
Power Output +5Vsb
|
15 W
|
|
Cable Specifications
|
|
|
Max. CPU Power Cable Length
|
750 mm
|
|
Max. 24-Pin Motherboard Power Cable Length
|
610 mm
|
|
Max. 12V-2x6 Cable Length
|
650 mm
|
|
Max. PCIe Power Cable Length
|
650 mm
|
|
Max. SATA Power Cable Length
|
800 mm
|
|
Max. Molex Cable Length
|
750 mm
|
|
Cooling
|
|
|
Semi Passive Power Supply
|
Yes
|
|
Switchable Semi Passive Mode
|
Yes
|
|
Case Fan Controller
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Connectors 12V ATX/EPS
|
2
|
|
CPU Power Supply
|
2x 4+4-Pin
|
|
12V-2x6 Power Connectors
|
2
|
|
8 Pin PCIe Power Connectors
|
5
|
|
6+2 Pin PCIe Power Connectors
|
5
|
|
SATA Power Connectors
|
8
|
|
4 Pin Molex Power Connectors
|
6
|
|
Software interface digital
|
Yes
|
|
Efficiency Class
|
|
|
80PLUS Efficiency
|
80 PLUS Platinum
|
|
Cybenetics Efficiency Level ETA (230V)
|
PLATINUM
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
