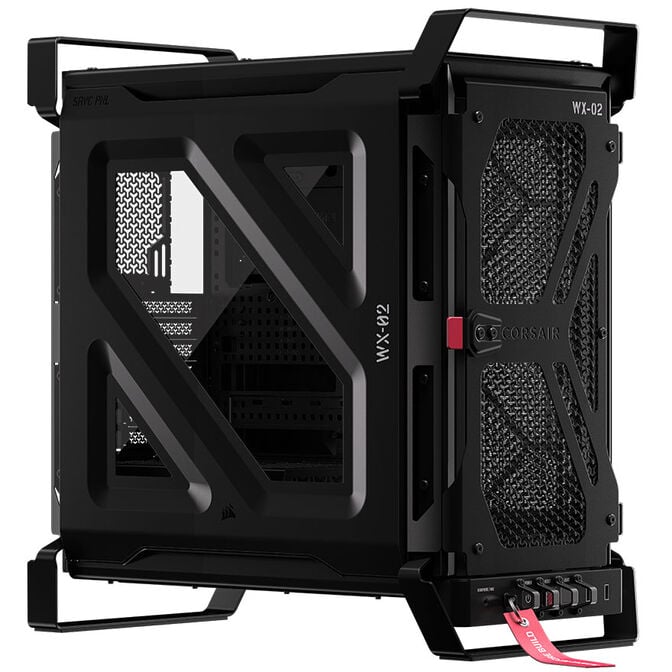

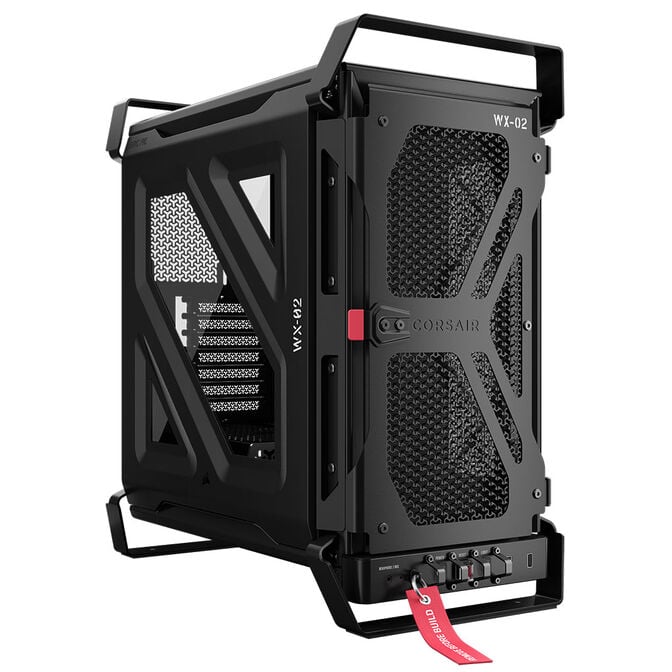

Corsair WARTHOG Performance Mid-Tower Case, Black

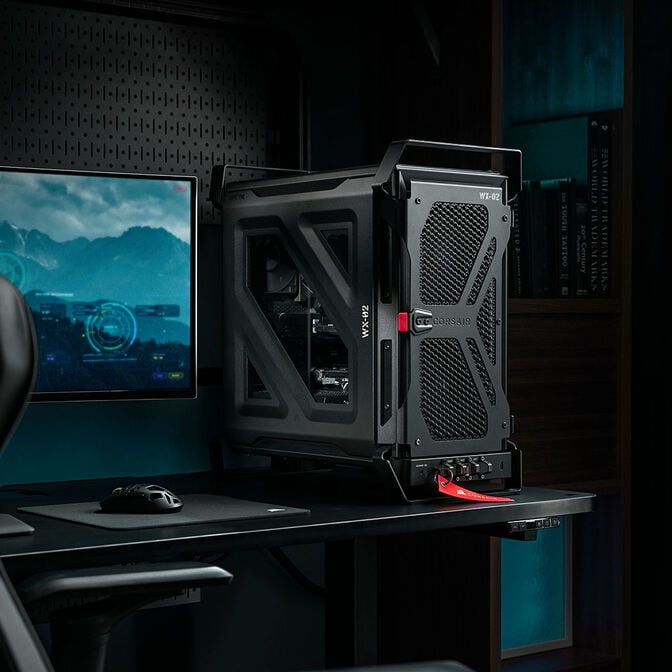

The Corsair WARTHOG is a robust airflow mid-tower designed for high-performance gaming PCs and custom high-end builds. It offers plenty of space for fans, radiators, and large components, allowing for extensive cooling configurations. The standard version comes without pre-installed fans, so you can customise your cooling system freely.
- 3D-Y Airflow: Up to 12.7% more airflow at the front and top
- 13 fan mounts: Plenty of room for powerful cooling
- 3x 360 mm: Radiators can be mounted at the front, top, or side
- Back-Connect: Compatible with BTF, Project Zero, and Project Stealth
- RapidRoute 2.0: Pegboard tray for tidy cable management
High airflow for powerful hardware

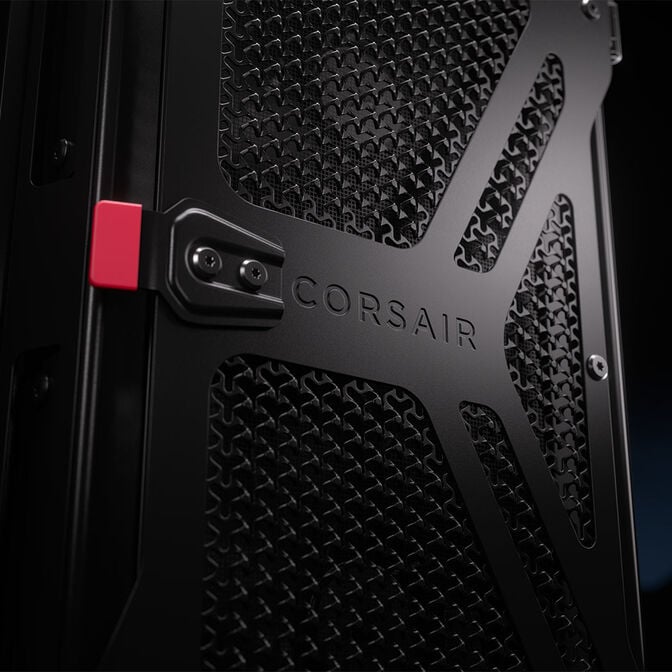

The front and top feature an air-permeable 3D-Y hole pattern for maximum unrestricted airflow. According to Corsair, this design provides up to 12.7% more airflow than conventional flat cutouts. In total, up to 13 120 mm fans can be installed. Additionally, there are mounting points for radiators up to 360 mm at the front, top, and side.
Flexible build with E-ATX and Back-Connect support

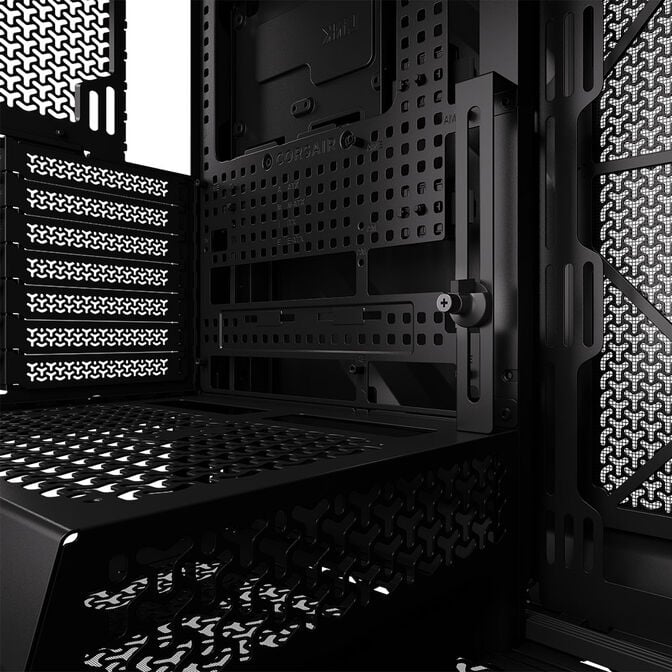

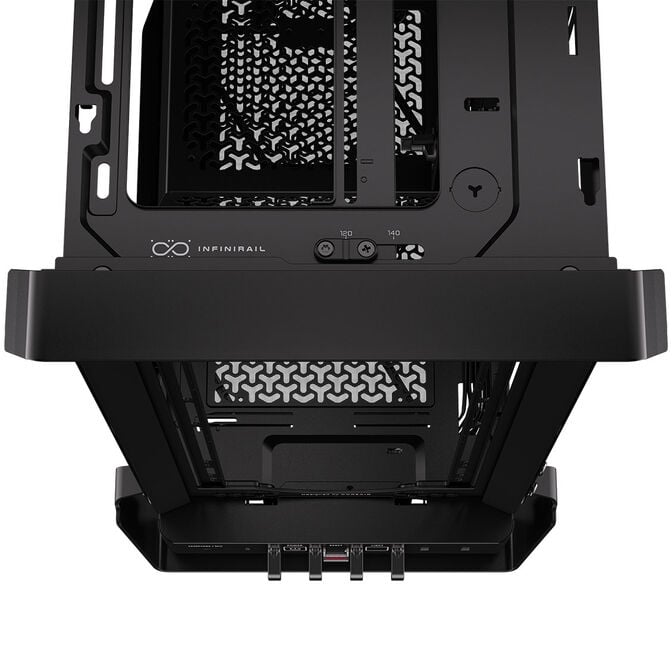

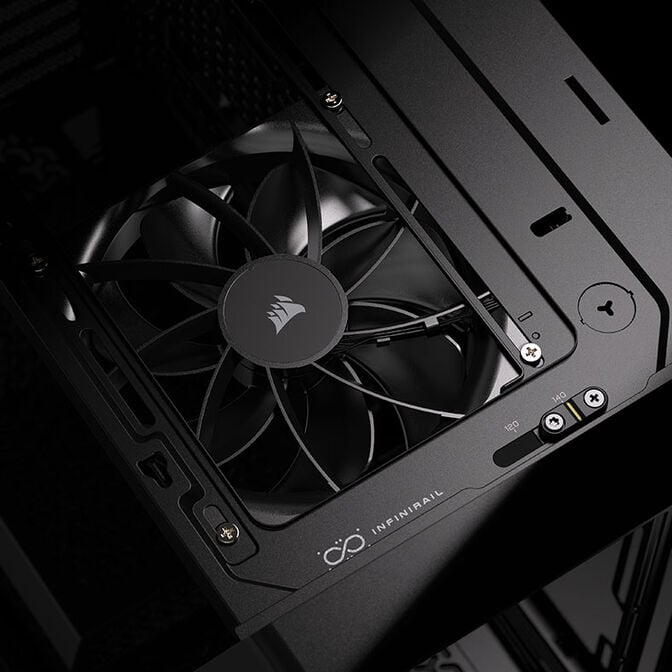

The WARTHOG supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards up to 305 x 267 mm. It is also compatible with motherboards featuring rear connectors such as ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth. The InfiniRail system allows flexible positioning of different fan sizes. An integrated GPU support bracket also stabilises heavy graphics cards when installed.
Robust design with thoughtful cable management

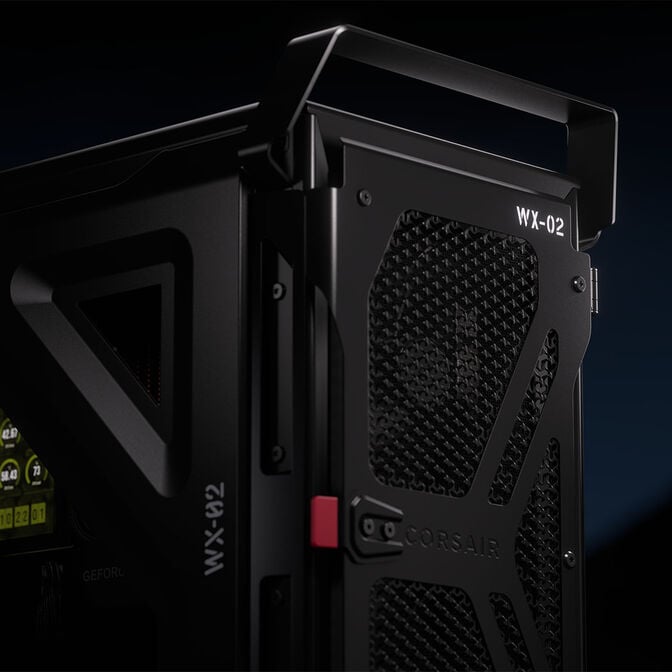

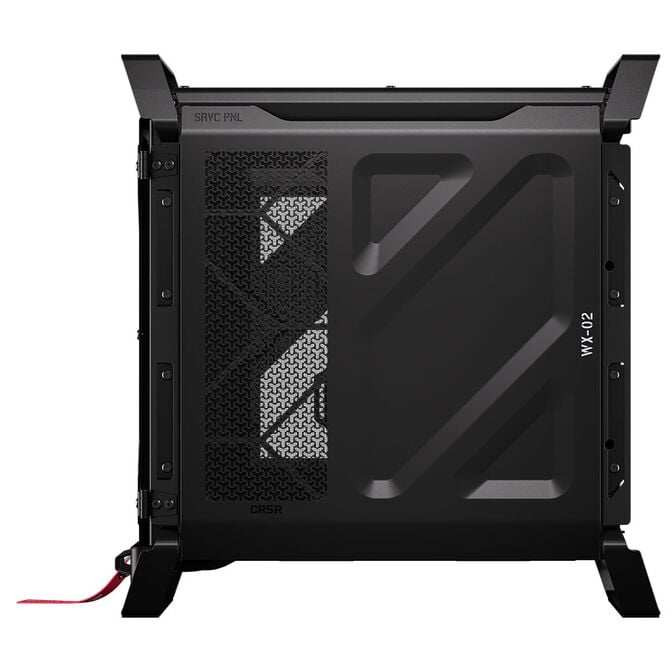

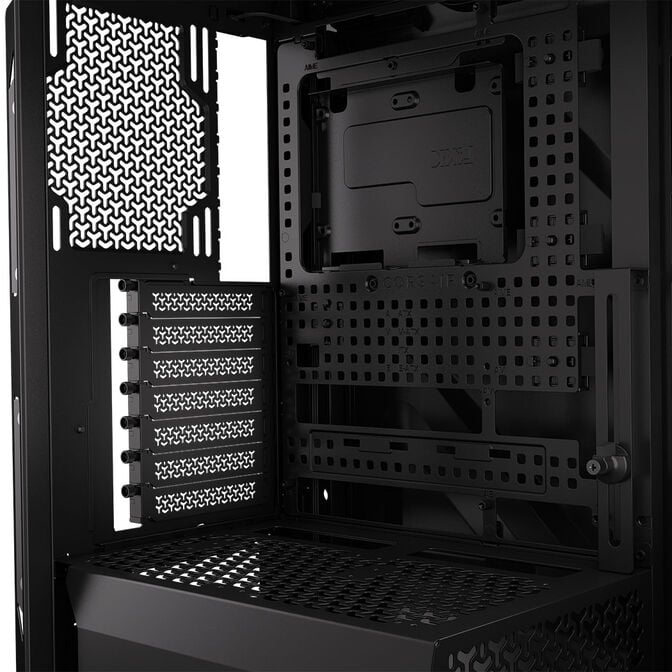

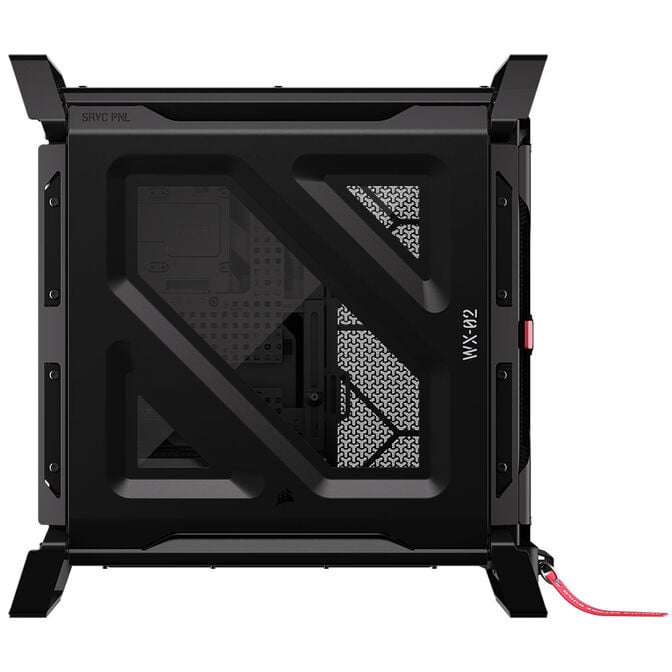

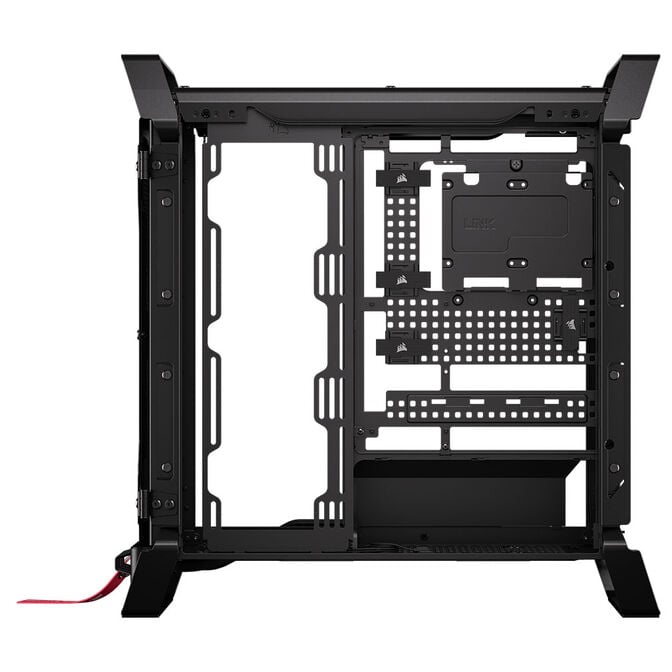

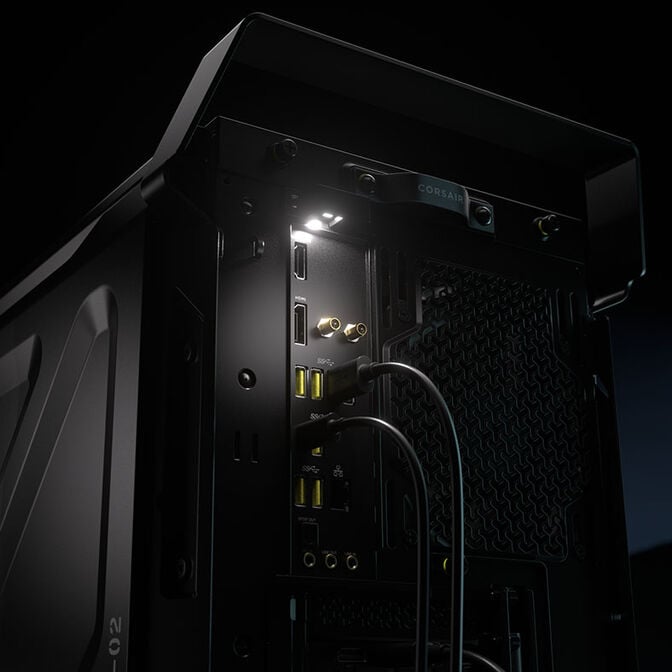

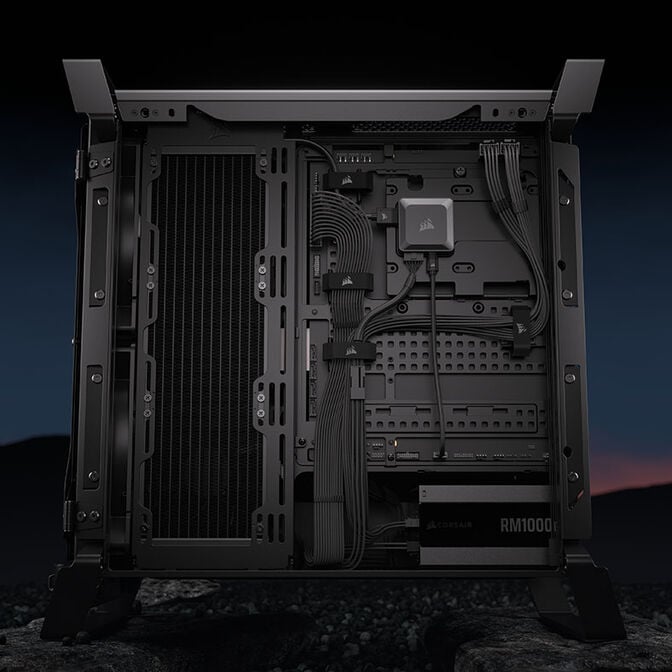

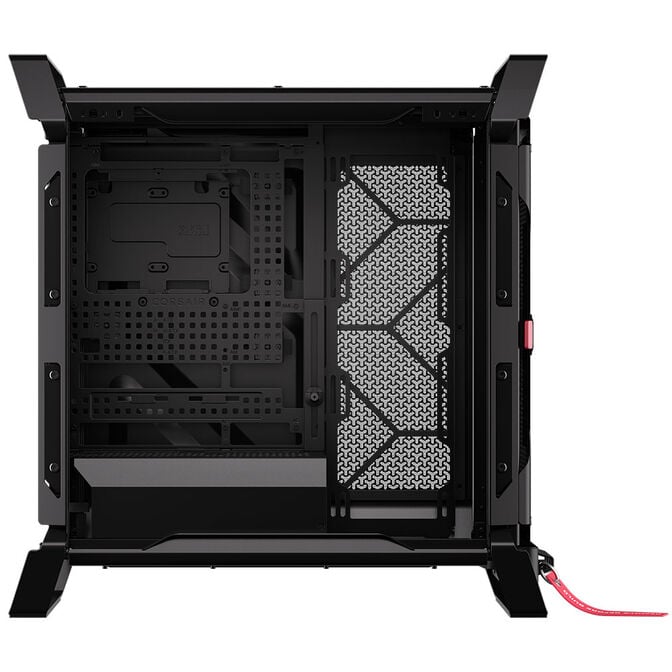

Integrated steel handles make moving the case easier and echo the design of the earlier Vengeance C70. RapidRoute 2.0 uses a pegboard motherboard tray with flexible mounting points for clean cable routing. Integrated lighting at the rear assists with connecting cables in low light conditions. The left tempered glass side panel offers a clear view of your hardware.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
534 mm
|
|
Width
|
284 mm
|
|
Height
|
546 mm
|
|
Weight
|
11.5 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
190 mm
|
|
Max. GPU Length
|
405 mm
|
|
Max. PSU Length / Depth
|
200 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (3x)
|
|
Case Fan Support (Front)
|
120mm Fan (3x), 140mm Fan (2x), 200mm Fan (2x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x), 140mm Fan (1x)
|
|
Case Fan Support (Side)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
13
|
|
120 mm fans
|
13
|
|
140 mm fans
|
7
|
|
200 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Single (140 mm), 3x Triple (360 mm)
|
|
Radiator/AIO Support (Front)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator, 140mm Radiator
|
|
Radiator/AIO Support (Side)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Top)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
2
|
|
Max. 3.5 Inch Drives
|
1
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|

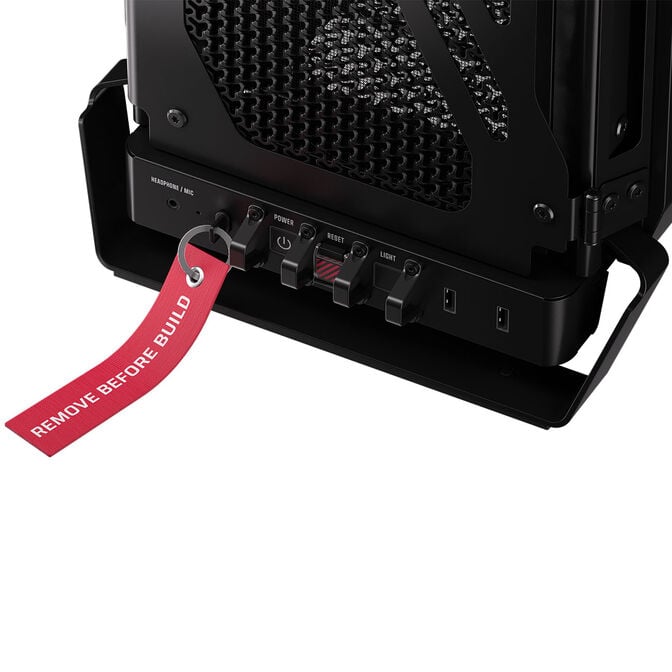

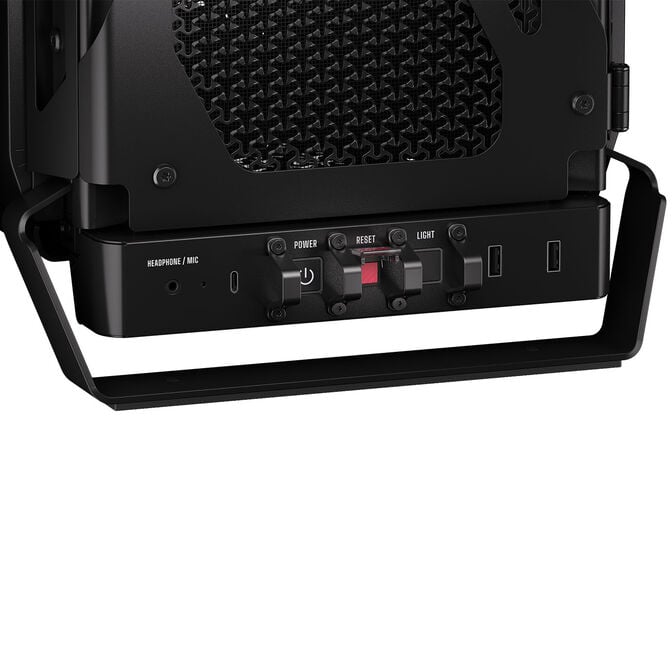

External Ports
|
|
|

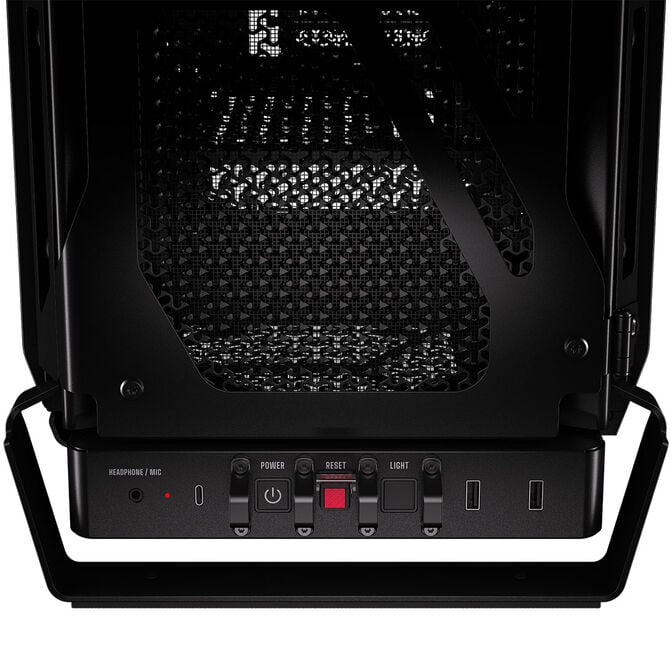

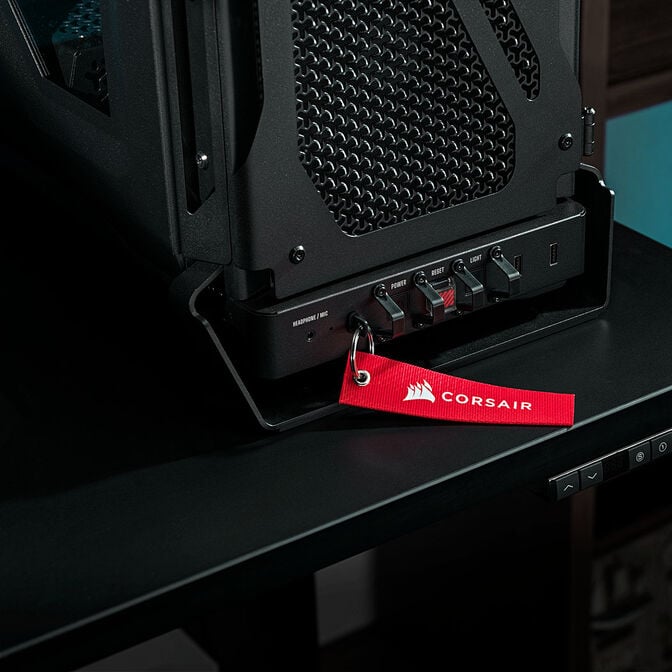

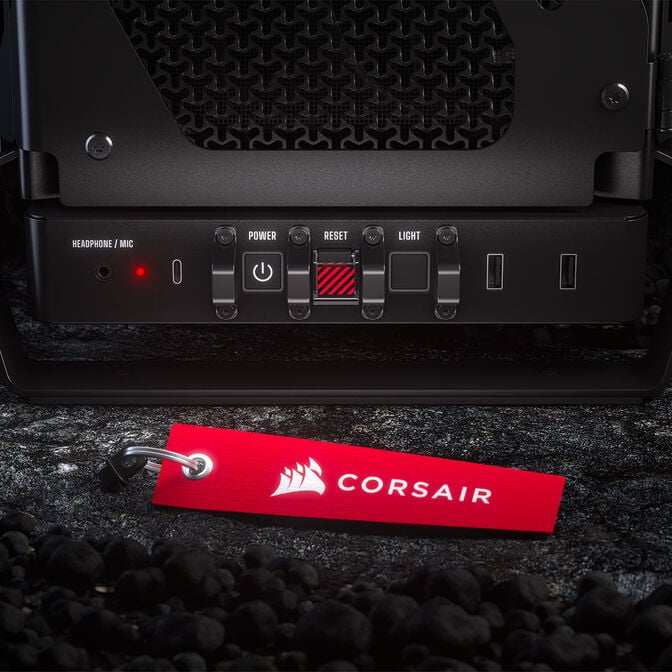

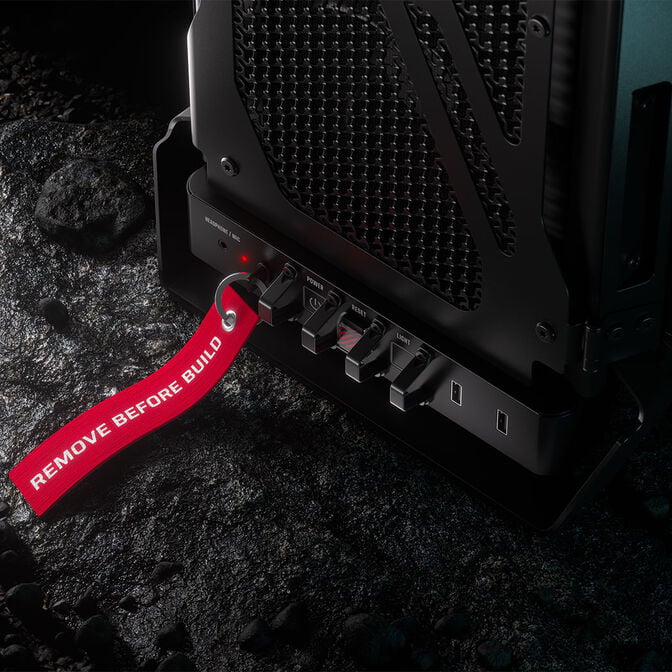

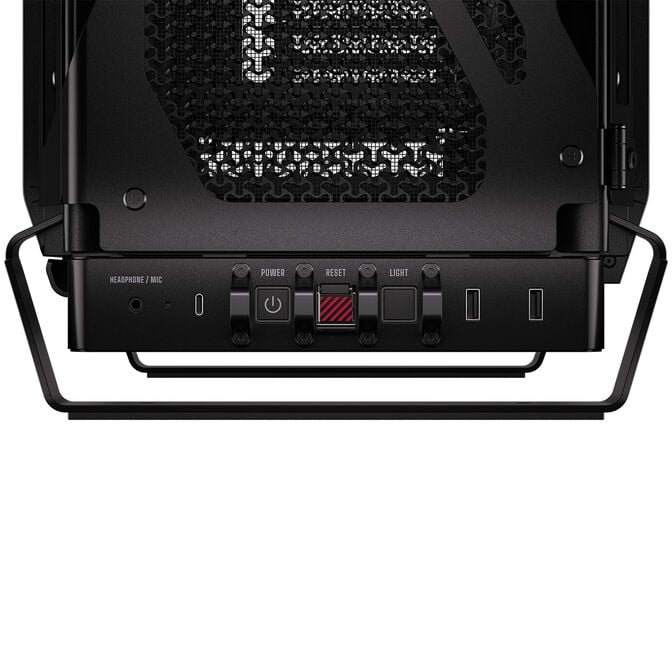

Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom, Front, Side
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
Yes
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Back-Connect Compatibility
|
ASUS BTF, Gigabyte Project Stealth, MSI Project Zero
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
RGB Controller
|
Yes
|
|
RGB Type
|
RGB
|
|
Additional Contents
|
|
|
Fans Included
|
No
|
|
Included fans
|
None
|
