EK Water Blocks EK-Loop Angled Bracket Mount - 120mm

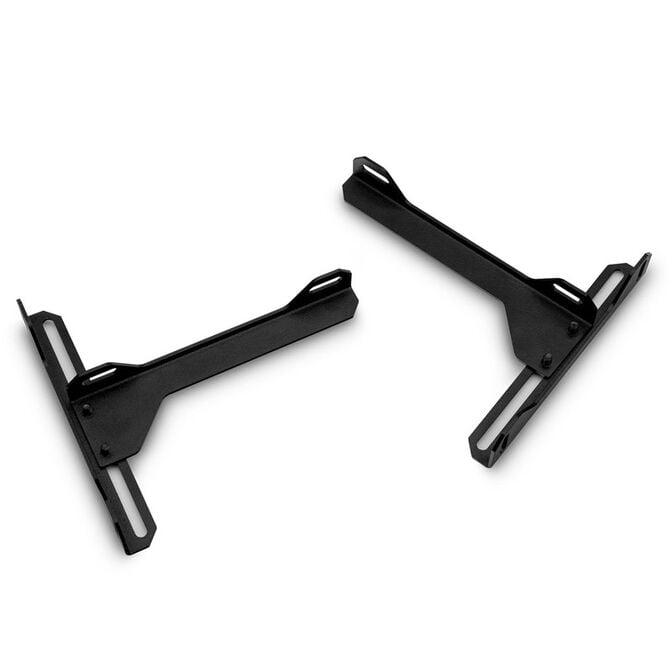

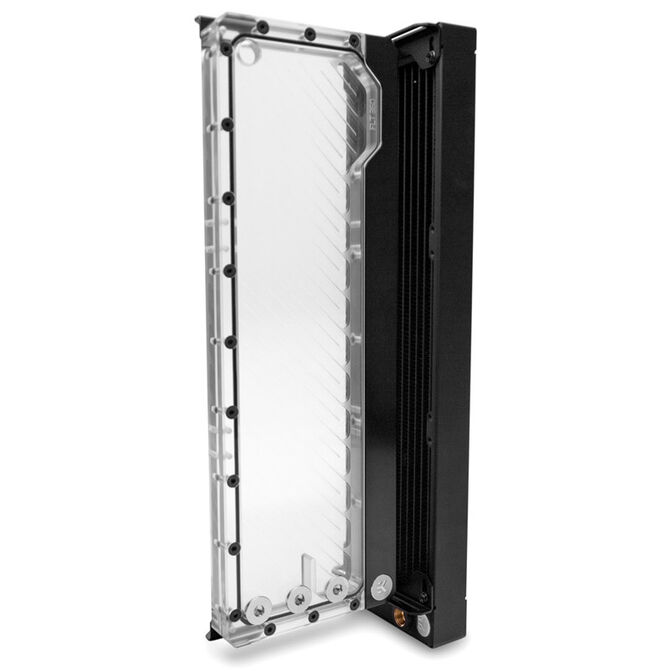

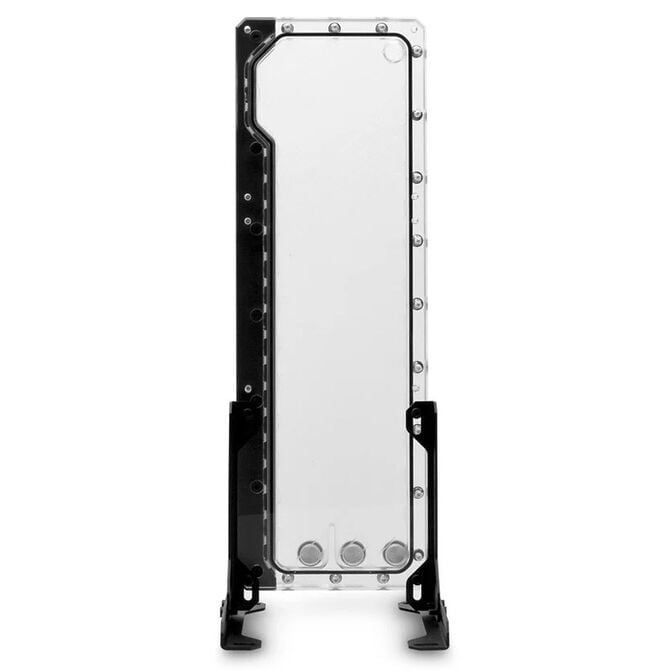

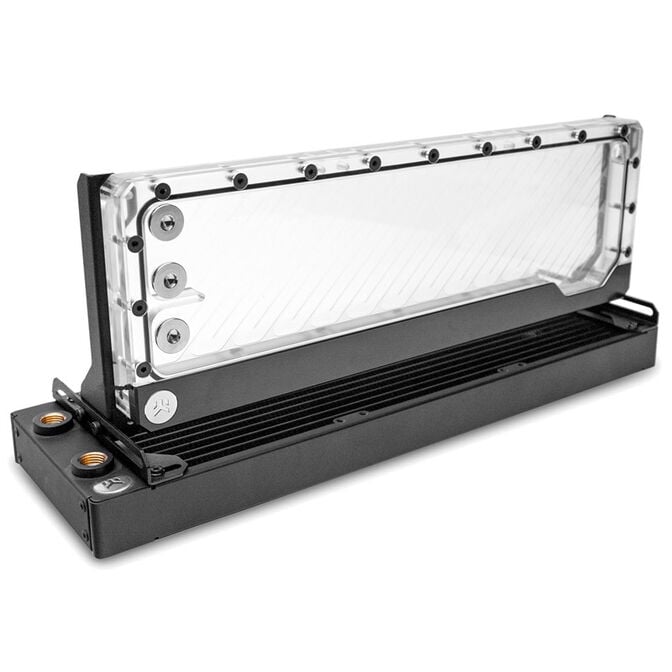

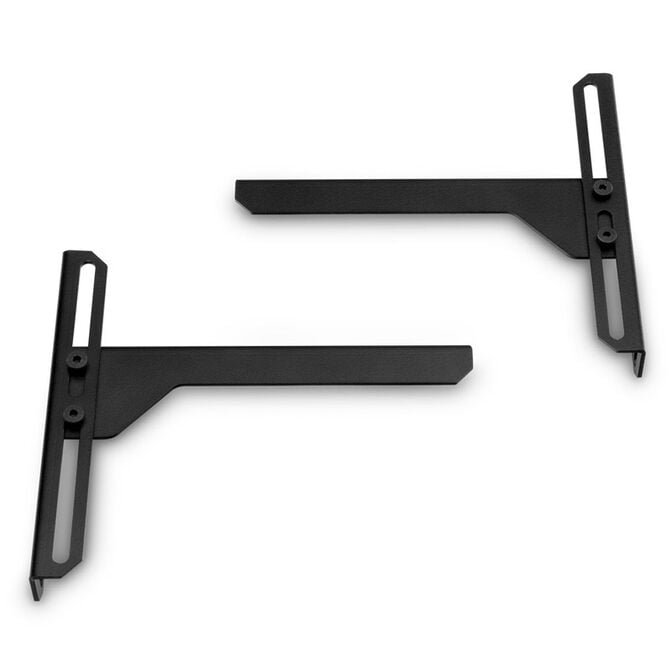

EK-Loop Angled Bracket is a steel mounting bracket that enables the user to mount the FLT style combo units or reservoirs perpendicular to any 120mm (105mm hole spacing) fan mounting holes. This will allow more airflow to freely pass through the case, or just to offer new mounting options which are not supported by the case itself. Additionally, you can use the long or the short side of your FLT product for additional mounting options.

This bracket also allows offsetting the product by about 50mm in each direction with the rail system it uses, because the screws are not in a fixed location. This bracket is not limited to FLT series products, even though it was engineered for it. With a bit of imagination, you can also use it for mounting radiators or any products with 120mm fan mounts. Made from press-bent 1,5mm thick painted steel.

Enclosed:
- EK-Loop Angled Brackets (left + right + base brackets)
- 4x polyamide washer M4 0.8mm
- 4x acetal spacer
- 4x screws M4x4 DIN7984
- 8x screws M4x10 DIN7984
- 4x nut M4
- Allen key 2.5mm
